RS X 43 AISI316/GALV
Art. No. RSXG100431021
- Aperture dimension Ø (mm)
- 82 - 84
- Configuration
- 1x (4.0-23.0)
- External dimension Ø (mm)
- 92
- Weight (kg)
- 0.84
Roxtec solutions

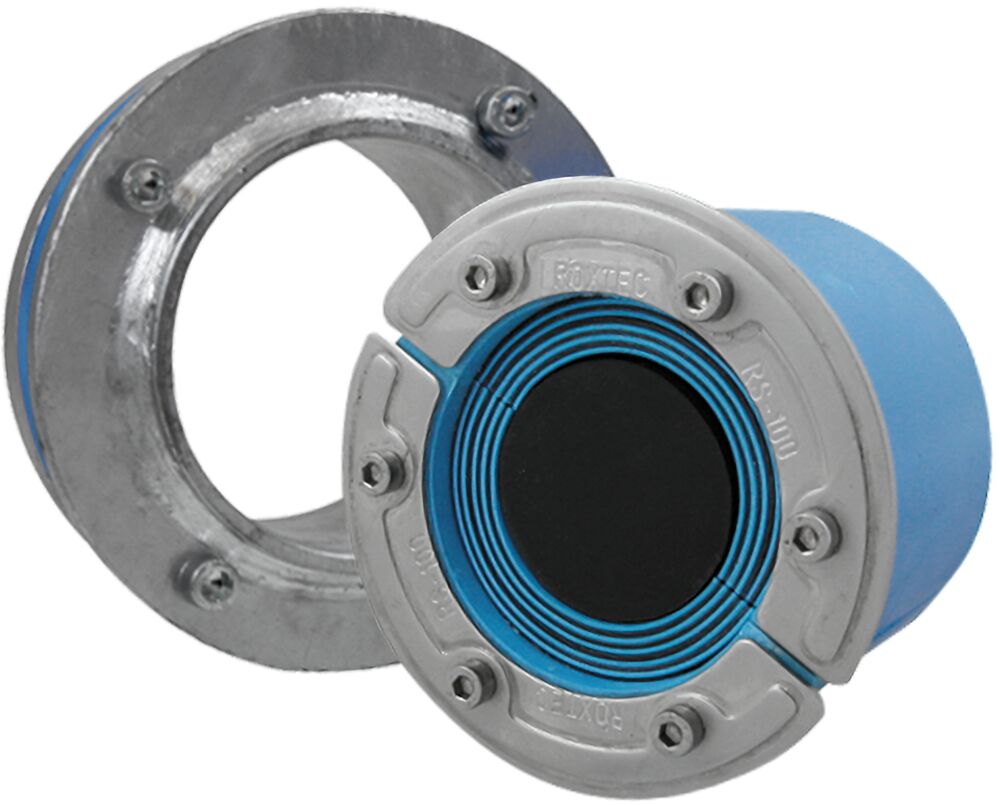

Roxtec RS X seal
Roxtec solutions · Roxtec
The Roxtec RS X is a non-weld seal with sleeve for single cables or pipes. The transit is ideal for retrofit or when welding is not allowed, recommended or desired. The sleeve has a rubber gasket on the outside and expands in the hole to firm attachment as the bolts are tightened. The RS X seal is adaptable to cables and pipes of different sizes through removable layers.
- Perfect for retrofit
Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.
Article numbers and specifications
Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.
RS X 50 AISI316/GALV
Art. No. RSXG100501021
- Aperture dimension Ø (mm)
- 90 - 92
- Configuration
- 1x (8.0-30.0)
- External dimension Ø (mm)
- 100
- Weight (kg)
- 1.4
RS X 75 AISI316/GALV
Art. No. RSXG100751021
- Aperture dimension Ø (mm)
- 115 - 117
- Configuration
- 1x (24.0-54.0)
- External dimension Ø (mm)
- 125
- Weight (kg)
- 2.19
RS X 100 AISI316/GALV
Art. No. RSXG101001021
- Aperture dimension Ø (mm)
- 145 - 147
- Configuration
- 1x (48.0-70.0)
- External dimension Ø (mm)
- 155
- Weight (kg)
- 3.2
RS X 125 AISI316/GALV
Art. No. RSXG101251021
- Aperture dimension Ø (mm)
- 170 - 172
- Configuration
- 1x (66.0-98.0)
- External dimension Ø (mm)
- 180
- Weight (kg)
- 2.8
RS X 100 AISI316 WOC/GALV
Art. No. RSXG001001021
- Aperture dimension Ø (mm)
- 145 - 147
- Configuration
- 1x (48.0-70.0)
- External dimension Ø (mm)
- 155
- Weight (kg)
- 3
RS X 125 AISI316 WOC/GALV
Art. No. RSXG001251021
- Aperture dimension Ø (mm)
- 170 - 172
- Configuration
- 1x (66.0-98.0)
- External dimension Ø (mm)
- 180
- Weight (kg)
- 3.97
RS X 150 AISI316 WOC/GALV
Art. No. RSXG001501021
- Aperture dimension Ø (mm)
- 199 - 201
- Configuration
- 1x (93.0-119.0)
- External dimension Ø (mm)
- 209
- Weight (kg)
- 5.2
RS X 175 AISI316 WOC/GALV
Art. No. RSXG001751021
- Aperture dimension Ø (mm)
- 220 - 222
- External dimension Ø (mm)
- 230
- Weight (kg)
- 5.03
RS X 200 AISI316 WOC/GALV
Art. No. RSXG002001021
- Aperture dimension Ø (mm)
- 250 - 252
- External dimension Ø (mm)
- 260
- Weight (kg)
- 6.55
Reference documents
These links open current files hosted by Roxtec. Check the source document revision before use.
- SLF X (en) pdf (manufacturer document)
- RS (en) pdf (manufacturer document)
- S1536887 RS X KIT SOLUTIONS RS X 25-200 PDF (manufacturer document)
- Data sheet (metric) (manufacturer document)
- Data sheet (imperial) (manufacturer document)
Source checked 2026-08-08: official Roxtec product page.
About Roxtec solutions
Roxtec solutions group complete cable and pipe transit arrangements by application. Send the penetration details or a known part number so the requested scope can be reviewed.
Typical applications:
- Cable and pipe penetrations
- New construction
- Retrofit and upgrade work
Not sure this is the right product? Compare the Roxtec solutions family or describe your application.
