RS 100 B Ex AISI316 WOC/PRIMED
Art. No. EXRSB0100102112
- Aperture dimension Ø (mm)
- 116 - 118
- Configuration
- 1x (48.0-70.0)
- External dimension Ø (mm)
- 195
- Weight (kg)
- 2.9
Roxtec solutions

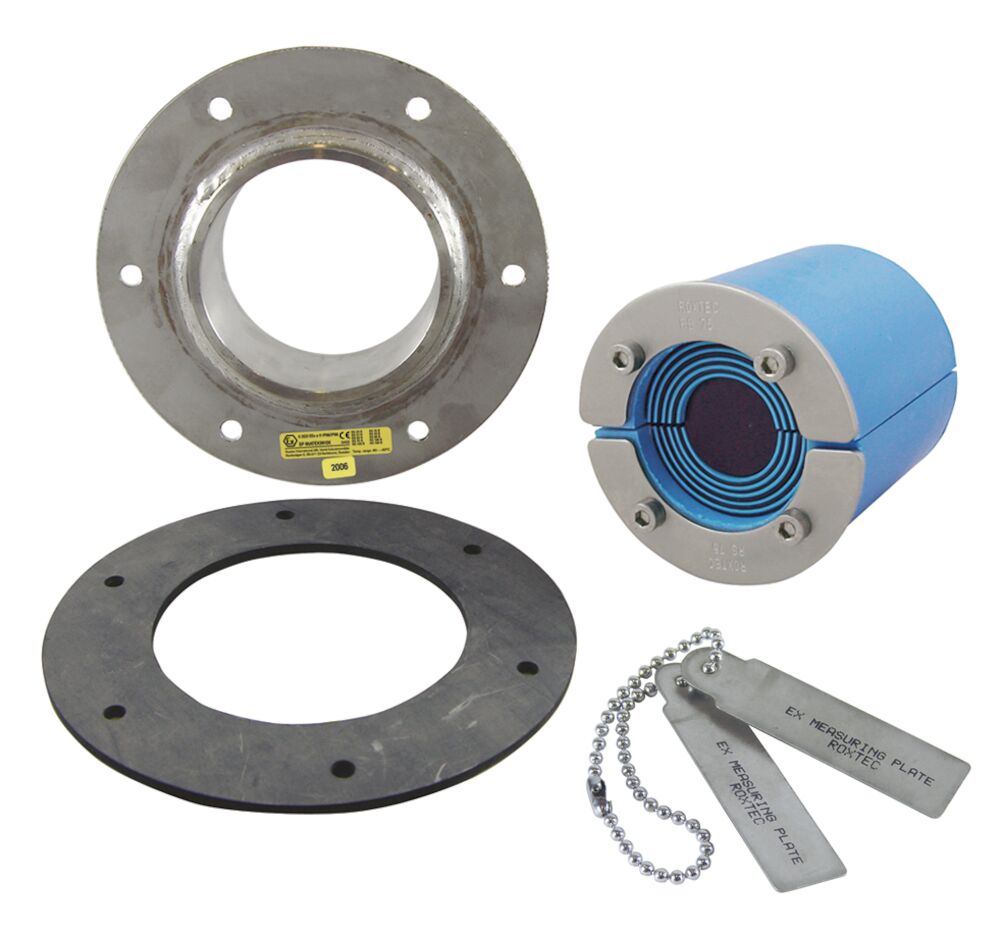

Roxtec RS Ex seal with SLF RS
Roxtec solutions · Roxtec
The Roxtec RS Ex with SLF RS is a seal rated for Ex e and Ex tb areas. It has a metal sleeve and is designed for single cables or pipes. The entry seal has two halves with removable layers making it adaptable to cables and pipes of different sizes. The sleeve is bolted to the structure.
- Rodent resistant
- Quick and easy to install
Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.
Article numbers and specifications
Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.
RS 125 B Ex AISI316 WOC/PRIMED
Art. No. EXRSB0125102112
- Aperture dimension Ø (mm)
- 142 - 144
- Configuration
- 1x (66.0-98.0)
- External dimension Ø (mm)
- 213
- Weight (kg)
- 3.45
RS 150 B Ex AISI316 WOC/PRIMED
Art. No. EXRSB0150102112
- Aperture dimension Ø (mm)
- 166 - 168
- Configuration
- 1x (93.0-119.0)
- External dimension Ø (mm)
- 236
- Weight (kg)
- 4.2
RS 25 B Ex AISI316/GALV
Art. No. EXRSB0250002118
- Aperture dimension Ø (mm)
- 36 - 36
- Configuration
- 1x (3.6-12.0)
- External dimension Ø (mm)
- 96
- Weight (kg)
- 0.43
RS 43 B Ex AISI316/GALV
Art. No. EXRSB0430002118
- Aperture dimension Ø (mm)
- 54 - 54
- Weight (kg)
- 0.92
RS 50 B Ex AISI316/GALV
Art. No. 101918
- Aperture dimension Ø (mm)
- 65 - 65
- Configuration
- 1x (8.0-30.0)
- External dimension Ø (mm)
- 60
- Weight (kg)
- 1.45
RS 75 B Ex AISI316/GALV
Art. No. EXRSB0750002118
- Aperture dimension Ø (mm)
- 91 - 91
- Configuration
- 1x (24.0-54.0)
- External dimension Ø (mm)
- 165
- Weight (kg)
- 2.05
RS 100 B Ex AISI316 WOC/GALV
Art. No. EXRSB0100102118
- Aperture dimension Ø (mm)
- 116 - 116
- Weight (kg)
- 2.9
RS 100 B Ex AISI316/GALV
Art. No. EXRSB1000002118
- Aperture dimension Ø (mm)
- 116 - 116
- Configuration
- 1x (48.0-70.0)
- External dimension Ø (mm)
- 195
- Weight (kg)
- 3
RS 125 B Ex AISI316 WOC/GALV
Art. No. EXRSB0125102118
- Aperture dimension Ø (mm)
- 142 - 142
- Weight (kg)
- 3.6
RS 125 B Ex AISI316/GALV
Art. No. EXRSB1250002118
- Aperture dimension Ø (mm)
- 125 - 127
- Configuration
- 1x (66.0-98.0)
- External dimension Ø (mm)
- 213
- Weight (kg)
- 4.26
RS 150 B Ex AISI316 WOC/GALV
Art. No. EXRSB0150102118
- Aperture dimension Ø (mm)
- 166 - 166
- Weight (kg)
- 4.47
RS 25 B Ex AISI316/AISI316
Art. No. EXRSB0250002121
- Aperture dimension Ø (mm)
- 36 - 38
- Configuration
- 1x (3.6-12.0)
- External dimension Ø (mm)
- 96
- Weight (kg)
- 0.48
RS 43 B Ex AISI316/AISI316
Art. No. EXRSB0430002121
- Aperture dimension Ø (mm)
- 54 - 56
- Configuration
- 1x (4.0-23.0)
- External dimension Ø (mm)
- 110
- Weight (kg)
- 0.9
RS 50 B Ex AISI316/AISI316
Art. No. EXRSB0500002121
- Aperture dimension Ø (mm)
- 65 - 67
- Configuration
- 1x (8.0-30.0)
- External dimension Ø (mm)
- 140
- Weight (kg)
- 1.45
RS 75 B Ex AISI316/AISI316
Art. No. EXRSB0750002121
- Aperture dimension Ø (mm)
- 91 - 93
- Configuration
- 1x (24.0-54.0)
- External dimension Ø (mm)
- 165
- Weight (kg)
- 2.08
RS 100 B Ex AISI316 WOC/AISI316
Art. No. EXRSB0100102121
- Aperture dimension Ø (mm)
- 116 - 118
- Configuration
- 1x (48.0-70.0)
- External dimension Ø (mm)
- 195
- Weight (kg)
- 2.7
RS 100 B Ex AISI316/AISI316
Art. No. EXRSB1000002121
- Aperture dimension Ø (mm)
- 116 - 116
- Configuration
- 1x (48.0-70.0)
- External dimension Ø (mm)
- 110
- Weight (kg)
- 3
RS 125 B Ex AISI316 WOC/AISI316
Art. No. EXRSB0125102121
- Aperture dimension Ø (mm)
- 142 - 144
- Configuration
- 1x (66.0-98.0)
- External dimension Ø (mm)
- 213
- Weight (kg)
- 3.6
RS 125 B Ex AISI316/AISI316
Art. No. 163616
- Aperture dimension Ø (mm)
- 142 - 142
- Configuration
- 1x (66.0-98.0)
- External dimension Ø (mm)
- 145
- Weight (kg)
- 3.94
RS 150 B Ex AISI316 WOC/AISI316
Art. No. EXRSB0150002121
- Aperture dimension Ø (mm)
- 166 - 168
- Configuration
- 1x (93.0-119.0)
- External dimension Ø (mm)
- 236
- Weight (kg)
- 4.06
Reference documents
These links open current files hosted by Roxtec. Check the source document revision before use.
- RS Ex (en) pdf (manufacturer document)
- RS PE Ex (en) pdf (manufacturer document)
- RS ES Ex (en) pdf (manufacturer document)
- S1005509 RS SEALS RS 25-200 PDF (manufacturer document)
- S1008814 SLFRS EX SLFRS 23- SLFRS 150 pdf (manufacturer document)
- S1016610 RS EX 25-150 ASSEMBLY PDF (manufacturer document)
- Data sheet (metric) (manufacturer document)
- Data sheet (imperial) (manufacturer document)
Source checked 2026-08-08: official Roxtec product page.
About Roxtec solutions
Roxtec solutions group complete cable and pipe transit arrangements by application. Send the penetration details or a known part number so the requested scope can be reviewed.
Typical applications:
- Cable and pipe penetrations
- New construction
- Retrofit and upgrade work
Not sure this is the right product? Compare the Roxtec solutions family or describe your application.
