R 100/4 UG
Art. No. 156874
- Configuration
- 4x (10.0-23.5)
- External dimension Ø (mm)
- 100
- Weight (kg)
- 1.2
Roxtec solutions

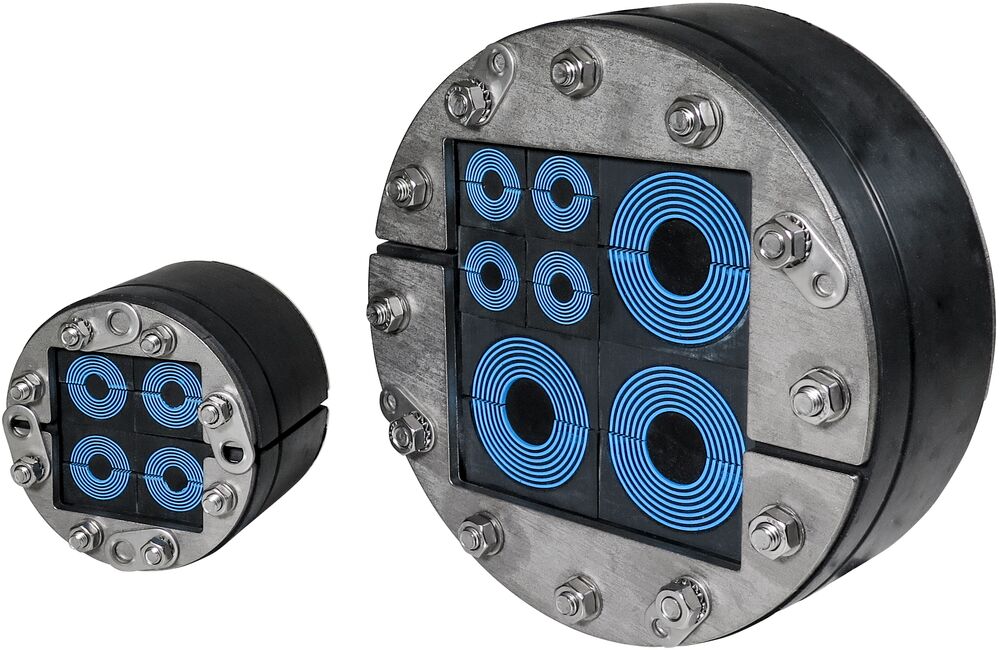

Roxtec R UG™ transit
Roxtec solutions · Roxtec
The Roxtec R UG™ is a transit for multiple cables and pipes entering via foundations. The seal allows for a mix of small and large cables and pipes in the same opening and works as a long-lasting barrier against flooding, gas, humidity and rodents. The transit withstands extreme cable bending and can be installed into sleeves, conduits and core drilled holes also in wet conditions and environments with running water.
- Rodent resistant
- Area efficient
- Quick and easy to install
- Easy to maintain and inspect
Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.
Article numbers and specifications
Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.
R 100/6 UG
Art. No. 156875
- Configuration
- 1x (4.0-13.0), 4x (4.0-13.0), 1x (9.5-31.0)
- Weight (kg)
- 1.16
R 150/6 UG
Art. No. 120859
- Configuration
- 5x (10.0-23.5), 1x (24.0-52.0)
- Weight (kg)
- 2.59
R 150/9 UG
Art. No. 117821
- Configuration
- 9x (10.0-23.5)
- Weight (kg)
- 2.65
R 200/15 UG
Art. No. 117855
- Configuration
- 7x (9.5-31.0), 8x (4.0-13.0)
- Weight (kg)
- 4.47
R 200/4 UG
Art. No. 117822
- Configuration
- 4x (24.0-52.0)
- Weight (kg)
- 4.5
R 200/7 UG
Art. No. 117854
- Aperture dimension Ø (mm)
- 200 - 202
- Configuration
- 3x (24.0-52.0), 4x (10.0-23.5)
- Weight (kg)
- 4.5
Reference documents
These links open current files hosted by Roxtec. Check the source document revision before use.
- R UG (en) pdf (manufacturer document)
- S1035392 R 200 UG KIT SOLUTIONS PDF (manufacturer document)
- S1035393 R 150 UG KIT SOLUTIONS PDF (manufacturer document)
- S1505918 R 100 UG KIT SOLUTIONS PDF (manufacturer document)
- Data sheet (metric) (manufacturer document)
- Data sheet (imperial) (manufacturer document)
Source checked 2026-08-08: official Roxtec product page.
About Roxtec solutions
Roxtec solutions group complete cable and pipe transit arrangements by application. Send the penetration details or a known part number so the requested scope can be reviewed.
Typical applications:
- Cable and pipe penetrations
- New construction
- Retrofit and upgrade work
Not sure this is the right product? Compare the Roxtec solutions family or describe your application.
