Roxtec H3+1 UG™ seal

Roxtec solutions · Roxtec

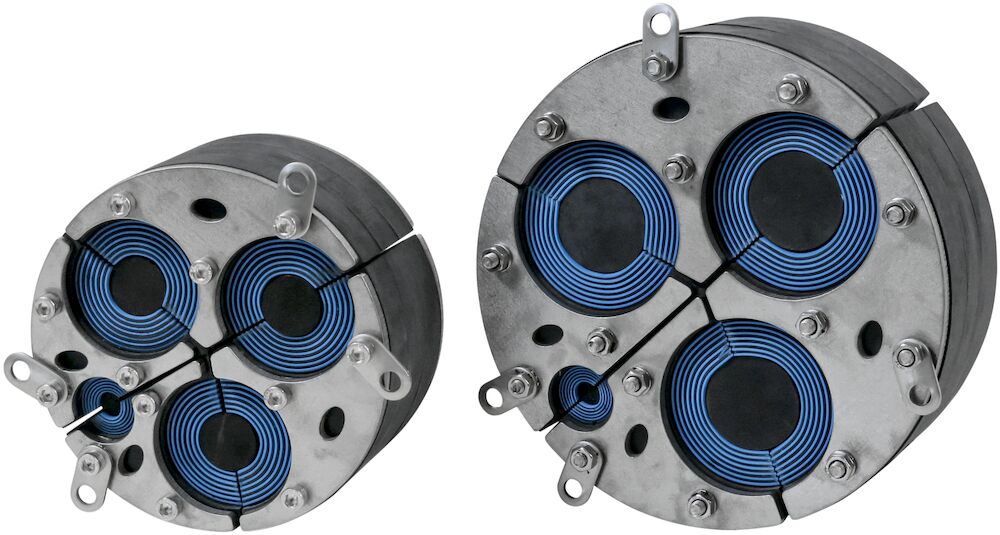

The Roxtec H3+1 UG™ seal is ideal for power cables in trefoil formation entering via foundations together with a grounding cable. It works as a long-lasting barrier against flooding, gas, humidity and rodents. It is a four-part seal that is easy to install also in wet conditions and in environments with running water. The transit withstands extreme cable bending and has a +3mm tolerance towards the aperture as well as an indicator showing when a compressed seal is achieved. The seal can be installed into knock-out sleeves, conduits and core drilled holes.

Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.

Request a quote for this product

Article numbers and specifications

Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.

H3+1 150 UG

Art. No. 192261

Aperture dimension Ø (mm)
150 - 153
Configuration
4x (10.0-53.0)
External dimension Ø (mm)
150
Weight (kg)
2.57
Quote this article number

H3+1 153 (6") UG

Art. No. 224524

Aperture dimension Ø (mm)
152.5 - 155.5
Configuration
4x (10.0-53.0)
External dimension Ø (mm)
152.5
Weight (kg)
2.63
Quote this article number

H3+1 200 UG

Art. No. 192082

Aperture dimension Ø (mm)
200 - 203
Configuration
4x (10.0-68.0)
External dimension Ø (mm)
200
Weight (kg)
4.25
Quote this article number

H3+1 201 (8") UG

Art. No. 224542

Aperture dimension Ø (mm)
201 - 204
Configuration
4x (10.0-68.0)
External dimension Ø (mm)
201
Weight (kg)
4.68
Quote this article number

Reference documents

These links open current files hosted by Roxtec. Check the source document revision before use.

Source checked 2026-08-08: official Roxtec product page.

About Roxtec solutions

Roxtec solutions group complete cable and pipe transit arrangements by application. Send the penetration details or a known part number so the requested scope can be reviewed.

Typical applications:

Not sure this is the right product? Compare the Roxtec solutions family or describe your application.
