CF 24/8
Art. No. CF00000240035
- Aperture dimensions WxH (mm)
- 170(-2) x 60
- Configuration
- 8x (10.0-25.0)
- External dimensions WxHxD (mm)
- 209 x 100 x 30
- Weight (kg)
- 1.5
Roxtec solutions

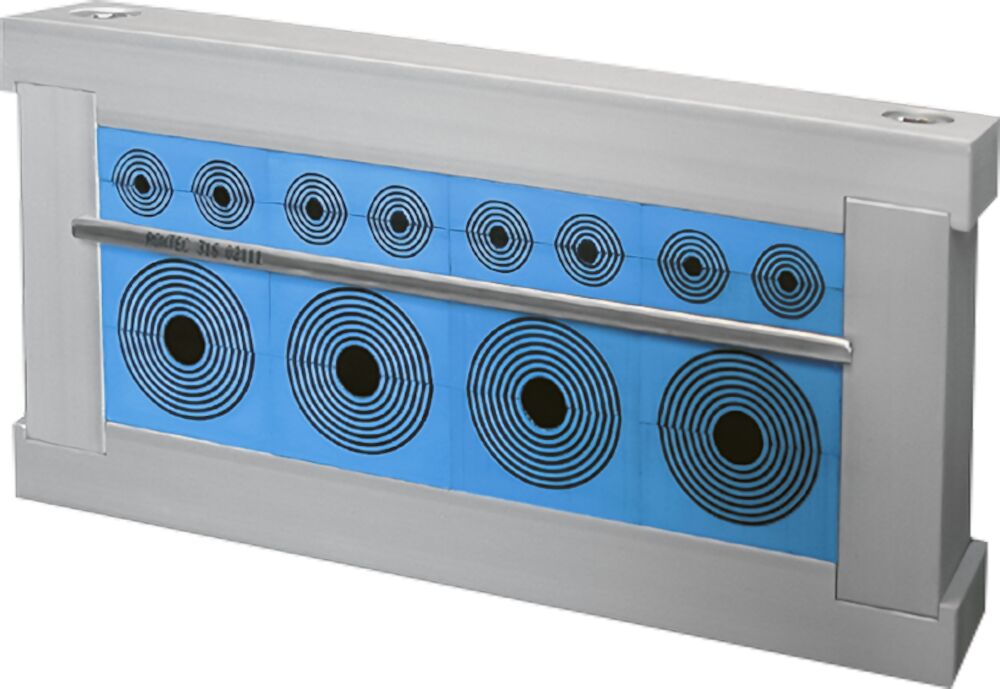

Roxtec CF 24 transit
Roxtec solutions · Roxtec
The Roxtec CF 24 entry seal has a bolted together frame made from aluminum. Compression is integrated in the frame. The frame is openable and easily installed around existing cables. The product is supplied as ready-made kits which include all necessary components.
- Light-weight
- Area efficient
- Perfect for retrofit
Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.
Article numbers and specifications
Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.
CF 24/12
Art. No. CF00000241235
- Aperture dimensions WxH (mm)
- 170(-2) x 60
- Configuration
- 8x (3.5-16.5), 4x (9.5-32.5)
- External dimensions WxHxD (mm)
- 209 x 100 x 30
- Weight (kg)
- 1.5
CF 24/28
Art. No. CF00000242835
- Aperture dimensions WxH (mm)
- 170(-2) x 60
- Configuration
- 16x (3.5-16.5), 12x (3.5-10.5)
- External dimensions WxHxD (mm)
- 209 x 100 x 30
- Weight (kg)
- 1.5
Reference documents
These links open current files hosted by Roxtec. Check the source document revision before use.
- INST INSTRUCTION CF 24 (en) pdf (manufacturer document)
- S1560876 CF 24 APERTURE DIMENSIONS PDF (manufacturer document)
- Data sheet (metric) (manufacturer document)
- Data sheet (imperial) (manufacturer document)
Source checked 2026-08-08: official Roxtec product page.
About Roxtec solutions
Roxtec solutions group complete cable and pipe transit arrangements by application. Send the penetration details or a known part number so the requested scope can be reviewed.
Typical applications:
- Cable and pipe penetrations
- New construction
- Retrofit and upgrade work
Not sure this is the right product? Compare the Roxtec solutions family or describe your application.
