C RS T 25 AISI316
Art. No. 104761
- Aperture dimension Ø (mm)
- 33 - 33
- Configuration
- 1x (3.6-12.0)
- External dimension Ø (mm)
- 39
- Weight (kg)
- 0.11
Roxtec solutions

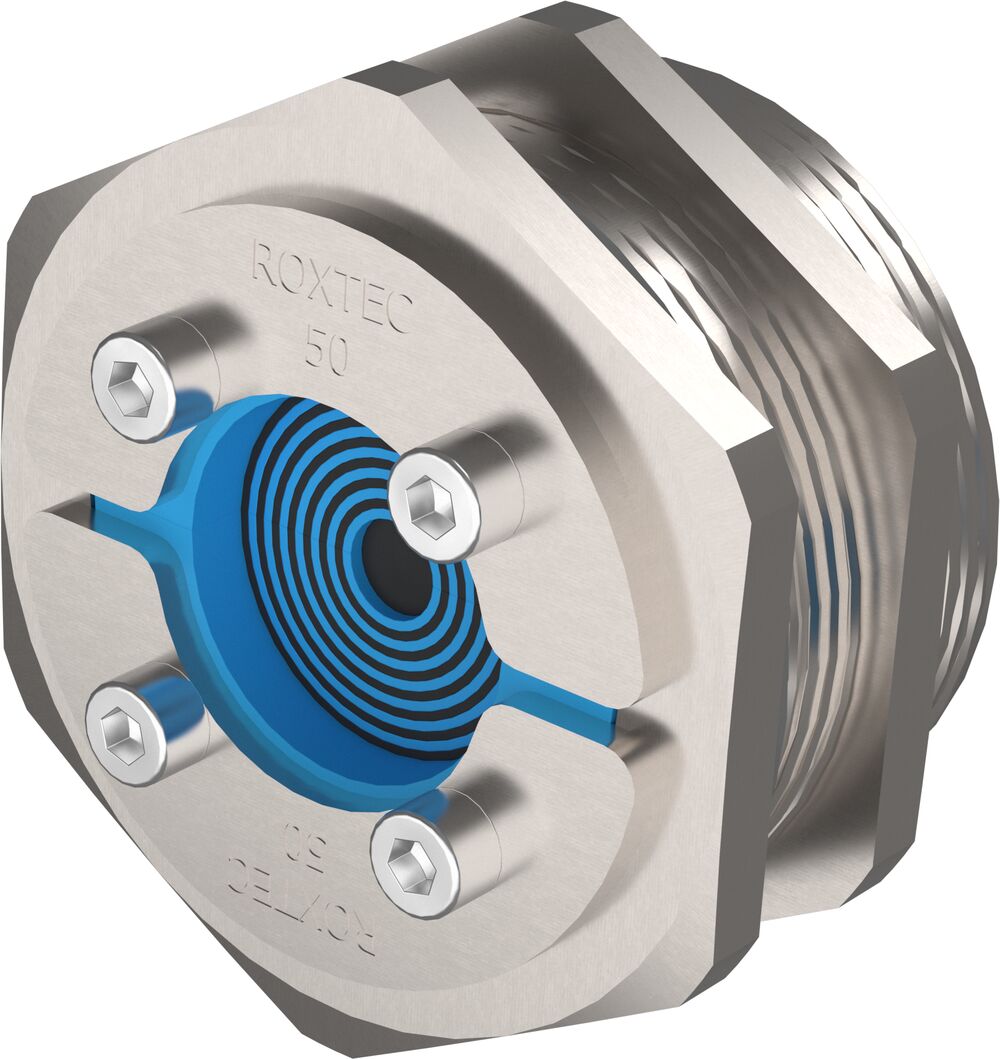

Roxtec C RS T seal
Roxtec solutions · Roxtec
The Roxtec C RS T is a compact entry seal for single cables requiring a rating up to IP 69K. The seal is available with housing in stainless steel or nickel-plated brass. The cable transit device is available in four sizes to cover cables ranging from 3.6 to 30mm.
- Light-weight
- Allows pre-terminated cables
Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.
Article numbers and specifications
Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.
C RS T 31 AISI316
Art. No. 5CRST00011494
- Aperture dimension Ø (mm)
- 41 - 41
- Configuration
- 1x (4.0-17.0)
- External dimension Ø (mm)
- 50
- Weight (kg)
- 0.16
C RS T 43 AISI316
Art. No. 106064
- Aperture dimension Ø (mm)
- 52 - 52
- Configuration
- 1x (4.0-23.0)
- External dimension Ø (mm)
- 65
- Weight (kg)
- 0.38
C RS T 50 AISI316
Art. No. 106065
- Aperture dimension Ø (mm)
- 64 - 64
- Configuration
- 1x (8.0-30.0)
- External dimension Ø (mm)
- 78
- Weight (kg)
- 0.65
C RS T 25
Art. No. CRST010025046
- Aperture dimension Ø (mm)
- 33 - 33
- Configuration
- 1x (3.6-12.0)
- External dimension Ø (mm)
- 39
- Weight (kg)
- 0.1
C RS T 31
Art. No. CRST010031046
- Aperture dimension Ø (mm)
- 41 - 41
- Configuration
- 1x (4.0-17.0)
- External dimension Ø (mm)
- 50
- Weight (kg)
- 0.16
C RS T 43
Art. No. CRST010043046
- Aperture dimension Ø (mm)
- 52 - 52
- Configuration
- 1x (4.0-23.0)
- External dimension Ø (mm)
- 65
- Weight (kg)
- 0.39
C RS T 50
Art. No. CRST010050046
- Aperture dimension Ø (mm)
- 64 - 64
- Configuration
- 1x (8.0-30.0)
- External dimension Ø (mm)
- 78
- Weight (kg)
- 0.66
Reference documents
These links open current files hosted by Roxtec. Check the source document revision before use.
- C RS T (en) pdf (manufacturer document)
- S1005785 C RS T SEALS C RS T 25-50 PDF (manufacturer document)
- Data sheet (metric) (manufacturer document)
- Data sheet (imperial) (manufacturer document)
Source checked 2026-08-08: official Roxtec product page.
About Roxtec solutions
Roxtec solutions group complete cable and pipe transit arrangements by application. Send the penetration details or a known part number so the requested scope can be reviewed.
Typical applications:
- Cable and pipe penetrations
- New construction
- Retrofit and upgrade work
Not sure this is the right product? Compare the Roxtec solutions family or describe your application.
