SPM 39
Art. No. 167591
- Aperture dimension Ø (mm)
- 39 - 43
- For cable/pipe Ø (mm)
- 8 - 12
- Weight (kg)
- 0.14
Roxtec round frames/seals

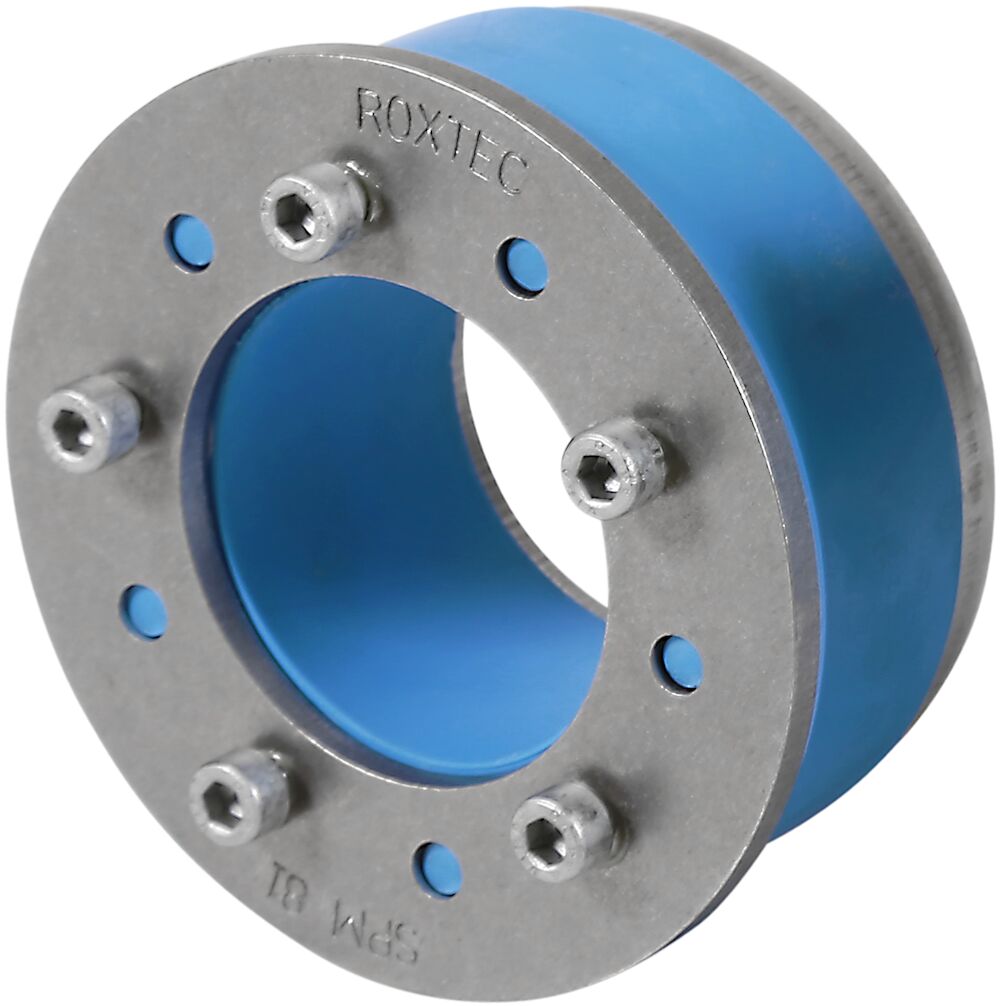

Roxtec SPM™ seal
Roxtec round frames/seals · Roxtec
The Roxtec SPM™ is a non-weld, light-weight seal for any kind of metal pipe. It is installed from one side of the metal structures which may range in thickness from 5 to 15 mm.
- For one pipe
- Single side installation
Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.
Article numbers and specifications
Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.
SPM 41
Art. No. 153052
- Aperture dimension Ø (mm)
- 41 - 45
- For cable/pipe Ø (mm)
- 12 - 16
- Weight (kg)
- 0.14
SPM 48
Art. No. 167592
- Aperture dimension Ø (mm)
- 48 - 52
- For cable/pipe Ø (mm)
- 16 - 20
- Weight (kg)
- 0.2
SPM 54
Art. No. 153060
- Aperture dimension Ø (mm)
- 53.5 - 57.5
- For cable/pipe Ø (mm)
- 19 - 23
- Weight (kg)
- 0.25
SPM 59
Art. No. 153064
- Aperture dimension Ø (mm)
- 58.5 - 62.5
- For cable/pipe Ø (mm)
- 24 - 28
- Weight (kg)
- 0.3
SPM 62
Art. No. 153068
- Aperture dimension Ø (mm)
- 61.5 - 65.5
- For cable/pipe Ø (mm)
- 27 - 31
- Weight (kg)
- 0.32
SPM 69
Art. No. 153072
- Aperture dimension Ø (mm)
- 68.5 - 72.5
- For cable/pipe Ø (mm)
- 32 - 36
- Weight (kg)
- 0.37
SPM 77
Art. No. 166011
- Aperture dimension Ø (mm)
- 77 - 81
- For cable/pipe Ø (mm)
- 37 - 42
- Weight (kg)
- 0.47
SPM 81
Art. No. 153040
- Aperture dimension Ø (mm)
- 81 - 85
- For cable/pipe Ø (mm)
- 41.4 - 45.4
- Weight (kg)
- 0.45
SPM 87
Art. No. 153076
- Aperture dimension Ø (mm)
- 87 - 91
- For cable/pipe Ø (mm)
- 47 - 51
- Weight (kg)
- 0.5
SPM 92
Art. No. 153080
- Aperture dimension Ø (mm)
- 92 - 96
- For cable/pipe Ø (mm)
- 52 - 56
- Weight (kg)
- 0.53
SPM 103
Art. No. 153084
- Aperture dimension Ø (mm)
- 103 - 107
- For cable/pipe Ø (mm)
- 56.2 - 61.1
- Weight (kg)
- 0.67
SPM 110
Art. No. 206104
- Aperture dimension Ø (mm)
- 110 - 114
- For cable/pipe Ø (mm)
- 65 - 69
- Weight (kg)
- 0.69
SPM 119
Art. No. 153088
- Aperture dimension Ø (mm)
- 119 - 123
- For cable/pipe Ø (mm)
- 72.2 - 76.9
- Weight (kg)
- 0.8
SPM 125
Art. No. 206108
- Aperture dimension Ø (mm)
- 125 - 129
- For cable/pipe Ø (mm)
- 77 - 81
- Weight (kg)
- 0.91
SPM 138
Art. No. 153056
- Aperture dimension Ø (mm)
- 138 - 142
- For cable/pipe Ø (mm)
- 88 - 92
- Weight (kg)
- 1.15
SPM 149
Art. No. 167594
- Aperture dimension Ø (mm)
- 149 - 153
- For cable/pipe Ø (mm)
- 99 - 103
- Weight (kg)
- 1.2
SPM 153
Art. No. 206112
- Aperture dimension Ø (mm)
- 153 - 157
- For cable/pipe Ø (mm)
- 103 - 107
- Weight (kg)
- 1.18
SPM 157
Art. No. 153092
- Aperture dimension Ø (mm)
- 157 - 161
- For cable/pipe Ø (mm)
- 107 - 111
- Weight (kg)
- 1.24
SPM 168
Art. No. 153096
- Aperture dimension Ø (mm)
- 168 - 172
- For cable/pipe Ø (mm)
- 113 - 117
- Weight (kg)
- 1.56
SPM 178
Art. No. 167595
- Aperture dimension Ø (mm)
- 178 - 182
- For cable/pipe Ø (mm)
- 123 - 127
- Weight (kg)
- 1.73
SPM 188
Art. No. 167596
- Aperture dimension Ø (mm)
- 188 - 192
- For cable/pipe Ø (mm)
- 131 - 135
- Weight (kg)
- 1.92
SPM 196
Art. No. 153100
- Aperture dimension Ø (mm)
- 196 - 200
- For cable/pipe Ø (mm)
- 138.5 - 143
- Weight (kg)
- 1.9
SPM 217
Art. No. 167597
- Aperture dimension Ø (mm)
- 217 - 221
- For cable/pipe Ø (mm)
- 157 - 162
- Weight (kg)
- 2.34
SPM 226
Art. No. 153104
- Aperture dimension Ø (mm)
- 226 - 230
- For cable/pipe Ø (mm)
- 167 - 171
- Weight (kg)
- 2.37
SPM 266
Art. No. 206124
- Aperture dimension Ø (mm)
- 266 - 270
- For cable/pipe Ø (mm)
- 206 - 210
- Weight (kg)
- 2.86
SPM 279
Art. No. 153036
- Aperture dimension Ø (mm)
- 279 - 283
- For cable/pipe Ø (mm)
- 218 - 222
- Weight (kg)
- 3.3
Reference documents
These links open current files hosted by Roxtec. Check the source document revision before use.
- SPM (en) pdf (manufacturer document)
- S1502970 SPM SEALS SPM 39-279 PDF (manufacturer document)
Source-listed certificates
Certificate rows reproduce factual source fields. They do not confirm applicability to a specific assembly. Open the source record and ask AMFSS to check the application.
| Authority | Rating | Division / structure | Cable | Pipe | Type approval | Status |
|---|---|---|---|---|---|---|
| ABS | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium | — | Copper Steel | 23-2372497-PDA | No renewal status stated |
| BV | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium | — | Copper Steel | 52630/B0 BV | No renewal status stated |
| KRS | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Steel | — | Bundle Copper Copper-Nickel Steel | CPH04189-FP007 | No renewal status stated |
| CCS | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium Steel | — | Bundle Copper Copper-Nickel Steel | GB23PTB00036_02 | No renewal status stated |
| RINA | A class fire Water tightness (catastrophic) | Steel | — | Copper Copper-Nickel Steel | LAB220921CS-001 | Source states: under renewal |
| RINA | A class fire | Aluminium | — | Copper Steel | LAB498522CS/006 | No renewal status stated |
| LR | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium Steel | — | Copper Steel | LR26294395SFTC | No renewal status stated |
| DNV | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Steel | — | Copper Steel | MEDB00000NV | No renewal status stated |
| DNV | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium | — | Copper Steel | MEDB0000368 | No renewal status stated |
| DNV | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Steel | — | Copper Steel | MERB00000NV | No renewal status stated |
| DNV | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium | — | Copper Steel | MERB0000368 | No renewal status stated |
| ClassNK | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium Steel | — | Bundle Copper Copper-Nickel Fiberglass Other Plastic Steel Titanium | TA251517E | No renewal status stated |
Source checked 2026-08-08: official Roxtec product page.
About Roxtec round frames/seals
Roxtec round frames and seals cover round cable and pipe entry arrangements. Selection depends on the opening, cable or pipe dimensions, attachment method, and project requirements.
Typical applications:
- Round openings
- Sleeves and core-drilled holes
- Cable and pipe entries
Not sure this is the right product? Compare the Roxtec round frames/seals family or describe your application.
