SLFR 70 PRIMED
Art. No. ASFR100700012
- Aperture dimension Ø (mm)
- 87 - 93
- External dimensions ØxZ (mm)
- 160 x 55
- Internal Ø (mm)
- 71.5
- Weight (kg)
- 1.05
Roxtec round frames/seals

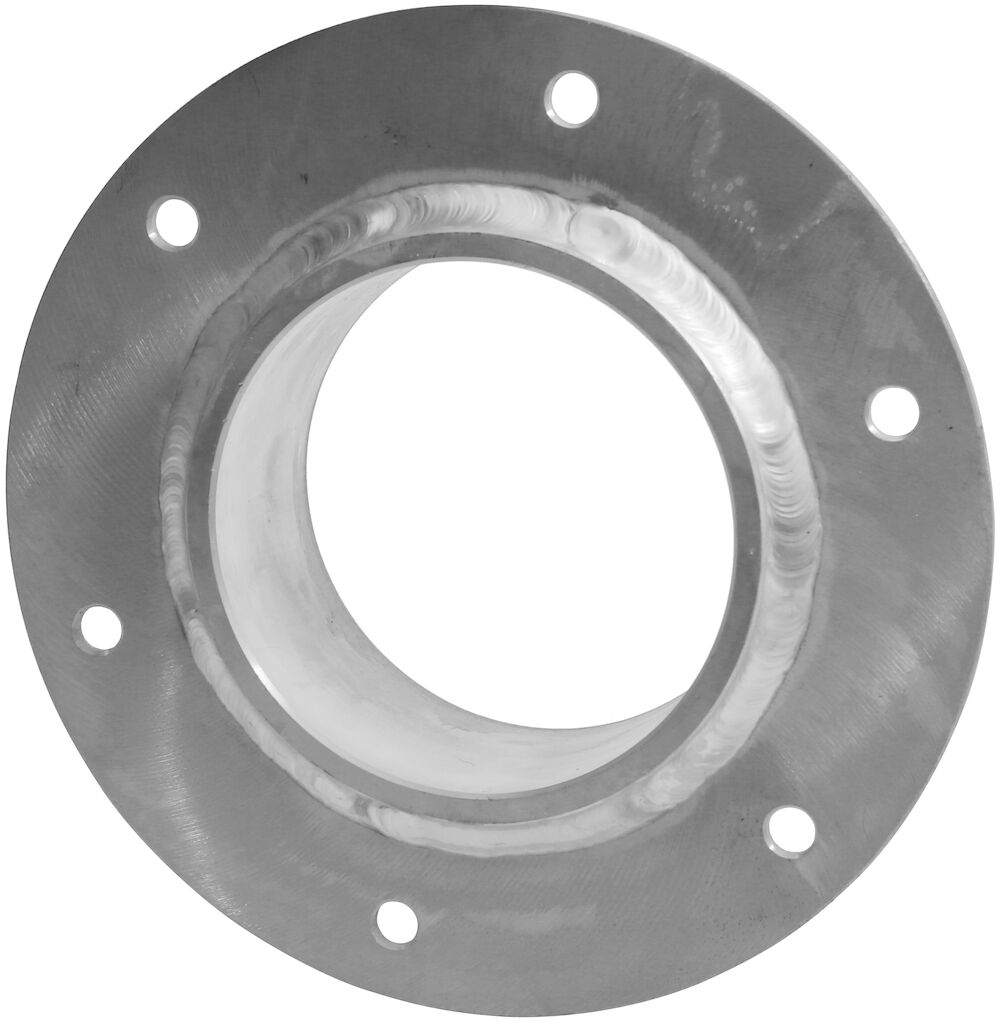

Roxtec SLF R sleeve
Roxtec round frames/seals · Roxtec
The Roxtec SLF R sleeve with flange is designed to cover imprecise openings and suitable with Roxtec R sealing solutions.
- Attachment by bolting
Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.
Article numbers and specifications
Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.
SLFR 75 PRIMED
Art. No. ASFR100750012
- Aperture dimension Ø (mm)
- 93 - 99
- External dimensions ØxZ (mm)
- 165 x 55
- Internal Ø (mm)
- 76.5
- Weight (kg)
- 1.2
SLFR 100 PRIMED
Art. No. ASFR101000012
- Aperture dimension Ø (mm)
- 118 - 128
- External dimensions ØxZ (mm)
- 195 x 55
- Internal Ø (mm)
- 101
- Weight (kg)
- 1.58
SLFR 125 PRIMED
Art. No. ASFR101250012
- Aperture dimension Ø (mm)
- 144 - 154
- External dimensions ØxZ (mm)
- 213 x 55
- Internal Ø (mm)
- 126
- Weight (kg)
- 1.82
SLFR 127 PRIMED
Art. No. ASFR101270012
- Aperture dimension Ø (mm)
- 144 - 154
- External dimensions ØxZ (mm)
- 213 x 55
- Internal Ø (mm)
- 128
- Weight (kg)
- 1.67
SLFR 150 PRIMED
Art. No. ASFR101500012
- Aperture dimension Ø (mm)
- 168 - 178
- External dimensions ØxZ (mm)
- 236 x 55
- Internal Ø (mm)
- 151
- Weight (kg)
- 2.1
SLFR 200 PRIMED
Art. No. ASFR102000012
- Aperture dimension Ø (mm)
- 218 - 228
- External dimensions ØxZ (mm)
- 290 x 55
- Internal Ø (mm)
- 201
- Weight (kg)
- 2.78
SLFR 50 GALV
Art. No. 177110
- Aperture dimension Ø (mm)
- 67 - 73
- External dimensions ØxZ (mm)
- 140 x 55
- Internal Ø (mm)
- 51
- Weight (kg)
- 1
SLFR 70 GALV
Art. No. ASFR100700015
- Aperture dimension Ø (mm)
- 87 - 93
- External dimensions ØxZ (mm)
- 160 x 55
- Internal Ø (mm)
- 71.5
- Weight (kg)
- 1.08
SLFR 75 GALV
Art. No. ASFR100750015
- Aperture dimension Ø (mm)
- 93 - 99
- External dimensions ØxZ (mm)
- 165 x 55
- Internal Ø (mm)
- 76.5
- Weight (kg)
- 1.23
SLFR 100 GALV
Art. No. ASFR101000015
- Aperture dimension Ø (mm)
- 118 - 128
- External dimensions ØxZ (mm)
- 195 x 55
- Internal Ø (mm)
- 101
- Weight (kg)
- 1.61
SLFR 125 GALV
Art. No. ASFR101250015
- Aperture dimension Ø (mm)
- 144 - 154
- External dimensions ØxZ (mm)
- 213 x 55
- Internal Ø (mm)
- 126
- Weight (kg)
- 1.91
SLFR 127 GALV
Art. No. ASFR101270015
- Aperture dimension Ø (mm)
- 144 - 154
- External dimensions ØxZ (mm)
- 213 x 55
- Internal Ø (mm)
- 128
- Weight (kg)
- 1.73
SLFR 150 GALV
Art. No. ASFR101500015
- Aperture dimension Ø (mm)
- 168 - 178
- External dimensions ØxZ (mm)
- 236 x 55
- Internal Ø (mm)
- 151
- Weight (kg)
- 2.18
SLFR 200 GALV
Art. No. ASFR102000015
- Aperture dimension Ø (mm)
- 218 - 228
- External dimensions ØxZ (mm)
- 290 x 55
- Internal Ø (mm)
- 201
- Weight (kg)
- 2.9
SLFR 50 AISI316
Art. No. 109039
- Aperture dimension Ø (mm)
- 67 - 73
- External dimensions ØxZ (mm)
- 140 x 55
- Internal Ø (mm)
- 51
- Weight (kg)
- 0.8
SLFR 70 AISI316
Art. No. 5ASFR00002375
- Aperture dimension Ø (mm)
- 87 - 93
- External dimensions ØxZ (mm)
- 160 x 55
- Internal Ø (mm)
- 71.5
- Weight (kg)
- 1.07
SLFR 75 AISI316
Art. No. 5ASFR00001785
- Aperture dimension Ø (mm)
- 93 - 99
- External dimensions ØxZ (mm)
- 165 x 55
- Internal Ø (mm)
- 76.5
- Weight (kg)
- 1.2
SLFR 100 AISI316
Art. No. 5ASFR00001784
- Aperture dimension Ø (mm)
- 118 - 128
- External dimensions ØxZ (mm)
- 195 x 55
- Internal Ø (mm)
- 101
- Weight (kg)
- 1.8
SLFR 125 AISI316
Art. No. 5ASFR00006186
- Aperture dimension Ø (mm)
- 144 - 154
- External dimensions ØxZ (mm)
- 213 x 55
- Internal Ø (mm)
- 126
- Weight (kg)
- 1.5
SLFR 127 AISI316
Art. No. 5ASFR00003042
- Aperture dimension Ø (mm)
- 144 - 154
- External dimensions ØxZ (mm)
- 213 x 55
- Internal Ø (mm)
- 128
- Weight (kg)
- 1.7
SLFR 150 AISI316
Art. No. 5ASFR00003264
- Aperture dimension Ø (mm)
- 168 - 178
- External dimensions ØxZ (mm)
- 236 x 55
- Internal Ø (mm)
- 151
- Weight (kg)
- 2.16
SLFR 200 AISI316
Art. No. 5ASFR00006219
- Aperture dimension Ø (mm)
- 218 - 228
- External dimensions ØxZ (mm)
- 290 x 55
- Internal Ø (mm)
- 201
- Weight (kg)
- 2.65
SLFR 50 ALU
Art. No. 187444
- Aperture dimension Ø (mm)
- 67 - 73
- External dimensions ØxZ (mm)
- 140 x 55
- Internal Ø (mm)
- 51
- Weight (kg)
- 0.28
SLFR 70 ALU
Art. No. 5ASFR00008713
- Aperture dimension Ø (mm)
- 87 - 93
- External dimensions ØxZ (mm)
- 160 x 55
- Internal Ø (mm)
- 71.5
- Weight (kg)
- 0.33
SLFR 75 ALU
Art. No. 5ASF000008712
- Aperture dimension Ø (mm)
- 93 - 99
- External dimensions ØxZ (mm)
- 165 x 55
- Internal Ø (mm)
- 76.5
- Weight (kg)
- 0.4
SLFR 100 ALU
Art. No. 5ASFR00001917
- Aperture dimension Ø (mm)
- 118 - 128
- External dimensions ØxZ (mm)
- 195 x 55
- Internal Ø (mm)
- 101
- Weight (kg)
- 0.53
SLFR 125 ALU
Art. No. 5ASF000004286
- Aperture dimension Ø (mm)
- 144 - 154
- External dimensions ØxZ (mm)
- 213 x 55
- Internal Ø (mm)
- 126
- Weight (kg)
- 0.55
SLFR 127 ALU
Art. No. 5ASFR00008714
- Aperture dimension Ø (mm)
- 144 - 154
- External dimensions ØxZ (mm)
- 213 x 55
- Internal Ø (mm)
- 128
- Weight (kg)
- 0.59
SLFR 150 ALU
Art. No. 5ASFR00007671
- Aperture dimension Ø (mm)
- 168 - 178
- External dimensions ØxZ (mm)
- 236 x 55
- Internal Ø (mm)
- 151
- Weight (kg)
- 0.7
SLFR 200 ALU
Art. No. 5ASFR00001918
- Aperture dimension Ø (mm)
- 218 - 228
- External dimensions ØxZ (mm)
- 290 x 55
- Internal Ø (mm)
- 201
- Weight (kg)
- 0.96
Reference documents
These links open current files hosted by Roxtec. Check the source document revision before use.
- MOUNTING OF BOLTED FRAMES AND SLEEVES (en) pdf (manufacturer document)
- APERTURE DIMENSIONS SL/SLF SERIES (en) pdf (manufacturer document)
- S1006852 SLEEVE WITH FLANGE SLFR/RS 23-644 PDF (manufacturer document)
Source-listed certificates
Certificate rows reproduce factual source fields. They do not confirm applicability to a specific assembly. Open the source record and ask AMFSS to check the application.
| Authority | Rating | Division / structure | Cable | Pipe | Type approval | Status |
|---|---|---|---|---|---|---|
| Roxtec International AB | E fire EI fire | Concrete Concrete or Brickwork Lightweight concrete | Construction | Copper Steel | 0402-CPR-C500591 | No renewal status stated |
| ABS | Gas tightness (catastrophic) H class fire Water tightness (catastrophic) | Stainless steel Steel | Marine | Bundle Steel Titanium | 24-0079709-PDA | No renewal status stated |
| ABS | Gas tightness (catastrophic) H class fire Water tightness (catastrophic) | Stainless steel Steel | Marine | Bundle Steel Titanium | 24-0079709-PDA-DUP | No renewal status stated |
| ABS | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Steel | — | Bundle Copper Copper-Nickel Steel | 24-2519751-PDA | No renewal status stated |
| ABS | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Steel | — | Bundle Copper Copper-Nickel Steel | 24-2519751-PDA-DUP | No renewal status stated |
| Roxtec International AB | E fire EI fire | Concrete Concrete or Brickwork Lightweight concrete | Construction | Copper Steel | 2531-CPR-CXO10202 | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Concrete | Armored Construction | — | C-BJ-3052 | No renewal status stated |
| Roxtec International AB | E fire EI fire | Concrete Concrete or Brickwork Lightweight concrete | Construction Telecom | Copper Steel | CE Declaration of Conformity (ETA-19/0584 | No renewal status stated |
| Roxtec International AB | E fire EI fire | Concrete Concrete or Brickwork Lightweight concrete | Construction Telecom | Copper Steel | CE Declaration of Performance (DoP) ETA-19/0584 | No renewal status stated |
| Instytut Techniki Bodowlanej | EI fire | Concrete Concrete or Brickwork Lightweight concrete | Construction | Copper Steel | ETA-19/0584 | No renewal status stated |
| DNV | A class fire | Steel | — | Copper Copper-Nickel Steel | MEDB00006BG | No renewal status stated |
| DNV | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Steel | — | Copper Copper-Nickel Steel | MERB00006BG | No renewal status stated |
| ClassNK | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium Steel | — | Bundle Copper Copper-Nickel Fiberglass Other Plastic Steel Titanium | TA251517E | No renewal status stated |
| DNV | Gas tightness (catastrophic) H class fire Water tightness (catastrophic) | Steel | Marine | — | TAF00000DH | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Concrete Lightweight concrete | Armored Construction | — | W-J-3248 | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Concrete Lightweight concrete | Armored Construction | — | W-J-3249 | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Concrete Lightweight concrete | Armored Construction | — | W-J-3251 | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Concrete Lightweight concrete | Armored Construction | — | W-J-3253 | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Concrete Lightweight concrete | Armored Construction | — | W-J-3255 | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Concrete Lightweight concrete | Armored Construction | — | W-J-3256 | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Sandwich | Armored Construction | Conduit | W-N-8003 | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | — | — | — | XHJI7.R15556 | No renewal status stated |
Source checked 2026-08-08: official Roxtec product page.
About Roxtec round frames/seals
Roxtec round frames and seals cover round cable and pipe entry arrangements. Selection depends on the opening, cable or pipe dimensions, attachment method, and project requirements.
Typical applications:
- Round openings
- Sleeves and core-drilled holes
- Cable and pipe entries
Not sure this is the right product? Compare the Roxtec round frames/seals family or describe your application.
