SLR 50 PRIMED
Art. No. 168033
- Aperture dimension Ø (mm)
- 63 - 65
- External dimensions ØxZ (mm)
- 63 x 55
- Internal Ø (mm)
- 51
- Weight (kg)
- 0.45
Roxtec round frames/seals

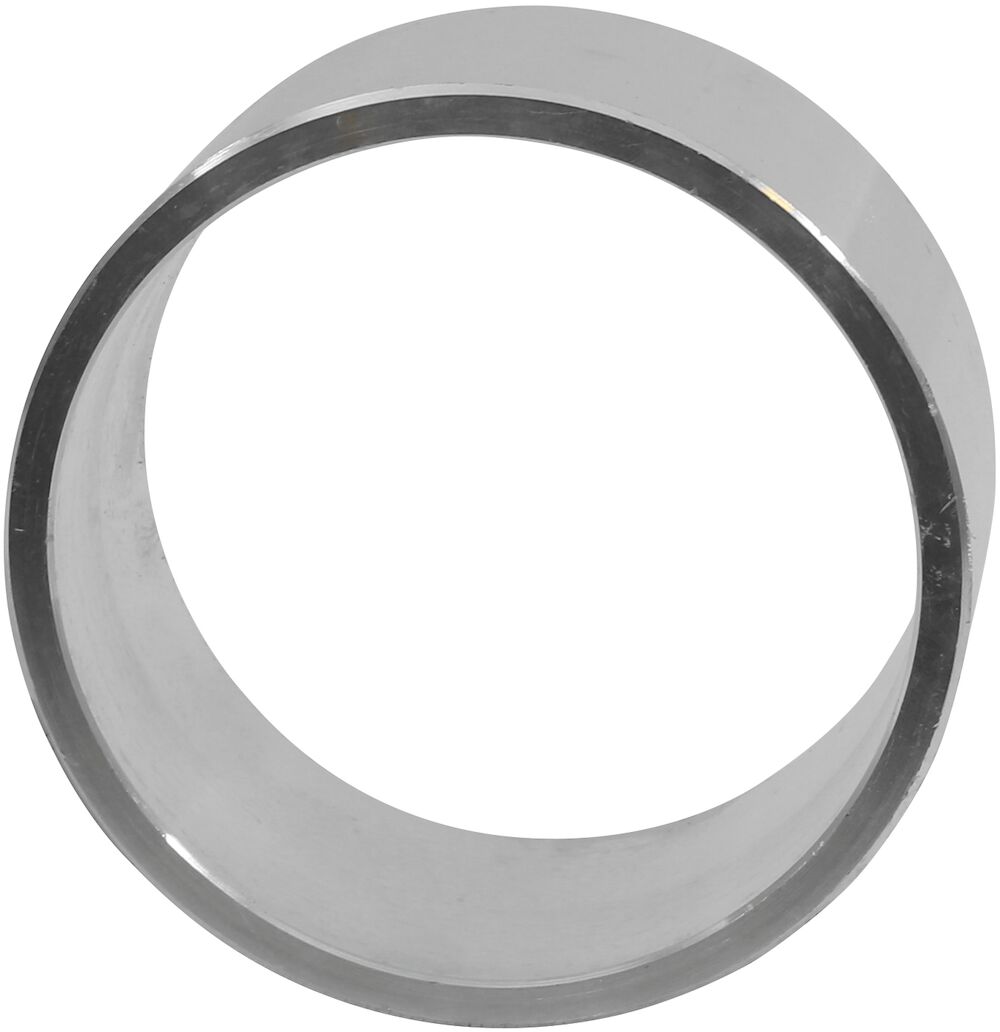

Roxtec SL R sleeve
Roxtec round frames/seals · Roxtec
The Roxtec SL R sleeve is designed for welding into precise apertures. It is suitable for Roxtec R sealing solutions.
- Attachment by welding
Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.
Article numbers and specifications
Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.
SLR 70 PRIMED
Art. No. ASLR100700012
- Aperture dimension Ø (mm)
- 83 - 85
- External dimensions ØxZ (mm)
- 83 x 55
- Internal Ø (mm)
- 71.5
- Weight (kg)
- 0.58
SLR 75 PRIMED
Art. No. ASLR100750012
- Aperture dimension Ø (mm)
- 89 - 91
- External dimensions ØxZ (mm)
- 89 x 55
- Internal Ø (mm)
- 76.5
- Weight (kg)
- 0.72
SLR 100 PRIMED
Art. No. ASLR101000012
- Aperture dimension Ø (mm)
- 114 - 116
- External dimensions ØxZ (mm)
- 114 x 55
- Internal Ø (mm)
- 101
- Weight (kg)
- 0.93
SLR 125 PRIMED
Art. No. ASLR101250012
- Aperture dimension Ø (mm)
- 140 - 142
- External dimensions ØxZ (mm)
- 140 x 55
- Internal Ø (mm)
- 126
- Weight (kg)
- 1.17
SLR 127 PRIMED
Art. No. ASLR101270012
- Aperture dimension Ø (mm)
- 140 - 142
- External dimensions ØxZ (mm)
- 140 x 55
- Internal Ø (mm)
- 128
- Weight (kg)
- 1.01
SLR 150 PRIMED
Art. No. ASLR101500012
- Aperture dimension Ø (mm)
- 164 - 166
- External dimensions ØxZ (mm)
- 164 x 55
- Internal Ø (mm)
- 151
- Weight (kg)
- 1.38
SLR 200 PRIMED
Art. No. ASLR102000012
- Aperture dimension Ø (mm)
- 214 - 216
- External dimensions ØxZ (mm)
- 214 x 55
- Internal Ø (mm)
- 201
- Weight (kg)
- 1.8
SLR 50 AISI316
Art. No. 111070
- Aperture dimension Ø (mm)
- 63 - 65
- External dimensions ØxZ (mm)
- 63 x 55
- Internal Ø (mm)
- 51
- Weight (kg)
- 0.44
SLR 70 AISI316
Art. No. ASLR100700021
- Aperture dimension Ø (mm)
- 83 - 85
- External dimensions ØxZ (mm)
- 83 x 55
- Internal Ø (mm)
- 71.5
- Weight (kg)
- 0.6
SLR 75 AISI316
Art. No. ASLR100750021
- Aperture dimension Ø (mm)
- 89 - 91
- External dimensions ØxZ (mm)
- 89 x 55
- Internal Ø (mm)
- 76.5
- Weight (kg)
- 0.71
SLR 100 AISI316
Art. No. ASLR101000021
- Aperture dimension Ø (mm)
- 114 - 116
- External dimensions ØxZ (mm)
- 114 x 55
- Internal Ø (mm)
- 101
- Weight (kg)
- 0.9
SLR 125 AISI316
Art. No. ASLR101250021
- Aperture dimension Ø (mm)
- 140 - 142
- External dimensions ØxZ (mm)
- 140 x 55
- Internal Ø (mm)
- 126
- Weight (kg)
- 1.21
SLR 127 AISI316
Art. No. ASLR101270021
- Aperture dimension Ø (mm)
- 140 - 142
- External dimensions ØxZ (mm)
- 140 x 55
- Internal Ø (mm)
- 128
- Weight (kg)
- 1.09
SLR 150 AISI316
Art. No. ASLR101500021
- Aperture dimension Ø (mm)
- 164 - 166
- External dimensions ØxZ (mm)
- 164 x 55
- Internal Ø (mm)
- 151
- Weight (kg)
- 1.39
SLR 200 AISI316
Art. No. ASLR102000021
- Aperture dimension Ø (mm)
- 214 - 216
- External dimensions ØxZ (mm)
- 214 x 55
- Internal Ø (mm)
- 201
- Weight (kg)
- 1.85
SLR 50 ALU
Art. No. 187443
- Aperture dimension Ø (mm)
- 63 - 65
- External dimensions ØxZ (mm)
- 63 x 55
- Internal Ø (mm)
- 51
- Weight (kg)
- 0.15
SLR 70 ALU
Art. No. 5ASLR00003974
- Aperture dimension Ø (mm)
- 83 - 85
- External dimensions ØxZ (mm)
- 83 x 55
- Internal Ø (mm)
- 71.5
- Weight (kg)
- 0.15
SLR 75 ALU
Art. No. 5ASLR00008711
- Aperture dimension Ø (mm)
- 89 - 91
- External dimensions ØxZ (mm)
- 89 x 55
- Internal Ø (mm)
- 76.5
- Weight (kg)
- 0.22
SLR 100 ALU
Art. No. 5ASLR00000894
- Aperture dimension Ø (mm)
- 114 - 116
- External dimensions ØxZ (mm)
- 114 x 55
- Internal Ø (mm)
- 101
- Weight (kg)
- 0.32
SLR 125 ALU
Art. No. 5ASL0000007647
- Aperture dimension Ø (mm)
- 140 - 142
- External dimensions ØxZ (mm)
- 140 x 55
- Internal Ø (mm)
- 126
- Weight (kg)
- 0.4
SLR 127 ALU
Art. No. 5ASLR00003246
- Aperture dimension Ø (mm)
- 140 - 142
- External dimensions ØxZ (mm)
- 140 x 55
- Internal Ø (mm)
- 128
- Weight (kg)
- 0.5
SLR 150 ALU
Art. No. 5ASLR00003239
- Aperture dimension Ø (mm)
- 164 - 166
- External dimensions ØxZ (mm)
- 164 x 55
- Internal Ø (mm)
- 151
- Weight (kg)
- 0.45
SLR 200 ALU
Art. No. 5ASLR00003240
- Aperture dimension Ø (mm)
- 214 - 216
- External dimensions ØxZ (mm)
- 214 x 55
- Internal Ø (mm)
- 201
- Weight (kg)
- 1
Reference documents
These links open current files hosted by Roxtec. Check the source document revision before use.
- APERTURE DIMENSIONS SL/SLF SERIES (en) pdf (manufacturer document)
- S1006967 SLEEVE SLR/RS Ø23 - Ø644 PDF (manufacturer document)
Source-listed certificates
Certificate rows reproduce factual source fields. They do not confirm applicability to a specific assembly. Open the source record and ask AMFSS to check the application.
| Authority | Rating | Division / structure | Cable | Pipe | Type approval | Status |
|---|---|---|---|---|---|---|
| BV | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Steel | Marine | Bundle Copper Copper-Nickel Plastic Steel | 13965/E0 BV | No renewal status stated |
| USCG | H class fire | Steel | Armored Marine | — | 164.140/10/0 | Source states: under renewal |
| ABS | Gas tightness (catastrophic) H class fire Water tightness (catastrophic) | Stainless steel Steel | Marine | Bundle Steel Titanium | 24-0079709-PDA | No renewal status stated |
| ABS | Gas tightness (catastrophic) H class fire Water tightness (catastrophic) | Stainless steel Steel | Marine | Bundle Steel Titanium | 24-0079709-PDA-DUP | No renewal status stated |
| ABS | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Steel | — | Bundle Copper Copper-Nickel Steel | 24-2519751-PDA | No renewal status stated |
| ABS | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Steel | — | Bundle Copper Copper-Nickel Steel | 24-2519751-PDA-DUP | No renewal status stated |
| ABS | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Stainless steel Steel | Marine | — | 25-0212442-PDA | No renewal status stated |
| ABS | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Stainless steel Steel | Marine | — | 25-0212442-PDA-DUP | No renewal status stated |
| RINA | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Steel | Marine | — | LAB484722CS/001 | No renewal status stated |
| DNV | A class fire Water tightness (catastrophic) | Aluminium | — | Copper Steel | MEDB000017T rev 2 | No renewal status stated |
| DNV | A class fire | Steel | — | Copper Copper-Nickel Steel | MEDB00006BG | No renewal status stated |
| DNV | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Steel | — | Copper Copper-Nickel Steel | MEDB00007UC | No renewal status stated |
| DNV | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium | — | Copper Copper-Nickel Steel | MERB000017T | No renewal status stated |
| DNV | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Steel | — | Copper Copper-Nickel Steel | MERB00006BG | No renewal status stated |
| ClassNK | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium Steel | — | Bundle Copper Copper-Nickel Fiberglass Other Plastic Steel Titanium | TA251517E | No renewal status stated |
| DNV | Gas tightness (catastrophic) H class fire Water tightness (catastrophic) | Steel | Marine | — | TAF00000DH | No renewal status stated |
Source checked 2026-08-08: official Roxtec product page.
About Roxtec round frames/seals
Roxtec round frames and seals cover round cable and pipe entry arrangements. Selection depends on the opening, cable or pipe dimensions, attachment method, and project requirements.
Typical applications:
- Round openings
- Sleeves and core-drilled holes
- Cable and pipe entries
Not sure this is the right product? Compare the Roxtec round frames/seals family or describe your application.
