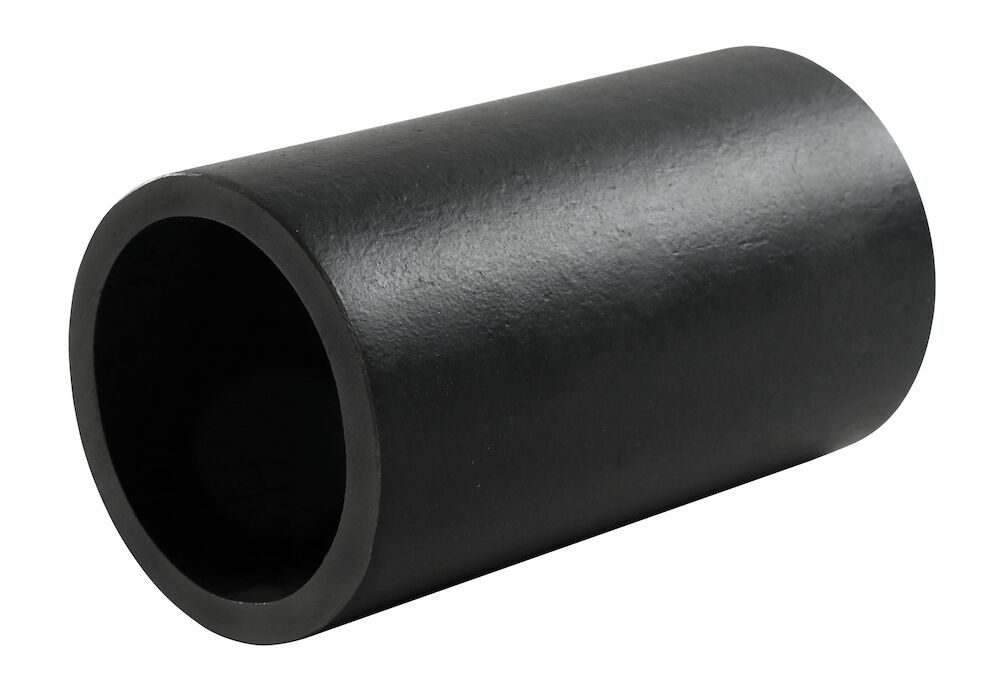

Roxtec SL PPS sleeve

Roxtec round frames/seals · Roxtec

The Roxtec SL PPS sleeve is designed for welding into precise apertures and suitable for Roxtec RS PPS installations.

Attachment by welding

Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.

Article numbers and specifications

Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.

SLPPS 43 PRIMED D=600

Art. No. 193563

Aperture dimension Ø (mm): 52 - 54
External dimensions ØxZ (mm): 52 x 600
Internal Ø (mm): 44
Weight (kg): 2.69

Quote this article number

SLPPS 50 PRIMED D=600

Art. No. 193564

Aperture dimension Ø (mm): 63 - 65
External dimensions ØxZ (mm): 63 x 600
Internal Ø (mm): 51
Weight (kg): 5.06

Quote this article number

SLPPS 68 PRIMED D=600

Art. No. 193565

Aperture dimension Ø (mm): 83 - 85
External dimensions ØxZ (mm): 83 x 600
Internal Ø (mm): 69.5
Weight (kg): 7.23

Quote this article number

SLPPS 75 PRIMED D=600

Art. No. 193566

Aperture dimension Ø (mm): 89 - 91
External dimensions ØxZ (mm): 89 x 600
Internal Ø (mm): 76.5
Weight (kg): 7.42

Quote this article number

SLPPS 100 PRIMED D=600

Art. No. 193567

Aperture dimension Ø (mm): 114 - 116
External dimensions ØxZ (mm): 114 x 600
Internal Ø (mm): 101
Weight (kg): 10.25

Quote this article number

SLPPS 125 PRIMED D=600

Art. No. 193568

Aperture dimension Ø (mm): 140 - 142
External dimensions ØxZ (mm): 140 x 600
Internal Ø (mm): 126
Weight (kg): 13.2

Quote this article number

SLPPS 150 PRIMED D=600

Art. No. 193569

Aperture dimension Ø (mm): 164 - 166
External dimensions ØxZ (mm): 164 x 600
Internal Ø (mm): 151
Weight (kg): 17

Quote this article number

SLPPS 43 AISI316 D=600

Art. No. 193570

Aperture dimension Ø (mm): 52 - 54
External dimensions ØxZ (mm): 52 x 600
Internal Ø (mm): 44
Weight (kg): 3.75

Quote this article number

SLPPS 50 AISI316 D=600

Art. No. 193571

Aperture dimension Ø (mm): 63 - 65
External dimensions ØxZ (mm): 63 x 600
Internal Ø (mm): 51
Weight (kg): 5.54

Quote this article number

SLPPS 68 AISI316 D=600

Art. No. 193572

Aperture dimension Ø (mm): 83 - 85
External dimensions ØxZ (mm): 83 x 600
Internal Ø (mm): 69.5
Weight (kg): 8.79

Quote this article number

SLPPS 75 AISI316 D=600

Art. No. 193573

Aperture dimension Ø (mm): 89 - 91
External dimensions ØxZ (mm): 89 x 600
Internal Ø (mm): 76.5
Weight (kg): 11.68

Quote this article number

SLPPS 100 AISI316 D=600

Art. No. 193574

Aperture dimension Ø (mm): 114 - 116
External dimensions ØxZ (mm): 114 x 600
Internal Ø (mm): 101
Weight (kg): 12.5

Quote this article number

SLPPS 125 AISI316 D=600

Art. No. 193575

Aperture dimension Ø (mm): 140 - 142
External dimensions ØxZ (mm): 140 x 600
Internal Ø (mm): 126
Weight (kg): 17.6

Quote this article number

SLPPS 150 AISI316 D=600

Art. No. 193576

Aperture dimension Ø (mm): 164 - 166
External dimensions ØxZ (mm): 164 x 600
Internal Ø (mm): 151
Weight (kg): 19.23

Quote this article number

SLPPS 450 PRIMED D=400

Art. No. 189728

Aperture dimension Ø (mm): 464 - 467
External dimensions ØxZ (mm): 464 x 156
Internal Ø (mm): 452
Weight (kg): 22.5

Quote this article number

SLPPS 31 PRIMED D=156

Art. No. 5ASL000005820

Aperture dimension Ø (mm): 40 - 42
External dimensions ØxZ (mm): 40 x 156
Internal Ø (mm): 31.5
Weight (kg): 0.6

Quote this article number

SLPPS 43 PRIMED D=156

Art. No. 5ASL000005500

Aperture dimension Ø (mm): 52 - 54
External dimensions ØxZ (mm): 52 x 156
Internal Ø (mm): 44
Weight (kg): 0.75

Quote this article number

SLPPS 50 PRIMED D=156

Art. No. 5ASL000003416

Aperture dimension Ø (mm): 63 - 65
External dimensions ØxZ (mm): 63 x 156
Internal Ø (mm): 51
Weight (kg): 0.97

Quote this article number

SLPPS 68 PRIMED D=156

Art. No. 5ASL000004742

Aperture dimension Ø (mm): 83 - 85
External dimensions ØxZ (mm): 83 x 156
Internal Ø (mm): 69.5
Weight (kg): 0.8

Quote this article number

SLPPS 75 PRIMED D=156

Art. No. 5ASL000003445

Aperture dimension Ø (mm): 89 - 91
External dimensions ØxZ (mm): 89 x 156
Internal Ø (mm): 76.5
Weight (kg): 1.95

Quote this article number

SLPPS 100 PRIMED D=156

Art. No. 5ASL000003519

Aperture dimension Ø (mm): 114 - 116
External dimensions ØxZ (mm): 114 x 156
Internal Ø (mm): 101
Weight (kg): 2.62

Quote this article number

SLPPS 125 PRIMED D=156

Art. No. 5ASL000003446

Aperture dimension Ø (mm): 140 - 142
External dimensions ØxZ (mm): 140 x 156
Internal Ø (mm): 126
Weight (kg): 2.89

Quote this article number

SLPPS 150 PRIMED D=156

Art. No. 5ASL000003417

Aperture dimension Ø (mm): 164 - 166
External dimensions ØxZ (mm): 164 x 156
Internal Ø (mm): 151
Weight (kg): 3.74

Quote this article number

SLPPS 175 PRIMED D=156

Art. No. 5ASL000003769

Aperture dimension Ø (mm): 189 - 191
External dimensions ØxZ (mm): 189 x 156
Internal Ø (mm): 176
Weight (kg): 3.46

Quote this article number

SLPPS 200 PRIMED D=156

Art. No. 5ASL000005458

Aperture dimension Ø (mm): 214 - 216
External dimensions ØxZ (mm): 214 x 156
Internal Ø (mm): 201
Weight (kg): 5.17

Quote this article number

SLPPS 225 PRIMED D=400

Art. No. 5ASL000011648

Aperture dimension Ø (mm): 239 - 241
External dimensions ØxZ (mm): 239 x 400
Internal Ø (mm): 227
Weight (kg): 11.3

Quote this article number

SLPPS 250 PRIMED D=400

Art. No. 5ASL000010621

Aperture dimension Ø (mm): 264 - 266
External dimensions ØxZ (mm): 264 x 400
Internal Ø (mm): 252
Weight (kg): 12.7

Quote this article number

SLPPS 300 PRIMED D=400

Art. No. 5SLPPS0011514

Aperture dimension Ø (mm): 314 - 316
External dimensions ØxZ (mm): 314 x 400
Internal Ø (mm): 302
Weight (kg): 18

Quote this article number

SLPPS 350 PRIMED D=400

Art. No. 109368

Aperture dimension Ø (mm): 364 - 366
External dimensions ØxZ (mm): 364 x 400
Internal Ø (mm): 352
Weight (kg): 21

Quote this article number

SLPPS 400 PRIMED D=400

Art. No. 105698

Aperture dimension Ø (mm): 414 - 416
External dimensions ØxZ (mm): 414 x 400
Internal Ø (mm): 402
Weight (kg): 28.3

Quote this article number

SLPPS 450 AISI316 D=400

Art. No. 210366

Aperture dimension Ø (mm): 464 - 467
External dimensions ØxZ (mm): 464 x 156
Internal Ø (mm): 452
Weight (kg): 20

Quote this article number

SLPPS 31 AISI316 D=156

Art. No. 5ASL000006339

Aperture dimension Ø (mm): 40 - 42
External dimensions ØxZ (mm): 40 x 156
Internal Ø (mm): 31.5
Weight (kg): 0.6

Quote this article number

SLPPS 43 AISI316 D=156

Art. No. 153109

Aperture dimension Ø (mm): 52 - 54
External dimensions ØxZ (mm): 52 x 156
Internal Ø (mm): 44
Weight (kg): 1

Quote this article number

SLPPS 50 AISI316 D=156

Art. No. 126352

Aperture dimension Ø (mm): 63 - 65
External dimensions ØxZ (mm): 63 x 156
Internal Ø (mm): 51
Weight (kg): 1.27

Quote this article number

SLPPS 68 AISI316 D=156

Art. No. 153110

Aperture dimension Ø (mm): 83 - 85
External dimensions ØxZ (mm): 83 x 156
Internal Ø (mm): 69.5
Weight (kg): 1.94

Quote this article number

SLPPS 75 AISI316 D=156

Art. No. 168961

Aperture dimension Ø (mm): 89 - 91
External dimensions ØxZ (mm): 89 x 156
Internal Ø (mm): 76.5
Weight (kg): 1.9

Quote this article number

SLPPS 100 AISI316 D=156

Art. No. 5ASL000005937

Aperture dimension Ø (mm): 114 - 116
External dimensions ØxZ (mm): 114 x 156
Internal Ø (mm): 101
Weight (kg): 2.42

Quote this article number

SLPPS 125 AISI316 D=156

Art. No. 5ASL000008577

Aperture dimension Ø (mm): 140 - 142
External dimensions ØxZ (mm): 140 x 156
Internal Ø (mm): 126
Weight (kg): 3.4

Quote this article number

SLPPS 150 AISI316 D=156

Art. No. 111178

Aperture dimension Ø (mm): 164 - 166
External dimensions ØxZ (mm): 164 x 156
Internal Ø (mm): 151
Weight (kg): 3.8

Quote this article number

SLPPS 175 AISI316 D=156

Art. No. 111177

Aperture dimension Ø (mm): 189 - 191
External dimensions ØxZ (mm): 189 x 156
Internal Ø (mm): 176
Weight (kg): 3.16

Quote this article number

SLPPS 200 AISI316 D=156

Art. No. 153112

Aperture dimension Ø (mm): 214 - 216
External dimensions ØxZ (mm): 214 x 156
Internal Ø (mm): 201
Weight (kg): 5.2

Quote this article number

SLPPS 225 AISI316 D=400

Art. No. 153113

Aperture dimension Ø (mm): 239 - 241
External dimensions ØxZ (mm): 239 x 400
Internal Ø (mm): 227
Weight (kg): 17.5

Quote this article number

SLPPS 250 AISI316 D=400

Art. No. 111176

Aperture dimension Ø (mm): 264 - 266
External dimensions ØxZ (mm): 264 x 400
Internal Ø (mm): 252
Weight (kg): 15.3

Quote this article number

SLPPS 300 AISI316 D=400

Art. No. 153114

Aperture dimension Ø (mm): 314 - 316
External dimensions ØxZ (mm): 314 x 400
Internal Ø (mm): 302
Weight (kg): 18.5

Quote this article number

SLPPS 350 AISI316 D=400

Art. No. 111175

Aperture dimension Ø (mm): 364 - 366
External dimensions ØxZ (mm): 364 x 400
Internal Ø (mm): 352
Weight (kg): 21.4

Quote this article number

SLPPS 400 AISI316 D=400

Art. No. 111174

Aperture dimension Ø (mm): 414 - 416
External dimensions ØxZ (mm): 414 x 400
Internal Ø (mm): 402
Weight (kg): 25

Quote this article number

SLPPS 450 ALU D=400

Art. No. 189245

Aperture dimension Ø (mm): 464 - 467
External dimensions ØxZ (mm): 464 x 156
Internal Ø (mm): 452
Weight (kg): 10.6

Quote this article number

SLPPS 31 ALU D=156

Art. No. 109365

Aperture dimension Ø (mm): 40 - 42
External dimensions ØxZ (mm): 40 x 156
Internal Ø (mm): 31.5
Weight (kg): 0.21

Quote this article number

SLPPS 43 ALU D=156

Art. No. 5ASL000011395

Aperture dimension Ø (mm): 52 - 54
External dimensions ØxZ (mm): 52 x 156
Internal Ø (mm): 44
Weight (kg): 0.23

Quote this article number

SLPPS 50 ALU D=156

Art. No. 119603

Aperture dimension Ø (mm): 63 - 65
External dimensions ØxZ (mm): 63 x 156
Internal Ø (mm): 51
Weight (kg): 0.5

Quote this article number

SLPPS 68 ALU D=156

Art. No. 119604

Aperture dimension Ø (mm): 83 - 85
External dimensions ØxZ (mm): 83 x 156
Internal Ø (mm): 69.5
Weight (kg): 0.6

Quote this article number

SLPPS 75 ALU D=156

Art. No. ASL0156007531

Aperture dimension Ø (mm): 89 - 91
External dimensions ØxZ (mm): 89 x 156
Internal Ø (mm): 76.5
Weight (kg): 0.61

Quote this article number

SLPPS 100 ALU D=156

Art. No. 5ASL000008932

Aperture dimension Ø (mm): 114 - 116
External dimensions ØxZ (mm): 114 x 156
Internal Ø (mm): 101
Weight (kg): 0.91

Quote this article number

SLPPS 125 ALU D=156

Art. No. 5ATS000009641

Aperture dimension Ø (mm): 140 - 142
External dimensions ØxZ (mm): 140 x 156
Internal Ø (mm): 126
Weight (kg): 1.15

Quote this article number

SLPPS 150 ALU D=156

Art. No. 153115

Aperture dimension Ø (mm): 164 - 166
External dimensions ØxZ (mm): 164 x 156
Internal Ø (mm): 151
Weight (kg): 1.7

Quote this article number

SLPPS 175 ALU D=156

Art. No. 119601

Aperture dimension Ø (mm): 189 - 191
External dimensions ØxZ (mm): 189 x 156
Internal Ø (mm): 176
Weight (kg): 2

Quote this article number

SLPPS 200 ALU D=156

Art. No. 5ASL000012395

Aperture dimension Ø (mm): 214 - 216
External dimensions ØxZ (mm): 214 x 156
Internal Ø (mm): 201
Weight (kg): 2.4

Quote this article number

SLPPS 225 ALU D=400

Art. No. 173577

Aperture dimension Ø (mm): 239 - 241
External dimensions ØxZ (mm): 239 x 400
Internal Ø (mm): 227
Weight (kg): 6.2

Quote this article number

SLPPS 250 ALU D=400

Art. No. 173578

Aperture dimension Ø (mm): 264 - 266
External dimensions ØxZ (mm): 264 x 400
Internal Ø (mm): 252
Weight (kg): 7

Quote this article number

SLPPS 300 ALU D=400

Art. No. 173579

Aperture dimension Ø (mm): 314 - 316
External dimensions ØxZ (mm): 314 x 400
Internal Ø (mm): 302
Weight (kg): 7.66

Quote this article number

SLPPS 350 ALU D=400

Art. No. 173580

Aperture dimension Ø (mm): 364 - 366
External dimensions ØxZ (mm): 364 x 400
Internal Ø (mm): 352
Weight (kg): 8.33

Quote this article number

SLPPS 400 ALU D=400

Art. No. 173581

Aperture dimension Ø (mm): 414 - 416
External dimensions ØxZ (mm): 414 x 400
Internal Ø (mm): 402
Weight (kg): 10

Quote this article number

Reference documents

These links open current files hosted by Roxtec. Check the source document revision before use.

APERTURE DIMENSIONS SL/SLF SERIES (en) pdf (manufacturer document)
S1006897 SL PPS SLEEVES SL PPS 31 - 450 PDF (manufacturer document)

Source-listed certificates

Certificate rows reproduce factual source fields. They do not confirm applicability to a specific assembly. Open the source record and ask AMFSS to check the application.

Authority	Rating	Division / structure	Cable	Pipe	Type approval	Status
ABS	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Aluminium	—	Other PE PE/ALU/PE PVC	23-2456071-PDA	No renewal status stated

Source checked 2026-08-08: official Roxtec product page.

About Roxtec round frames/seals

Roxtec round frames and seals cover round cable and pipe entry arrangements. Selection depends on the opening, cable or pipe dimensions, attachment method, and project requirements.

Typical applications:

Round openings
Sleeves and core-drilled holes
Cable and pipe entries

Not sure this is the right product? Compare the Roxtec round frames/seals family or describe your application.

Roxtec SL PPS sleeve

Article numbers and specifications

SLPPS 43 PRIMED D=600

SLPPS 50 PRIMED D=600

SLPPS 68 PRIMED D=600

SLPPS 75 PRIMED D=600

SLPPS 100 PRIMED D=600

SLPPS 125 PRIMED D=600

SLPPS 150 PRIMED D=600

SLPPS 43 AISI316 D=600

SLPPS 50 AISI316 D=600

SLPPS 68 AISI316 D=600

SLPPS 75 AISI316 D=600

SLPPS 100 AISI316 D=600

SLPPS 125 AISI316 D=600

SLPPS 150 AISI316 D=600

SLPPS 450 PRIMED D=400

SLPPS 31 PRIMED D=156

SLPPS 43 PRIMED D=156

SLPPS 50 PRIMED D=156

SLPPS 68 PRIMED D=156

SLPPS 75 PRIMED D=156

SLPPS 100 PRIMED D=156

SLPPS 125 PRIMED D=156

SLPPS 150 PRIMED D=156

SLPPS 175 PRIMED D=156

SLPPS 200 PRIMED D=156

SLPPS 225 PRIMED D=400

SLPPS 250 PRIMED D=400

SLPPS 300 PRIMED D=400

SLPPS 350 PRIMED D=400

SLPPS 400 PRIMED D=400

SLPPS 450 AISI316 D=400

SLPPS 31 AISI316 D=156

SLPPS 43 AISI316 D=156

SLPPS 50 AISI316 D=156

SLPPS 68 AISI316 D=156

SLPPS 75 AISI316 D=156

SLPPS 100 AISI316 D=156

SLPPS 125 AISI316 D=156

SLPPS 150 AISI316 D=156

SLPPS 175 AISI316 D=156

SLPPS 200 AISI316 D=156

SLPPS 225 AISI316 D=400

SLPPS 250 AISI316 D=400

SLPPS 300 AISI316 D=400

SLPPS 350 AISI316 D=400

SLPPS 400 AISI316 D=400

SLPPS 450 ALU D=400

SLPPS 31 ALU D=156

SLPPS 43 ALU D=156

SLPPS 50 ALU D=156

SLPPS 68 ALU D=156

SLPPS 75 ALU D=156

SLPPS 100 ALU D=156

SLPPS 125 ALU D=156

SLPPS 150 ALU D=156

SLPPS 175 ALU D=156

SLPPS 200 ALU D=156

SLPPS 225 ALU D=400

SLPPS 250 ALU D=400

SLPPS 300 ALU D=400

SLPPS 350 ALU D=400

SLPPS 400 ALU D=400

Reference documents

Source-listed certificates

About Roxtec round frames/seals

Cookie preferences
