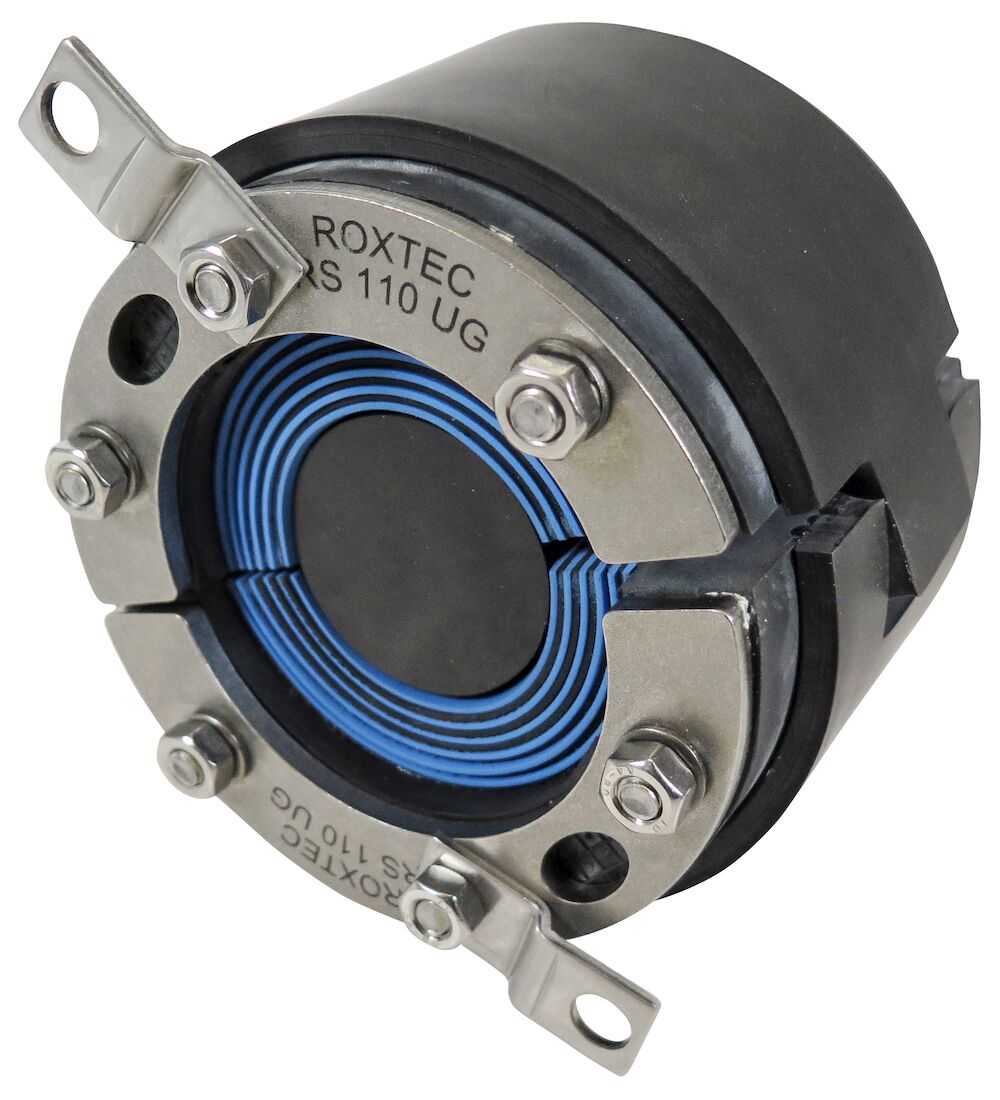

Roxtec RS UG™ seal

Roxtec round frames/seals · Roxtec

The Roxtec RS UG™ is a two-part seal for installation around single cables or pipes entering via foundations. It works as a long-lasting barrier against flooding, gas, humidity and rodents. The transit can be installed also in wet conditions and environments with running water. It withstands extreme cable bending and has a +5mm tolerance towards the aperture as well as an indicator showing when a compressed seal is achieved. The seal can be installed into sleeves, conduits and core drilled holes.

For single cable or pipe

Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.

Request a quote for this product

Article numbers and specifications

Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.

RS 70 UG

Art. No. 167234

Aperture dimension Ø (mm): 70 - 75
For cable/pipe Ø (mm): 9 - 33
Weight (kg): 0.59

Quote this article number

RS 75 UG

Art. No. 186247

Aperture dimension Ø (mm): 75 - 80
For cable/pipe Ø (mm): 9 - 33
Weight (kg): 0.65

Quote this article number

RS 80 UG

Art. No. 186248

Aperture dimension Ø (mm): 80 - 85
For cable/pipe Ø (mm): 9 - 33
Weight (kg): 0.68

Quote this article number

RS 90 UG

Art. No. 167263

Aperture dimension Ø (mm): 90 - 95
For cable/pipe Ø (mm): 24 - 53
Weight (kg): 0.9

Quote this article number

RS 95 UG

Art. No. 186249

Aperture dimension Ø (mm): 95 - 100
For cable/pipe Ø (mm): 24 - 53
Weight (kg): 0.97

Quote this article number

RS 100 (4") 24-53 UG

Art. No. 186250

Aperture dimension Ø (mm): 100 - 105
For cable/pipe Ø (mm): 24 - 53
Weight (kg): 1

Quote this article number

RS 100 (4") UG

Art. No. 167236

Aperture dimension Ø (mm): 100 - 105
For cable/pipe Ø (mm): 39 - 63
Weight (kg): 1.1

Quote this article number

RS 105 UG

Art. No. 186251

Aperture dimension Ø (mm): 105 - 110
For cable/pipe Ø (mm): 39 - 63
Weight (kg): 1.16

Quote this article number

RS 110 UG

Art. No. 186252

Aperture dimension Ø (mm): 110 - 115
For cable/pipe Ø (mm): 39 - 63
Weight (kg): 1.23

Quote this article number

RS 125 (5") UG

Art. No. 167638

Aperture dimension Ø (mm): 125 - 130
For cable/pipe Ø (mm): 55 - 88
Weight (kg): 1.57

Quote this article number

RS 130 UG

Art. No. 186253

Aperture dimension Ø (mm): 130 - 135
For cable/pipe Ø (mm): 55 - 88
Weight (kg): 1.65

Quote this article number

RS 135 55-88 UG

Art. No. 186254

Aperture dimension Ø (mm): 135 - 140
For cable/pipe Ø (mm): 55 - 88
Weight (kg): 1.73

Quote this article number

RS 135 UG

Art. No. 167240

Aperture dimension Ø (mm): 135 - 140
For cable/pipe Ø (mm): 65 - 98
Weight (kg): 1.85

Quote this article number

RS 140 UG

Art. No. 186255

Aperture dimension Ø (mm): 140 - 145
For cable/pipe Ø (mm): 65 - 98
Weight (kg): 1.96

Quote this article number

RS 145 UG

Art. No. 186256

Aperture dimension Ø (mm): 145 - 150
For cable/pipe Ø (mm): 65 - 98
Weight (kg): 2

Quote this article number

RS 100 (4") UG WOC

Art. No. 167265

Aperture dimension Ø (mm): 100 - 105
For cable/pipe Ø (mm): 39 - 63
Weight (kg): 0.98

Quote this article number

RS 105 UG WOC

Art. No. 186257

Aperture dimension Ø (mm): 105 - 110
For cable/pipe Ø (mm): 39 - 63
Weight (kg): 1

Quote this article number

RS 110 UG WOC

Art. No. 186258

Aperture dimension Ø (mm): 110 - 115
For cable/pipe Ø (mm): 39 - 63
Weight (kg): 1.1

Quote this article number

RS 125 (5") UG WOC

Art. No. 167639

Aperture dimension Ø (mm): 125 - 130
For cable/pipe Ø (mm): 55 - 88
Weight (kg): 1.36

Quote this article number

RS 130 UG WOC

Art. No. 186259

Aperture dimension Ø (mm): 130 - 135
For cable/pipe Ø (mm): 55 - 88
Weight (kg): 1.44

Quote this article number

RS 135 55-88 UG WOC

Art. No. 186260

Aperture dimension Ø (mm): 135 - 140
For cable/pipe Ø (mm): 55 - 88
Weight (kg): 1.53

Quote this article number

RS 135 UG WOC

Art. No. 167266

Aperture dimension Ø (mm): 135 - 140
For cable/pipe Ø (mm): 65 - 98
Weight (kg): 1.57

Quote this article number

RS 140 UG WOC

Art. No. 186261

Aperture dimension Ø (mm): 140 - 145
For cable/pipe Ø (mm): 65 - 98
Weight (kg): 1.68

Quote this article number

RS 145 UG WOC

Art. No. 186262

Aperture dimension Ø (mm): 145 - 150
For cable/pipe Ø (mm): 65 - 98
Weight (kg): 1.76

Quote this article number

RS 150 UG WOC

Art. No. 167246

Aperture dimension Ø (mm): 150 - 155
For cable/pipe Ø (mm): 80 - 113
Weight (kg): 1.77

Quote this article number

RS 153 (6") UG WOC

Art. No. 224418

Aperture dimension Ø (mm): 152.5 - 157.5
For cable/pipe Ø (mm): 80 - 113
Weight (kg): 1.98

Quote this article number

RS 155 UG WOC

Art. No. 186263

Aperture dimension Ø (mm): 155 - 160
For cable/pipe Ø (mm): 80 - 113
Weight (kg): 1.9

Quote this article number

RS 160 UG WOC

Art. No. 186264

Aperture dimension Ø (mm): 160 - 165
For cable/pipe Ø (mm): 80 - 113
Weight (kg): 2

Quote this article number

RS 185 UG WOC

Art. No. 167258

Aperture dimension Ø (mm): 185 - 190
For cable/pipe Ø (mm): 114 - 148
Weight (kg): 2.32

Quote this article number

RS 190 UG WOC

Art. No. 186265

Aperture dimension Ø (mm): 190 - 195
For cable/pipe Ø (mm): 114 - 148
Weight (kg): 2.4

Quote this article number

RS 195 UG WOC

Art. No. 186266

Aperture dimension Ø (mm): 195 - 200
For cable/pipe Ø (mm): 114 - 148
Weight (kg): 2.56

Quote this article number

RS 200 (8") UG WOC

Art. No. 178151

Aperture dimension Ø (mm): 200 - 205
For cable/pipe Ø (mm): 130 - 163
Weight (kg): 2.52

Quote this article number

RS 205 UG WOC

Art. No. 186267

Aperture dimension Ø (mm): 205 - 210
For cable/pipe Ø (mm): 130 - 163
Weight (kg): 2.66

Quote this article number

RS 210 UG WOC

Art. No. 186268

Aperture dimension Ø (mm): 210 - 215
For cable/pipe Ø (mm): 130 - 163
Weight (kg): 2.78

Quote this article number

RS 225 UG WOC

Art. No. 178166

Aperture dimension Ø (mm): 225 - 230
For cable/pipe Ø (mm): 146 - 179
Weight (kg): 3.4

Quote this article number

RS 230 UG WOC

Art. No. 186269

Aperture dimension Ø (mm): 230 - 235
For cable/pipe Ø (mm): 146 - 179
Weight (kg): 3.53

Quote this article number

RS 235 UG WOC

Art. No. 186270

Aperture dimension Ø (mm): 235 - 240
For cable/pipe Ø (mm): 146 - 179
Weight (kg): 3.68

Quote this article number

RS 250 UG WOC

Art. No. 178178

Aperture dimension Ø (mm): 250 - 255
For cable/pipe Ø (mm): 171 - 204
Weight (kg): 3.8

Quote this article number

RS 255 UG WOC

Art. No. 186271

Aperture dimension Ø (mm): 255 - 260
For cable/pipe Ø (mm): 171 - 204
Weight (kg): 4

Quote this article number

RS 260 UG WOC

Art. No. 186272

Aperture dimension Ø (mm): 260 - 265
For cable/pipe Ø (mm): 171 - 204
Weight (kg): 4.13

Quote this article number

Reference documents

These links open current files hosted by Roxtec. Check the source document revision before use.

RS UG (en) pdf (manufacturer document)
S1511690 RS UG SEALING RS 70-195 UG PDF (manufacturer document)
S1522905 RS UG PRODUCTS RS 200-260 UG WOC PDF (manufacturer document)

Source-listed certificates

Certificate rows reproduce factual source fields. They do not confirm applicability to a specific assembly. Open the source record and ask AMFSS to check the application.

Authority	Rating	Division / structure	Cable	Pipe	Type approval	Status
Roxtec International AB	—	—	—	—	Declaration of conformity UG	No renewal status stated
Factory Mutual Approval	Water tightness (catastrophic)	—	—	—	PR454667	No renewal status stated

Source checked 2026-08-08: official Roxtec product page.

About Roxtec round frames/seals

Roxtec round frames and seals cover round cable and pipe entry arrangements. Selection depends on the opening, cable or pipe dimensions, attachment method, and project requirements.
