RS PPS/S 31 AISI316
Art. No. PPSS000003121
- Aperture dimension Ø (mm)
- 31 - 32
- For cable/pipe Ø (mm)
- 4 - 17
- Weight (kg)
- 0.09
Roxtec round frames/seals

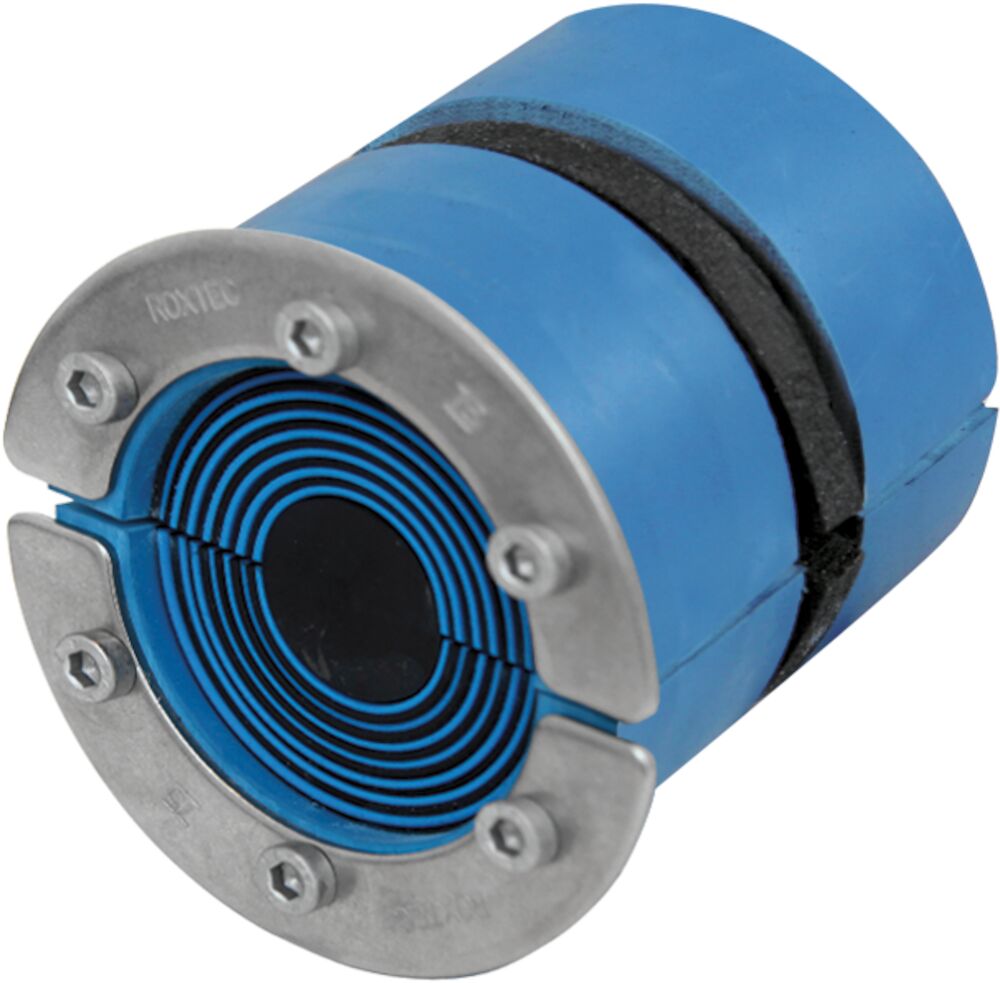

Roxtec RS PPS/S seal
Roxtec round frames/seals · Roxtec
The Roxtec RS PPS/S is a single-side seal for openings with plastic pipes in walls, floors, decks and bulkheads. It is used with Roxtec sleeves and blocks the penetration in case of fire.
- Installation from one side
- Intended for use with SL RS sleeve
Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.
Article numbers and specifications
Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.
RS PPS/S 43 AISI316
Art. No. PPSS000004321
- Aperture dimension Ø (mm)
- 43 - 45
- For cable/pipe Ø (mm)
- 4 - 23
- Weight (kg)
- 0.29
RS PPS/S 50 AISI316
Art. No. PPSS000005021
- Aperture dimension Ø (mm)
- 50 - 52
- For cable/pipe Ø (mm)
- 8 - 30
- Weight (kg)
- 0.37
RS PPS/S 68 AISI316
Art. No. PPSS000006821
- Aperture dimension Ø (mm)
- 68 - 70
- For cable/pipe Ø (mm)
- 26 - 48
- Weight (kg)
- 0.58
RS PPS/S 75 AISI316
Art. No. PPSS000007521
- Aperture dimension Ø (mm)
- 75 - 77
- For cable/pipe Ø (mm)
- 24 - 54
- Weight (kg)
- 0.65
RS PPS/S 100 AISI316 WOC
Art. No. PPSS000010021
- Aperture dimension Ø (mm)
- 100 - 102
- For cable/pipe Ø (mm)
- 48 - 70
- Weight (kg)
- 0.8
RS PPS/S 125 AISI316 WOC
Art. No. PPSS000012521
- Aperture dimension Ø (mm)
- 125 - 127
- For cable/pipe Ø (mm)
- 66 - 98
- Weight (kg)
- 1.35
RS PPS/S 150 AISI316 WOC
Art. No. PPSS000015021
- Aperture dimension Ø (mm)
- 150 - 152
- For cable/pipe Ø (mm)
- 93 - 119
- Weight (kg)
- 1.6
Reference documents
These links open current files hosted by Roxtec. Check the source document revision before use.
- RS PPS/S (en) pdf (manufacturer document)
- S1011273 RS PPS/S SEALS RS PPS/S 31-150 PDF (manufacturer document)
Source-listed certificates
Certificate rows reproduce factual source fields. They do not confirm applicability to a specific assembly. Open the source record and ask AMFSS to check the application.
| Authority | Rating | Division / structure | Cable | Pipe | Type approval | Status |
|---|---|---|---|---|---|---|
| BV | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Steel | Armored Marine Shielded Unshielded | ABS Bundle Copper Copper-Nickel Fiberglass HDPE Other PB PE PE/ALU/PE Plastic PP PVC Steel | 12509/E0 | No renewal status stated |
| ABS | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium | — | Other PE PE/ALU/PE PVC | 23-2456071-PDA | No renewal status stated |
| ABS | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Steel | — | ABS HDPE Other PB PE PE/ALU/PE Plastic PP PVC PVDF | 25-0151112-PDA | No renewal status stated |
| ABS | A class fire F+WT Water tightness (catastrophic) | Steel | — | ABS Fiberglass HDPE PB PE PE/ALU/PE Plastic PP PVC | 26-0457290-PDA | No renewal status stated |
| BV | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Other | Marine | ABS Copper Copper-Nickel Fiberglass PB PE Plastic PP PVC PVDF Steel | 73351/A1 BV | No renewal status stated |
| CCS | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium Steel | — | ABS Other PB PE PE/ALU/PE Plastic PP PVC PVDF | GB23PTB00036_03 | No renewal status stated |
| RINA | F+WT | Steel | — | Plastic | LAB087222CS/001 | No renewal status stated |
| RINA | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Steel | — | Other PE/ALU/PE Plastic | LAB280324CS/001/002 | No renewal status stated |
| LR | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium Stainless steel Steel | — | ABS Bundle HDPE Other PB PE PE/ALU/PE Plastic PP PVC PVDF | LR21431832SF-03 | No renewal status stated |
| LR | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Other | Marine | Copper Fiberglass PB PE PE/ALU/PE Plastic PP PVC Steel | LR2386976SF | No renewal status stated |
| LR | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Other | Marine | Copper Fiberglass PB PE PE/ALU/PE Plastic PP PVC Steel | LR2387043MB | No renewal status stated |
| LR | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | GRP/FRP | — | Copper Fiberglass PE/ALU/PE Plastic Steel Titanium | LR2543794UKMB | No renewal status stated |
| LR | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | GRP/FRP | — | Copper Fiberglass PE/ALU/PE Plastic Steel Titanium | LR2543796UKMB | No renewal status stated |
| LR | A class fire F+WT Water tightness (catastrophic) | Steel | — | ABS Fiberglass PB PE PE/ALU/PE Plastic PP PVC | LR2591106SF-02 | No renewal status stated |
| DNV | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium | — | ABS HDPE PB PE PE/ALU/PE Plastic PP PVC PVDF | MEDB00000NX | No renewal status stated |
| DNV | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Steel | — | ABS HDPE Other PB PE PE/ALU/PE Plastic PP PVDF | MEDB000036A | No renewal status stated |
| DNV | A class fire | Sandwich | — | Copper Copper-Nickel PVC Steel Titanium | MEDB00008FD | No renewal status stated |
| DNV | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium | — | ABS HDPE PB PE PE/ALU/PE Plastic PP PVC PVDF | MERB00000NX | No renewal status stated |
| DNV | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Steel | — | ABS HDPE PB PE PE/ALU/PE Plastic PP PVC PVDF | MERB000036A | Source states: under renewal |
| DNV | A class fire | Sandwich | — | Copper Copper-Nickel PVC Steel Titanium | MERB00008FD | No renewal status stated |
| ClassNK | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium Steel | — | Bundle Copper Copper-Nickel Fiberglass Other Plastic Steel Titanium | TA251517E | No renewal status stated |
| DNV | A class fire F+WT Gas tightness (catastrophic) Water tightness (catastrophic) | Steel | — | ABS Fiberglass PB PE PE/ALU/PE Plastic PP PVC PVDF | TAF000016B | No renewal status stated |
| DNV | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Other | — | ABS Copper Fiberglass HDPE Other PB PE PE/ALU/PE Plastic PP PVC PVDF Steel | TAF00001SJ | No renewal status stated |
Source checked 2026-08-08: official Roxtec product page.
About Roxtec round frames/seals
Roxtec round frames and seals cover round cable and pipe entry arrangements. Selection depends on the opening, cable or pipe dimensions, attachment method, and project requirements.
Typical applications:
- Round openings
- Sleeves and core-drilled holes
- Cable and pipe entries
Not sure this is the right product? Compare the Roxtec round frames/seals family or describe your application.
