RG M63-SEAL AISI316
Art. No. 100694
- Aperture dimension Ø (mm)
- 63 - 64
- Packing space (mm)
- 40 x 40
- Weight (kg)
- 0.45
Roxtec round frames/seals

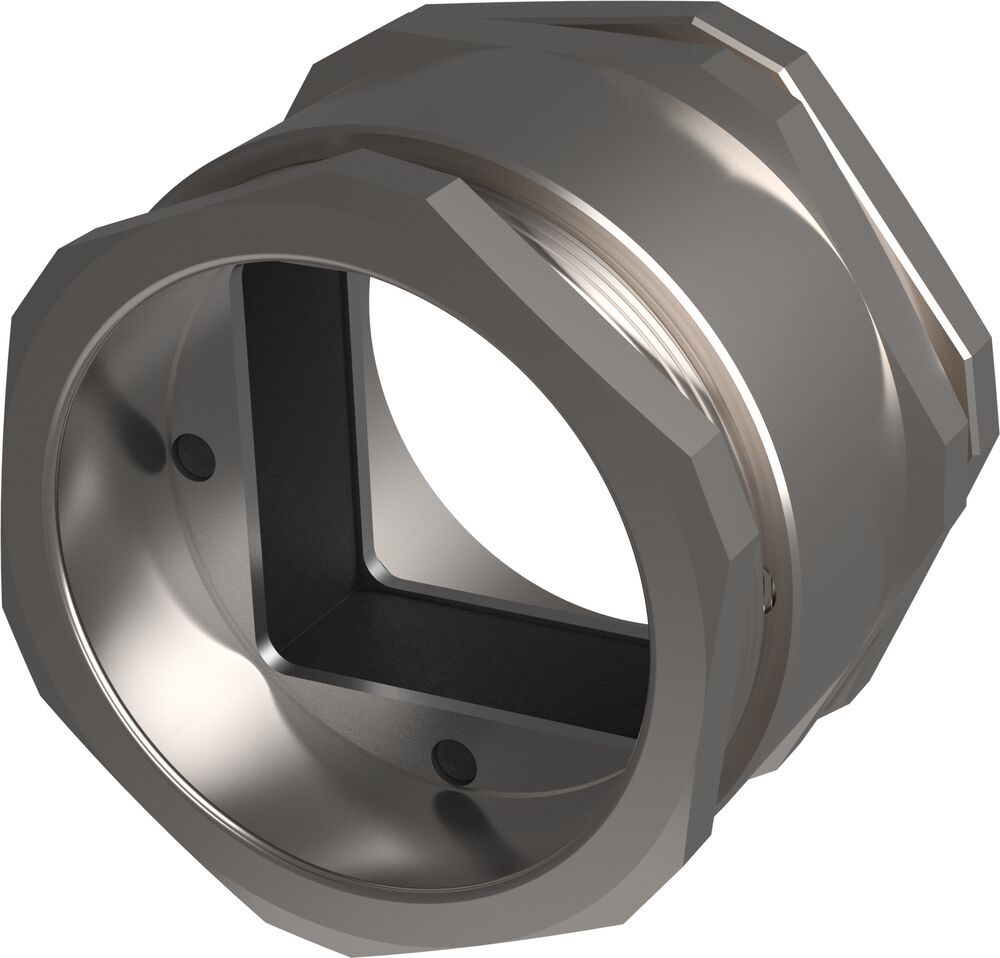

Roxtec RG M63 frame
Roxtec round frames/seals · Roxtec
The Roxtec RG M63 entry seal frame is a cable gland type of frame to be used with Roxtec GM modules.
- To be used with corresponding Roxtec components to form a complete sealing solution Attachment by counter ring nut
- For one to nine cables/pipes
- Allows use of pre-terminated cables
- Available in stainless acid-proof steel AISI 316
Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.
Article numbers and specifications
Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.
Reference documents
These links open current files hosted by Roxtec. Check the source document revision before use.
- RG M63 (en) pdf (manufacturer document)
- S1006037 RG M63 APERTURE DIMENSIONS PDF (manufacturer document)
Source-listed certificates
Certificate rows reproduce factual source fields. They do not confirm applicability to a specific assembly. Open the source record and ask AMFSS to check the application.
| Authority | Rating | Division / structure | Cable | Pipe | Type approval | Status |
|---|---|---|---|---|---|---|
| CSA | IP tightness UL/NEMA tightness | — | Other | Copper Steel | 1333944 | No renewal status stated |
| Roxtec International AB | — | — | — | — | Declaration of conformity Compact | No renewal status stated |
| Underwriters Laboratories Inc. | IP tightness UL/NEMA tightness | — | — | — | E496911 | No renewal status stated |
| Underwriters Laboratories Inc. | UL/NEMA tightness | — | — | — | NITW2.E209828 | No renewal status stated |
| Underwriters Laboratories Inc. | UL/NEMA tightness | — | — | — | NITW8.E209828 | No renewal status stated |
Source checked 2026-08-08: official Roxtec product page.
About Roxtec round frames/seals
Roxtec round frames and seals cover round cable and pipe entry arrangements. Selection depends on the opening, cable or pipe dimensions, attachment method, and project requirements.
Typical applications:
- Round openings
- Sleeves and core-drilled holes
- Cable and pipe entries
Not sure this is the right product? Compare the Roxtec round frames/seals family or describe your application.
