R X 100 GALV/GALV
Art. No. RXG0001001018
- Aperture dimension Ø (mm)
- 145 - 147
- Packing space (mm)
- 60 x 60
- Weight (kg)
- 2.2
Roxtec round frames/seals

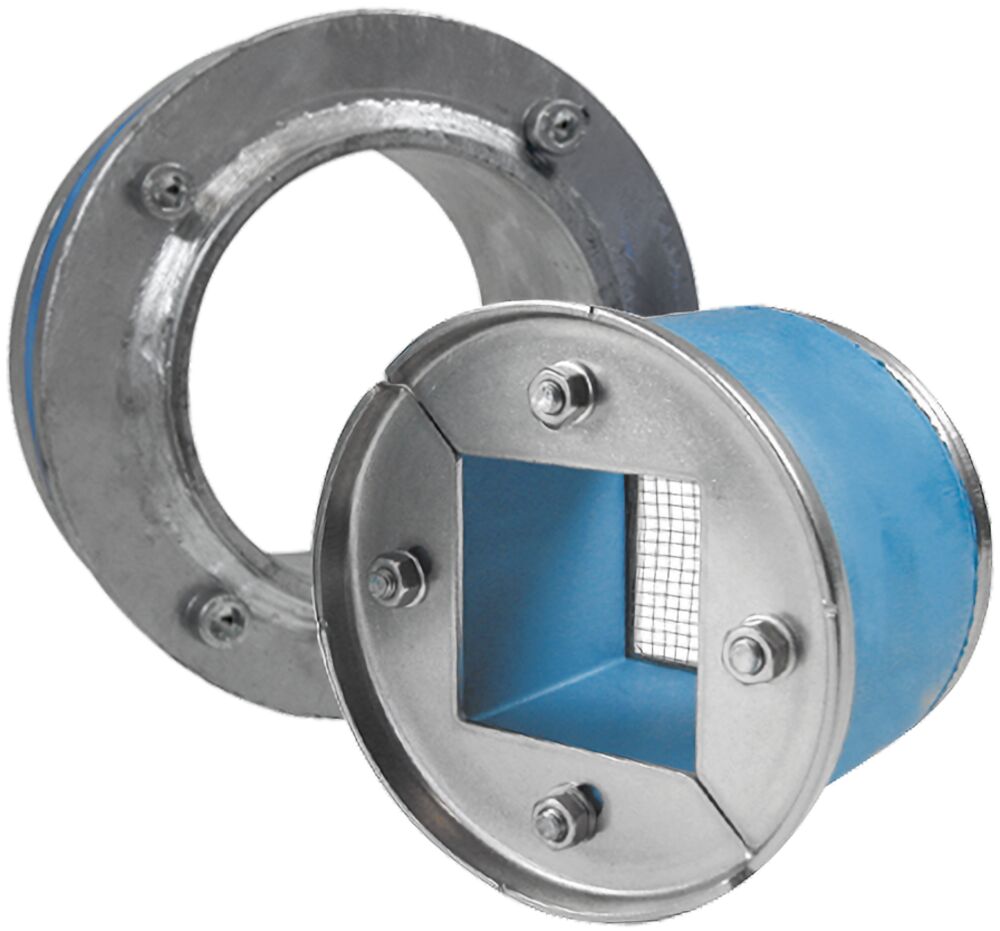

Roxtec R X kit
Roxtec round frames/seals · Roxtec
The Roxtec R X kit with frame and sleeve is designed for use where welding is not allowed or recommended.
- To be used with corresponding Roxtec components to form a complete sealing solution
- Attachment by expansion in holes
- For one or multiple cables/pipes
Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.
Article numbers and specifications
Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.
R X 125 GALV/GALV
Art. No. RXG0001251018
- Aperture dimension Ø (mm)
- 170 - 172
- Packing space (mm)
- 80 x 80
- Weight (kg)
- 3.45
R X 150 GALV/GALV
Art. No. RXG0001501018
- Aperture dimension Ø (mm)
- 199 - 201
- Packing space (mm)
- 90 x 90
- Weight (kg)
- 3.5
R X 200 GALV/GALV
Art. No. RXG0002001018
- Aperture dimension Ø (mm)
- 250 - 252
- Packing space (mm)
- 120 x 120
- Weight (kg)
- 4.6
R X 75 AISI316/GALV
Art. No. RXG0000751021
- Aperture dimension Ø (mm)
- 115 - 117
- Packing space (mm)
- 40 x 40
- Weight (kg)
- 1.6
R X 100 AISI316/GALV
Art. No. RXG0001001021
- Aperture dimension Ø (mm)
- 145 - 147
- Packing space (mm)
- 60 x 60
- Weight (kg)
- 3.05
R X 125 AISI316/GALV
Art. No. RXG0001251021
- Aperture dimension Ø (mm)
- 170 - 172
- Packing space (mm)
- 80 x 80
- Weight (kg)
- 3.3
R X 150 AISI316/GALV
Art. No. RXG0001501021
- Aperture dimension Ø (mm)
- 199 - 201
- Packing space (mm)
- 90 x 90
- Weight (kg)
- 3.5
R X 200 AISI316/GALV
Art. No. RXG0002001021
- Aperture dimension Ø (mm)
- 250 - 252
- Packing space (mm)
- 120 x 120
- Weight (kg)
- 4.6
Reference documents
These links open current files hosted by Roxtec. Check the source document revision before use.
- R (en) pdf (manufacturer document)
- SLF X (en) pdf (manufacturer document)
- S1004390 SLFR X AND SLFRS X ASSEMBLY Ø25-Ø200 PDF (manufacturer document)
- S1536905 R X KIT SOLUTIONS R X 70-200 PDF (manufacturer document)
Source-listed certificates
Certificate rows reproduce factual source fields. They do not confirm applicability to a specific assembly. Open the source record and ask AMFSS to check the application.
| Authority | Rating | Division / structure | Cable | Pipe | Type approval | Status |
|---|---|---|---|---|---|---|
| CSA | IP tightness UL/NEMA tightness | — | Other | Copper Steel | 1333944 | No renewal status stated |
| BV | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Steel | Marine | Bundle Copper Copper-Nickel Plastic Steel | 13965/E0 BV | No renewal status stated |
| IRS | A class fire | Steel | Marine | Bundle Copper Fiberglass Steel | 2022TAC104 | No renewal status stated |
| ABS | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Steel | — | Bundle Copper Copper-Nickel Steel | 24-2519751-PDA | No renewal status stated |
| ABS | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Steel | — | Bundle Copper Copper-Nickel Steel | 24-2519751-PDA-DUP | No renewal status stated |
| ABS | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Stainless steel Steel | Marine | — | 25-0212442-PDA | No renewal status stated |
| ABS | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Stainless steel Steel | Marine | — | 25-0212442-PDA-DUP | No renewal status stated |
| ABS | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium | Marine | Bundle Copper Copper-Nickel Steel | 25-0251343-PDA | No renewal status stated |
| ABS | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium | Marine | Bundle Copper Copper-Nickel Steel | 25-0251343-PDA-DUP | No renewal status stated |
| CCS | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium Steel | Marine | — | GB23PTB00036_01 | No renewal status stated |
| CCS | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium Steel | — | Bundle Copper Copper-Nickel Steel | GB23PTB00036_02 | No renewal status stated |
| RINA | A class fire | Steel | Marine | — | LAB484722CS/003 | No renewal status stated |
| LR | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium Steel | Marine | Copper Steel | LR21217347SF-04 | No renewal status stated |
| DNV | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Steel | Armored Marine Shielded | — | MEDB00001MS | No renewal status stated |
| DNV | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium | Marine | — | MEDB00002SG | No renewal status stated |
| DNV | A class fire | Steel | — | Copper Copper-Nickel Steel | MEDB00006BG | No renewal status stated |
| DNV | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Steel | Marine | — | MERB00001MS | No renewal status stated |
| DNV | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium | Marine | — | MERB00002SG | No renewal status stated |
| DNV | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Steel | — | Copper Copper-Nickel Steel | MERB00006BG | No renewal status stated |
| ClassNK | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium Steel | — | Bundle Copper Copper-Nickel Fiberglass Other Plastic Steel Titanium | TA251517E | No renewal status stated |
| DNV | Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium Steel | — | Aluminium Copper Copper-Nickel Plastic Steel | TAE000000X | No renewal status stated |
Source checked 2026-08-08: official Roxtec product page.
About Roxtec round frames/seals
Roxtec round frames and seals cover round cable and pipe entry arrangements. Selection depends on the opening, cable or pipe dimensions, attachment method, and project requirements.
Typical applications:
- Round openings
- Sleeves and core-drilled holes
- Cable and pipe entries
