R 75 W Ex AISI316/PRIMED
Art. No. EXWR00000752112
- Aperture dimension Ø (mm)
- 91 - 91
- Packing space (mm)
- 40 x 40
- Weight (kg)
- 1.35
Roxtec round frames/seals
Roxtec R W Ex kit
Roxtec round frames/seals · Roxtec

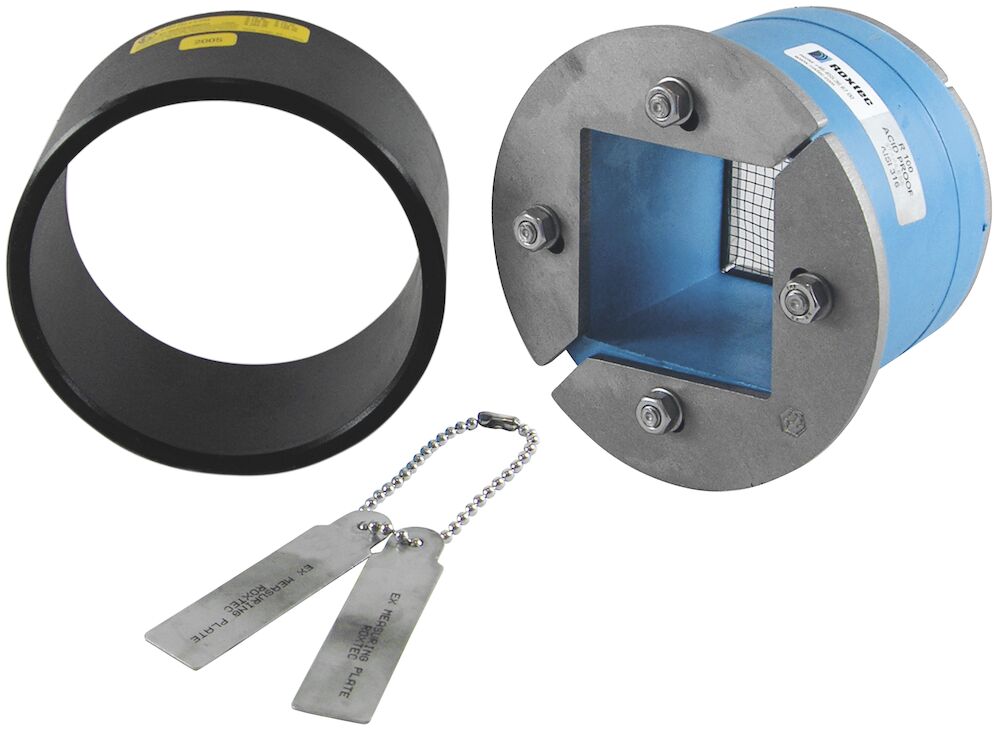

The Roxtec R W Ex frame is round with a square packing space and integrated compression. The frame kit includes a sleeve for welding. R W Ex frames (except R W 75 Ex) are supplied with a net on the back side to simplify horizontal installations.
- To be used with corresponding Roxtec components to form a complete sealing solution
- For several cables or pipes
- For use in hazardous locations
- Attachment by welding
Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.
Article numbers and specifications
Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.
R 100 W Ex AISI316/PRIMED
Art. No. EXWR00001002112
- Aperture dimension Ø (mm)
- 116 - 116
- Packing space (mm)
- 60 x 60
- Weight (kg)
- 1.9
R 125 W Ex AISI316/PRIMED
Art. No. EXWR00001252112
- Aperture dimension Ø (mm)
- 142 - 142
- Packing space (mm)
- 80 x 80
- Weight (kg)
- 2.8
R 150 W Ex AISI316/PRIMED
Art. No. EXWR00001502112
- Aperture dimension Ø (mm)
- 166 - 166
- Packing space (mm)
- 90 x 90
- Weight (kg)
- 3.5
R 200 W Ex AISI316/PRIMED
Art. No. EXWR00002002112
- Aperture dimension Ø (mm)
- 216 - 216
- Packing space (mm)
- 120 x 120
- Weight (kg)
- 5.3
R 75 W Ex AISI316/AISI316
Art. No. EXWR00000752121
- Aperture dimension Ø (mm)
- 91 - 91
- Packing space (mm)
- 40 x 40
- Weight (kg)
- 1.35
R 100 W Ex AISI316/AISI316
Art. No. EXWR00001002121
- Aperture dimension Ø (mm)
- 116 - 116
- Packing space (mm)
- 60 x 60
- Weight (kg)
- 1.9
R 125 W Ex AISI316/AISI316
Art. No. EXWR00001252121
- Aperture dimension Ø (mm)
- 142 - 142
- Packing space (mm)
- 80 x 80
- Weight (kg)
- 2.7
R 150 W Ex AISI316/AISI316
Art. No. EXWR00001502121
- Aperture dimension Ø (mm)
- 166 - 166
- Packing space (mm)
- 90 x 90
- Weight (kg)
- 3.5
R 200 W Ex AISI316/AISI316
Art. No. EXWR00002002121
- Aperture dimension Ø (mm)
- 216 - 216
- Packing space (mm)
- 120 x 120
- Weight (kg)
- 5.3
Reference documents
These links open current files hosted by Roxtec. Check the source document revision before use.
- R Ex (en) pdf (manufacturer document)
- S1008611 SLR EX SLR 70 - SLR 200 pdf (manufacturer document)
- S1016600 R 70-200 EX ASSEMBLY PDF (manufacturer document)
Source-listed certificates
Certificate rows reproduce factual source fields. They do not confirm applicability to a specific assembly. Open the source record and ask AMFSS to check the application.
| Authority | Rating | Division / structure | Cable | Pipe | Type approval | Status |
|---|---|---|---|---|---|---|
| BV | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Steel | Marine | Bundle Copper Copper-Nickel Plastic Steel | 13965/E0 BV | No renewal status stated |
| CSA | Ex | — | Armored Other | Conduit | 2254189 | No renewal status stated |
| ABS | Gas tightness (catastrophic) H class fire Water tightness (catastrophic) | Stainless steel Steel | Marine | Bundle Steel Titanium | 24-0079709-PDA | No renewal status stated |
| ABS | Gas tightness (catastrophic) H class fire Water tightness (catastrophic) | Stainless steel Steel | Marine | Bundle Steel Titanium | 24-0079709-PDA-DUP | No renewal status stated |
| ABS | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Steel | — | Bundle Copper Copper-Nickel Steel | 24-2519751-PDA | No renewal status stated |
| ABS | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Steel | — | Bundle Copper Copper-Nickel Steel | 24-2519751-PDA-DUP | No renewal status stated |
| KTL Korea Testing Laboratory | Ex | — | Other | Conduit | 24-KA4BO-0766U-769U | No renewal status stated |
| ABS | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Stainless steel Steel | Marine | — | 25-0212442-PDA | No renewal status stated |
| ABS | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Stainless steel Steel | Marine | — | 25-0212442-PDA-DUP | No renewal status stated |
| SGS | Ex | — | Armored Other | Conduit | 25-08-162750/E25-08-169397/NB0002 | No renewal status stated |
| CSA | Ex | — | Armored Other | Conduit | CSAE 23UKEX1065U | No renewal status stated |
| Roxtec International AB | Ex | — | — | — | DoC RM and HD Ex | No renewal status stated |
| Nemko | Ex | — | — | — | IECEx NEM 12.0015U | No renewal status stated |
| LR | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium Steel | Marine | Copper Steel | LR21217347SF-04 | No renewal status stated |
| NCC | Ex | — | Other | Conduit | NCC 11.0267 U | No renewal status stated |
| Nemko | Ex | — | Other | — | Nemko 12ATEX1279U | No renewal status stated |
| RISE | Ex | — | — | — | RISE25ATEX0001 | No renewal status stated |
Source checked 2026-08-08: official Roxtec product page.
About Roxtec round frames/seals
Roxtec round frames and seals cover round cable and pipe entry arrangements. Selection depends on the opening, cable or pipe dimensions, attachment method, and project requirements.
Typical applications:
- Round openings
- Sleeves and core-drilled holes
- Cable and pipe entries
Not sure this is the right product? Compare the Roxtec round frames/seals family or describe your application.
