R 70 EMC AISI316
Art. No. ER00A00701121
- Aperture dimension Ø (mm)
- 70 - 72
- Packing space (mm)
- 40 x 40
- Weight (kg)
- 0.46
Roxtec round frames/seals

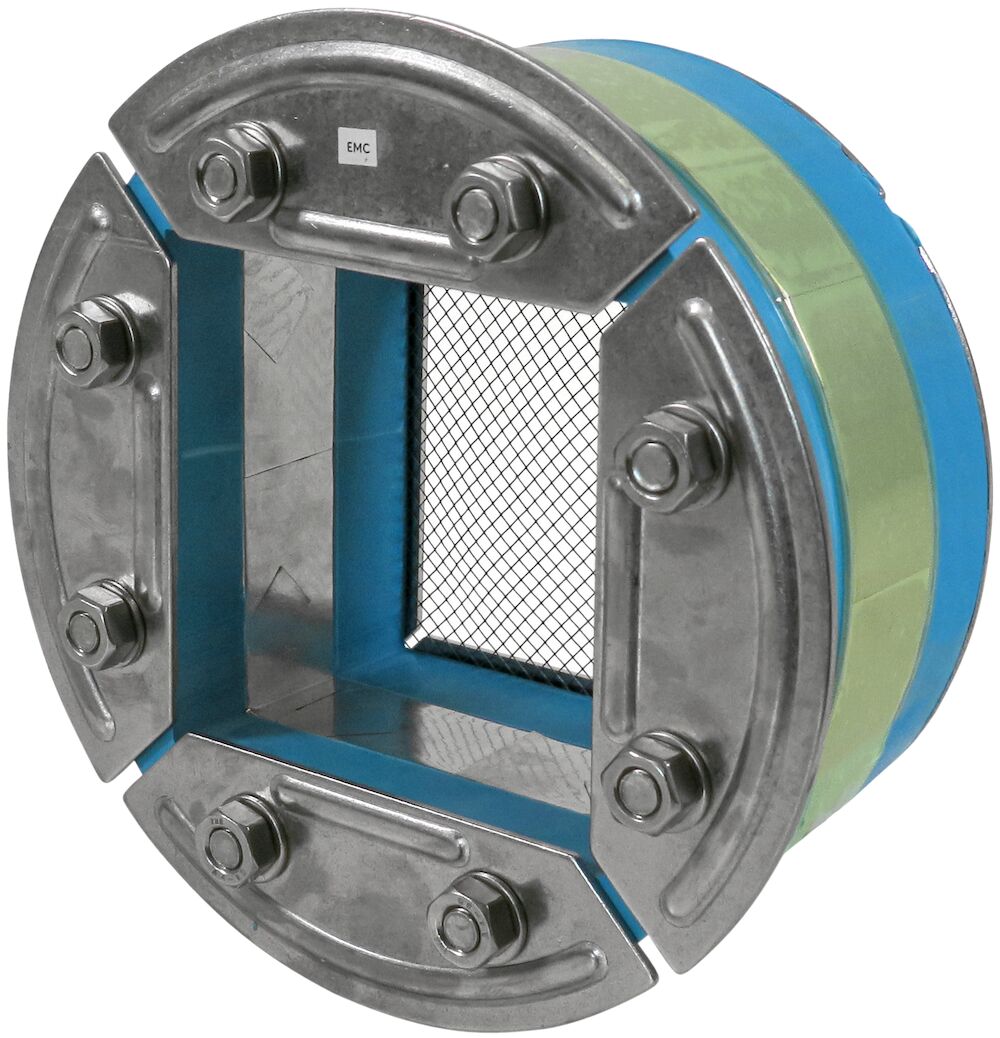

Roxtec R EMC frame
Roxtec round frames/seals · Roxtec
The Roxtec R EMC frame is round with a square packing space for cables, pipes and modules. Compression is integrated in the frame.
- To be used with corresponding Roxtec components to form a complete sealing solution
- Attachment by expansion in holes
- Sleeve accessory available
Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.
Article numbers and specifications
Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.
R 75 EMC AISI316
Art. No. ER00A00751121
- Aperture dimension Ø (mm)
- 75 - 77
- Packing space (mm)
- 40 x 40
- Weight (kg)
- 0.52
R 100 EMC AISI316
Art. No. ER00A01001121
- Aperture dimension Ø (mm)
- 100 - 102
- Packing space (mm)
- 60 x 60
- Weight (kg)
- 0.8
R 125 EMC AISI316
Art. No. 5ER0000004913
- Aperture dimension Ø (mm)
- 125 - 127
- Packing space (mm)
- 80 x 80
- Weight (kg)
- 0.95
R 127 EMC AISI316
Art. No. ER00A01271121
- Aperture dimension Ø (mm)
- 127 - 129
- Packing space (mm)
- 80 x 80
- Weight (kg)
- 1.01
R 150 EMC AISI316
Art. No. ER00A01501121
- Aperture dimension Ø (mm)
- 150 - 152
- Packing space (mm)
- 90 x 90
- Weight (kg)
- 1.7
R 200 EMC AISI316
Art. No. ER00A02001121
- Aperture dimension Ø (mm)
- 200 - 202
- Packing space (mm)
- 120 x 120
- Weight (kg)
- 2.66
Reference documents
These links open current files hosted by Roxtec. Check the source document revision before use.
- R EMC (en) pdf (manufacturer document)
- S1001757 R FRAME EMC R 70-75 EMC ASSEMBLY PDF (manufacturer document)
- S1005748 R 100 EMC ASSEMBLY PDF (manufacturer document)
- S1005778 R 125-200 EMC ASSEMBLY PDF (manufacturer document)
Source-listed certificates
Certificate rows reproduce factual source fields. They do not confirm applicability to a specific assembly. Open the source record and ask AMFSS to check the application.
| Authority | Rating | Division / structure | Cable | Pipe | Type approval | Status |
|---|---|---|---|---|---|---|
| BV | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Steel | Marine | Bundle Copper Copper-Nickel Plastic Steel | 13965/E0 BV | No renewal status stated |
| BV | Gas tightness (catastrophic) H class fire Water tightness (catastrophic) | Steel | Marine | — | 15027/E0 BV | No renewal status stated |
| ABS | Gas tightness (catastrophic) H class fire Water tightness (catastrophic) | Stainless steel Steel | Marine | Bundle Steel Titanium | 24-0079709-PDA | No renewal status stated |
| ABS | Gas tightness (catastrophic) H class fire Water tightness (catastrophic) | Stainless steel Steel | Marine | Bundle Steel Titanium | 24-0079709-PDA-DUP | No renewal status stated |
| ABS | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Steel | — | Bundle Copper Copper-Nickel Steel | 24-2519751-PDA | No renewal status stated |
| ABS | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Steel | — | Bundle Copper Copper-Nickel Steel | 24-2519751-PDA-DUP | No renewal status stated |
| ABS | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium | Marine | Bundle Copper Copper-Nickel Steel | 25-0251343-PDA | No renewal status stated |
| ABS | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium | Marine | Bundle Copper Copper-Nickel Steel | 25-0251343-PDA-DUP | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Concrete Lightweight concrete | Construction Telecom | Conduit Steel | C-AJ-8309 | No renewal status stated |
| Factory Mutual Approval | F fire T fire | Gypsum | Other | — | FM Fire Stop Design 636 | No renewal status stated |
| Factory Mutual Approval | F fire T fire | Gypsum | Other | — | FM Fire Stop Design 637 | No renewal status stated |
| Factory Mutual Approval | F fire T fire | Gypsum | Other | — | FM Fire Stop Design 641 | No renewal status stated |
| Factory Mutual Approval | F fire T fire | Gypsum | Other | — | FM Fire Stop Design 643 | No renewal status stated |
| LR | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium Steel | Marine | Copper Steel | LR21217347SF-04 | No renewal status stated |
| DNV | A class fire Water tightness (catastrophic) | Aluminium | — | Copper Steel | MEDB000017T rev 2 | No renewal status stated |
| DNV | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Steel | Armored Marine Shielded | — | MEDB00001MS | No renewal status stated |
| DNV | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium | Marine | — | MEDB00002SG | No renewal status stated |
| DNV | A class fire | Steel | — | Copper Copper-Nickel Steel | MEDB00006BG | No renewal status stated |
| DNV | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium | — | Copper Copper-Nickel Steel | MERB000017T | No renewal status stated |
| DNV | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Steel | Marine | — | MERB00001MS | No renewal status stated |
| DNV | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium | Marine | — | MERB00002SG | No renewal status stated |
| DNV | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Steel | — | Copper Copper-Nickel Steel | MERB00006BG | No renewal status stated |
| DNV | Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium Steel | — | Aluminium Copper Copper-Nickel Plastic Steel | TAE000000X | No renewal status stated |
| DNV | Gas tightness (catastrophic) H class fire Water tightness (catastrophic) | Steel | Marine | — | TAF00000DH | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Concrete Lightweight concrete | — | Conduit Steel | W-J-1300 | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Concrete Lightweight concrete | Armored Construction | — | W-J-3248 | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Concrete Lightweight concrete | Armored Construction | — | W-J-3249 | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Concrete Lightweight concrete | Armored Construction | — | W-J-3253 | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Concrete Lightweight concrete | Armored Construction | — | W-J-3255 | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Concrete Lightweight concrete | Construction | Conduit | W-J-8069 | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Gypsum | Armored Construction Other | — | W-L-3360 | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Gypsum | Other | — | W-L-3361 | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Sandwich | Construction Telecom | Steel | W-N-8001 | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | — | — | — | XHJI7.R15556 | No renewal status stated |
Source checked 2026-08-08: official Roxtec product page.
About Roxtec round frames/seals
Roxtec round frames and seals cover round cable and pipe entry arrangements. Selection depends on the opening, cable or pipe dimensions, attachment method, and project requirements.
Typical applications:
- Round openings
- Sleeves and core-drilled holes
- Cable and pipe entries
Not sure this is the right product? Compare the Roxtec round frames/seals family or describe your application.
