H3-150
Art. No. 122905
- Aperture dimension Ø (mm)
- 150 - 152
- For cable/pipe Ø (mm)
- 24 - 54
- Number of cables/pipes
- 3
- Weight (kg)
- 2.77
Roxtec round frames/seals
Roxtec H3 seal
Roxtec round frames/seals · Roxtec

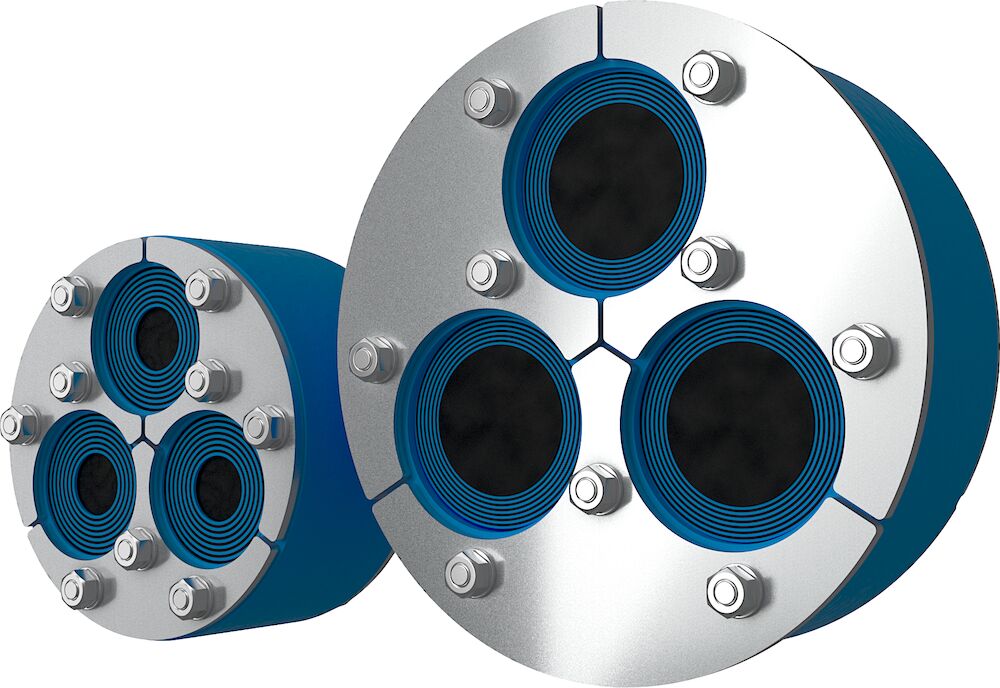

The Roxtec H3 Seal is a round seal for cables and pipes that is inserted in metal sleeves or core drilled holes. The three parts are adaptable to cables and pipes of different sizes. The split construction makes it easy to install around an existing cable or pipe.
- For up to three cables/pipes
- Made for cables in trefoil formations
Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.
Article numbers and specifications
Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.
H3-150 WOC
Art. No. 122906
- Aperture dimension Ø (mm)
- 150 - 152
- For cable/pipe Ø (mm)
- 24 - 54
- Number of cables/pipes
- 3
- Weight (kg)
- 2.8
H3-150 INSERTABLE
Art. No. 122907
- Aperture dimension Ø (mm)
- 150 - 152
- For cable/pipe Ø (mm)
- 24 - 54
- Number of cables/pipes
- 3
- Weight (kg)
- 2.7
H3-150 INSERTABLE WOC
Art. No. 122908
- Aperture dimension Ø (mm)
- 150 - 152
- For cable/pipe Ø (mm)
- 24 - 54
- Number of cables/pipes
- 3
- Weight (kg)
- 2.59
H3-200
Art. No. 122909
- Aperture dimension Ø (mm)
- 200 - 202
- For cable/pipe Ø (mm)
- 48 - 70
- Number of cables/pipes
- 3
- Weight (kg)
- 4.8
H3-200 WOC
Art. No. 122910
- Aperture dimension Ø (mm)
- 200 - 202
- For cable/pipe Ø (mm)
- 48 - 70
- Number of cables/pipes
- 3
- Weight (kg)
- 4.36
H3-200 INSERTABLE
Art. No. 122911
- Aperture dimension Ø (mm)
- 200 - 202
- For cable/pipe Ø (mm)
- 48 - 70
- Number of cables/pipes
- 3
- Weight (kg)
- 4.66
H3-200 INSERTABLE WOC
Art. No. 122912
- Aperture dimension Ø (mm)
- 200 - 202
- For cable/pipe Ø (mm)
- 48 - 70
- Number of cables/pipes
- 3
- Weight (kg)
- 4.14
Reference documents
These links open current files hosted by Roxtec. Check the source document revision before use.
- H3 (en) pdf (manufacturer document)
- S1039325 H3 SEAL H3 150-200 PDF (manufacturer document)
Source-listed certificates
Certificate rows reproduce factual source fields. They do not confirm applicability to a specific assembly. Open the source record and ask AMFSS to check the application.
| Authority | Rating | Division / structure | Cable | Pipe | Type approval | Status |
|---|---|---|---|---|---|---|
| RISE | E fire EI fire | Brickwork Concrete Concrete or Brickwork Lightweight concrete | Construction | — | 0402-CPR-C500582 | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Concrete | Armored Construction | — | C-BJ-3052 | No renewal status stated |
| Roxtec International AB | E fire EI fire | Brickwork Concrete Concrete or Brickwork Lightweight concrete | Construction | — | CE Declaration of Conformity (ETA-24/1177) | No renewal status stated |
| Roxtec International AB | E fire EI fire | — | Construction | — | CE Declaration of Performance (DoP) ETA 24/1177 | No renewal status stated |
| LR | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium Steel | Marine | Copper Copper-Nickel Steel | LR25425607SF | No renewal status stated |
| DNV | A class fire | Steel | Marine Shielded | — | MEDB000074M | No renewal status stated |
| DNV | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Steel | — | Copper Copper-Nickel Steel | MEDB00007UC | No renewal status stated |
| DNV | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium | — | Steel | MEDB0000876 | No renewal status stated |
| DNV | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium | Marine | — | MEDB0000877 | No renewal status stated |
| DNV | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium | — | None Steel | MERB0000876 | No renewal status stated |
| DNV | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium | Marine | — | MERB0000877 | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Sandwich | Armored Construction | Conduit | W-N-8003 | No renewal status stated |
Source checked 2026-08-08: official Roxtec product page.
About Roxtec round frames/seals
Roxtec round frames and seals cover round cable and pipe entry arrangements. Selection depends on the opening, cable or pipe dimensions, attachment method, and project requirements.
Typical applications:
- Round openings
- Sleeves and core-drilled holes
- Cable and pipe entries
Not sure this is the right product? Compare the Roxtec round frames/seals family or describe your application.
