H3 101 (4") UG
Art. No. 224498
- Aperture dimension Ø (mm)
- 101 - 104
- For cable/pipe Ø (mm)
- 9 - 33
- Number of cables/pipes
- 3
- Weight (kg)
- 1.25
Roxtec round frames/seals

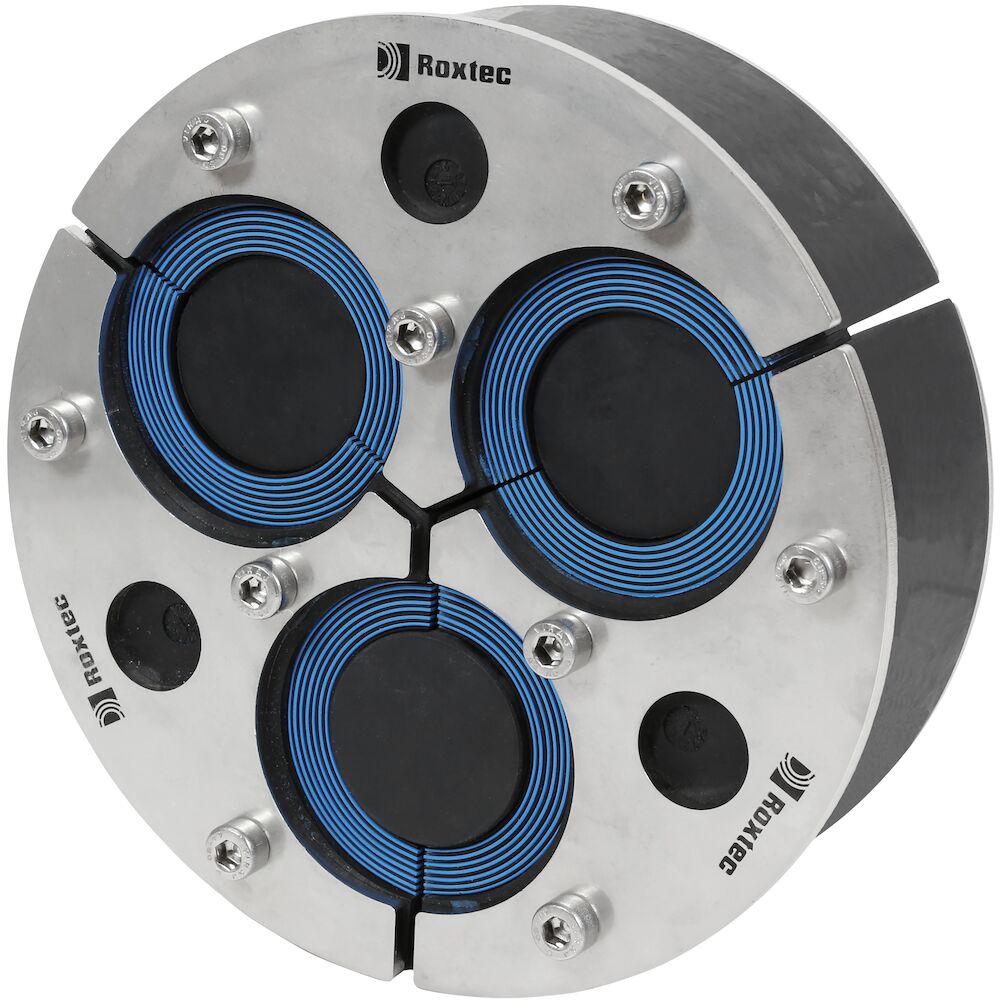

Roxtec H3 UG™ seal
Roxtec round frames/seals · Roxtec
The Roxtec H3 UG™ is a three-part seal for easy installation. The transit has a +3mm tolerance towards the aperture and an indicator showing when a compressed seal is achieved.
- For cables in trefoil formation
- Can be used together with Roxtec UG™ sleeve products
Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.
Article numbers and specifications
Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.
H3 127 (5") UG
Art. No. 224448
- Aperture dimension Ø (mm)
- 126.5 - 129.5
- For cable/pipe Ø (mm)
- 23 - 43
- Number of cables/pipes
- 3
- Weight (kg)
- 1.9
H3 135 UG
Art. No. 126281
- Aperture dimension Ø (mm)
- 135 - 138
- For cable/pipe Ø (mm)
- 23 - 43
- Number of cables/pipes
- 3
- Weight (kg)
- 2.21
H3 150 UG
Art. No. 151561
- Aperture dimension Ø (mm)
- 150 - 153
- For cable/pipe Ø (mm)
- 24 - 52
- Number of cables/pipes
- 3
- Weight (kg)
- 2.5
H3 153 (6") UG
Art. No. 224470
- Aperture dimension Ø (mm)
- 152.5 - 155.5
- For cable/pipe Ø (mm)
- 24 - 52
- Number of cables/pipes
- 3
- Weight (kg)
- 2.8
H3 185 UG
Art. No. 126283
- Aperture dimension Ø (mm)
- 185 - 188
- For cable/pipe Ø (mm)
- 48 - 64
- Number of cables/pipes
- 3
- Weight (kg)
- 3.88
H3 200 UG
Art. No. 117842
- Aperture dimension Ø (mm)
- 200 - 203
- For cable/pipe Ø (mm)
- 48 - 68
- Number of cables/pipes
- 3
- Weight (kg)
- 4.3
H3 201 (8") UG
Art. No. 224483
- Aperture dimension Ø (mm)
- 201 - 204
- For cable/pipe Ø (mm)
- 39 - 68
- Number of cables/pipes
- 3
- Weight (kg)
- 4.4
H3 200 UG INSERTABLE
Art. No. 127053
- Aperture dimension Ø (mm)
- 200 - 203
- For cable/pipe Ø (mm)
- 48 - 68
- Number of cables/pipes
- 3
- Weight (kg)
- 4.4
H3 135 UG WOC
Art. No. 151306
- Aperture dimension Ø (mm)
- 135 - 138
- For cable/pipe Ø (mm)
- 23 - 43
- Number of cables/pipes
- 3
- Weight (kg)
- 2.3
H3 185 UG WOC
Art. No. 151308
- Aperture dimension Ø (mm)
- 185 - 188
- For cable/pipe Ø (mm)
- 48 - 64
- Number of cables/pipes
- 3
- Weight (kg)
- 3.5
H3 200 UG WOC
Art. No. 108697
- Aperture dimension Ø (mm)
- 200 - 203
- For cable/pipe Ø (mm)
- 48 - 68
- Number of cables/pipes
- 3
- Weight (kg)
- 3.96
H3 200 UG INSERTABLE WOC
Art. No. 164807
- Aperture dimension Ø (mm)
- 200 - 203
- For cable/pipe Ø (mm)
- 48 - 68
- Number of cables/pipes
- 3
- Weight (kg)
- 3.7
H3 250 UG WOC
Art. No. 247709
- Aperture dimension Ø (mm)
- 250 - 253
- For cable/pipe Ø (mm)
- 55 - 88
- Number of cables/pipes
- 3
- Weight (kg)
- 1
H8 298 UG WOC
Art. No. 247665
- Aperture dimension Ø (mm)
- 298 - 301
- For cable/pipe Ø (mm)
- 57 - 64
- Number of cables/pipes
- 8
- Weight (kg)
- 8.62
Reference documents
These links open current files hosted by Roxtec. Check the source document revision before use.
- H3 Ug (en) pdf (manufacturer document)
- S1033803 H3-200 UG ASSEMBLY PDF (manufacturer document)
- S1042071 H3-200 UG INSERTABLE ASSEMBLY pdf (manufacturer document)
- S1501095 H3 135 UG ASSEMBLY PDF (manufacturer document)
- S1501351 H UG H3 150 UG PDF (manufacturer document)
- S1503259 H3 185 UG ASSEMBLY PDF (manufacturer document)
Source-listed certificates
Certificate rows reproduce factual source fields. They do not confirm applicability to a specific assembly. Open the source record and ask AMFSS to check the application.
| Authority | Rating | Division / structure | Cable | Pipe | Type approval | Status |
|---|---|---|---|---|---|---|
| Roxtec International AB | — | — | — | — | Declaration of conformity UG | No renewal status stated |
Source checked 2026-08-08: official Roxtec product page.
About Roxtec round frames/seals
Roxtec round frames and seals cover round cable and pipe entry arrangements. Selection depends on the opening, cable or pipe dimensions, attachment method, and project requirements.
Typical applications:
- Round openings
- Sleeves and core-drilled holes
- Cable and pipe entries
Not sure this is the right product? Compare the Roxtec round frames/seals family or describe your application.
