SWAN NECK 6x1 GALV INCL GASKET
Art. No. 5S00000002695
- Aperture dimensions WxH (mm)
- 145(+5/-0) x 245(+5/-0)
- External dimensions WxHxD (mm)
- 269 x 454 x 459
- Frame openings
- 1
- Packing space (mm)
- 120 x 180
- Weight (kg)
- 18.35
Roxtec rectangular frames

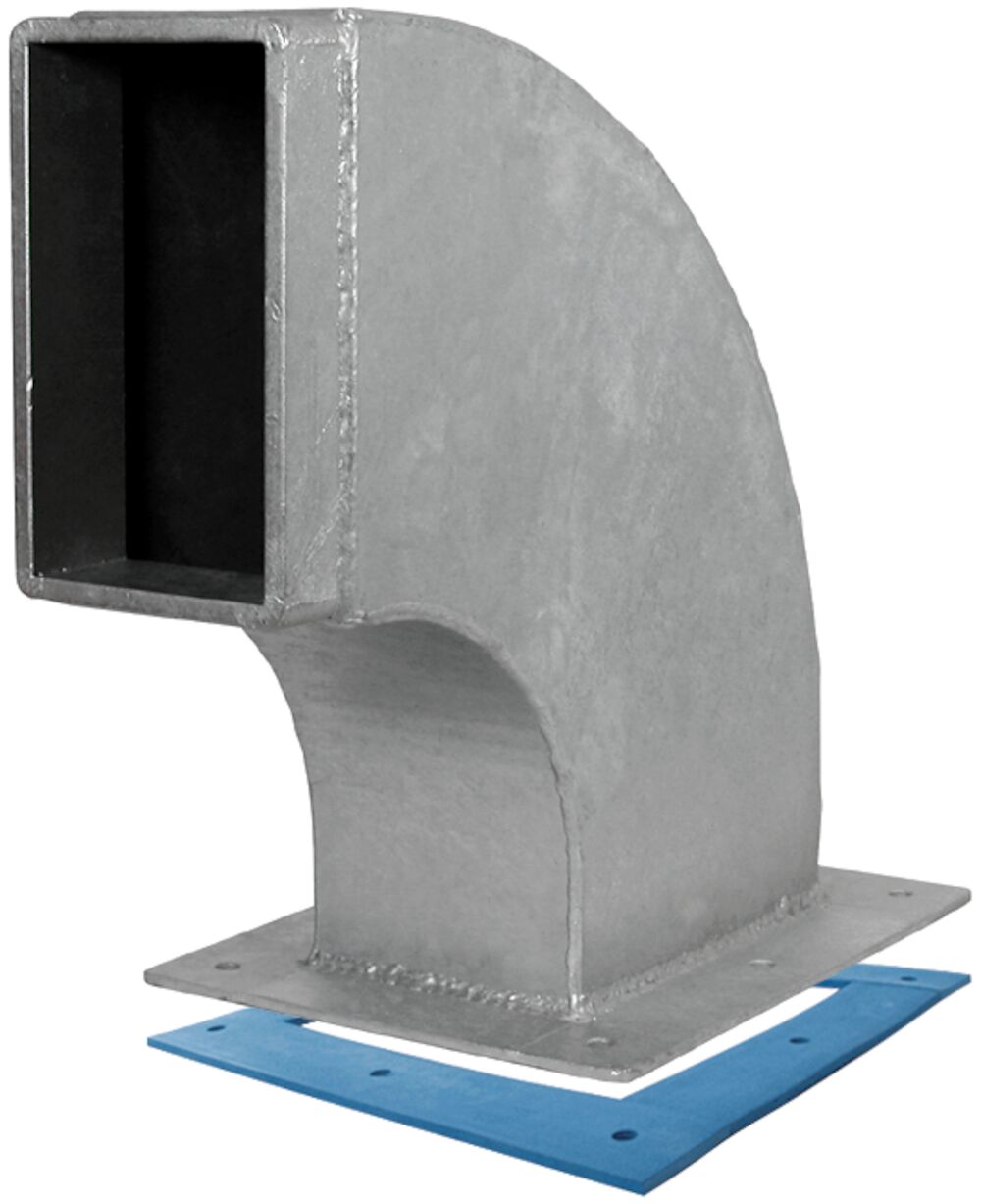

Roxtec Swan Neck frame
Roxtec rectangular frames · Roxtec
The Roxtec Swan Neck frame is designed for roof-top installations. It has either one or two openings.
- To be used with corresponding Roxtec components to form a complete sealing solution
- Attachment by bolting
Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.
Article numbers and specifications
Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.
SWAN NECK 6x2 GALV INCL GASKET
Art. No. 5G00000002001
- Aperture dimensions WxH (mm)
- 280(+5/-0) x 245(+5/-0)
- External dimensions WxHxD (mm)
- 399 x 454 x 459
- Frame openings
- 2
- Packing space (mm)
- 120 x 180
- Weight (kg)
- 25.35
Reference documents
These links open current files hosted by Roxtec. Check the source document revision before use.
- SWAN NECK (en) pdf (manufacturer document)
- S1003624 SWAN NECK 6x1 ASSEMBLY PDF (manufacturer document)
- S1004282 SWAN NECK 6x2 ASSEMBLY PDF (manufacturer document)
Source checked 2026-08-08: official Roxtec product page.
About Roxtec rectangular frames
Roxtec rectangular frames form the frame portion of modular cable and pipe transit systems. Frame type and components must be matched to the opening and application.
Typical applications:
- Walls and floors
- Bulkheads and decks
- Cabinets and enclosures
Not sure this is the right product? Compare the Roxtec rectangular frames family or describe your application.
