SRC 4x1 R20 GRP
Art. No. 198826
- Aperture dimensions WxH (mm)
- 156(+4.5/-4.5) x 195(+0/-0)
- External dimensions WxHxD (mm)
- 150.5 x 189.5 x 60
- Frame openings
- 1
- Packing space (mm)
- 120 x 120
- Weight (kg)
- 0.94
Roxtec rectangular frames

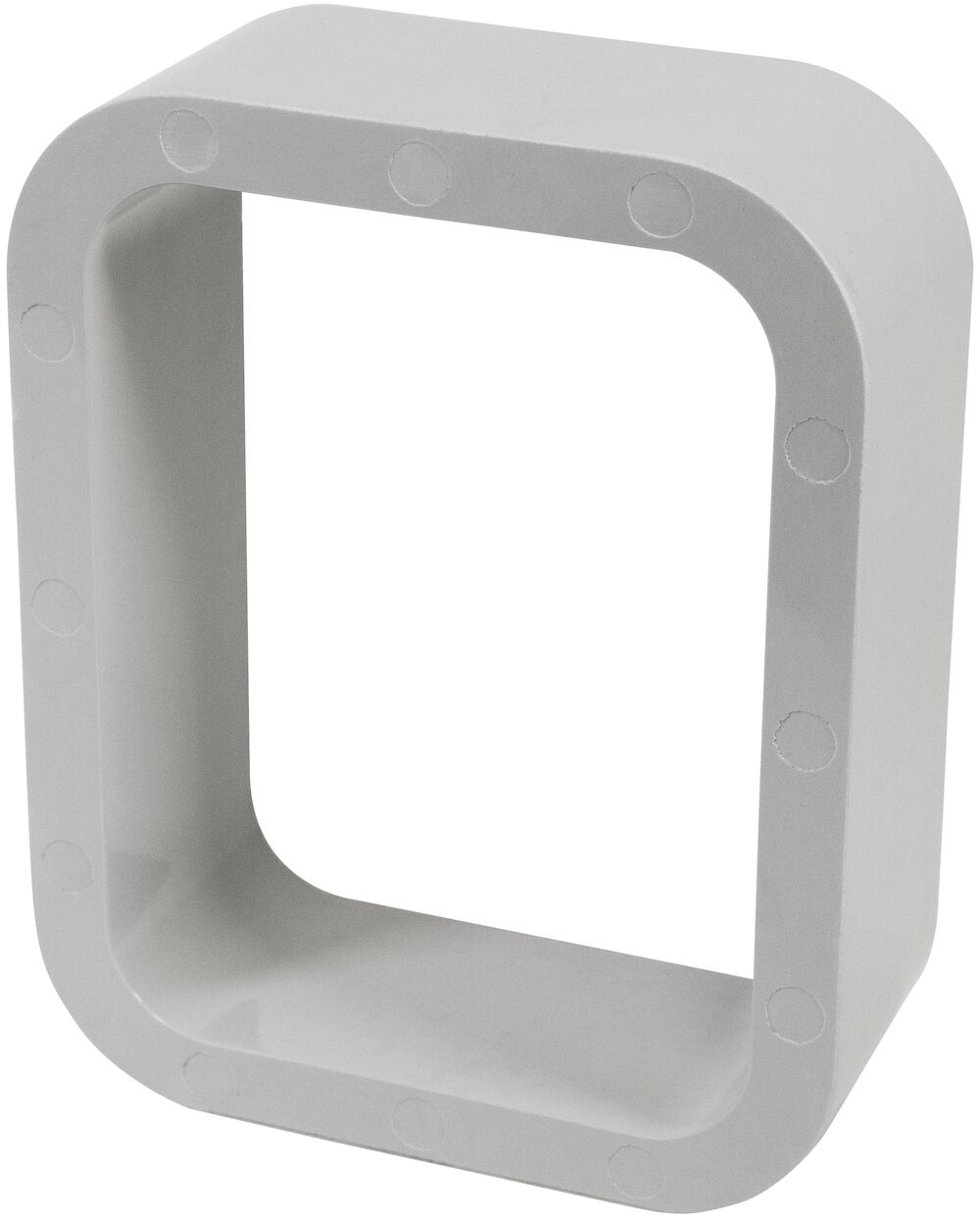

Roxtec SRC GRP frame
Roxtec rectangular frames · Roxtec
Glass reinforced polyester frame for applications where it is important to maintain a strong yet very light fiberglass or similar composite structure.
- Lightweight
- Attachment by lamination
Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.
Article numbers and specifications
Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.
SRC 6x1 R20 GRP
Art. No. 198827
- Aperture dimensions WxH (mm)
- 156(+4.5/-4.5) x 254(+0/-0)
- External dimensions WxHxD (mm)
- 150.5 x 248 x 60
- Frame openings
- 1
- Packing space (mm)
- 120 x 180
- Weight (kg)
- 1.05
Reference documents
These links open current files hosted by Roxtec. Check the source document revision before use.
- SRC (en) pdf (manufacturer document)
- S1549519 SRC FRAME GRP SINGLE FRAME R20 PDF (manufacturer document)
Source-listed certificates
Certificate rows reproduce factual source fields. They do not confirm applicability to a specific assembly. Open the source record and ask AMFSS to check the application.
| Authority | Rating | Division / structure | Cable | Pipe | Type approval | Status |
|---|---|---|---|---|---|---|
| BV | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Other | Marine | ABS Copper Copper-Nickel Fiberglass PB PE Plastic PP PVC PVDF Steel | 73351/A1 BV | No renewal status stated |
| LR | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Other | Marine | Copper Fiberglass PB PE PE/ALU/PE Plastic PP PVC Steel | LR2386976SF | No renewal status stated |
| LR | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Other | Marine | Copper Fiberglass PB PE PE/ALU/PE Plastic PP PVC Steel | LR2387043MB | No renewal status stated |
| LR | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | GRP/FRP | Marine | — | LR2543793UKMB | No renewal status stated |
| LR | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | GRP/FRP | — | Copper Fiberglass PE/ALU/PE Plastic Steel Titanium | LR2543794UKMB | No renewal status stated |
| LR | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | GRP/FRP | Marine | — | LR2543795UKMB | No renewal status stated |
| LR | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | GRP/FRP | — | Copper Fiberglass PE/ALU/PE Plastic Steel Titanium | LR2543796UKMB | No renewal status stated |
| DNV | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Other | Marine | — | TAF00001SH | No renewal status stated |
| DNV | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Other | — | ABS Copper Fiberglass HDPE Other PB PE PE/ALU/PE Plastic PP PVC PVDF Steel | TAF00001SJ | No renewal status stated |
Source checked 2026-08-08: official Roxtec product page.
About Roxtec rectangular frames
Roxtec rectangular frames form the frame portion of modular cable and pipe transit systems. Frame type and components must be matched to the opening and application.
Typical applications:
- Walls and floors
- Bulkheads and decks
- Cabinets and enclosures
Not sure this is the right product? Compare the Roxtec rectangular frames family or describe your application.
