Roxtec SRC frame

Roxtec rectangular frames · Roxtec

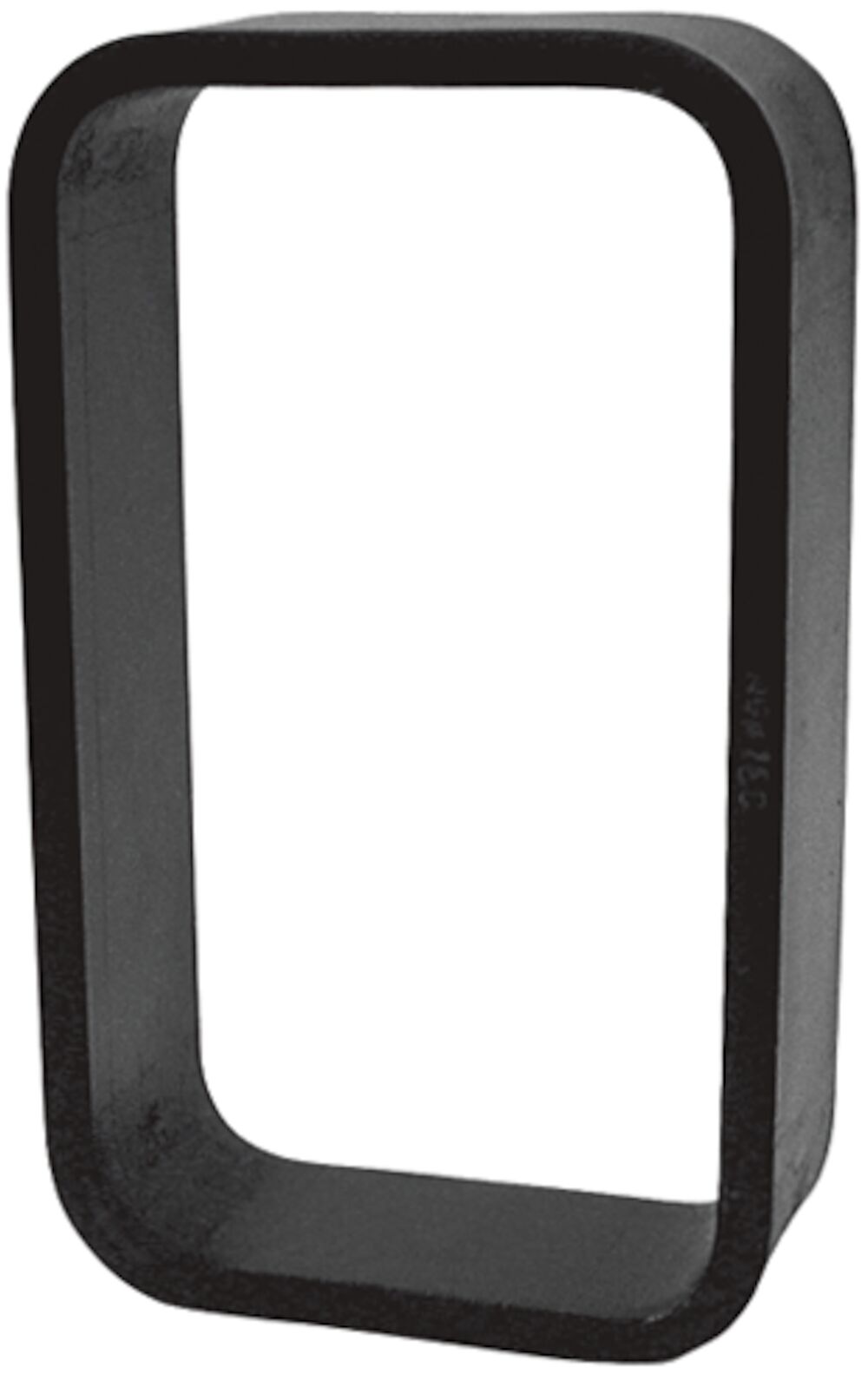

The Roxtec SRC frame is a metal frame for load bearing structures. It is designed with rounded corners to reduce stress concentration and the risk of cracks around the frame. It is available in different materials.

To be used with corresponding Roxtec components to form a complete sealing solution
Attachment by welding
Available in two versions, SRC r20 and SRC r40

Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.

Article numbers and specifications

Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.

SRC 6x1 R20 PRIMED

Art. No. SRC6000020112

Aperture dimensions WxH (mm): 143(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 140.5 x 238 x 60
Frame openings: 1
Packing space (mm): 120 x 180
Weight (kg): 3.3

Quote this article number

SRC 6x2 R20 PRIMED

Art. No. SRC6000020212

Aperture dimensions WxH (mm): 273(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 271 x 238 x 60
Frame openings: 2
Packing space (mm): 120 x 180
Weight (kg): 5.5

Quote this article number

SRC 6x3 R20 PRIMED

Art. No. SRC6000020312

Aperture dimensions WxH (mm): 404(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 401.5 x 238 x 60
Frame openings: 3
Packing space (mm): 120 x 180
Weight (kg): 7.7

Quote this article number

SRC 6x1 R20 AISI316

Art. No. 5SRC000006106

Aperture dimensions WxH (mm): 143(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 140.5 x 238 x 60
Frame openings: 1
Packing space (mm): 120 x 180
Weight (kg): 3.3

Quote this article number

SRC 6x2 R20 AISI316

Art. No. 5SRC000006105

Aperture dimensions WxH (mm): 273(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 271 x 238 x 60
Frame openings: 2
Packing space (mm): 120 x 180
Weight (kg): 5.5

Quote this article number

SRC 6x3 R20 AISI316

Art. No. 5SRC000006684

Aperture dimensions WxH (mm): 404(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 401.5 x 238 x 60
Frame openings: 3
Packing space (mm): 120 x 180
Weight (kg): 7.6

Quote this article number

SRC 6x1 R20 ALU

Art. No. 5SRC000003054

Aperture dimensions WxH (mm): 143(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 140.5 x 238 x 60
Frame openings: 1
Packing space (mm): 120 x 180
Weight (kg): 1.1

Quote this article number

SRC 6x2 R20 ALU

Art. No. 5SRC000004149

Aperture dimensions WxH (mm): 273(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 271 x 238 x 60
Frame openings: 2
Packing space (mm): 120 x 180
Weight (kg): 1.9

Quote this article number

SRC 6x3 R20 ALU

Art. No. 5SRC000011726

Aperture dimensions WxH (mm): 404(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 401.5 x 238 x 60
Frame openings: 3
Packing space (mm): 120 x 180
Weight (kg): 2.65

Quote this article number

SRC 6x1 R40 PRIMED

Art. No. SRC6000040112

Aperture dimensions WxH (mm): 143(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 140.5 x 238 x 60
Frame openings: 1
Packing space (mm): 120 x 180
Weight (kg): 2.96

Quote this article number

SRC 6x2 R40 PRIMED

Art. No. SRC6000040212

Aperture dimensions WxH (mm): 273(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 271 x 238 x 60
Frame openings: 2
Packing space (mm): 120 x 180
Weight (kg): 5.5

Quote this article number

SRC 6x3 R40 PRIMED

Art. No. SRC6000040312

Aperture dimensions WxH (mm): 404(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 401.5 x 238 x 60
Frame openings: 3
Packing space (mm): 120 x 180
Weight (kg): 7.7

Quote this article number

SRC 6x1 R40 AISI316

Art. No. 5SRC000010300

Aperture dimensions WxH (mm): 143(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 140.5 x 238 x 60
Frame openings: 1
Packing space (mm): 120 x 180
Weight (kg): 3.02

Quote this article number

SRC 6x2 R40 AISI316

Art. No. 5SRC000010299

Aperture dimensions WxH (mm): 273(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 271 x 238 x 60
Frame openings: 2
Packing space (mm): 120 x 180
Weight (kg): 5.14

Quote this article number

SRC 6x3 R40 AISI316

Art. No. 5SRC000010298

Aperture dimensions WxH (mm): 404(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 401.5 x 238 x 60
Frame openings: 3
Packing space (mm): 120 x 180
Weight (kg): 7.35

Quote this article number

SRC 6x1 R40 ALU

Art. No. 5SRC000003232

Aperture dimensions WxH (mm): 143(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 140.5 x 238 x 60
Frame openings: 1
Packing space (mm): 120 x 180
Weight (kg): 1

Quote this article number

SRC 6x2 R40 ALU

Art. No. 5SRC000005649

Aperture dimensions WxH (mm): 273(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 271 x 238 x 60
Frame openings: 2
Packing space (mm): 120 x 180
Weight (kg): 1.8

Quote this article number

SRC 6x3 R40 ALU

Art. No. 5SRC000005650

Aperture dimensions WxH (mm): 404(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 401.5 x 238 x 60
Frame openings: 3
Packing space (mm): 120 x 180
Weight (kg): 2.55

Quote this article number

SRC 2x1 R20 PRIMED

Art. No. SRC2000020112

Aperture dimensions WxH (mm): 143(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 140.5 x 121 x 60
Frame openings: 1
Packing space (mm): 120 x 60
Weight (kg): 2

Quote this article number

SRC 2x2 R20 PRIMED

Art. No. SRC2000020212

Aperture dimensions WxH (mm): 273(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 271 x 121 x 60
Frame openings: 2
Packing space (mm): 120 x 60
Weight (kg): 3.9

Quote this article number

SRC 2x3 R20 PRIMED

Art. No. SRC2000020312

Aperture dimensions WxH (mm): 404(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 401.5 x 121 x 60
Frame openings: 3
Packing space (mm): 120 x 60
Weight (kg): 5.5

Quote this article number

SRC 2x4 R20 PRIMED

Art. No. SRC2000020412

Aperture dimensions WxH (mm): 534(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 532 x 121 x 60
Frame openings: 4
Packing space (mm): 120 x 60
Weight (kg): 7.1

Quote this article number

SRC 2x5 R20 PRIMED

Art. No. SRC2000020512

Aperture dimensions WxH (mm): 665(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 662.5 x 121 x 60
Frame openings: 5
Packing space (mm): 120 x 60
Weight (kg): 8.7

Quote this article number

SRC 2x6 R20 PRIMED

Art. No. SRC2000020612

Aperture dimensions WxH (mm): 795(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 793 x 121 x 60
Frame openings: 6
Packing space (mm): 120 x 60
Weight (kg): 10.3

Quote this article number

SRC 2+2x1 R20 PRIMED

Art. No. 113823

Aperture dimensions WxH (mm): 143(+1/-1) x 234(+1/-1)
External dimensions WxHxD (mm): 140.5 x 232 x 60
Frame openings: 2
Packing space (mm): 120 x 60
Weight (kg): 3.9

Quote this article number

SRC 2+2x2 R20 PRIMED

Art. No. 113824

Aperture dimensions WxH (mm): 273(+1/-1) x 244(+1/-1)
External dimensions WxHxD (mm): 271 x 242 x 60
Frame openings: 4
Packing space (mm): 120 x 60
Weight (kg): 8

Quote this article number

SRC 2+2x3 R20 PRIMED

Art. No. 113825

Aperture dimensions WxH (mm): 404(+1/-1) x 244(+1/-1)
External dimensions WxHxD (mm): 401.5 x 242 x 60
Frame openings: 6
Packing space (mm): 120 x 60
Weight (kg): 11.4

Quote this article number

SRC 2+2x4 R20 PRIMED

Art. No. 113826

Aperture dimensions WxH (mm): 534(+1/-1) x 244(+1/-1)
External dimensions WxHxD (mm): 532 x 242 x 60
Frame openings: 8
Packing space (mm): 120 x 60
Weight (kg): 14.8

Quote this article number

SRC 4x1 R20 PRIMED

Art. No. SRC4000020112

Aperture dimensions WxH (mm): 143(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 140.5 x 179.5 x 60
Frame openings: 1
Packing space (mm): 120 x 120
Weight (kg): 2.56

Quote this article number

SRC 4x2 R20 PRIMED

Art. No. SRC4000020212

Aperture dimensions WxH (mm): 273(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 271 x 179.5 x 60
Frame openings: 2
Packing space (mm): 120 x 120
Weight (kg): 4.7

Quote this article number

SRC 4x3 R20 PRIMED

Art. No. SRC4000020312

Aperture dimensions WxH (mm): 404(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 401.5 x 179.5 x 60
Frame openings: 3
Packing space (mm): 120 x 120
Weight (kg): 6.6

Quote this article number

SRC 4x4 R20 PRIMED

Art. No. SRC4000020412

Aperture dimensions WxH (mm): 534(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 532 x 179.5 x 60
Frame openings: 4
Packing space (mm): 120 x 120
Weight (kg): 8.5

Quote this article number

SRC 4x5 R20 PRIMED

Art. No. SRC4000020512

Aperture dimensions WxH (mm): 665(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 662.5 x 179.5 x 60
Frame openings: 5
Packing space (mm): 120 x 120
Weight (kg): 10.3

Quote this article number

SRC 4x6 R20 PRIMED

Art. No. SRC4000020612

Aperture dimensions WxH (mm): 795(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 793 x 179.5 x 60
Frame openings: 6
Packing space (mm): 120 x 120
Weight (kg): 12.2

Quote this article number

SRC 4x7 R20 PRIMED

Art. No. SRC4000020712

Aperture dimensions WxH (mm): 926(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 923.5 x 179.5 x 60
Frame openings: 7
Packing space (mm): 120 x 120
Weight (kg): 14.1

Quote this article number

SRC 4x8 R20 PRIMED

Art. No. SRC4000020812

Aperture dimensions WxH (mm): 1056(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 1054 x 179.5 x 60
Frame openings: 8
Packing space (mm): 120 x 120
Weight (kg): 16

Quote this article number

SRC 4x9 R20 PRIMED

Art. No. SRC4000020912

Aperture dimensions WxH (mm): 1187(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 1184.5 x 179.5 x 60
Frame openings: 9
Packing space (mm): 120 x 120
Weight (kg): 17.9

Quote this article number

SRC 4+4x1 R20 PRIMED

Art. No. 5SRC000009354

Aperture dimensions WxH (mm): 143(+1/-1) x 351(+1/-1)
External dimensions WxHxD (mm): 140.5 x 349 x 60
Frame openings: 2
Packing space (mm): 120 x 120
Weight (kg): 4.8

Quote this article number

SRC 4+4x2 R20 PRIMED

Art. No. SRC4400020212

Aperture dimensions WxH (mm): 273(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 271 x 359 x 60
Frame openings: 4
Packing space (mm): 120 x 120
Weight (kg): 9.3

Quote this article number

SRC 4+4x3 R20 PRIMED

Art. No. 5SRC000009355

Aperture dimensions WxH (mm): 404(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 401.5 x 359 x 60
Frame openings: 6
Packing space (mm): 120 x 120
Weight (kg): 13.4

Quote this article number

SRC 4+4x4 R20 PRIMED

Art. No. 5SRC000009356

Aperture dimensions WxH (mm): 534(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 532 x 359 x 60
Frame openings: 8
Packing space (mm): 120 x 120
Weight (kg): 17.47

Quote this article number

SRC 4+4x5 R20 PRIMED

Art. No. 108845

Aperture dimensions WxH (mm): 665(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 662.5 x 359 x 60
Frame openings: 10
Packing space (mm): 120 x 120
Weight (kg): 21.5

Quote this article number

SRC 4+4x6 R20 PRIMED

Art. No. 113846

Aperture dimensions WxH (mm): 795(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 793 x 359 x 60
Frame openings: 12
Packing space (mm): 120 x 120
Weight (kg): 25.5

Quote this article number

SRC 6x4 R20 PRIMED

Art. No. SRC6000020412

Aperture dimensions WxH (mm): 534(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 532 x 238 x 60
Frame openings: 4
Packing space (mm): 120 x 180
Weight (kg): 9.8

Quote this article number

SRC 6x5 R20 PRIMED

Art. No. SRC6000020512

Aperture dimensions WxH (mm): 665(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 662.5 x 238 x 60
Frame openings: 5
Packing space (mm): 120 x 180
Weight (kg): 11.91

Quote this article number

SRC 6x6 R20 PRIMED

Art. No. SRC6000020612

Aperture dimensions WxH (mm): 795(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 793 x 238 x 60
Frame openings: 6
Packing space (mm): 120 x 180
Weight (kg): 14.2

Quote this article number

SRC 6x7 R20 PRIMED

Art. No. SRC6000020712

Aperture dimensions WxH (mm): 926(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 923.5 x 238 x 60
Frame openings: 7
Packing space (mm): 120 x 180
Weight (kg): 16.3

Quote this article number

SRC 6x8 R20 PRIMED

Art. No. SRC6000020812

Aperture dimensions WxH (mm): 1056(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 1054 x 238 x 60
Frame openings: 8
Packing space (mm): 120 x 180
Weight (kg): 18.5

Quote this article number

SRC 6x9 R20 PRIMED

Art. No. SRC6000020912

Aperture dimensions WxH (mm): 1187(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 1184.5 x 238 x 60
Frame openings: 9
Packing space (mm): 120 x 180
Weight (kg): 20.8

Quote this article number

SRC 6+6x1 R20 PRIMED

Art. No. SRC6600020112

Aperture dimensions WxH (mm): 143(+1/-1) x 468(+1/-1)
External dimensions WxHxD (mm): 140.5 x 466 x 60
Frame openings: 2
Packing space (mm): 120 x 180
Weight (kg): 6

Quote this article number

SRC 6+6x2 R20 PRIMED

Art. No. 5SRC000006900

Aperture dimensions WxH (mm): 273(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 271 x 476 x 60
Frame openings: 4
Packing space (mm): 120 x 180
Weight (kg): 11.1

Quote this article number

SRC 6+6x3 R20 PRIMED

Art. No. SRC6600020312

Aperture dimensions WxH (mm): 404(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 401.5 x 476 x 60
Frame openings: 6
Packing space (mm): 120 x 180
Weight (kg): 12.6

Quote this article number

SRC 6+6x4 R20 PRIMED

Art. No. 5SRC000006901

Aperture dimensions WxH (mm): 534(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 532 x 476 x 60
Frame openings: 8
Packing space (mm): 120 x 180
Weight (kg): 16.98

Quote this article number

SRC 6+6x5 R20 PRIMED

Art. No. 5SRC000008287

Aperture dimensions WxH (mm): 665(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 662.5 x 476 x 60
Frame openings: 10
Packing space (mm): 120 x 180
Weight (kg): 21.36

Quote this article number

SRC 6+6x6 R20 PRIMED

Art. No. 5SRC000012800

Aperture dimensions WxH (mm): 795(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 793 x 476 x 60
Frame openings: 12
Packing space (mm): 120 x 180
Weight (kg): 25.74

Quote this article number

SRC 8x1 R20 PRIMED

Art. No. SRC8000020112

Aperture dimensions WxH (mm): 143(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 140.5 x 298 x 60
Frame openings: 1
Packing space (mm): 120 x 240
Weight (kg): 3.72

Quote this article number

SRC 8x2 R20 PRIMED

Art. No. SRC8000020212

Aperture dimensions WxH (mm): 273(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 271 x 298 x 60
Frame openings: 2
Packing space (mm): 120 x 240
Weight (kg): 6.1

Quote this article number

SRC 8x3 R20 PRIMED

Art. No. SRC8000020312

Aperture dimensions WxH (mm): 404(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 401.5 x 298 x 60
Frame openings: 3
Packing space (mm): 120 x 240
Weight (kg): 8.2

Quote this article number

SRC 8x4 R20 PRIMED

Art. No. SRC8000020412

Aperture dimensions WxH (mm): 534(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 532 x 298 x 60
Frame openings: 4
Packing space (mm): 120 x 240
Weight (kg): 10.4

Quote this article number

SRC 8x5 R20 PRIMED

Art. No. SRC8000020512

Aperture dimensions WxH (mm): 665(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 662.5 x 298 x 60
Frame openings: 5
Packing space (mm): 120 x 240
Weight (kg): 12.6

Quote this article number

SRC 8x6 R20 PRIMED

Art. No. SRC8000020612

Aperture dimensions WxH (mm): 795(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 793 x 298 x 60
Frame openings: 6
Packing space (mm): 120 x 240
Weight (kg): 16.09

Quote this article number

SRC 8+8x1 R20 PRIMED

Art. No. SRC8800020112

Aperture dimensions WxH (mm): 143(+1/-1) x 588(+1/-1)
External dimensions WxHxD (mm): 140.5 x 586 x 60
Frame openings: 2
Packing space (mm): 120 x 240
Weight (kg): 6.95

Quote this article number

SRC 8+8x2 R20 PRIMED

Art. No. 5SRC000007765

Aperture dimensions WxH (mm): 273(+1/-1) x 598(+1/-1)
External dimensions WxHxD (mm): 271 x 596 x 60
Frame openings: 4
Packing space (mm): 120 x 240
Weight (kg): 12.8

Quote this article number

SRC 8+8x3 R20 PRIMED

Art. No. 5SRC000007401

Aperture dimensions WxH (mm): 404(+1/-1) x 598(+1/-1)
External dimensions WxHxD (mm): 401.5 x 596 x 60
Frame openings: 6
Packing space (mm): 120 x 240
Weight (kg): 13.27

Quote this article number

SRC 8+8x4 R20 PRIMED

Art. No. 5SRC000008379

Aperture dimensions WxH (mm): 534(+1/-1) x 598(+1/-1)
External dimensions WxHxD (mm): 532 x 596 x 60
Frame openings: 8
Packing space (mm): 120 x 240
Weight (kg): 20.8

Quote this article number

SRC 2x1 R20 AISI316

Art. No. 5SRC000004700

Aperture dimensions WxH (mm): 143(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 140.5 x 121 x 60
Frame openings: 1
Packing space (mm): 120 x 60
Weight (kg): 2

Quote this article number

SRC 2x2 R20 AISI316

Art. No. 105848

Aperture dimensions WxH (mm): 273(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 271 x 121 x 60
Frame openings: 2
Packing space (mm): 120 x 60
Weight (kg): 3.73

Quote this article number

SRC 2x3 R20 AISI316

Art. No. 113900

Aperture dimensions WxH (mm): 404(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 401.5 x 121 x 60
Frame openings: 3
Packing space (mm): 120 x 60
Weight (kg): 5

Quote this article number

SRC 2x4 R20 AISI316

Art. No. 113901

Aperture dimensions WxH (mm): 534(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 532 x 121 x 60
Frame openings: 4
Packing space (mm): 120 x 60
Weight (kg): 7.4

Quote this article number

SRC 2x5 R20 AISI316

Art. No. 113902

Aperture dimensions WxH (mm): 665(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 662.5 x 121 x 60
Frame openings: 5
Packing space (mm): 120 x 60
Weight (kg): 9.1

Quote this article number

SRC 2x6 R20 AISI316

Art. No. 113903

Aperture dimensions WxH (mm): 795(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 793 x 121 x 60
Frame openings: 6
Packing space (mm): 120 x 60
Weight (kg): 10.8

Quote this article number

SRC 2+2x1 R20 AISI316

Art. No. 113908

Aperture dimensions WxH (mm): 143(+1/-1) x 234(+1/-1)
External dimensions WxHxD (mm): 140.5 x 232 x 60
Frame openings: 2
Packing space (mm): 120 x 60
Weight (kg): 3.9

Quote this article number

SRC 2+2x2 R20 AISI316

Art. No. 113909

Aperture dimensions WxH (mm): 273(+1/-1) x 244(+1/-1)
External dimensions WxHxD (mm): 271 x 242 x 60
Frame openings: 4
Packing space (mm): 120 x 60
Weight (kg): 8

Quote this article number

SRC 2+2x3 R20 AISI316

Art. No. 113910

Aperture dimensions WxH (mm): 404(+1/-1) x 244(+1/-1)
External dimensions WxHxD (mm): 401.5 x 242 x 60
Frame openings: 6
Packing space (mm): 120 x 60
Weight (kg): 11.4

Quote this article number

SRC 2+2x4 R20 AISI316

Art. No. 113911

Aperture dimensions WxH (mm): 534(+1/-1) x 244(+1/-1)
External dimensions WxHxD (mm): 532 x 242 x 60
Frame openings: 8
Packing space (mm): 120 x 60
Weight (kg): 14.8

Quote this article number

SRC 4x1 R20 AISI316

Art. No. 5SRC000006107

Aperture dimensions WxH (mm): 143(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 140.5 x 179.5 x 60
Frame openings: 1
Packing space (mm): 120 x 120
Weight (kg): 2.8

Quote this article number

SRC 4x2 R20 AISI316

Art. No. 5SRC000006736

Aperture dimensions WxH (mm): 273(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 271 x 179.5 x 60
Frame openings: 2
Packing space (mm): 120 x 120
Weight (kg): 4.7

Quote this article number

SRC 4x3 R20 AISI316

Art. No. 5SRC000006971

Aperture dimensions WxH (mm): 404(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 401.5 x 179.5 x 60
Frame openings: 3
Packing space (mm): 120 x 120
Weight (kg): 6.6

Quote this article number

SRC 4x4 R20 AISI316

Art. No. 5SRC000006435

Aperture dimensions WxH (mm): 534(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 532 x 179.5 x 60
Frame openings: 4
Packing space (mm): 120 x 120
Weight (kg): 8.48

Quote this article number

SRC 4x5 R20 AISI316

Art. No. 5SRC000006972

Aperture dimensions WxH (mm): 665(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 662.5 x 179.5 x 60
Frame openings: 5
Packing space (mm): 120 x 120
Weight (kg): 10.3

Quote this article number

SRC 4x6 R20 AISI316

Art. No. 5SRC000006973

Aperture dimensions WxH (mm): 795(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 793 x 179.5 x 60
Frame openings: 6
Packing space (mm): 120 x 120
Weight (kg): 12.2

Quote this article number

SRC 4x7 R20 AISI316

Art. No. 113933

Aperture dimensions WxH (mm): 926(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 923.5 x 179.5 x 60
Frame openings: 7
Packing space (mm): 120 x 120
Weight (kg): 14.7

Quote this article number

SRC 4x8 R20 AISI316

Art. No. 105892

Aperture dimensions WxH (mm): 1056(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 1054 x 179.5 x 60
Frame openings: 8
Packing space (mm): 120 x 120
Weight (kg): 15.78

Quote this article number

SRC 4x9 R20 AISI316

Art. No. 113934

Aperture dimensions WxH (mm): 1187(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 1184.5 x 179.5 x 60
Frame openings: 9
Packing space (mm): 120 x 120
Weight (kg): 18.7

Quote this article number

SRC 4+4x1 R20 AISI316

Art. No. 113936

Aperture dimensions WxH (mm): 143(+1/-1) x 351(+1/-1)
External dimensions WxHxD (mm): 140.5 x 349 x 60
Frame openings: 2
Packing space (mm): 120 x 120
Weight (kg): 5

Quote this article number

SRC 4+4x2 R20 AISI316

Art. No. 113937

Aperture dimensions WxH (mm): 273(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 271 x 359 x 60
Frame openings: 4
Packing space (mm): 120 x 120
Weight (kg): 9.6

Quote this article number

SRC 4+4x3 R20 AISI316

Art. No. 5SRC000006668

Aperture dimensions WxH (mm): 404(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 401.5 x 359 x 60
Frame openings: 6
Packing space (mm): 120 x 120
Weight (kg): 13

Quote this article number

SRC 4+4x4 R20 AISI316

Art. No. 5SRC000007495

Aperture dimensions WxH (mm): 534(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 532 x 359 x 60
Frame openings: 8
Packing space (mm): 120 x 120
Weight (kg): 16.4

Quote this article number

SRC 4+4x5 R20 AISI316

Art. No. 113938

Aperture dimensions WxH (mm): 665(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 662.5 x 359 x 60
Frame openings: 10
Packing space (mm): 120 x 120
Weight (kg): 21.5

Quote this article number

SRC 4+4x6 R20 AISI316

Art. No. 113939

Aperture dimensions WxH (mm): 795(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 793 x 359 x 60
Frame openings: 12
Packing space (mm): 120 x 120
Weight (kg): 24.8

Quote this article number

SRC 6x4 R20 AISI316

Art. No. 5SRC000006685

Aperture dimensions WxH (mm): 534(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 532 x 238 x 60
Frame openings: 4
Packing space (mm): 120 x 180
Weight (kg): 9.86

Quote this article number

SRC 6x5 R20 AISI316

Art. No. 104267

Aperture dimensions WxH (mm): 665(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 662.5 x 238 x 60
Frame openings: 5
Packing space (mm): 120 x 180
Weight (kg): 12.13

Quote this article number

SRC 6x6 R20 AISI316

Art. No. 113960

Aperture dimensions WxH (mm): 795(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 793 x 238 x 60
Frame openings: 6
Packing space (mm): 120 x 180
Weight (kg): 14.2

Quote this article number

SRC 6x7 R20 AISI316

Art. No. 113961

Aperture dimensions WxH (mm): 926(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 923.5 x 238 x 60
Frame openings: 7
Packing space (mm): 120 x 180
Weight (kg): 16.5

Quote this article number

SRC 6x8 R20 AISI316

Art. No. 113962

Aperture dimensions WxH (mm): 1056(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 1054 x 238 x 60
Frame openings: 8
Packing space (mm): 120 x 180
Weight (kg): 19.2

Quote this article number

SRC 6x9 R20 AISI316

Art. No. 113963

Aperture dimensions WxH (mm): 1187(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 1184.5 x 238 x 60
Frame openings: 9
Packing space (mm): 120 x 180
Weight (kg): 21.4

Quote this article number

SRC 6+6x1 R20 AISI316

Art. No. 5SRC000013682

Aperture dimensions WxH (mm): 143(+1/-1) x 468(+1/-1)
External dimensions WxHxD (mm): 140.5 x 466 x 60
Frame openings: 2
Packing space (mm): 120 x 180
Weight (kg): 5.7

Quote this article number

SRC 6+6x2 R20 AISI316

Art. No. 5SRC000007413

Aperture dimensions WxH (mm): 273(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 271 x 476 x 60
Frame openings: 4
Packing space (mm): 120 x 180
Weight (kg): 11

Quote this article number

SRC 6+6x3 R20 AISI316

Art. No. 5SRC000006686

Aperture dimensions WxH (mm): 404(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 401.5 x 476 x 60
Frame openings: 6
Packing space (mm): 120 x 180
Weight (kg): 15.3

Quote this article number

SRC 6+6x4 R20 AISI316

Art. No. 113965

Aperture dimensions WxH (mm): 534(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 532 x 476 x 60
Frame openings: 8
Packing space (mm): 120 x 180
Weight (kg): 19.73

Quote this article number

SRC 6+6x5 R20 AISI316

Art. No. 113966

Aperture dimensions WxH (mm): 665(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 662.5 x 476 x 60
Frame openings: 10
Packing space (mm): 120 x 180
Weight (kg): 25

Quote this article number

SRC 6+6x6 R20 AISI316

Art. No. 113967

Aperture dimensions WxH (mm): 795(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 793 x 476 x 60
Frame openings: 12
Packing space (mm): 120 x 180
Weight (kg): 30

Quote this article number

SRC 8x1 R20 AISI316

Art. No. 5SRC000012346

Aperture dimensions WxH (mm): 143(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 140.5 x 298 x 60
Frame openings: 1
Packing space (mm): 120 x 240
Weight (kg): 3.8

Quote this article number

SRC 8x2 R20 AISI316

Art. No. 5SRC000012347

Aperture dimensions WxH (mm): 273(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 271 x 298 x 60
Frame openings: 2
Packing space (mm): 120 x 240
Weight (kg): 6.3

Quote this article number

SRC 8x3 R20 AISI316

Art. No. 5SRC000006654

Aperture dimensions WxH (mm): 404(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 401.5 x 298 x 60
Frame openings: 3
Packing space (mm): 120 x 240
Weight (kg): 8.5

Quote this article number

SRC 8x4 R20 AISI316

Art. No. 5SRC000006655

Aperture dimensions WxH (mm): 534(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 532 x 298 x 60
Frame openings: 4
Packing space (mm): 120 x 240
Weight (kg): 11.1

Quote this article number

SRC 8x5 R20 AISI316

Art. No. 104332

Aperture dimensions WxH (mm): 665(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 662.5 x 298 x 60
Frame openings: 5
Packing space (mm): 120 x 240
Weight (kg): 13.88

Quote this article number

SRC 8x6 R20 AISI316

Art. No. 113987

Aperture dimensions WxH (mm): 795(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 793 x 298 x 60
Frame openings: 6
Packing space (mm): 120 x 240
Weight (kg): 16

Quote this article number

SRC 8+8x1 R20 AISI316

Art. No. 5SRC000013683

Aperture dimensions WxH (mm): 143(+1/-1) x 588(+1/-1)
External dimensions WxHxD (mm): 140.5 x 586 x 60
Frame openings: 2
Packing space (mm): 120 x 240
Weight (kg): 6.9

Quote this article number

SRC 8+8x2 R20 AISI316

Art. No. 104357

Aperture dimensions WxH (mm): 273(+1/-1) x 598(+1/-1)
External dimensions WxHxD (mm): 271 x 596 x 60
Frame openings: 4
Packing space (mm): 120 x 240
Weight (kg): 13

Quote this article number

SRC 8+8x3 R20 AISI316

Art. No. 113992

Aperture dimensions WxH (mm): 404(+1/-1) x 598(+1/-1)
External dimensions WxHxD (mm): 401.5 x 596 x 60
Frame openings: 6
Packing space (mm): 120 x 240
Weight (kg): 18

Quote this article number

SRC 8+8x4 R20 AISI316

Art. No. 113993

Aperture dimensions WxH (mm): 534(+1/-1) x 598(+1/-1)
External dimensions WxHxD (mm): 532 x 596 x 60
Frame openings: 8
Packing space (mm): 120 x 240
Weight (kg): 23

Quote this article number

SRC 2x1 R20 ALU

Art. No. 5SRC000004148

Aperture dimensions WxH (mm): 143(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 140.5 x 121 x 60
Frame openings: 1
Packing space (mm): 120 x 60
Weight (kg): 0.7

Quote this article number

SRC 2x2 R20 ALU

Art. No. 5SRC000010908

Aperture dimensions WxH (mm): 273(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 271 x 121 x 60
Frame openings: 2
Packing space (mm): 120 x 60
Weight (kg): 1.3

Quote this article number

SRC 2x3 R20 ALU

Art. No. 5SRC000010909

Aperture dimensions WxH (mm): 404(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 401.5 x 121 x 60
Frame openings: 3
Packing space (mm): 120 x 60
Weight (kg): 2

Quote this article number

SRC 2x4 R20 ALU

Art. No. 5SRC000010910

Aperture dimensions WxH (mm): 534(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 532 x 121 x 60
Frame openings: 4
Packing space (mm): 120 x 60
Weight (kg): 2.6

Quote this article number

SRC 2x5 R20 ALU

Art. No. 5SRC000010911

Aperture dimensions WxH (mm): 665(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 662.5 x 121 x 60
Frame openings: 5
Packing space (mm): 120 x 60
Weight (kg): 3.2

Quote this article number

SRC 2x6 R20 ALU

Art. No. 119614

Aperture dimensions WxH (mm): 795(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 793 x 121 x 60
Frame openings: 6
Packing space (mm): 120 x 60
Weight (kg): 3.8

Quote this article number

SRC 2+2x1 R20 ALU

Art. No. 119619

Aperture dimensions WxH (mm): 143(+1/-1) x 234(+1/-1)
External dimensions WxHxD (mm): 140.5 x 232 x 60
Frame openings: 2
Packing space (mm): 120 x 60
Weight (kg): 2

Quote this article number

SRC 2+2x2 R20 ALU

Art. No. 119620

Aperture dimensions WxH (mm): 273(+1/-1) x 244(+1/-1)
External dimensions WxHxD (mm): 271 x 242 x 60
Frame openings: 4
Packing space (mm): 120 x 60
Weight (kg): 2.8

Quote this article number

SRC 2+2x3 R20 ALU

Art. No. 119621

Aperture dimensions WxH (mm): 404(+1/-1) x 244(+1/-1)
External dimensions WxHxD (mm): 401.5 x 242 x 60
Frame openings: 6
Packing space (mm): 120 x 60
Weight (kg): 4

Quote this article number

SRC 2+2x4 R20 ALU

Art. No. 119622

Aperture dimensions WxH (mm): 534(+1/-1) x 244(+1/-1)
External dimensions WxHxD (mm): 532 x 242 x 60
Frame openings: 8
Packing space (mm): 120 x 60
Weight (kg): 5.1

Quote this article number

SRC 4x1 R20 ALU

Art. No. SRC4000020131

Aperture dimensions WxH (mm): 143(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 140.5 x 179.5 x 60
Frame openings: 1
Packing space (mm): 120 x 120
Weight (kg): 0.9

Quote this article number

SRC 4x2 R20 ALU

Art. No. 5SRC000004693

Aperture dimensions WxH (mm): 273(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 271 x 179.5 x 60
Frame openings: 2
Packing space (mm): 120 x 120
Weight (kg): 1.55

Quote this article number

SRC 4x3 R20 ALU

Art. No. 106154

Aperture dimensions WxH (mm): 404(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 401.5 x 179.5 x 60
Frame openings: 3
Packing space (mm): 120 x 120
Weight (kg): 2.2

Quote this article number

SRC 4x4 R20 ALU

Art. No. 106155

Aperture dimensions WxH (mm): 534(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 532 x 179.5 x 60
Frame openings: 4
Packing space (mm): 120 x 120
Weight (kg): 3

Quote this article number

SRC 4x5 R20 ALU

Art. No. 119640

Aperture dimensions WxH (mm): 665(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 662.5 x 179.5 x 60
Frame openings: 5
Packing space (mm): 120 x 120
Weight (kg): 4

Quote this article number

SRC 4x6 R20 ALU

Art. No. 119641

Aperture dimensions WxH (mm): 795(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 793 x 179.5 x 60
Frame openings: 6
Packing space (mm): 120 x 120
Weight (kg): 4.4

Quote this article number

SRC 4x7 R20 ALU

Art. No. 119642

Aperture dimensions WxH (mm): 926(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 923.5 x 179.5 x 60
Frame openings: 7
Packing space (mm): 120 x 120
Weight (kg): 5.1

Quote this article number

SRC 4x8 R20 ALU

Art. No. 119643

Aperture dimensions WxH (mm): 1056(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 1054 x 179.5 x 60
Frame openings: 8
Packing space (mm): 120 x 120
Weight (kg): 5.8

Quote this article number

SRC 4x9 R20 ALU

Art. No. 119644

Aperture dimensions WxH (mm): 1187(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 1184.5 x 179.5 x 60
Frame openings: 9
Packing space (mm): 120 x 120
Weight (kg): 6.5

Quote this article number

SRC 4+4x1 R20 ALU

Art. No. 119646

Aperture dimensions WxH (mm): 143(+1/-1) x 351(+1/-1)
External dimensions WxHxD (mm): 140.5 x 349 x 60
Frame openings: 2
Packing space (mm): 120 x 120
Weight (kg): 1.8

Quote this article number

SRC 4+4x2 R20 ALU

Art. No. 119647

Aperture dimensions WxH (mm): 273(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 271 x 359 x 60
Frame openings: 4
Packing space (mm): 120 x 120
Weight (kg): 3.3

Quote this article number

SRC 4+4x3 R20 ALU

Art. No. 119648

Aperture dimensions WxH (mm): 404(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 401.5 x 359 x 60
Frame openings: 6
Packing space (mm): 120 x 120
Weight (kg): 4.7

Quote this article number

SRC 4+4x4 R20 ALU

Art. No. 119649

Aperture dimensions WxH (mm): 534(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 532 x 359 x 60
Frame openings: 8
Packing space (mm): 120 x 120
Weight (kg): 6.1

Quote this article number

SRC 4+4x5 R20 ALU

Art. No. 119650

Aperture dimensions WxH (mm): 665(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 662.5 x 359 x 60
Frame openings: 10
Packing space (mm): 120 x 120
Weight (kg): 7.4

Quote this article number

SRC 4+4x6 R20 ALU

Art. No. 119651

Aperture dimensions WxH (mm): 795(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 793 x 359 x 60
Frame openings: 12
Packing space (mm): 120 x 120
Weight (kg): 8.8

Quote this article number

SRC 6x4 R20 ALU

Art. No. 5SRC000009302

Aperture dimensions WxH (mm): 534(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 532 x 238 x 60
Frame openings: 4
Packing space (mm): 120 x 180
Weight (kg): 3.4

Quote this article number

SRC 6x5 R20 ALU

Art. No. 105139

Aperture dimensions WxH (mm): 665(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 662.5 x 238 x 60
Frame openings: 5
Packing space (mm): 120 x 180
Weight (kg): 4.2

Quote this article number

SRC 6x6 R20 ALU

Art. No. 119667

Aperture dimensions WxH (mm): 795(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 793 x 238 x 60
Frame openings: 6
Packing space (mm): 120 x 180
Weight (kg): 5.1

Quote this article number

SRC 6x7 R20 ALU

Art. No. 119668

Aperture dimensions WxH (mm): 926(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 923.5 x 238 x 60
Frame openings: 7
Packing space (mm): 120 x 180
Weight (kg): 5.8

Quote this article number

SRC 6x8 R20 ALU

Art. No. 119669

Aperture dimensions WxH (mm): 1056(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 1054 x 238 x 60
Frame openings: 8
Packing space (mm): 120 x 180
Weight (kg): 6.6

Quote this article number

SRC 6x9 R20 ALU

Art. No. 119670

Aperture dimensions WxH (mm): 1187(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 1184.5 x 238 x 60
Frame openings: 9
Packing space (mm): 120 x 180
Weight (kg): 7.4

Quote this article number

SRC 6+6x1 R20 ALU

Art. No. 5SRC000007884

Aperture dimensions WxH (mm): 143(+1/-1) x 468(+1/-1)
External dimensions WxHxD (mm): 140.5 x 466 x 60
Frame openings: 2
Packing space (mm): 120 x 180
Weight (kg): 1.95

Quote this article number

SRC 6+6x2 R20 ALU

Art. No. 5SRC000009727

Aperture dimensions WxH (mm): 273(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 271 x 476 x 60
Frame openings: 4
Packing space (mm): 120 x 180
Weight (kg): 3.7

Quote this article number

SRC 6+6x3 R20 ALU

Art. No. 119672

Aperture dimensions WxH (mm): 404(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 401.5 x 476 x 60
Frame openings: 6
Packing space (mm): 120 x 180
Weight (kg): 5.44

Quote this article number

SRC 6+6x4 R20 ALU

Art. No. 119673

Aperture dimensions WxH (mm): 534(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 532 x 476 x 60
Frame openings: 8
Packing space (mm): 120 x 180
Weight (kg): 7

Quote this article number

SRC 6+6x5 R20 ALU

Art. No. 119674

Aperture dimensions WxH (mm): 665(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 662.5 x 476 x 60
Frame openings: 10
Packing space (mm): 120 x 180
Weight (kg): 8.6

Quote this article number

SRC 6+6x6 R20 ALU

Art. No. 119675

Aperture dimensions WxH (mm): 795(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 793 x 476 x 60
Frame openings: 12
Packing space (mm): 120 x 180
Weight (kg): 10.1

Quote this article number

SRC 8x1 R20 ALU

Art. No. 5SRC000004178

Aperture dimensions WxH (mm): 143(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 140.5 x 298 x 60
Frame openings: 1
Packing space (mm): 120 x 240
Weight (kg): 1.28

Quote this article number

SRC 8x2 R20 ALU

Art. No. 5SRC000004150

Aperture dimensions WxH (mm): 273(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 271 x 298 x 60
Frame openings: 2
Packing space (mm): 120 x 240
Weight (kg): 2.2

Quote this article number

SRC 8x3 R20 ALU

Art. No. 106156

Aperture dimensions WxH (mm): 404(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 401.5 x 298 x 60
Frame openings: 3
Packing space (mm): 120 x 240
Weight (kg): 3

Quote this article number

SRC 8x4 R20 ALU

Art. No. 5SRC000009301

Aperture dimensions WxH (mm): 534(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 532 x 298 x 60
Frame openings: 4
Packing space (mm): 120 x 240
Weight (kg): 3.9

Quote this article number

SRC 8x5 R20 ALU

Art. No. 119691

Aperture dimensions WxH (mm): 665(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 662.5 x 298 x 60
Frame openings: 5
Packing space (mm): 120 x 240
Weight (kg): 4.9

Quote this article number

SRC 8x6 R20 ALU

Art. No. 119692

Aperture dimensions WxH (mm): 795(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 793 x 298 x 60
Frame openings: 6
Packing space (mm): 120 x 240
Weight (kg): 5.7

Quote this article number

SRC 8+8x1 R20 ALU

Art. No. 119697

Aperture dimensions WxH (mm): 143(+1/-1) x 588(+1/-1)
External dimensions WxHxD (mm): 140.5 x 586 x 60
Frame openings: 2
Packing space (mm): 120 x 240
Weight (kg): 2.43

Quote this article number

SRC 8+8x2 R20 ALU

Art. No. 119698

Aperture dimensions WxH (mm): 273(+1/-1) x 598(+1/-1)
External dimensions WxHxD (mm): 271 x 596 x 60
Frame openings: 4
Packing space (mm): 120 x 240
Weight (kg): 4.5

Quote this article number

SRC 8+8x3 R20 ALU

Art. No. 119699

Aperture dimensions WxH (mm): 404(+1/-1) x 598(+1/-1)
External dimensions WxHxD (mm): 401.5 x 596 x 60
Frame openings: 6
Packing space (mm): 120 x 240
Weight (kg): 6.3

Quote this article number

SRC 8+8x4 R20 ALU

Art. No. 119700

Aperture dimensions WxH (mm): 534(+1/-1) x 598(+1/-1)
External dimensions WxHxD (mm): 532 x 596 x 60
Frame openings: 8
Packing space (mm): 120 x 240
Weight (kg): 8

Quote this article number

SRC 4x1 R40 PRIMED

Art. No. SRC4000040112

Aperture dimensions WxH (mm): 143(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 140.5 x 179.5 x 60
Frame openings: 1
Packing space (mm): 120 x 120
Weight (kg): 2.41

Quote this article number

SRC 4x2 R40 PRIMED

Art. No. SRC4000040212

Aperture dimensions WxH (mm): 273(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 271 x 179.5 x 60
Frame openings: 2
Packing space (mm): 120 x 120
Weight (kg): 4.7

Quote this article number

SRC 4x3 R40 PRIMED

Art. No. SRC4000040312

Aperture dimensions WxH (mm): 404(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 401.5 x 179.5 x 60
Frame openings: 3
Packing space (mm): 120 x 120
Weight (kg): 6.6

Quote this article number

SRC 4x4 R40 PRIMED

Art. No. SRC4000040412

Aperture dimensions WxH (mm): 534(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 532 x 179.5 x 60
Frame openings: 4
Packing space (mm): 120 x 120
Weight (kg): 8.5

Quote this article number

SRC 4x5 R40 PRIMED

Art. No. SRC4000040512

Aperture dimensions WxH (mm): 665(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 662.5 x 179.5 x 60
Frame openings: 5
Packing space (mm): 120 x 120
Weight (kg): 10.3

Quote this article number

SRC 4x6 R40 PRIMED

Art. No. SRC4000040612

Aperture dimensions WxH (mm): 795(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 793 x 179.5 x 60
Frame openings: 6
Packing space (mm): 120 x 120
Weight (kg): 12.2

Quote this article number

SRC 4x7 R40 PRIMED

Art. No. SRC4000040712

Aperture dimensions WxH (mm): 926(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 923.5 x 179.5 x 60
Frame openings: 7
Packing space (mm): 120 x 120
Weight (kg): 14.1

Quote this article number

SRC 4x8 R40 PRIMED

Art. No. SRC4000040812

Aperture dimensions WxH (mm): 1056(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 1054 x 179.5 x 60
Frame openings: 8
Packing space (mm): 120 x 120
Weight (kg): 16

Quote this article number

SRC 4x9 R40 PRIMED

Art. No. SRC4000040912

Aperture dimensions WxH (mm): 1187(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 1184.5 x 179.5 x 60
Frame openings: 9
Packing space (mm): 120 x 120
Weight (kg): 17.9

Quote this article number

SRC 4+4x1 R40 PRIMED

Art. No. 5SRC000009665

Aperture dimensions WxH (mm): 143(+1/-1) x 351(+1/-1)
External dimensions WxHxD (mm): 140.5 x 349 x 60
Frame openings: 2
Packing space (mm): 120 x 120
Weight (kg): 5

Quote this article number

SRC 4+4x2 R40 PRIMED

Art. No. 5SRC000009321

Aperture dimensions WxH (mm): 273(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 271 x 359 x 60
Frame openings: 4
Packing space (mm): 120 x 120
Weight (kg): 9.23

Quote this article number

SRC 4+4x3 R40 PRIMED

Art. No. 5SRC000007943

Aperture dimensions WxH (mm): 404(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 401.5 x 359 x 60
Frame openings: 6
Packing space (mm): 120 x 120
Weight (kg): 13.11

Quote this article number

SRC 4+4x4 R40 PRIMED

Art. No. 5SRC000007744

Aperture dimensions WxH (mm): 534(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 532 x 359 x 60
Frame openings: 8
Packing space (mm): 120 x 120
Weight (kg): 17.4

Quote this article number

SRC 4+4x5 R40 PRIMED

Art. No. 5SRC000007944

Aperture dimensions WxH (mm): 665(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 662.5 x 359 x 60
Frame openings: 10
Packing space (mm): 120 x 120
Weight (kg): 21

Quote this article number

SRC 4+4x6 R40 PRIMED

Art. No. 5SRC000007945

Aperture dimensions WxH (mm): 795(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 793 x 359 x 60
Frame openings: 12
Packing space (mm): 120 x 120
Weight (kg): 24.87

Quote this article number

SRC 6x4 R40 PRIMED

Art. No. SRC6000040412

Aperture dimensions WxH (mm): 534(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 532 x 238 x 60
Frame openings: 4
Packing space (mm): 120 x 180
Weight (kg): 9.8

Quote this article number

SRC 6x5 R40 PRIMED

Art. No. SRC6000040512

Aperture dimensions WxH (mm): 665(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 662.5 x 238 x 60
Frame openings: 5
Packing space (mm): 120 x 180
Weight (kg): 12

Quote this article number

SRC 6x6 R40 PRIMED

Art. No. SRC6000040612

Aperture dimensions WxH (mm): 795(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 793 x 238 x 60
Frame openings: 6
Packing space (mm): 120 x 180
Weight (kg): 14.2

Quote this article number

SRC 6x7 R40 PRIMED

Art. No. SRC6000040712

Aperture dimensions WxH (mm): 926(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 923.5 x 238 x 60
Frame openings: 7
Packing space (mm): 120 x 180
Weight (kg): 16.3

Quote this article number

SRC 6x8 R40 PRIMED

Art. No. SRC6000040812

Aperture dimensions WxH (mm): 1056(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 1054 x 238 x 60
Frame openings: 8
Packing space (mm): 120 x 180
Weight (kg): 18.5

Quote this article number

SRC 6x9 R40 PRIMED

Art. No. SRC6000040912

Aperture dimensions WxH (mm): 1187(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 1184.5 x 238 x 60
Frame openings: 9
Packing space (mm): 120 x 180
Weight (kg): 20.8

Quote this article number

SRC 6+6x1 R40 PRIMED

Art. No. 5SRC000006939

Aperture dimensions WxH (mm): 143(+1/-1) x 468(+1/-1)
External dimensions WxHxD (mm): 140.5 x 466 x 60
Frame openings: 2
Packing space (mm): 120 x 180
Weight (kg): 5.67

Quote this article number

SRC 6+6x2 R40 PRIMED

Art. No. 5SRC000007526

Aperture dimensions WxH (mm): 273(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 271 x 476 x 60
Frame openings: 4
Packing space (mm): 120 x 180
Weight (kg): 10.97

Quote this article number

SRC 6+6x3 R40 PRIMED

Art. No. 5SRC000007936

Aperture dimensions WxH (mm): 404(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 401.5 x 476 x 60
Frame openings: 6
Packing space (mm): 120 x 180
Weight (kg): 15.55

Quote this article number

SRC 6+6x4 R40 PRIMED

Art. No. 5SRC000006214

Aperture dimensions WxH (mm): 534(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 532 x 476 x 60
Frame openings: 8
Packing space (mm): 120 x 180
Weight (kg): 19.6

Quote this article number

SRC 6+6x5 R40 PRIMED

Art. No. 5SRC000007743

Aperture dimensions WxH (mm): 665(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 662.5 x 476 x 60
Frame openings: 10
Packing space (mm): 120 x 180
Weight (kg): 24.64

Quote this article number

SRC 6+6x6 R40 PRIMED

Art. No. 5SRC000007745

Aperture dimensions WxH (mm): 795(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 793 x 476 x 60
Frame openings: 12
Packing space (mm): 120 x 180
Weight (kg): 29.5

Quote this article number

SRC 8x1 R40 PRIMED

Art. No. SRC8000040112

Aperture dimensions WxH (mm): 143(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 140.5 x 298 x 60
Frame openings: 1
Packing space (mm): 120 x 240
Weight (kg): 3.45

Quote this article number

SRC 8x2 R40 PRIMED

Art. No. SRC8000040212

Aperture dimensions WxH (mm): 273(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 271 x 298 x 60
Frame openings: 2
Packing space (mm): 120 x 240
Weight (kg): 6.1

Quote this article number

SRC 8x3 R40 PRIMED

Art. No. SRC8000040312

Aperture dimensions WxH (mm): 404(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 401.5 x 298 x 60
Frame openings: 3
Packing space (mm): 120 x 240
Weight (kg): 8.2

Quote this article number

SRC 8x4 R40 PRIMED

Art. No. SRC8000040412

Aperture dimensions WxH (mm): 534(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 532 x 298 x 60
Frame openings: 4
Packing space (mm): 120 x 240
Weight (kg): 10.4

Quote this article number

SRC 8x5 R40 PRIMED

Art. No. SRC8000040512

Aperture dimensions WxH (mm): 665(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 662.5 x 298 x 60
Frame openings: 5
Packing space (mm): 120 x 240
Weight (kg): 12.6

Quote this article number

SRC 8x6 R40 PRIMED

Art. No. SRC8000040612

Aperture dimensions WxH (mm): 795(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 793 x 298 x 60
Frame openings: 6
Packing space (mm): 120 x 240
Weight (kg): 14.7

Quote this article number

SRC 8+8x1 R40 PRIMED

Art. No. 5SRC000009707

Aperture dimensions WxH (mm): 143(+1/-1) x 588(+1/-1)
External dimensions WxHxD (mm): 140.5 x 586 x 60
Frame openings: 2
Packing space (mm): 120 x 240
Weight (kg): 6.79

Quote this article number

SRC 8+8x2 R40 PRIMED

Art. No. 5SRC000010044

Aperture dimensions WxH (mm): 273(+1/-1) x 598(+1/-1)
External dimensions WxHxD (mm): 271 x 596 x 60
Frame openings: 4
Packing space (mm): 120 x 240
Weight (kg): 12.47

Quote this article number

SRC 8+8x3 R40 PRIMED

Art. No. 5SRC000009322

Aperture dimensions WxH (mm): 404(+1/-1) x 598(+1/-1)
External dimensions WxHxD (mm): 401.5 x 596 x 60
Frame openings: 6
Packing space (mm): 120 x 240
Weight (kg): 17.58

Quote this article number

SRC 8+8x4 R40 PRIMED

Art. No. 5SRC000007527

Aperture dimensions WxH (mm): 534(+1/-1) x 598(+1/-1)
External dimensions WxHxD (mm): 532 x 596 x 60
Frame openings: 8
Packing space (mm): 120 x 240
Weight (kg): 21

Quote this article number

SRC 4x1 R40 AISI316

Art. No. 5SRC000006790

Aperture dimensions WxH (mm): 143(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 140.5 x 179.5 x 60
Frame openings: 1
Packing space (mm): 120 x 120
Weight (kg): 2.39

Quote this article number

SRC 4x2 R40 AISI316

Art. No. 110284

Aperture dimensions WxH (mm): 273(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 271 x 179.5 x 60
Frame openings: 2
Packing space (mm): 120 x 120
Weight (kg): 4.39

Quote this article number

SRC 4x3 R40 AISI316

Art. No. 110285

Aperture dimensions WxH (mm): 404(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 401.5 x 179.5 x 60
Frame openings: 3
Packing space (mm): 120 x 120
Weight (kg): 6.4

Quote this article number

SRC 4x4 R40 AISI316

Art. No. 110286

Aperture dimensions WxH (mm): 534(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 532 x 179.5 x 60
Frame openings: 4
Packing space (mm): 120 x 120
Weight (kg): 8.3

Quote this article number

SRC 4x5 R40 AISI316

Art. No. 114133

Aperture dimensions WxH (mm): 665(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 662.5 x 179.5 x 60
Frame openings: 5
Packing space (mm): 120 x 120
Weight (kg): 10.19

Quote this article number

SRC 4x6 R40 AISI316

Art. No. 114134

Aperture dimensions WxH (mm): 795(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 793 x 179.5 x 60
Frame openings: 6
Packing space (mm): 120 x 120
Weight (kg): 12

Quote this article number

SRC 4x7 R40 AISI316

Art. No. 114135

Aperture dimensions WxH (mm): 926(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 923.5 x 179.5 x 60
Frame openings: 7
Packing space (mm): 120 x 120
Weight (kg): 14.7

Quote this article number

SRC 4x8 R40 AISI316

Art. No. 114136

Aperture dimensions WxH (mm): 1056(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 1054 x 179.5 x 60
Frame openings: 8
Packing space (mm): 120 x 120
Weight (kg): 16.7

Quote this article number

SRC 4x9 R40 AISI316

Art. No. 110947

Aperture dimensions WxH (mm): 1187(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 1184.5 x 179.5 x 60
Frame openings: 9
Packing space (mm): 120 x 120
Weight (kg): 18.7

Quote this article number

SRC 4+4x1 R40 AISI316

Art. No. 111483

Aperture dimensions WxH (mm): 143(+1/-1) x 351(+1/-1)
External dimensions WxHxD (mm): 140.5 x 349 x 60
Frame openings: 2
Packing space (mm): 120 x 120
Weight (kg): 4.5

Quote this article number

SRC 4+4x2 R40 AISI316

Art. No. 111473

Aperture dimensions WxH (mm): 273(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 271 x 359 x 60
Frame openings: 4
Packing space (mm): 120 x 120
Weight (kg): 12.2

Quote this article number

SRC 4+4x3 R40 AISI316

Art. No. 111474

Aperture dimensions WxH (mm): 404(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 401.5 x 359 x 60
Frame openings: 6
Packing space (mm): 120 x 120
Weight (kg): 13.6

Quote this article number

SRC 4+4x4 R40 AISI316

Art. No. 111475

Aperture dimensions WxH (mm): 534(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 532 x 359 x 60
Frame openings: 8
Packing space (mm): 120 x 120
Weight (kg): 17.5

Quote this article number

SRC 4+4x5 R40 AISI316

Art. No. 114139

Aperture dimensions WxH (mm): 665(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 662.5 x 359 x 60
Frame openings: 10
Packing space (mm): 120 x 120
Weight (kg): 21.5

Quote this article number

SRC 4+4x6 R40 AISI316

Art. No. 114140

Aperture dimensions WxH (mm): 795(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 793 x 359 x 60
Frame openings: 12
Packing space (mm): 120 x 120
Weight (kg): 25.5

Quote this article number

SRC 6x4 R40 AISI316

Art. No. 5SRC000010297

Aperture dimensions WxH (mm): 534(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 532 x 238 x 60
Frame openings: 4
Packing space (mm): 120 x 180
Weight (kg): 9.5

Quote this article number

SRC 6x5 R40 AISI316

Art. No. 109839

Aperture dimensions WxH (mm): 665(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 662.5 x 238 x 60
Frame openings: 5
Packing space (mm): 120 x 180
Weight (kg): 11.88

Quote this article number

SRC 6x6 R40 AISI316

Art. No. 109485

Aperture dimensions WxH (mm): 795(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 793 x 238 x 60
Frame openings: 6
Packing space (mm): 120 x 180
Weight (kg): 14.21

Quote this article number

SRC 6x7 R40 AISI316

Art. No. 110287

Aperture dimensions WxH (mm): 926(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 923.5 x 238 x 60
Frame openings: 7
Packing space (mm): 120 x 180
Weight (kg): 16.45

Quote this article number

SRC 6x8 R40 AISI316

Art. No. 104247

Aperture dimensions WxH (mm): 1056(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 1054 x 238 x 60
Frame openings: 8
Packing space (mm): 120 x 180
Weight (kg): 18

Quote this article number

SRC 6x9 R40 AISI316

Art. No. 110948

Aperture dimensions WxH (mm): 1187(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 1184.5 x 238 x 60
Frame openings: 9
Packing space (mm): 120 x 180
Weight (kg): 21.4

Quote this article number

SRC 6+6x1 R40 AISI316

Art. No. 111484

Aperture dimensions WxH (mm): 143(+1/-1) x 468(+1/-1)
External dimensions WxHxD (mm): 140.5 x 466 x 60
Frame openings: 2
Packing space (mm): 120 x 180
Weight (kg): 5.64

Quote this article number

SRC 6+6x2 R40 AISI316

Art. No. 111476

Aperture dimensions WxH (mm): 273(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 271 x 476 x 60
Frame openings: 4
Packing space (mm): 120 x 180
Weight (kg): 11

Quote this article number

SRC 6+6x3 R40 AISI316

Art. No. 111477

Aperture dimensions WxH (mm): 404(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 401.5 x 476 x 60
Frame openings: 6
Packing space (mm): 120 x 180
Weight (kg): 15.33

Quote this article number

SRC 6+6x4 R40 AISI316

Art. No. 107714

Aperture dimensions WxH (mm): 534(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 532 x 476 x 60
Frame openings: 8
Packing space (mm): 120 x 180
Weight (kg): 21

Quote this article number

SRC 6+6x5 R40 AISI316

Art. No. 111478

Aperture dimensions WxH (mm): 665(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 662.5 x 476 x 60
Frame openings: 10
Packing space (mm): 120 x 180
Weight (kg): 24.8

Quote this article number

SRC 6+6x6 R40 AISI316

Art. No. 111479

Aperture dimensions WxH (mm): 795(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 793 x 476 x 60
Frame openings: 12
Packing space (mm): 120 x 180
Weight (kg): 29

Quote this article number

SRC 8x1 R40 AISI316

Art. No. 5SRC000012330

Aperture dimensions WxH (mm): 143(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 140.5 x 298 x 60
Frame openings: 1
Packing space (mm): 120 x 240
Weight (kg): 3.53

Quote this article number

SRC 8x2 R40 AISI316

Art. No. 5SRC000012331

Aperture dimensions WxH (mm): 273(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 271 x 298 x 60
Frame openings: 2
Packing space (mm): 120 x 240
Weight (kg): 6.06

Quote this article number

SRC 8x3 R40 AISI316

Art. No. 5SRC000012730

Aperture dimensions WxH (mm): 404(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 401.5 x 298 x 60
Frame openings: 3
Packing space (mm): 120 x 240
Weight (kg): 8.59

Quote this article number

SRC 8x4 R40 AISI316

Art. No. 5SRC000012368

Aperture dimensions WxH (mm): 534(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 532 x 298 x 60
Frame openings: 4
Packing space (mm): 120 x 240
Weight (kg): 11.09

Quote this article number

SRC 8x5 R40 AISI316

Art. No. 5SRC000012731

Aperture dimensions WxH (mm): 665(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 662.5 x 298 x 60
Frame openings: 5
Packing space (mm): 120 x 240
Weight (kg): 13.6

Quote this article number

SRC 8x6 R40 AISI316

Art. No. 5SRC000012720

Aperture dimensions WxH (mm): 795(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 793 x 298 x 60
Frame openings: 6
Packing space (mm): 120 x 240
Weight (kg): 16.11

Quote this article number

SRC 8+8x1 R40 AISI316

Art. No. 111485

Aperture dimensions WxH (mm): 143(+1/-1) x 588(+1/-1)
External dimensions WxHxD (mm): 140.5 x 586 x 60
Frame openings: 2
Packing space (mm): 120 x 240
Weight (kg): 6.6

Quote this article number

SRC 8+8x2 R40 AISI316

Art. No. 111480

Aperture dimensions WxH (mm): 273(+1/-1) x 598(+1/-1)
External dimensions WxHxD (mm): 271 x 596 x 60
Frame openings: 4
Packing space (mm): 120 x 240
Weight (kg): 12.39

Quote this article number

SRC 8+8x3 R40 AISI316

Art. No. 110535

Aperture dimensions WxH (mm): 404(+1/-1) x 598(+1/-1)
External dimensions WxHxD (mm): 401.5 x 596 x 60
Frame openings: 6
Packing space (mm): 120 x 240
Weight (kg): 17.53

Quote this article number

SRC 8+8x4 R40 AISI316

Art. No. 111481

Aperture dimensions WxH (mm): 534(+1/-1) x 598(+1/-1)
External dimensions WxHxD (mm): 532 x 596 x 60
Frame openings: 8
Packing space (mm): 120 x 240
Weight (kg): 22

Quote this article number

SRC 4x1 R40 ALU

Art. No. 5SRC000003233

Aperture dimensions WxH (mm): 143(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 140.5 x 179.5 x 60
Frame openings: 1
Packing space (mm): 120 x 120
Weight (kg): 0.85

Quote this article number

SRC 4x2 R40 ALU

Art. No. 5SRC000006359

Aperture dimensions WxH (mm): 273(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 271 x 179.5 x 60
Frame openings: 2
Packing space (mm): 120 x 120
Weight (kg): 1.55

Quote this article number

SRC 4x3 R40 ALU

Art. No. 5SRC000009762

Aperture dimensions WxH (mm): 404(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 401.5 x 179.5 x 60
Frame openings: 3
Packing space (mm): 120 x 120
Weight (kg): 2.19

Quote this article number

SRC 4x4 R40 ALU

Art. No. 5SRC000009763

Aperture dimensions WxH (mm): 534(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 532 x 179.5 x 60
Frame openings: 4
Packing space (mm): 120 x 120
Weight (kg): 2.88

Quote this article number

SRC 4x5 R40 ALU

Art. No. 5SRC000010915

Aperture dimensions WxH (mm): 665(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 662.5 x 179.5 x 60
Frame openings: 5
Packing space (mm): 120 x 120
Weight (kg): 3.3

Quote this article number

SRC 4x6 R40 ALU

Art. No. 5SRC000010916

Aperture dimensions WxH (mm): 795(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 793 x 179.5 x 60
Frame openings: 6
Packing space (mm): 120 x 120
Weight (kg): 4.25

Quote this article number

SRC 4x7 R40 ALU

Art. No. 119757

Aperture dimensions WxH (mm): 926(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 923.5 x 179.5 x 60
Frame openings: 7
Packing space (mm): 120 x 120
Weight (kg): 5.1

Quote this article number

SRC 4x8 R40 ALU

Art. No. 119758

Aperture dimensions WxH (mm): 1056(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 1054 x 179.5 x 60
Frame openings: 8
Packing space (mm): 120 x 120
Weight (kg): 5.8

Quote this article number

SRC 4x9 R40 ALU

Art. No. 119759

Aperture dimensions WxH (mm): 1187(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 1184.5 x 179.5 x 60
Frame openings: 9
Packing space (mm): 120 x 120
Weight (kg): 6.5

Quote this article number

SRC 4+4x1 R40 ALU

Art. No. 119761

Aperture dimensions WxH (mm): 143(+1/-1) x 351(+1/-1)
External dimensions WxHxD (mm): 140.5 x 349 x 60
Frame openings: 2
Packing space (mm): 120 x 120
Weight (kg): 1.55

Quote this article number

SRC 4+4x2 R40 ALU

Art. No. 119762

Aperture dimensions WxH (mm): 273(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 271 x 359 x 60
Frame openings: 4
Packing space (mm): 120 x 120
Weight (kg): 3.3

Quote this article number

SRC 4+4x3 R40 ALU

Art. No. 119763

Aperture dimensions WxH (mm): 404(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 401.5 x 359 x 60
Frame openings: 6
Packing space (mm): 120 x 120
Weight (kg): 4.7

Quote this article number

SRC 4+4x4 R40 ALU

Art. No. 119764

Aperture dimensions WxH (mm): 534(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 532 x 359 x 60
Frame openings: 8
Packing space (mm): 120 x 120
Weight (kg): 6.1

Quote this article number

SRC 4+4x5 R40 ALU

Art. No. 119765

Aperture dimensions WxH (mm): 665(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 662.5 x 359 x 60
Frame openings: 10
Packing space (mm): 120 x 120
Weight (kg): 7.4

Quote this article number

SRC 4+4x6 R40 ALU

Art. No. 119766

Aperture dimensions WxH (mm): 795(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 793 x 359 x 60
Frame openings: 12
Packing space (mm): 120 x 120
Weight (kg): 9

Quote this article number

SRC 6x4 R40 ALU

Art. No. 5SRC000005651

Aperture dimensions WxH (mm): 534(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 532 x 238 x 60
Frame openings: 4
Packing space (mm): 120 x 180
Weight (kg): 3.55

Quote this article number

SRC 6x5 R40 ALU

Art. No. 5SRC000010917

Aperture dimensions WxH (mm): 665(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 662.5 x 238 x 60
Frame openings: 5
Packing space (mm): 120 x 180
Weight (kg): 4.16

Quote this article number

SRC 6x6 R40 ALU

Art. No. 5SRC000010918

Aperture dimensions WxH (mm): 795(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 793 x 238 x 60
Frame openings: 6
Packing space (mm): 120 x 180
Weight (kg): 5.1

Quote this article number

SRC 6x7 R40 ALU

Art. No. 119783

Aperture dimensions WxH (mm): 926(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 923.5 x 238 x 60
Frame openings: 7
Packing space (mm): 120 x 180
Weight (kg): 5.8

Quote this article number

SRC 6x8 R40 ALU

Art. No. 119784

Aperture dimensions WxH (mm): 1056(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 1054 x 238 x 60
Frame openings: 8
Packing space (mm): 120 x 180
Weight (kg): 6.6

Quote this article number

SRC 6x9 R40 ALU

Art. No. 119785

Aperture dimensions WxH (mm): 1187(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 1184.5 x 238 x 60
Frame openings: 9
Packing space (mm): 120 x 180
Weight (kg): 7.4

Quote this article number

SRC 6+6x2 R40 ALU

Art. No. 119788

Aperture dimensions WxH (mm): 273(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 271 x 476 x 60
Frame openings: 4
Packing space (mm): 120 x 180
Weight (kg): 3.9

Quote this article number

SRC 6+6x3 R40 ALU

Art. No. 119789

Aperture dimensions WxH (mm): 404(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 401.5 x 476 x 60
Frame openings: 6
Packing space (mm): 120 x 180
Weight (kg): 5.5

Quote this article number

SRC 6+6x4 R40 ALU

Art. No. 119790

Aperture dimensions WxH (mm): 534(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 532 x 476 x 60
Frame openings: 8
Packing space (mm): 120 x 180
Weight (kg): 7

Quote this article number

SRC 6+6x5 R40 ALU

Art. No. 119791

Aperture dimensions WxH (mm): 665(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 662.5 x 476 x 60
Frame openings: 10
Packing space (mm): 120 x 180
Weight (kg): 8.6

Quote this article number

SRC 6+6x6 R40 ALU

Art. No. 119792

Aperture dimensions WxH (mm): 795(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 793 x 476 x 60
Frame openings: 12
Packing space (mm): 120 x 180
Weight (kg): 10.1

Quote this article number

SRC 8x1 R40 ALU

Art. No. 5SRC000004309

Aperture dimensions WxH (mm): 143(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 140.5 x 298 x 60
Frame openings: 1
Packing space (mm): 120 x 240
Weight (kg): 1.21

Quote this article number

SRC 8x3 R40 ALU

Art. No. 5SRC000006085

Aperture dimensions WxH (mm): 404(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 401.5 x 298 x 60
Frame openings: 3
Packing space (mm): 120 x 240
Weight (kg): 2.95

Quote this article number

SRC 8x4 R40 ALU

Art. No. 5SRC000010919

Aperture dimensions WxH (mm): 534(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 532 x 298 x 60
Frame openings: 4
Packing space (mm): 120 x 240
Weight (kg): 3.9

Quote this article number

SRC 8x5 R40 ALU

Art. No. 5SRC000010920

Aperture dimensions WxH (mm): 665(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 662.5 x 298 x 60
Frame openings: 5
Packing space (mm): 120 x 240
Weight (kg): 4.61

Quote this article number

SRC 8+8x1 R40 ALU

Art. No. 5SRC000007047

Aperture dimensions WxH (mm): 143(+1/-1) x 588(+1/-1)
External dimensions WxHxD (mm): 140.5 x 586 x 60
Frame openings: 2
Packing space (mm): 120 x 240
Weight (kg): 2.36

Quote this article number

SRC 8+8x2 R40 ALU

Art. No. 119811

Aperture dimensions WxH (mm): 273(+1/-1) x 598(+1/-1)
External dimensions WxHxD (mm): 271 x 596 x 60
Frame openings: 4
Packing space (mm): 120 x 240
Weight (kg): 4.5

Quote this article number

SRC 8+8x3 R40 ALU

Art. No. 5SRC000006112

Aperture dimensions WxH (mm): 404(+1/-1) x 598(+1/-1)
External dimensions WxHxD (mm): 401.5 x 596 x 60
Frame openings: 6
Packing space (mm): 120 x 240
Weight (kg): 6

Quote this article number

SRC 8+8x4 R40 ALU

Art. No. 119812

Aperture dimensions WxH (mm): 534(+1/-1) x 598(+1/-1)
External dimensions WxHxD (mm): 532 x 596 x 60
Frame openings: 8
Packing space (mm): 120 x 240
Weight (kg): 8

Quote this article number

Reference documents

These links open current files hosted by Roxtec. Check the source document revision before use.

SRC (en) pdf (manufacturer document)
APERTURE DIMENSIONS S SERIES (en) pdf (manufacturer document)
S1005534 SRC FRAME SINGLE FRAME R20 PDF (manufacturer document)
S1005535 SRC FRAME COMBINATION FRAME R20 PDF (manufacturer document)
S1005536 SRC FRAME + SINGLE FRAME R20 PDF (manufacturer document)
S1005537 SRC FRAME + COMBINATION FRAME R20 PDF (manufacturer document)
S1005540 SRC FRAME SINGLE FRAME R40 PDF (manufacturer document)
S1005541 SRC FRAME COMBINATION FRAME R40 PDF (manufacturer document)
S1005542 SRC FRAME + SINGLE FRAME R40 PDF (manufacturer document)
S1005543 SRC FRAME + COMBINATION FRAME R40 PDF (manufacturer document)

Source-listed certificates

Certificate rows reproduce factual source fields. They do not confirm applicability to a specific assembly. Open the source record and ask AMFSS to check the application.

Authority	Rating	Division / structure	Cable	Pipe	Type approval	Status
BV	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Steel	Armored Marine	—	04558/H1 BV	No renewal status stated
BV	Gas tightness (catastrophic) H class fire Water tightness (catastrophic)	Steel	Marine	—	15027/E0 BV	No renewal status stated
USCG	H class fire	Steel	Armored Marine	—	164.140/10/0	Source states: under renewal
IRS	A class fire	Steel	Marine	Bundle Copper Fiberglass Steel	2022TAC104	No renewal status stated
ABS	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Steel	—	Bundle Copper Copper-Nickel Steel Titanium	24-0023682-PDA	No renewal status stated
ABS	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Steel	—	Bundle Copper Copper-Nickel Steel Titanium	24-0023682-PDA-DUP	No renewal status stated
ABS	Gas tightness (catastrophic) H class fire Water tightness (catastrophic)	Steel	Armored Marine	Bundle Steel Titanium	24-0131674-1-PDA	No renewal status stated
ABS	Gas tightness (catastrophic) H class fire Water tightness (catastrophic)	Steel	Armored Marine	Bundle Steel Titanium	24-0131674-1-PDA-DUP	No renewal status stated
ABS	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Steel	Armored Fiber Marine Shielded	—	24-2397982-1-PDA	No renewal status stated
ABS	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Aluminium	Marine	Bundle Copper Steel Titanium	25-0155736-PDA	No renewal status stated
ABS	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Aluminium	Marine	Bundle Copper Steel Titanium	25-0155736-PDA-DUP	No renewal status stated
BV	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Aluminium	Marine	—	41353/C0 BV	Source states: under renewal
BV	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Steel	—	ABS Bundle Copper Copper-Nickel HDPE Other PB PE Plastic PP PVC PVDF Steel Titanium	63792/B0 BV	No renewal status stated
QinetiQ	A class fire Blastload Gas tightness (catastrophic) Water tightness (catastrophic)	Steel	Marine	—	AS&P/BCC/30/13/002	Source states: under renewal
KRS	A class fire	Steel	Marine	—	CPH04189-FP004	Source states: under renewal
CCS	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Aluminium Steel	Marine	—	GB23PTB00036_01	No renewal status stated
CCS	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Aluminium Steel	—	Bundle Copper Copper-Nickel Steel	GB23PTB00036_02	No renewal status stated
RINA	A class fire	Steel	Armored Marine Shielded Unshielded	—	LAB378423CS/001	No renewal status stated
RINA	A class fire B class fire	Steel	Armored Marine Shielded Unshielded	—	LAB378423CS/002	No renewal status stated
LR	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Aluminium Steel	—	Bundle Copper Copper-Nickel Steel Titanium	LR25103712SF-1	No renewal status stated
DNV	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Aluminium	Marine	—	MEDB0000130	No renewal status stated
DNV	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Steel	Armored Marine	—	MEDB00001Y7	No renewal status stated
DNV	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Aluminium	—	Bundle Copper Steel Titanium	MEDB00005J9	No renewal status stated
DNV	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Steel	—	ABS Bundle Copper Copper-Nickel PB PE Plastic PP Steel Titanium	MEDB00006JA	No renewal status stated
DNV	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Aluminium	Marine	—	MERB0000130	No renewal status stated
DNV	A class fire	Steel	Fiber Marine	—	MERB00001Y7	No renewal status stated
DNV	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Aluminium	—	Bundle Copper Copper-Nickel Steel Titanium	MERB00005J9	No renewal status stated
DNV	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Steel	—	Bundle Copper Copper-Nickel Steel	MERB00006JA	No renewal status stated
LR	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Aluminium Steel	Fiber Marine Other	—	SAS F150098-M3-10	No renewal status stated
DNV	Gas tightness (catastrophic) Water tightness (catastrophic)	Aluminium Steel	All	Aluminium Copper Copper-Nickel Plastic Steel	TAE000000U	No renewal status stated
DNV	Gas tightness (catastrophic) H class fire Water tightness (catastrophic)	Steel	Armored Marine	Steel	TAF00000DW	No renewal status stated

Source checked 2026-08-08: official Roxtec product page.

About Roxtec rectangular frames

Roxtec rectangular frames form the frame portion of modular cable and pipe transit systems. Frame type and components must be matched to the opening and application.

Typical applications:

Walls and floors
Bulkheads and decks
Cabinets and enclosures

Not sure this is the right product? Compare the Roxtec rectangular frames family or describe your application.
