Roxtec rectangular frames

Roxtec SFHM frame

Roxtec rectangular frames · Roxtec

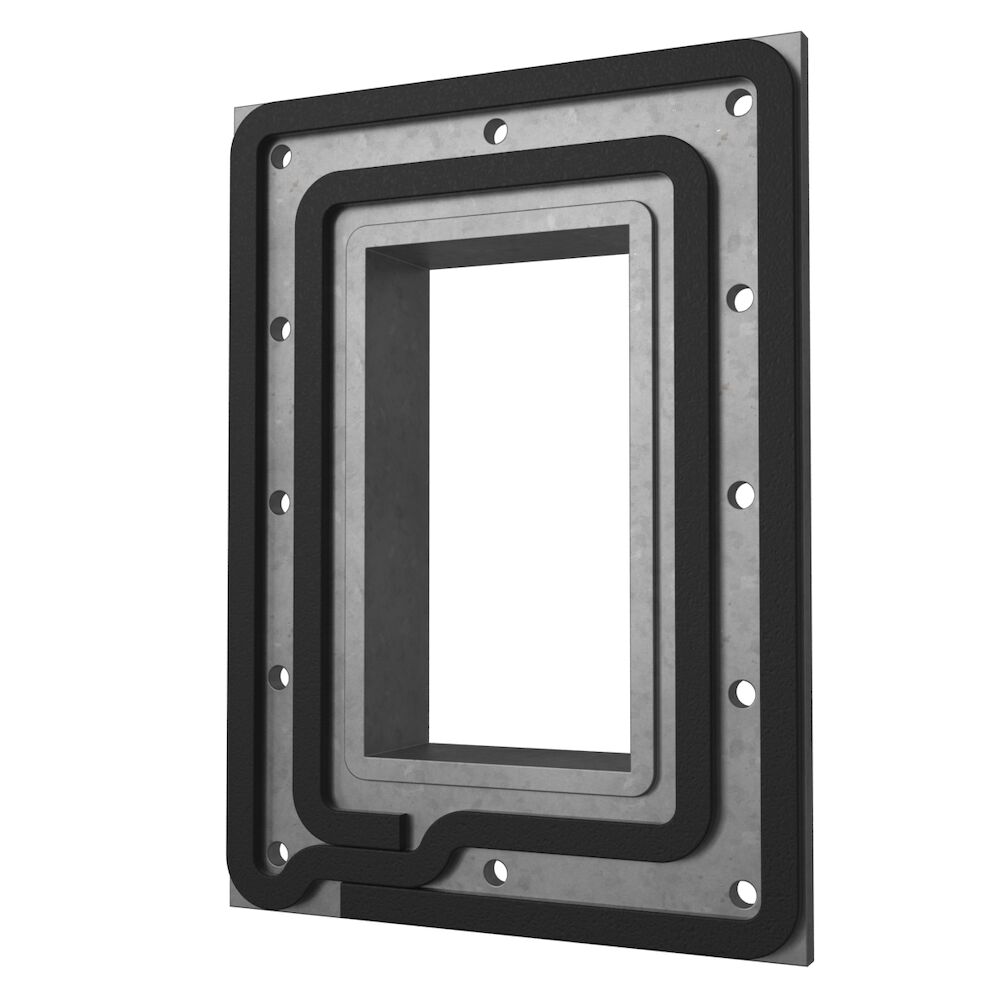

The Roxtec SFHM frame kit with metal frame, flange and gasket has a wide aperture tolerance. It is available in different materials and with a single opening, or in combinations with several openings in width and/or height.

To be used with corresponding Roxtec components to form a complete sealing solution
Attachment by bolting

Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.

Article numbers and specifications

Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.

SFHM 6x1 PRIMED INCL TSL 15x6

Art. No. 5SFHM00009087

Aperture dimensions WxH (mm): 161(+5/-5) x 258(+5/-5)
External dimensions WxHxD (mm): 260.5 x 358 x 60
Frame openings: 1
Packing space (mm): 120 x 180
Weight (kg): 8.14

Quote this article number

SFHM 6x2 PRIMED INCL TSL 15x6

Art. No. 120964

Aperture dimensions WxH (mm): 291(+5/-5) x 258(+5/-5)
External dimensions WxHxD (mm): 391 x 358 x 60
Frame openings: 2
Packing space (mm): 120 x 180
Weight (kg): 11.8

Quote this article number

SFHM 6x3 PRIMED INCL TSL 15x6

Art. No. 123095

Aperture dimensions WxH (mm): 422(+5/-5) x 258(+5/-5)
External dimensions WxHxD (mm): 521.5 x 358 x 60
Frame openings: 3
Packing space (mm): 120 x 180
Weight (kg): 15.3

Quote this article number

SFHM 6x1 AISI316 INCL TSL 15x6

Art. No. 5SFHM00007863

Aperture dimensions WxH (mm): 161(+5/-5) x 258(+5/-5)
External dimensions WxHxD (mm): 260.5 x 358 x 60
Frame openings: 1
Packing space (mm): 120 x 180
Weight (kg): 8.03

Quote this article number

SFHM 6x2 AISI316 INCL TSL 15x6

Art. No. 5SFHM00009102

Aperture dimensions WxH (mm): 291(+5/-5) x 258(+5/-5)
External dimensions WxHxD (mm): 391 x 358 x 60
Frame openings: 2
Packing space (mm): 120 x 180
Weight (kg): 11.46

Quote this article number

SFHM 6x3 AISI316 INCL TSL 15x6

Art. No. 5SFHM00007864

Aperture dimensions WxH (mm): 422(+5/-5) x 258(+5/-5)
External dimensions WxHxD (mm): 521.5 x 358 x 60
Frame openings: 3
Packing space (mm): 120 x 180
Weight (kg): 14.93

Quote this article number

SFHM 6x1 ALU INCL TSL 15x6

Art. No. 5SFHM00008469

Aperture dimensions WxH (mm): 161(+5/-5) x 258(+5/-5)
External dimensions WxHxD (mm): 260.5 x 358 x 60
Frame openings: 1
Packing space (mm): 120 x 180
Weight (kg): 2.77

Quote this article number

SFHM 6x2 ALU INCL TSL 15x6

Art. No. 5SFHM00008461

Aperture dimensions WxH (mm): 291(+5/-5) x 258(+5/-5)
External dimensions WxHxD (mm): 391 x 358 x 60
Frame openings: 2
Packing space (mm): 120 x 180
Weight (kg): 2.8

Quote this article number

SFHM 6x3 ALU INCL TSL 15x6

Art. No. 154739

Aperture dimensions WxH (mm): 422(+5/-5) x 258(+5/-5)
External dimensions WxHxD (mm): 521.5 x 358 x 60
Frame openings: 3
Packing space (mm): 120 x 180
Weight (kg): 5.35

Quote this article number

SFHM 2x1 PRIMED INCL TSL 15x6

Art. No. 5SFHM00009767

Aperture dimensions WxH (mm): 161(+5/-5) x 141(+5/-5)
External dimensions WxHxD (mm): 260.5 x 241 x 60
Frame openings: 1
Packing space (mm): 120 x 60
Weight (kg): 6.07

Quote this article number

SFHM 2x2 PRIMED INCL TSL 15x6

Art. No. 119458

Aperture dimensions WxH (mm): 291(+5/-5) x 141(+5/-5)
External dimensions WxHxD (mm): 391 x 241 x 60
Frame openings: 2
Packing space (mm): 120 x 60
Weight (kg): 8.8

Quote this article number

SFHM 2x3 PRIMED INCL TSL 15x6

Art. No. 119459

Aperture dimensions WxH (mm): 422(+5/-5) x 141(+5/-5)
External dimensions WxHxD (mm): 521.5 x 241 x 60
Frame openings: 3
Packing space (mm): 120 x 60
Weight (kg): 11.7

Quote this article number

SFHM 2x4 PRIMED INCL TSL 15x6

Art. No. 119460

Aperture dimensions WxH (mm): 552(+5/-5) x 141(+5/-5)
External dimensions WxHxD (mm): 652 x 241 x 60
Frame openings: 4
Packing space (mm): 120 x 60
Weight (kg): 14.6

Quote this article number

SFHM 2x5 PRIMED INCL TSL 15x6

Art. No. 169674

Aperture dimensions WxH (mm): 683(+5/-5) x 141(+5/-5)
External dimensions WxHxD (mm): 782.5 x 241 x 60
Frame openings: 5
Packing space (mm): 120 x 60
Weight (kg): 17.6

Quote this article number

SFHM 2x6 PRIMED INCL TSL 15x6

Art. No. 169675

Aperture dimensions WxH (mm): 813(+5/-5) x 141(+5/-5)
External dimensions WxHxD (mm): 913 x 241 x 60
Frame openings: 6
Packing space (mm): 120 x 60
Weight (kg): 20.5

Quote this article number

SFHM 2+2x1 PRIMED INCL TSL 15x6

Art. No. 169680

Aperture dimensions WxH (mm): 161(+5/-5) x 252(+5/-5)
External dimensions WxHxD (mm): 260.5 x 352 x 60
Frame openings: 2
Packing space (mm): 120 x 60
Weight (kg): 8.5

Quote this article number

SFHM 2+2x2 PRIMED INCL TSL 15x6

Art. No. 169681

Aperture dimensions WxH (mm): 291(+5/-5) x 262(+5/-5)
External dimensions WxHxD (mm): 391 x 362 x 60
Frame openings: 4
Packing space (mm): 120 x 60
Weight (kg): 13.9

Quote this article number

SFHM 2+2x3 PRIMED INCL TSL 15x6

Art. No. 169682

Aperture dimensions WxH (mm): 422(+5/-5) x 262(+5/-5)
External dimensions WxHxD (mm): 521.5 x 362 x 60
Frame openings: 6
Packing space (mm): 120 x 60
Weight (kg): 18.5

Quote this article number

SFHM 2+2x4 PRIMED INCL TSL 15x6

Art. No. 169683

Aperture dimensions WxH (mm): 552(+5/-5) x 262(+5/-5)
External dimensions WxHxD (mm): 652 x 362 x 60
Frame openings: 8
Packing space (mm): 120 x 60
Weight (kg): 23.2

Quote this article number

SFHM 4x1 PRIMED INCL TSL 15x6

Art. No. 5SFHM00011940

Aperture dimensions WxH (mm): 161(+5/-5) x 200(+5/-5)
External dimensions WxHxD (mm): 260.5 x 299.5 x 60
Frame openings: 1
Packing space (mm): 120 x 120
Weight (kg): 6.99

Quote this article number

SFHM 4x2 PRIMED INCL TSL 15x6

Art. No. 119461

Aperture dimensions WxH (mm): 291(+5/-5) x 200(+5/-5)
External dimensions WxHxD (mm): 391 x 299.5 x 60
Frame openings: 2
Packing space (mm): 120 x 120
Weight (kg): 0.1

Quote this article number

SFHM 4x3 PRIMED INCL TSL 15x6

Art. No. 5SFHM00009213

Aperture dimensions WxH (mm): 422(+5/-5) x 200(+5/-5)
External dimensions WxHxD (mm): 521.5 x 299.5 x 60
Frame openings: 3
Packing space (mm): 120 x 120
Weight (kg): 13.31

Quote this article number

SFHM 4x4 PRIMED INCL TSL 15x6

Art. No. 169710

Aperture dimensions WxH (mm): 552(+5/-5) x 200(+5/-5)
External dimensions WxHxD (mm): 652 x 299.5 x 60
Frame openings: 4
Packing space (mm): 120 x 120
Weight (kg): 16.6

Quote this article number

SFHM 4x5 PRIMED INCL TSL 15x6

Art. No. 119462

Aperture dimensions WxH (mm): 683(+5/-5) x 200(+5/-5)
External dimensions WxHxD (mm): 782.5 x 299.5 x 60
Frame openings: 5
Packing space (mm): 120 x 120
Weight (kg): 20

Quote this article number

SFHM 4x6 PRIMED INCL TSL 15x6

Art. No. 119463

Aperture dimensions WxH (mm): 813(+5/-5) x 200(+5/-5)
External dimensions WxHxD (mm): 913 x 299.5 x 60
Frame openings: 6
Packing space (mm): 120 x 120
Weight (kg): 23

Quote this article number

SFHM 4x7 PRIMED INCL TSL 15x6

Art. No. 169711

Aperture dimensions WxH (mm): 944(+5/-5) x 200(+5/-5)
External dimensions WxHxD (mm): 1043.5 x 299.5 x 60
Frame openings: 7
Packing space (mm): 120 x 120
Weight (kg): 26.2

Quote this article number

SFHM 4x8 PRIMED INCL TSL 15x6

Art. No. 169712

Aperture dimensions WxH (mm): 1074(+5/-5) x 200(+5/-5)
External dimensions WxHxD (mm): 1174 x 299.5 x 60
Frame openings: 8
Packing space (mm): 120 x 120
Weight (kg): 29.4

Quote this article number

SFHM 4x9 PRIMED INCL TSL 15x6

Art. No. 169713

Aperture dimensions WxH (mm): 1205(+5/-5) x 200(+5/-5)
External dimensions WxHxD (mm): 1304.5 x 299.5 x 60
Frame openings: 9
Packing space (mm): 120 x 120
Weight (kg): 32.6

Quote this article number

SFHM 4+4x1 PRIMED INCL TSL 15x6

Art. No. 119464

Aperture dimensions WxH (mm): 161(+5/-5) x 369(+5/-5)
External dimensions WxHxD (mm): 260.5 x 469 x 60
Frame openings: 2
Packing space (mm): 120 x 120
Weight (kg): 0.1

Quote this article number

SFHM 4+4x2 PRIMED INCL TSL 15x6

Art. No. 119465

Aperture dimensions WxH (mm): 291(+5/-5) x 379(+5/-5)
External dimensions WxHxD (mm): 391 x 479 x 60
Frame openings: 4
Packing space (mm): 120 x 120
Weight (kg): 16.6

Quote this article number

SFHM 4+4x3 PRIMED INCL TSL 15x6

Art. No. 119466

Aperture dimensions WxH (mm): 422(+5/-5) x 379(+5/-5)
External dimensions WxHxD (mm): 521.5 x 479 x 60
Frame openings: 6
Packing space (mm): 120 x 120
Weight (kg): 21.8

Quote this article number

SFHM 4+4x4 PRIMED INCL TSL 15x6

Art. No. 119467

Aperture dimensions WxH (mm): 552(+5/-5) x 379(+5/-5)
External dimensions WxHxD (mm): 652 x 479 x 60
Frame openings: 8
Packing space (mm): 120 x 120
Weight (kg): 27

Quote this article number

SFHM 4+4x5 PRIMED INCL TSL 15x6

Art. No. 119468

Aperture dimensions WxH (mm): 683(+5/-5) x 379(+5/-5)
External dimensions WxHxD (mm): 782.5 x 479 x 60
Frame openings: 10
Packing space (mm): 120 x 120
Weight (kg): 32.2

Quote this article number

SFHM 4+4x6 PRIMED INCL TSL 15x6

Art. No. 119469

Aperture dimensions WxH (mm): 813(+5/-5) x 379(+5/-5)
External dimensions WxHxD (mm): 913 x 479 x 60
Frame openings: 12
Packing space (mm): 120 x 120
Weight (kg): 37.4

Quote this article number

SFHM 6x4 PRIMED INCL TSL 15x6

Art. No. 105633

Aperture dimensions WxH (mm): 552(+5/-5) x 258(+5/-5)
External dimensions WxHxD (mm): 652 x 358 x 60
Frame openings: 4
Packing space (mm): 120 x 180
Weight (kg): 18.9

Quote this article number

SFHM 6x5 PRIMED INCL TSL 15x6

Art. No. 169739

Aperture dimensions WxH (mm): 683(+5/-5) x 258(+5/-5)
External dimensions WxHxD (mm): 782.5 x 358 x 60
Frame openings: 5
Packing space (mm): 120 x 180
Weight (kg): 22

Quote this article number

SFHM 6x7 PRIMED INCL TSL 15x6

Art. No. 119470

Aperture dimensions WxH (mm): 944(+5/-5) x 258(+5/-5)
External dimensions WxHxD (mm): 1043.5 x 358 x 60
Frame openings: 7
Packing space (mm): 120 x 180
Weight (kg): 29

Quote this article number

SFHM 6x8 PRIMED INCL TSL 15x6

Art. No. 119471

Aperture dimensions WxH (mm): 1074(+5/-5) x 258(+5/-5)
External dimensions WxHxD (mm): 1174 x 358 x 60
Frame openings: 8
Packing space (mm): 120 x 180
Weight (kg): 32.4

Quote this article number

SFHM 6x9 PRIMED INCL TSL 15x6

Art. No. 169740

Aperture dimensions WxH (mm): 1205(+5/-5) x 258(+5/-5)
External dimensions WxHxD (mm): 1304.5 x 358 x 60
Frame openings: 9
Packing space (mm): 120 x 180
Weight (kg): 35.9

Quote this article number

SFHM 8x1 PRIMED INCL TSL 15x6

Art. No. 5SFHM00010142

Aperture dimensions WxH (mm): 161(+5/-5) x 318(+5/-5)
External dimensions WxHxD (mm): 260.5 x 418 x 60
Frame openings: 1
Packing space (mm): 120 x 240
Weight (kg): 9.11

Quote this article number

SFHM 8x2 PRIMED INCL TSL 15x6

Art. No. 119476

Aperture dimensions WxH (mm): 291(+5/-5) x 318(+5/-5)
External dimensions WxHxD (mm): 391 x 418 x 60
Frame openings: 2
Packing space (mm): 120 x 240
Weight (kg): 13.12

Quote this article number

SFHM 8x3 PRIMED INCL TSL 15x6

Art. No. 169764

Aperture dimensions WxH (mm): 422(+5/-5) x 318(+5/-5)
External dimensions WxHxD (mm): 521.5 x 418 x 60
Frame openings: 3
Packing space (mm): 120 x 240
Weight (kg): 16.5

Quote this article number

SFHM 8x4 PRIMED INCL TSL 15x6

Art. No. 119477

Aperture dimensions WxH (mm): 552(+5/-5) x 318(+5/-5)
External dimensions WxHxD (mm): 652 x 418 x 60
Frame openings: 4
Packing space (mm): 120 x 240
Weight (kg): 14

Quote this article number

SFHM 8x5 PRIMED INCL TSL 15x6

Art. No. 119478

Aperture dimensions WxH (mm): 683(+5/-5) x 318(+5/-5)
External dimensions WxHxD (mm): 782.5 x 418 x 60
Frame openings: 5
Packing space (mm): 120 x 240
Weight (kg): 24.2

Quote this article number

SFHM 8x6 PRIMED INCL TSL 15x6

Art. No. 119479

Aperture dimensions WxH (mm): 813(+5/-5) x 318(+5/-5)
External dimensions WxHxD (mm): 913 x 418 x 60
Frame openings: 6
Packing space (mm): 120 x 240
Weight (kg): 28

Quote this article number

SFHM 8+8x1 PRIMED INCL TSL 15x6

Art. No. 119482

Aperture dimensions WxH (mm): 161(+5/-5) x 606(+5/-5)
External dimensions WxHxD (mm): 260.5 x 706 x 60
Frame openings: 2
Packing space (mm): 120 x 240
Weight (kg): 3

Quote this article number

SFHM 8+8x2 PRIMED INCL TSL 15x6

Art. No. 119483

Aperture dimensions WxH (mm): 291(+5/-5) x 616(+5/-5)
External dimensions WxHxD (mm): 391 x 716 x 60
Frame openings: 4
Packing space (mm): 120 x 240
Weight (kg): 22.2

Quote this article number

SFHM 8+8x3 PRIMED INCL TSL 15x6

Art. No. 5SFHM00009086

Aperture dimensions WxH (mm): 422(+5/-5) x 616(+5/-5)
External dimensions WxHxD (mm): 521.5 x 716 x 60
Frame openings: 6
Packing space (mm): 120 x 240
Weight (kg): 28.5

Quote this article number

SFHM 8+8x4 PRIMED INCL TSL 15x6

Art. No. 119484

Aperture dimensions WxH (mm): 552(+5/-5) x 616(+5/-5)
External dimensions WxHxD (mm): 652 x 716 x 60
Frame openings: 8
Packing space (mm): 120 x 240
Weight (kg): 34.8

Quote this article number

SFHM 2x1 AISI316 INCL TSL 15x6

Art. No. 120632

Aperture dimensions WxH (mm): 161(+5/-5) x 141(+5/-5)
External dimensions WxHxD (mm): 260.5 x 241 x 60
Frame openings: 1
Packing space (mm): 120 x 60
Weight (kg): 6.04

Quote this article number

SFHM 2x2 AISI316 INCL TSL 15x6

Art. No. 120635

Aperture dimensions WxH (mm): 291(+5/-5) x 141(+5/-5)
External dimensions WxHxD (mm): 391 x 241 x 60
Frame openings: 2
Packing space (mm): 120 x 60
Weight (kg): 8.7

Quote this article number

SFHM 2x3 AISI316 INCL TSL 15x6

Art. No. 120636

Aperture dimensions WxH (mm): 422(+5/-5) x 141(+5/-5)
External dimensions WxHxD (mm): 521.5 x 241 x 60
Frame openings: 3
Packing space (mm): 120 x 60
Weight (kg): 11.7

Quote this article number

SFHM 2x4 AISI316 INCL TSL 15x6

Art. No. 169789

Aperture dimensions WxH (mm): 552(+5/-5) x 141(+5/-5)
External dimensions WxHxD (mm): 652 x 241 x 60
Frame openings: 4
Packing space (mm): 120 x 60
Weight (kg): 14.6

Quote this article number

SFHM 2x5 AISI316 INCL TSL 15x6

Art. No. 169790

Aperture dimensions WxH (mm): 683(+5/-5) x 141(+5/-5)
External dimensions WxHxD (mm): 782.5 x 241 x 60
Frame openings: 5
Packing space (mm): 120 x 60
Weight (kg): 17.6

Quote this article number

SFHM 2x6 AISI316 INCL TSL 15x6

Art. No. 169791

Aperture dimensions WxH (mm): 813(+5/-5) x 141(+5/-5)
External dimensions WxHxD (mm): 913 x 241 x 60
Frame openings: 6
Packing space (mm): 120 x 60
Weight (kg): 20.5

Quote this article number

SFHM 2+2x1 AISI316 INCL TSL 15x6

Art. No. 169796

Aperture dimensions WxH (mm): 161(+5/-5) x 252(+5/-5)
External dimensions WxHxD (mm): 260.5 x 352 x 60
Frame openings: 2
Packing space (mm): 120 x 60
Weight (kg): 8.5

Quote this article number

SFHM 2+2x2 AISI316 INCL TSL 15x6

Art. No. 169797

Aperture dimensions WxH (mm): 291(+5/-5) x 262(+5/-5)
External dimensions WxHxD (mm): 391 x 362 x 60
Frame openings: 4
Packing space (mm): 120 x 60
Weight (kg): 13.9

Quote this article number

SFHM 2+2x3 AISI316 INCL TSL 15x6

Art. No. 169798

Aperture dimensions WxH (mm): 422(+5/-5) x 262(+5/-5)
External dimensions WxHxD (mm): 521.5 x 362 x 60
Frame openings: 6
Packing space (mm): 120 x 60
Weight (kg): 18.5

Quote this article number

SFHM 2+2x4 AISI316 INCL TSL 15x6

Art. No. 169799

Aperture dimensions WxH (mm): 552(+5/-5) x 262(+5/-5)
External dimensions WxHxD (mm): 652 x 362 x 60
Frame openings: 8
Packing space (mm): 120 x 60
Weight (kg): 23.2

Quote this article number

SFHM 4x1 AISI316 INCL TSL 15x6

Art. No. 5SFHM00008056

Aperture dimensions WxH (mm): 161(+5/-5) x 200(+5/-5)
External dimensions WxHxD (mm): 260.5 x 299.5 x 60
Frame openings: 1
Packing space (mm): 120 x 120
Weight (kg): 7.06

Quote this article number

SFHM 4x2 AISI316 INCL TSL 15x6

Art. No. 5SFHM00009750

Aperture dimensions WxH (mm): 291(+5/-5) x 200(+5/-5)
External dimensions WxHxD (mm): 391 x 299.5 x 60
Frame openings: 2
Packing space (mm): 120 x 120
Weight (kg): 10.08

Quote this article number

SFHM 4x3 AISI316 INCL TSL 15x6

Art. No. 105624

Aperture dimensions WxH (mm): 422(+5/-5) x 200(+5/-5)
External dimensions WxHxD (mm): 521.5 x 299.5 x 60
Frame openings: 3
Packing space (mm): 120 x 120
Weight (kg): 14.36

Quote this article number

SFHM 4x4 AISI316 INCL TSL 15x6

Art. No. 120645

Aperture dimensions WxH (mm): 552(+5/-5) x 200(+5/-5)
External dimensions WxHxD (mm): 652 x 299.5 x 60
Frame openings: 4
Packing space (mm): 120 x 120
Weight (kg): 16.9

Quote this article number

SFHM 4x5 AISI316 INCL TSL 15x6

Art. No. 120646

Aperture dimensions WxH (mm): 683(+5/-5) x 200(+5/-5)
External dimensions WxHxD (mm): 782.5 x 299.5 x 60
Frame openings: 5
Packing space (mm): 120 x 120
Weight (kg): 19.8

Quote this article number

SFHM 4x6 AISI316 INCL TSL 15x6

Art. No. 169826

Aperture dimensions WxH (mm): 813(+5/-5) x 200(+5/-5)
External dimensions WxHxD (mm): 913 x 299.5 x 60
Frame openings: 6
Packing space (mm): 120 x 120
Weight (kg): 11.5

Quote this article number

SFHM 4x7 AISI316 INCL TSL 15x6

Art. No. 169827

Aperture dimensions WxH (mm): 944(+5/-5) x 200(+5/-5)
External dimensions WxHxD (mm): 1043.5 x 299.5 x 60
Frame openings: 7
Packing space (mm): 120 x 120
Weight (kg): 26

Quote this article number

SFHM 4x8 AISI316 INCL TSL 15x6

Art. No. 169828

Aperture dimensions WxH (mm): 1074(+5/-5) x 200(+5/-5)
External dimensions WxHxD (mm): 1174 x 299.5 x 60
Frame openings: 8
Packing space (mm): 120 x 120
Weight (kg): 27

Quote this article number

SFHM 4x9 AISI316 INCL TSL 15x6

Art. No. 169829

Aperture dimensions WxH (mm): 1205(+5/-5) x 200(+5/-5)
External dimensions WxHxD (mm): 1304.5 x 299.5 x 60
Frame openings: 9
Packing space (mm): 120 x 120
Weight (kg): 32.6

Quote this article number

SFHM 4+4x1 AISI316 INCL TSL 15x6

Art. No. 169831

Aperture dimensions WxH (mm): 161(+5/-5) x 369(+5/-5)
External dimensions WxHxD (mm): 260.5 x 469 x 60
Frame openings: 2
Packing space (mm): 120 x 120
Weight (kg): 10.69

Quote this article number

SFHM 4+4x2 AISI316 INCL TSL 15x6

Art. No. 169832

Aperture dimensions WxH (mm): 291(+5/-5) x 379(+5/-5)
External dimensions WxHxD (mm): 391 x 479 x 60
Frame openings: 4
Packing space (mm): 120 x 120
Weight (kg): 16.84

Quote this article number

SFHM 4+4x3 AISI316 INCL TSL 15x6

Art. No. 169833

Aperture dimensions WxH (mm): 422(+5/-5) x 379(+5/-5)
External dimensions WxHxD (mm): 521.5 x 479 x 60
Frame openings: 6
Packing space (mm): 120 x 120
Weight (kg): 21.8

Quote this article number

SFHM 4+4x4 AISI316 INCL TSL 15x6

Art. No. 169834

Aperture dimensions WxH (mm): 552(+5/-5) x 379(+5/-5)
External dimensions WxHxD (mm): 652 x 479 x 60
Frame openings: 8
Packing space (mm): 120 x 120
Weight (kg): 27

Quote this article number

SFHM 4+4x5 AISI316 INCL TSL 15x6

Art. No. 169835

Aperture dimensions WxH (mm): 683(+5/-5) x 379(+5/-5)
External dimensions WxHxD (mm): 782.5 x 479 x 60
Frame openings: 10
Packing space (mm): 120 x 120
Weight (kg): 32

Quote this article number

SFHM 4+4x6 AISI316 INCL TSL 15x6

Art. No. 169836

Aperture dimensions WxH (mm): 813(+5/-5) x 379(+5/-5)
External dimensions WxHxD (mm): 913 x 479 x 60
Frame openings: 12
Packing space (mm): 120 x 120
Weight (kg): 37.4

Quote this article number

SFHM 6x4 AISI316 INCL TSL 15x6

Art. No. 5SFHM00010646

Aperture dimensions WxH (mm): 552(+5/-5) x 258(+5/-5)
External dimensions WxHxD (mm): 652 x 358 x 60
Frame openings: 4
Packing space (mm): 120 x 180
Weight (kg): 18.45

Quote this article number

SFHM 6x5 AISI316 INCL TSL 15x6

Art. No. 104586

Aperture dimensions WxH (mm): 683(+5/-5) x 258(+5/-5)
External dimensions WxHxD (mm): 782.5 x 358 x 60
Frame openings: 5
Packing space (mm): 120 x 180
Weight (kg): 22.17

Quote this article number

SFHM 6x6 AISI316 INCL TSL 15x6

Art. No. 5SFHM00010088

Aperture dimensions WxH (mm): 813(+5/-5) x 258(+5/-5)
External dimensions WxHxD (mm): 913 x 358 x 60
Frame openings: 6
Packing space (mm): 120 x 180
Weight (kg): 25.68

Quote this article number

SFHM 6x7 AISI316 INCL TSL 15x6

Art. No. 104587

Aperture dimensions WxH (mm): 944(+5/-5) x 258(+5/-5)
External dimensions WxHxD (mm): 1043.5 x 358 x 60
Frame openings: 7
Packing space (mm): 120 x 180
Weight (kg): 29.21

Quote this article number

SFHM 6x8 AISI316 INCL TSL 15x6

Art. No. 104588

Aperture dimensions WxH (mm): 1074(+5/-5) x 258(+5/-5)
External dimensions WxHxD (mm): 1174 x 358 x 60
Frame openings: 8
Packing space (mm): 120 x 180
Weight (kg): 32.6

Quote this article number

SFHM 6x9 AISI316 INCL TSL 15x6

Art. No. 169861

Aperture dimensions WxH (mm): 1205(+5/-5) x 258(+5/-5)
External dimensions WxHxD (mm): 1304.5 x 358 x 60
Frame openings: 9
Packing space (mm): 120 x 180
Weight (kg): 35.9

Quote this article number

SFHM 8x1 AISI316 INCL TSL 15x6

Art. No. 5SFHM00008048

Aperture dimensions WxH (mm): 161(+5/-5) x 318(+5/-5)
External dimensions WxHxD (mm): 260.5 x 418 x 60
Frame openings: 1
Packing space (mm): 120 x 240
Weight (kg): 9.1

Quote this article number

SFHM 8x2 AISI316 INCL TSL 15x6

Art. No. 5SFHM00012881

Aperture dimensions WxH (mm): 291(+5/-5) x 318(+5/-5)
External dimensions WxHxD (mm): 391 x 418 x 60
Frame openings: 2
Packing space (mm): 120 x 240
Weight (kg): 13

Quote this article number

SFHM 8x3 AISI316 INCL TSL 15x6

Art. No. 5SFHM00010648

Aperture dimensions WxH (mm): 422(+5/-5) x 318(+5/-5)
External dimensions WxHxD (mm): 521.5 x 418 x 60
Frame openings: 3
Packing space (mm): 120 x 240
Weight (kg): 17.04

Quote this article number

SFHM 8x4 AISI316 INCL TSL 15x6

Art. No. 120648

Aperture dimensions WxH (mm): 552(+5/-5) x 318(+5/-5)
External dimensions WxHxD (mm): 652 x 418 x 60
Frame openings: 4
Packing space (mm): 120 x 240
Weight (kg): 21.15

Quote this article number

SFHM 8x5 AISI316 INCL TSL 15x6

Art. No. 105272

Aperture dimensions WxH (mm): 683(+5/-5) x 318(+5/-5)
External dimensions WxHxD (mm): 782.5 x 418 x 60
Frame openings: 5
Packing space (mm): 120 x 240
Weight (kg): 24.37

Quote this article number

SFHM 8x6 AISI316 INCL TSL 15x6

Art. No. 120649

Aperture dimensions WxH (mm): 813(+5/-5) x 318(+5/-5)
External dimensions WxHxD (mm): 913 x 418 x 60
Frame openings: 6
Packing space (mm): 120 x 240
Weight (kg): 31.19

Quote this article number

SFHM 8+8x1 AISI316 INCL TSL 15x6

Art. No. 117392

Aperture dimensions WxH (mm): 161(+5/-5) x 606(+5/-5)
External dimensions WxHxD (mm): 260.5 x 706 x 60
Frame openings: 2
Packing space (mm): 120 x 240
Weight (kg): 20

Quote this article number

SFHM 8+8x2 AISI316 INCL TSL 15x6

Art. No. 169885

Aperture dimensions WxH (mm): 291(+5/-5) x 616(+5/-5)
External dimensions WxHxD (mm): 391 x 716 x 60
Frame openings: 4
Packing space (mm): 120 x 240
Weight (kg): 23

Quote this article number

SFHM 8+8x3 AISI316 INCL TSL 15x6

Art. No. 5SFHM00010464

Aperture dimensions WxH (mm): 422(+5/-5) x 616(+5/-5)
External dimensions WxHxD (mm): 521.5 x 716 x 60
Frame openings: 6
Packing space (mm): 120 x 240
Weight (kg): 28.25

Quote this article number

SFHM 8+8x4 AISI316 INCL TSL 15x6

Art. No. 157447

Aperture dimensions WxH (mm): 552(+5/-5) x 616(+5/-5)
External dimensions WxHxD (mm): 652 x 716 x 60
Frame openings: 8
Packing space (mm): 120 x 240
Weight (kg): 12

Quote this article number

SFHM 2x1 ALU INCL TSL 15x6

Art. No. 5SFHM00012248

Aperture dimensions WxH (mm): 161(+5/-5) x 141(+5/-5)
External dimensions WxHxD (mm): 260.5 x 241 x 60
Frame openings: 1
Packing space (mm): 120 x 60
Weight (kg): 2.12

Quote this article number

SFHM 2x2 ALU INCL TSL 15x6

Art. No. 117945

Aperture dimensions WxH (mm): 291(+5/-5) x 141(+5/-5)
External dimensions WxHxD (mm): 391 x 241 x 60
Frame openings: 2
Packing space (mm): 120 x 60
Weight (kg): 3.07

Quote this article number

SFHM 2x3 ALU INCL TSL 15x6

Art. No. 169535

Aperture dimensions WxH (mm): 422(+5/-5) x 141(+5/-5)
External dimensions WxHxD (mm): 521.5 x 241 x 60
Frame openings: 3
Packing space (mm): 120 x 60
Weight (kg): 4.1

Quote this article number

SFHM 2x4 ALU INCL TSL 15x6

Art. No. 5SFHM00011480

Aperture dimensions WxH (mm): 552(+5/-5) x 141(+5/-5)
External dimensions WxHxD (mm): 652 x 241 x 60
Frame openings: 4
Packing space (mm): 120 x 60
Weight (kg): 5.11

Quote this article number

SFHM 2x5 ALU INCL TSL 15x6

Art. No. 169536

Aperture dimensions WxH (mm): 683(+5/-5) x 141(+5/-5)
External dimensions WxHxD (mm): 782.5 x 241 x 60
Frame openings: 5
Packing space (mm): 120 x 60
Weight (kg): 6.1

Quote this article number

SFHM 2x6 ALU INCL TSL 15x6

Art. No. 169537

Aperture dimensions WxH (mm): 813(+5/-5) x 141(+5/-5)
External dimensions WxHxD (mm): 913 x 241 x 60
Frame openings: 6
Packing space (mm): 120 x 60
Weight (kg): 7.1

Quote this article number

SFHM 2+2x1 ALU INCL TSL 15x6

Art. No. 169542

Aperture dimensions WxH (mm): 161(+5/-5) x 252(+5/-5)
External dimensions WxHxD (mm): 260.5 x 352 x 60
Frame openings: 2
Packing space (mm): 120 x 60
Weight (kg): 3

Quote this article number

SFHM 2+2x2 ALU INCL TSL 15x6

Art. No. 169543

Aperture dimensions WxH (mm): 291(+5/-5) x 262(+5/-5)
External dimensions WxHxD (mm): 391 x 362 x 60
Frame openings: 4
Packing space (mm): 120 x 60
Weight (kg): 4.9

Quote this article number

SFHM 2+2x3 ALU INCL TSL 15x6

Art. No. 169544

Aperture dimensions WxH (mm): 422(+5/-5) x 262(+5/-5)
External dimensions WxHxD (mm): 521.5 x 362 x 60
Frame openings: 6
Packing space (mm): 120 x 60
Weight (kg): 6.5

Quote this article number

SFHM 2+2x4 ALU INCL TSL 15x6

Art. No. 169545

Aperture dimensions WxH (mm): 552(+5/-5) x 262(+5/-5)
External dimensions WxHxD (mm): 652 x 362 x 60
Frame openings: 8
Packing space (mm): 120 x 60
Weight (kg): 8.1

Quote this article number

SFHM 4x1 ALU INCL TSL 15x6

Art. No. 5SFF000007851

Aperture dimensions WxH (mm): 161(+5/-5) x 200(+5/-5)
External dimensions WxHxD (mm): 260.5 x 299.5 x 60
Frame openings: 1
Packing space (mm): 120 x 120
Weight (kg): 2.4

Quote this article number

SFHM 4x2 ALU INCL TSL 15x6

Art. No. 5SFHM00012123

Aperture dimensions WxH (mm): 291(+5/-5) x 200(+5/-5)
External dimensions WxHxD (mm): 391 x 299.5 x 60
Frame openings: 2
Packing space (mm): 120 x 120
Weight (kg): 3.66

Quote this article number

SFHM 4x3 ALU INCL TSL 15x6

Art. No. 5SFHM00012122

Aperture dimensions WxH (mm): 422(+5/-5) x 200(+5/-5)
External dimensions WxHxD (mm): 521.5 x 299.5 x 60
Frame openings: 3
Packing space (mm): 120 x 120
Weight (kg): 4.78

Quote this article number

SFHM 4x4 ALU INCL TSL 15x6

Art. No. 5SFHM00012121

Aperture dimensions WxH (mm): 552(+5/-5) x 200(+5/-5)
External dimensions WxHxD (mm): 652 x 299.5 x 60
Frame openings: 4
Packing space (mm): 120 x 120
Weight (kg): 5.77

Quote this article number

SFHM 4x5 ALU INCL TSL 15x6

Art. No. 169572

Aperture dimensions WxH (mm): 683(+5/-5) x 200(+5/-5)
External dimensions WxHxD (mm): 782.5 x 299.5 x 60
Frame openings: 5
Packing space (mm): 120 x 120
Weight (kg): 7.1

Quote this article number

SFHM 4x6 ALU INCL TSL 15x6

Art. No. 169573

Aperture dimensions WxH (mm): 813(+5/-5) x 200(+5/-5)
External dimensions WxHxD (mm): 913 x 299.5 x 60
Frame openings: 6
Packing space (mm): 120 x 120
Weight (kg): 8

Quote this article number

SFHM 4x7 ALU INCL TSL 15x6

Art. No. 169574

Aperture dimensions WxH (mm): 944(+5/-5) x 200(+5/-5)
External dimensions WxHxD (mm): 1043.5 x 299.5 x 60
Frame openings: 7
Packing space (mm): 120 x 120
Weight (kg): 9.1

Quote this article number

SFHM 4x8 ALU INCL TSL 15x6

Art. No. 169575

Aperture dimensions WxH (mm): 1074(+5/-5) x 200(+5/-5)
External dimensions WxHxD (mm): 1174 x 299.5 x 60
Frame openings: 8
Packing space (mm): 120 x 120
Weight (kg): 10.2

Quote this article number

SFHM 4x9 ALU INCL TSL 15x6

Art. No. 169576

Aperture dimensions WxH (mm): 1205(+5/-5) x 200(+5/-5)
External dimensions WxHxD (mm): 1304.5 x 299.5 x 60
Frame openings: 9
Packing space (mm): 120 x 120
Weight (kg): 11.3

Quote this article number

SFHM 4+4x1 ALU INCL TSL 15x6

Art. No. 110007

Aperture dimensions WxH (mm): 161(+5/-5) x 369(+5/-5)
External dimensions WxHxD (mm): 260.5 x 469 x 60
Frame openings: 2
Packing space (mm): 120 x 120
Weight (kg): 3.8

Quote this article number

SFHM 4+4x2 ALU INCL TSL 15x6

Art. No. 169578

Aperture dimensions WxH (mm): 291(+5/-5) x 379(+5/-5)
External dimensions WxHxD (mm): 391 x 479 x 60
Frame openings: 4
Packing space (mm): 120 x 120
Weight (kg): 5.8

Quote this article number

SFHM 4+4x3 ALU INCL TSL 15x6

Art. No. 152706

Aperture dimensions WxH (mm): 422(+5/-5) x 379(+5/-5)
External dimensions WxHxD (mm): 521.5 x 479 x 60
Frame openings: 6
Packing space (mm): 120 x 120
Weight (kg): 7.6

Quote this article number

SFHM 4+4x4 ALU INCL TSL 15x6

Art. No. 169579

Aperture dimensions WxH (mm): 552(+5/-5) x 379(+5/-5)
External dimensions WxHxD (mm): 652 x 479 x 60
Frame openings: 8
Packing space (mm): 120 x 120
Weight (kg): 9.4

Quote this article number

SFHM 4+4x5 ALU INCL TSL 15x6

Art. No. 169580

Aperture dimensions WxH (mm): 683(+5/-5) x 379(+5/-5)
External dimensions WxHxD (mm): 782.5 x 479 x 60
Frame openings: 10
Packing space (mm): 120 x 120
Weight (kg): 11.2

Quote this article number

SFHM 4+4x6 ALU INCL TSL 15x6

Art. No. 169581

Aperture dimensions WxH (mm): 813(+5/-5) x 379(+5/-5)
External dimensions WxHxD (mm): 913 x 479 x 60
Frame openings: 12
Packing space (mm): 120 x 120
Weight (kg): 4

Quote this article number

SFHM 6x4 ALU INCL TSL 15x6

Art. No. 169606

Aperture dimensions WxH (mm): 552(+5/-5) x 258(+5/-5)
External dimensions WxHxD (mm): 652 x 358 x 60
Frame openings: 4
Packing space (mm): 120 x 180
Weight (kg): 6.67

Quote this article number

SFHM 6x5 ALU INCL TSL 15x6

Art. No. 169607

Aperture dimensions WxH (mm): 683(+5/-5) x 258(+5/-5)
External dimensions WxHxD (mm): 782.5 x 358 x 60
Frame openings: 5
Packing space (mm): 120 x 180
Weight (kg): 8

Quote this article number

SFHM 6x6 ALU INCL TSL 15x6

Art. No. 106077

Aperture dimensions WxH (mm): 813(+5/-5) x 258(+5/-5)
External dimensions WxHxD (mm): 913 x 358 x 60
Frame openings: 6
Packing space (mm): 120 x 180
Weight (kg): 8.88

Quote this article number

SFHM 6x7 ALU INCL TSL 15x6

Art. No. 169608

Aperture dimensions WxH (mm): 944(+5/-5) x 258(+5/-5)
External dimensions WxHxD (mm): 1043.5 x 358 x 60
Frame openings: 7
Packing space (mm): 120 x 180
Weight (kg): 10.1

Quote this article number

SFHM 6x8 ALU INCL TSL 15x6

Art. No. 169609

Aperture dimensions WxH (mm): 1074(+5/-5) x 258(+5/-5)
External dimensions WxHxD (mm): 1174 x 358 x 60
Frame openings: 8
Packing space (mm): 120 x 180
Weight (kg): 11.3

Quote this article number

SFHM 6x9 ALU INCL TSL 15x6

Art. No. 169610

Aperture dimensions WxH (mm): 1205(+5/-5) x 258(+5/-5)
External dimensions WxHxD (mm): 1304.5 x 358 x 60
Frame openings: 9
Packing space (mm): 120 x 180
Weight (kg): 12.5

Quote this article number

SFHM 8x1 ALU INCL TSL 15x6

Art. No. 5SFHM00011569

Aperture dimensions WxH (mm): 161(+5/-5) x 318(+5/-5)
External dimensions WxHxD (mm): 260.5 x 418 x 60
Frame openings: 1
Packing space (mm): 120 x 240
Weight (kg): 3.26

Quote this article number

SFHM 8x2 ALU INCL TSL 15x6

Art. No. 167105

Aperture dimensions WxH (mm): 291(+5/-5) x 318(+5/-5)
External dimensions WxHxD (mm): 391 x 418 x 60
Frame openings: 2
Packing space (mm): 120 x 240
Weight (kg): 4.55

Quote this article number

SFHM 8x3 ALU INCL TSL 15x6

Art. No. 111736

Aperture dimensions WxH (mm): 422(+5/-5) x 318(+5/-5)
External dimensions WxHxD (mm): 521.5 x 418 x 60
Frame openings: 3
Packing space (mm): 120 x 240
Weight (kg): 5.89

Quote this article number

SFHM 8x4 ALU INCL TSL 15x6

Art. No. 167106

Aperture dimensions WxH (mm): 552(+5/-5) x 318(+5/-5)
External dimensions WxHxD (mm): 652 x 418 x 60
Frame openings: 4
Packing space (mm): 120 x 240
Weight (kg): 7.16

Quote this article number

SFHM 8x5 ALU INCL TSL 15x6

Art. No. 167107

Aperture dimensions WxH (mm): 683(+5/-5) x 318(+5/-5)
External dimensions WxHxD (mm): 782.5 x 418 x 60
Frame openings: 5
Packing space (mm): 120 x 240
Weight (kg): 8.53

Quote this article number

SFHM 8x6 ALU INCL TSL 15x6

Art. No. 167113

Aperture dimensions WxH (mm): 813(+5/-5) x 318(+5/-5)
External dimensions WxHxD (mm): 913 x 418 x 60
Frame openings: 6
Packing space (mm): 120 x 240
Weight (kg): 9.8

Quote this article number

SFHM 8+8x1 ALU INCL TSL 15x6

Art. No. 169644

Aperture dimensions WxH (mm): 161(+5/-5) x 606(+5/-5)
External dimensions WxHxD (mm): 260.5 x 706 x 60
Frame openings: 2
Packing space (mm): 120 x 240
Weight (kg): 5.4

Quote this article number

SFHM 8+8x2 ALU INCL TSL 15x6

Art. No. 169645

Aperture dimensions WxH (mm): 291(+5/-5) x 616(+5/-5)
External dimensions WxHxD (mm): 391 x 716 x 60
Frame openings: 4
Packing space (mm): 120 x 240
Weight (kg): 7.75

Quote this article number

SFHM 8+8x3 ALU INCL TSL 15x6

Art. No. 169646

Aperture dimensions WxH (mm): 422(+5/-5) x 616(+5/-5)
External dimensions WxHxD (mm): 521.5 x 716 x 60
Frame openings: 6
Packing space (mm): 120 x 240
Weight (kg): 10

Quote this article number

SFHM 8+8x4 ALU INCL TSL 15x6

Art. No. 169647

Aperture dimensions WxH (mm): 552(+5/-5) x 616(+5/-5)
External dimensions WxHxD (mm): 652 x 716 x 60
Frame openings: 8
Packing space (mm): 120 x 240
Weight (kg): 12.2

Quote this article number

Reference documents

These links open current files hosted by Roxtec. Check the source document revision before use.

MOUNTING OF BOLTED FRAMES AND SLEEVES (en) pdf (manufacturer document)
APERTURE DIMENSIONS S SERIES (en) pdf (manufacturer document)
RECTANGULAR RM SYSTEMS (en) pdf (manufacturer document)
S1037367 SFHM FRAME KIT SINGLE, +SINGLE, COMB. AND +COMB. FRAME PDF (manufacturer document)

Source-listed certificates

Certificate rows reproduce factual source fields. They do not confirm applicability to a specific assembly. Open the source record and ask AMFSS to check the application.

Authority	Rating	Division / structure	Cable	Pipe	Type approval	Status
CSA	IP tightness UL/NEMA tightness	—	Other	Copper Steel	1333944	No renewal status stated
Underwriters Laboratories Inc.	IP tightness UL/NEMA tightness	—	—	—	E496911	No renewal status stated
CCS	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Aluminium Steel	Marine	—	GB23PTB00036_01	No renewal status stated
CCS	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Aluminium Steel	—	Bundle Copper Copper-Nickel Steel	GB23PTB00036_02	No renewal status stated
Underwriters Laboratories Inc.	UL/NEMA tightness	—	—	—	NITW2.E209828	No renewal status stated
Underwriters Laboratories Inc.	UL/NEMA tightness	—	—	—	NITW8.E209828	No renewal status stated

Source checked 2026-08-08: official Roxtec product page.

About Roxtec rectangular frames

Roxtec rectangular frames form the frame portion of modular cable and pipe transit systems. Frame type and components must be matched to the opening and application.

Typical applications:

Walls and floors
Bulkheads and decks
Cabinets and enclosures

Not sure this is the right product? Compare the Roxtec rectangular frames family or describe your application.
