Roxtec S frame

Roxtec rectangular frames · Roxtec

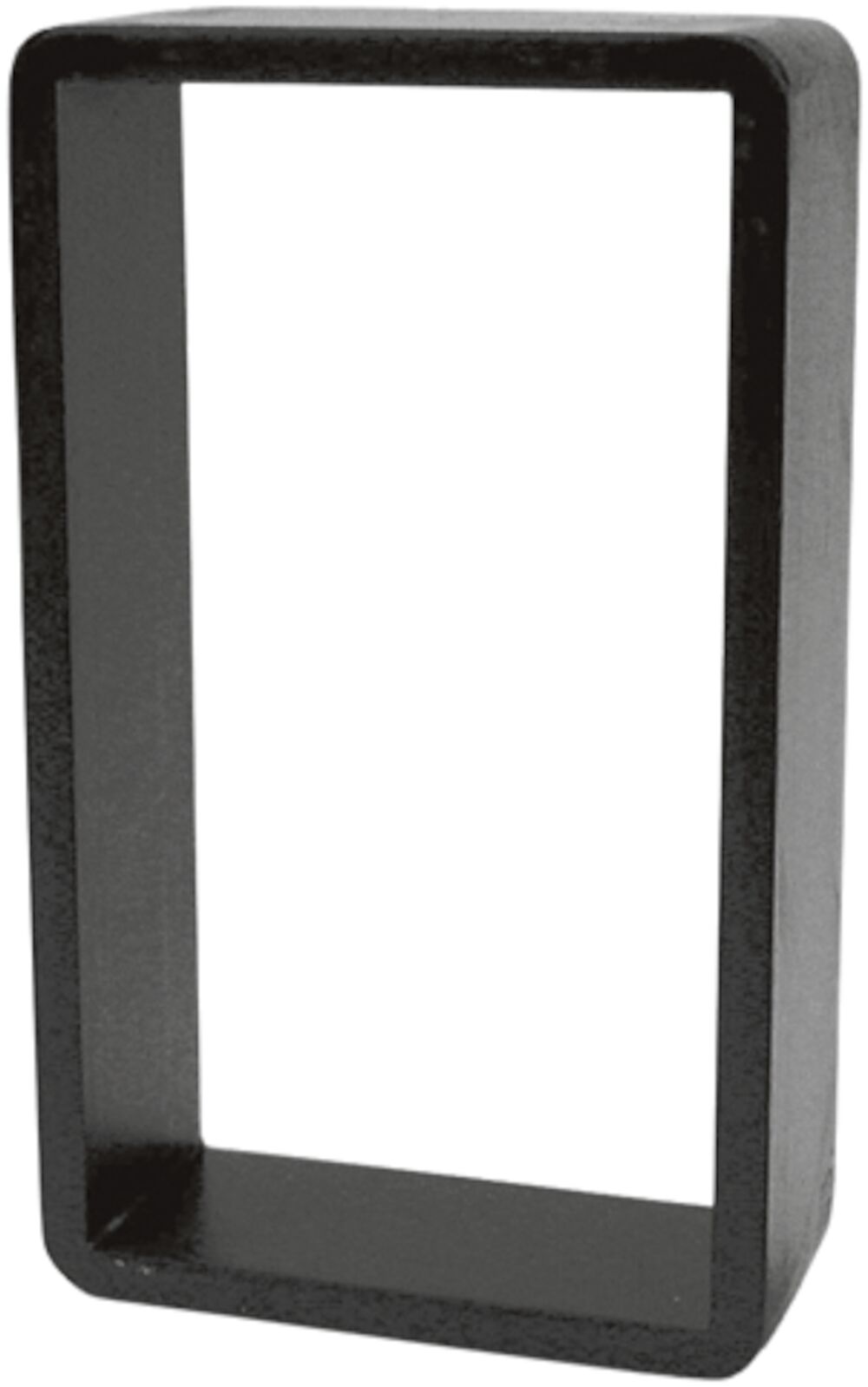

The Roxtec S frame is a metal frame for welding into precise apertures. It is available in different materials and with a single opening, or in combinations with several openings in width and/or height.

To be used with corresponding Roxtec components to form a complete sealing solution
Attachment by welding
SE PPS accessory available for plastic pipe seals

Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.

Article numbers and specifications

Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.

S 6x1 PRIMED

Art. No. S006000000112

Aperture dimensions WxH (mm): 143(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 140.5 x 238 x 60
Frame openings: 1
Packing space (mm): 120 x 180
Weight (kg): 3.3

Quote this article number

S 6x2 PRIMED

Art. No. S006000000212

Aperture dimensions WxH (mm): 273(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 271 x 238 x 60
Frame openings: 2
Packing space (mm): 120 x 180
Weight (kg): 5.5

Quote this article number

S 6x3 PRIMED

Art. No. S006000000312

Aperture dimensions WxH (mm): 404(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 401.5 x 238 x 60
Frame openings: 3
Packing space (mm): 120 x 180
Weight (kg): 7.7

Quote this article number

S 6x1 AISI316

Art. No. S006000000121

Aperture dimensions WxH (mm): 143(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 140.5 x 238 x 60
Frame openings: 1
Packing space (mm): 120 x 180
Weight (kg): 3.3

Quote this article number

S 6x2 AISI316

Art. No. S006000000221

Aperture dimensions WxH (mm): 273(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 271 x 238 x 60
Frame openings: 2
Packing space (mm): 120 x 180
Weight (kg): 5.5

Quote this article number

S 6x3 AISI316

Art. No. S006000000321

Aperture dimensions WxH (mm): 404(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 401.5 x 238 x 60
Frame openings: 3
Packing space (mm): 120 x 180
Weight (kg): 7.7

Quote this article number

S 6x1 ALU

Art. No. S006000000131

Aperture dimensions WxH (mm): 143(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 140.5 x 238 x 60
Frame openings: 1
Packing space (mm): 120 x 180
Weight (kg): 1.15

Quote this article number

S 6x2 ALU

Art. No. S006000000231

Aperture dimensions WxH (mm): 273(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 271 x 238 x 60
Frame openings: 2
Packing space (mm): 120 x 180
Weight (kg): 1.9

Quote this article number

S 6x3 ALU

Art. No. S006000000331

Aperture dimensions WxH (mm): 404(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 401.5 x 238 x 60
Frame openings: 3
Packing space (mm): 120 x 180
Weight (kg): 2.6

Quote this article number

S 2x1 PRIMED

Art. No. S002000000112

Aperture dimensions WxH (mm): 143(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 140.5 x 121 x 60
Frame openings: 1
Packing space (mm): 120 x 60
Weight (kg): 2.2

Quote this article number

S 2x2 PRIMED

Art. No. S002000000212

Aperture dimensions WxH (mm): 273(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 271 x 121 x 60
Frame openings: 2
Packing space (mm): 120 x 60
Weight (kg): 3.9

Quote this article number

S 2x3 PRIMED

Art. No. S002000000312

Aperture dimensions WxH (mm): 404(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 401.5 x 121 x 60
Frame openings: 3
Packing space (mm): 120 x 60
Weight (kg): 5.5

Quote this article number

S 2x4 PRIMED

Art. No. S002000000412

Aperture dimensions WxH (mm): 534(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 532 x 121 x 60
Frame openings: 4
Packing space (mm): 120 x 60
Weight (kg): 7.03

Quote this article number

S 2x5 PRIMED

Art. No. S002000000512

Aperture dimensions WxH (mm): 665(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 662.5 x 121 x 60
Frame openings: 5
Packing space (mm): 120 x 60
Weight (kg): 8.7

Quote this article number

S 2x6 PRIMED

Art. No. S002000000612

Aperture dimensions WxH (mm): 795(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 793 x 121 x 60
Frame openings: 6
Packing space (mm): 120 x 60
Weight (kg): 10.3

Quote this article number

S 2+2x1 PRIMED

Art. No. 5S00000000625

Aperture dimensions WxH (mm): 143(+1/-1) x 234(+1/-1)
External dimensions WxHxD (mm): 140.5 x 232 x 60
Frame openings: 2
Packing space (mm): 120 x 60
Weight (kg): 3.6

Quote this article number

S 2+2x2 PRIMED

Art. No. 110303

Aperture dimensions WxH (mm): 273(+1/-1) x 244(+1/-1)
External dimensions WxHxD (mm): 271 x 242 x 60
Frame openings: 4
Packing space (mm): 120 x 60
Weight (kg): 7.52

Quote this article number

S 2+2x3 PRIMED

Art. No. 5S00000002485

Aperture dimensions WxH (mm): 404(+1/-1) x 244(+1/-1)
External dimensions WxHxD (mm): 401.5 x 242 x 60
Frame openings: 6
Packing space (mm): 120 x 60
Weight (kg): 10.79

Quote this article number

S 2+2x4 PRIMED

Art. No. 5S00000002486

Aperture dimensions WxH (mm): 534(+1/-1) x 244(+1/-1)
External dimensions WxHxD (mm): 532 x 242 x 60
Frame openings: 8
Packing space (mm): 120 x 60
Weight (kg): 21.1

Quote this article number

S 2+2x5 PRIMED

Art. No. 113393

Aperture dimensions WxH (mm): 665(+1/-1) x 244(+1/-1)
External dimensions WxHxD (mm): 662.5 x 242 x 60
Frame openings: 10
Packing space (mm): 120 x 60
Weight (kg): 18

Quote this article number

S 2+2x6 PRIMED

Art. No. 113394

Aperture dimensions WxH (mm): 795(+1/-1) x 244(+1/-1)
External dimensions WxHxD (mm): 793 x 242 x 60
Frame openings: 12
Packing space (mm): 120 x 60
Weight (kg): 21.6

Quote this article number

S80 4x1 PRIMED

Art. No. 219704

Aperture dimensions WxH (mm): 103(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 100.5 x 179.5 x 60
Frame openings: 1
Packing space (mm): 80 x 120
Weight (kg): 2.4

Quote this article number

S 4x1 PRIMED

Art. No. S004000000112

Aperture dimensions WxH (mm): 143(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 140.5 x 179.5 x 60
Frame openings: 1
Packing space (mm): 120 x 120
Weight (kg): 2.8

Quote this article number

S80 4x2 PRIMED

Art. No. 221240

Aperture dimensions WxH (mm): 193(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 191 x 179.5 x 60
Frame openings: 2
Packing space (mm): 80 x 120
Weight (kg): 4

Quote this article number

S 4x2 PRIMED

Art. No. S004000000212

Aperture dimensions WxH (mm): 273(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 271 x 179.5 x 60
Frame openings: 2
Packing space (mm): 120 x 120
Weight (kg): 4.7

Quote this article number

S 4x3 PRIMED

Art. No. S004000000312

Aperture dimensions WxH (mm): 404(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 401.5 x 179.5 x 60
Frame openings: 3
Packing space (mm): 120 x 120
Weight (kg): 6.6

Quote this article number

S 4x4 PRIMED

Art. No. S004000000412

Aperture dimensions WxH (mm): 534(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 532 x 179.5 x 60
Frame openings: 4
Packing space (mm): 120 x 120
Weight (kg): 8.5

Quote this article number

S 4x5 PRIMED

Art. No. S004000000512

Aperture dimensions WxH (mm): 665(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 662.5 x 179.5 x 60
Frame openings: 5
Packing space (mm): 120 x 120
Weight (kg): 10.3

Quote this article number

S 4x6 PRIMED

Art. No. S004000000612

Aperture dimensions WxH (mm): 795(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 793 x 179.5 x 60
Frame openings: 6
Packing space (mm): 120 x 120
Weight (kg): 12.2

Quote this article number

S 4+4x1 PRIMED

Art. No. S004400000112

Aperture dimensions WxH (mm): 143(+1/-1) x 351(+1/-1)
External dimensions WxHxD (mm): 140.5 x 349 x 60
Frame openings: 2
Packing space (mm): 120 x 120
Weight (kg): 4.7

Quote this article number

S 4+4x2 PRIMED

Art. No. S004400000212

Aperture dimensions WxH (mm): 273(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 271 x 359 x 60
Frame openings: 4
Packing space (mm): 120 x 120
Weight (kg): 9.5

Quote this article number

S 4+4x3 PRIMED

Art. No. S004400000312

Aperture dimensions WxH (mm): 404(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 401.5 x 359 x 60
Frame openings: 6
Packing space (mm): 120 x 120
Weight (kg): 13.5

Quote this article number

S 4+4x4 PRIMED

Art. No. S004400000412

Aperture dimensions WxH (mm): 534(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 532 x 359 x 60
Frame openings: 8
Packing space (mm): 120 x 120
Weight (kg): 17.1

Quote this article number

S 4+4x5 PRIMED

Art. No. S004400000512

Aperture dimensions WxH (mm): 665(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 662.5 x 359 x 60
Frame openings: 10
Packing space (mm): 120 x 120
Weight (kg): 21

Quote this article number

S 4+4x6 PRIMED

Art. No. S004400000612

Aperture dimensions WxH (mm): 795(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 793 x 359 x 60
Frame openings: 12
Packing space (mm): 120 x 120
Weight (kg): 24.8

Quote this article number

S80 6x1 PRIMED

Art. No. 217834

Aperture dimensions WxH (mm): 103(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 100.5 x 238 x 60
Frame openings: 1
Packing space (mm): 80 x 180
Weight (kg): 2.83

Quote this article number

S80 6x2 PRIMED

Art. No. 221249

Aperture dimensions WxH (mm): 193(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 191 x 238 x 60
Frame openings: 2
Packing space (mm): 80 x 180
Weight (kg): 4.8

Quote this article number

S 6x4 PRIMED

Art. No. S006000000412

Aperture dimensions WxH (mm): 534(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 532 x 238 x 60
Frame openings: 4
Packing space (mm): 120 x 180
Weight (kg): 9.8

Quote this article number

S 6x5 PRIMED

Art. No. S006000000512

Aperture dimensions WxH (mm): 665(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 662.5 x 238 x 60
Frame openings: 5
Packing space (mm): 120 x 180
Weight (kg): 12

Quote this article number

S 6x6 PRIMED

Art. No. S006000000612

Aperture dimensions WxH (mm): 795(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 793 x 238 x 60
Frame openings: 6
Packing space (mm): 120 x 180
Weight (kg): 14.2

Quote this article number

S 6+6x1 PRIMED

Art. No. S006600000112

Aperture dimensions WxH (mm): 143(+1/-1) x 468(+1/-1)
External dimensions WxHxD (mm): 140.5 x 466 x 60
Frame openings: 2
Packing space (mm): 120 x 180
Weight (kg): 6

Quote this article number

S 6+6x2 PRIMED

Art. No. S006600000212

Aperture dimensions WxH (mm): 273(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 271 x 476 x 60
Frame openings: 4
Packing space (mm): 120 x 180
Weight (kg): 11.1

Quote this article number

S 6+6x3 PRIMED

Art. No. S006600000312

Aperture dimensions WxH (mm): 404(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 401.5 x 476 x 60
Frame openings: 6
Packing space (mm): 120 x 180
Weight (kg): 15.5

Quote this article number

S 6+6x4 PRIMED

Art. No. S006600000412

Aperture dimensions WxH (mm): 534(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 532 x 476 x 60
Frame openings: 8
Packing space (mm): 120 x 180
Weight (kg): 19.9

Quote this article number

S 6+6x5 PRIMED

Art. No. S006600000512

Aperture dimensions WxH (mm): 665(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 662.5 x 476 x 60
Frame openings: 10
Packing space (mm): 120 x 180
Weight (kg): 24.3

Quote this article number

S 6+6x6 PRIMED

Art. No. S006600000612

Aperture dimensions WxH (mm): 795(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 793 x 476 x 60
Frame openings: 12
Packing space (mm): 120 x 180
Weight (kg): 28.6

Quote this article number

S80 8x1 PRIMED

Art. No. 219702

Aperture dimensions WxH (mm): 103(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 100.5 x 298 x 60
Frame openings: 1
Packing space (mm): 80 x 240
Weight (kg): 3.4

Quote this article number

S 8x1 PRIMED

Art. No. S008000000112

Aperture dimensions WxH (mm): 143(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 140.5 x 298 x 60
Frame openings: 1
Packing space (mm): 120 x 240
Weight (kg): 3.9

Quote this article number

S80 8x2 PRIMED

Art. No. 221258

Aperture dimensions WxH (mm): 193(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 191 x 298 x 60
Frame openings: 2
Packing space (mm): 80 x 240
Weight (kg): 5.6

Quote this article number

S 8x2 PRIMED

Art. No. S008000000212

Aperture dimensions WxH (mm): 273(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 271 x 298 x 60
Frame openings: 2
Packing space (mm): 120 x 240
Weight (kg): 6.4

Quote this article number

S 8x3 PRIMED

Art. No. S008000000312

Aperture dimensions WxH (mm): 404(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 401.5 x 298 x 60
Frame openings: 3
Packing space (mm): 120 x 240
Weight (kg): 8.2

Quote this article number

S 8x4 PRIMED

Art. No. S008000000412

Aperture dimensions WxH (mm): 534(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 532 x 298 x 60
Frame openings: 4
Packing space (mm): 120 x 240
Weight (kg): 10.4

Quote this article number

S 8x5 PRIMED

Art. No. S008000000512

Aperture dimensions WxH (mm): 665(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 662.5 x 298 x 60
Frame openings: 5
Packing space (mm): 120 x 240
Weight (kg): 12.6

Quote this article number

S 8x6 PRIMED

Art. No. S008000000612

Aperture dimensions WxH (mm): 795(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 793 x 298 x 60
Frame openings: 6
Packing space (mm): 120 x 240
Weight (kg): 14.7

Quote this article number

S80 8+8x1 PRIMED

Art. No. 221276

Aperture dimensions WxH (mm): 103(+1/-1) x 588(+1/-1)
External dimensions WxHxD (mm): 100.5 x 586 x 60
Frame openings: 2
Packing space (mm): 80 x 240
Weight (kg): 6.6

Quote this article number

S 8+8x1 PRIMED

Art. No. S008800000112

Aperture dimensions WxH (mm): 143(+1/-1) x 588(+1/-1)
External dimensions WxHxD (mm): 140.5 x 586 x 60
Frame openings: 2
Packing space (mm): 120 x 240
Weight (kg): 7

Quote this article number

S 8+8x2 PRIMED

Art. No. S008800000212

Aperture dimensions WxH (mm): 273(+1/-1) x 598(+1/-1)
External dimensions WxHxD (mm): 271 x 596 x 60
Frame openings: 4
Packing space (mm): 120 x 240
Weight (kg): 12.3

Quote this article number

S 8+8x3 PRIMED

Art. No. S008800000312

Aperture dimensions WxH (mm): 404(+1/-1) x 598(+1/-1)
External dimensions WxHxD (mm): 401.5 x 596 x 60
Frame openings: 6
Packing space (mm): 120 x 240
Weight (kg): 17.5

Quote this article number

S 8+8x4 PRIMED

Art. No. S008800000412

Aperture dimensions WxH (mm): 534(+1/-1) x 598(+1/-1)
External dimensions WxHxD (mm): 532 x 596 x 60
Frame openings: 8
Packing space (mm): 120 x 240
Weight (kg): 21

Quote this article number

S 2x1 AISI316

Art. No. S002000000121

Aperture dimensions WxH (mm): 143(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 140.5 x 121 x 60
Frame openings: 1
Packing space (mm): 120 x 60
Weight (kg): 2.2

Quote this article number

S 2x2 AISI316

Art. No. S002000000221

Aperture dimensions WxH (mm): 273(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 271 x 121 x 60
Frame openings: 2
Packing space (mm): 120 x 60
Weight (kg): 3.9

Quote this article number

S 2x3 AISI316

Art. No. S002000000321

Aperture dimensions WxH (mm): 404(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 401.5 x 121 x 60
Frame openings: 3
Packing space (mm): 120 x 60
Weight (kg): 5.46

Quote this article number

S 2x4 AISI316

Art. No. S002000000421

Aperture dimensions WxH (mm): 534(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 532 x 121 x 60
Frame openings: 4
Packing space (mm): 120 x 60
Weight (kg): 7.1

Quote this article number

S 2x5 AISI316

Art. No. S002000000521

Aperture dimensions WxH (mm): 665(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 662.5 x 121 x 60
Frame openings: 5
Packing space (mm): 120 x 60
Weight (kg): 8.68

Quote this article number

S 2x6 AISI316

Art. No. S002000000621

Aperture dimensions WxH (mm): 795(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 793 x 121 x 60
Frame openings: 6
Packing space (mm): 120 x 60
Weight (kg): 10.3

Quote this article number

S 2+2x1 AISI316

Art. No. 5S00000013039

Aperture dimensions WxH (mm): 143(+1/-1) x 234(+1/-1)
External dimensions WxHxD (mm): 140.5 x 232 x 60
Frame openings: 2
Packing space (mm): 120 x 60
Weight (kg): 4

Quote this article number

S 2+2x2 AISI316

Art. No. 108153

Aperture dimensions WxH (mm): 273(+1/-1) x 244(+1/-1)
External dimensions WxHxD (mm): 271 x 242 x 60
Frame openings: 4
Packing space (mm): 120 x 60
Weight (kg): 8

Quote this article number

S 2+2x3 AISI316

Art. No. 113285

Aperture dimensions WxH (mm): 404(+1/-1) x 244(+1/-1)
External dimensions WxHxD (mm): 401.5 x 242 x 60
Frame openings: 6
Packing space (mm): 120 x 60
Weight (kg): 11.2

Quote this article number

S 2+2x4 AISI316

Art. No. 113286

Aperture dimensions WxH (mm): 534(+1/-1) x 244(+1/-1)
External dimensions WxHxD (mm): 532 x 242 x 60
Frame openings: 8
Packing space (mm): 120 x 60
Weight (kg): 15

Quote this article number

S 4x1 AISI316

Art. No. S004000000121

Aperture dimensions WxH (mm): 143(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 140.5 x 179.5 x 60
Frame openings: 1
Packing space (mm): 120 x 120
Weight (kg): 2.8

Quote this article number

S 4x2 AISI316

Art. No. S004000000221

Aperture dimensions WxH (mm): 273(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 271 x 179.5 x 60
Frame openings: 2
Packing space (mm): 120 x 120
Weight (kg): 4.7

Quote this article number

S 4x3 AISI316

Art. No. S004000000321

Aperture dimensions WxH (mm): 404(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 401.5 x 179.5 x 60
Frame openings: 3
Packing space (mm): 120 x 120
Weight (kg): 6.6

Quote this article number

S 4x4 AISI316

Art. No. S004000000421

Aperture dimensions WxH (mm): 534(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 532 x 179.5 x 60
Frame openings: 4
Packing space (mm): 120 x 120
Weight (kg): 8.65

Quote this article number

S 4x5 AISI316

Art. No. S004000000521

Aperture dimensions WxH (mm): 665(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 662.5 x 179.5 x 60
Frame openings: 5
Packing space (mm): 120 x 120
Weight (kg): 10.3

Quote this article number

S 4x6 AISI316

Art. No. S004000000621

Aperture dimensions WxH (mm): 795(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 793 x 179.5 x 60
Frame openings: 6
Packing space (mm): 120 x 120
Weight (kg): 12.2

Quote this article number

S 4+4x1 AISI316

Art. No. S004400000121

Aperture dimensions WxH (mm): 143(+1/-1) x 351(+1/-1)
External dimensions WxHxD (mm): 140.5 x 349 x 60
Frame openings: 2
Packing space (mm): 120 x 120
Weight (kg): 4.84

Quote this article number

S 4+4x2 AISI316

Art. No. 5S00000002480

Aperture dimensions WxH (mm): 273(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 271 x 359 x 60
Frame openings: 4
Packing space (mm): 120 x 120
Weight (kg): 9.5

Quote this article number

S 4+4x3 AISI316

Art. No. 5S00000000718

Aperture dimensions WxH (mm): 404(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 401.5 x 359 x 60
Frame openings: 6
Packing space (mm): 120 x 120
Weight (kg): 13.12

Quote this article number

S 4+4x4 AISI316

Art. No. 5S00000001051

Aperture dimensions WxH (mm): 534(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 532 x 359 x 60
Frame openings: 8
Packing space (mm): 120 x 120
Weight (kg): 16.9

Quote this article number

S 4+4x5 AISI316

Art. No. 5S00000000717

Aperture dimensions WxH (mm): 665(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 662.5 x 359 x 60
Frame openings: 10
Packing space (mm): 120 x 120
Weight (kg): 21.5

Quote this article number

S 4+4x6 AISI316

Art. No. 5S00000004159

Aperture dimensions WxH (mm): 795(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 793 x 359 x 60
Frame openings: 12
Packing space (mm): 120 x 120
Weight (kg): 24.4

Quote this article number

S 6x4 AISI316

Art. No. S006000000421

Aperture dimensions WxH (mm): 534(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 532 x 238 x 60
Frame openings: 4
Packing space (mm): 120 x 180
Weight (kg): 9.8

Quote this article number

S 6x5 AISI316

Art. No. S006000000521

Aperture dimensions WxH (mm): 665(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 662.5 x 238 x 60
Frame openings: 5
Packing space (mm): 120 x 180
Weight (kg): 12

Quote this article number

S 6x6 AISI316

Art. No. S006000000621

Aperture dimensions WxH (mm): 795(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 793 x 238 x 60
Frame openings: 6
Packing space (mm): 120 x 180
Weight (kg): 14.2

Quote this article number

S 6+6x1 AISI316

Art. No. S006600000121

Aperture dimensions WxH (mm): 143(+1/-1) x 468(+1/-1)
External dimensions WxHxD (mm): 140.5 x 466 x 60
Frame openings: 2
Packing space (mm): 120 x 180
Weight (kg): 5.8

Quote this article number

S 6+6x2 AISI316

Art. No. S006600000221

Aperture dimensions WxH (mm): 273(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 271 x 476 x 60
Frame openings: 4
Packing space (mm): 120 x 180
Weight (kg): 11.1

Quote this article number

S 6+6x3 AISI316

Art. No. S006600000321

Aperture dimensions WxH (mm): 404(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 401.5 x 476 x 60
Frame openings: 6
Packing space (mm): 120 x 180
Weight (kg): 15.5

Quote this article number

S 6+6x4 AISI316

Art. No. S006600000421

Aperture dimensions WxH (mm): 534(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 532 x 476 x 60
Frame openings: 8
Packing space (mm): 120 x 180
Weight (kg): 19.9

Quote this article number

S 6+6x5 AISI316

Art. No. S006600000521

Aperture dimensions WxH (mm): 665(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 662.5 x 476 x 60
Frame openings: 10
Packing space (mm): 120 x 180
Weight (kg): 24.3

Quote this article number

S 6+6x6 AISI316

Art. No. S006600000621

Aperture dimensions WxH (mm): 795(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 793 x 476 x 60
Frame openings: 12
Packing space (mm): 120 x 180
Weight (kg): 28.6

Quote this article number

S 8x1 AISI316

Art. No. S008000000121

Aperture dimensions WxH (mm): 143(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 140.5 x 298 x 60
Frame openings: 1
Packing space (mm): 120 x 240
Weight (kg): 3.9

Quote this article number

S 8x2 AISI316

Art. No. S008000000221

Aperture dimensions WxH (mm): 273(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 271 x 298 x 60
Frame openings: 2
Packing space (mm): 120 x 240
Weight (kg): 6.4

Quote this article number

S 8x3 AISI316

Art. No. S008000000321

Aperture dimensions WxH (mm): 404(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 401.5 x 298 x 60
Frame openings: 3
Packing space (mm): 120 x 240
Weight (kg): 8.2

Quote this article number

S 8x4 AISI316

Art. No. S008000000421

Aperture dimensions WxH (mm): 534(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 532 x 298 x 60
Frame openings: 4
Packing space (mm): 120 x 240
Weight (kg): 10.4

Quote this article number

S 8x5 AISI316

Art. No. S008000000521

Aperture dimensions WxH (mm): 665(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 662.5 x 298 x 60
Frame openings: 5
Packing space (mm): 120 x 240
Weight (kg): 14.2

Quote this article number

S 8x6 AISI316

Art. No. S008000000621

Aperture dimensions WxH (mm): 795(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 793 x 298 x 60
Frame openings: 6
Packing space (mm): 120 x 240
Weight (kg): 16.35

Quote this article number

S 8+8x1 AISI316

Art. No. S008800000121

Aperture dimensions WxH (mm): 143(+1/-1) x 588(+1/-1)
External dimensions WxHxD (mm): 140.5 x 586 x 60
Frame openings: 2
Packing space (mm): 120 x 240
Weight (kg): 7

Quote this article number

S 8+8x2 AISI316

Art. No. 5S00000005952

Aperture dimensions WxH (mm): 273(+1/-1) x 598(+1/-1)
External dimensions WxHxD (mm): 271 x 596 x 60
Frame openings: 4
Packing space (mm): 120 x 240
Weight (kg): 12.86

Quote this article number

S 8+8x3 AISI316

Art. No. 5S00000010033

Aperture dimensions WxH (mm): 404(+1/-1) x 598(+1/-1)
External dimensions WxHxD (mm): 401.5 x 596 x 60
Frame openings: 6
Packing space (mm): 120 x 240
Weight (kg): 17.8

Quote this article number

S 8+8x4 AISI316

Art. No. 5S00000003992

Aperture dimensions WxH (mm): 534(+1/-1) x 598(+1/-1)
External dimensions WxHxD (mm): 532 x 596 x 60
Frame openings: 8
Packing space (mm): 120 x 240
Weight (kg): 22.55

Quote this article number

S 2x1 ALU

Art. No. S002000000131

Aperture dimensions WxH (mm): 143(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 140.5 x 121 x 60
Frame openings: 1
Packing space (mm): 120 x 60
Weight (kg): 0.8

Quote this article number

S 2x2 ALU

Art. No. S002000000231

Aperture dimensions WxH (mm): 273(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 271 x 121 x 60
Frame openings: 2
Packing space (mm): 120 x 60
Weight (kg): 1.3

Quote this article number

S 2x3 ALU

Art. No. S002000000331

Aperture dimensions WxH (mm): 404(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 401.5 x 121 x 60
Frame openings: 3
Packing space (mm): 120 x 60
Weight (kg): 1.9

Quote this article number

S 2x4 ALU

Art. No. S002000000431

Aperture dimensions WxH (mm): 534(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 532 x 121 x 60
Frame openings: 4
Packing space (mm): 120 x 60
Weight (kg): 2.4

Quote this article number

S 2x5 ALU

Art. No. S002000000531

Aperture dimensions WxH (mm): 665(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 662.5 x 121 x 60
Frame openings: 5
Packing space (mm): 120 x 60
Weight (kg): 3

Quote this article number

S 2x6 ALU

Art. No. S002000000631

Aperture dimensions WxH (mm): 795(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 793 x 121 x 60
Frame openings: 6
Packing space (mm): 120 x 60
Weight (kg): 3.5

Quote this article number

S 2+2x1 ALU

Art. No. S002200000131

Aperture dimensions WxH (mm): 143(+1/-1) x 234(+1/-1)
External dimensions WxHxD (mm): 140.5 x 232 x 60
Frame openings: 2
Packing space (mm): 120 x 60
Weight (kg): 1.3

Quote this article number

S 2+2x2 ALU

Art. No. 113491

Aperture dimensions WxH (mm): 273(+1/-1) x 244(+1/-1)
External dimensions WxHxD (mm): 271 x 242 x 60
Frame openings: 4
Packing space (mm): 120 x 60
Weight (kg): 2.8

Quote this article number

S 2+2x3 ALU

Art. No. 113492

Aperture dimensions WxH (mm): 404(+1/-1) x 244(+1/-1)
External dimensions WxHxD (mm): 401.5 x 242 x 60
Frame openings: 6
Packing space (mm): 120 x 60
Weight (kg): 4

Quote this article number

S 2+2x4 ALU

Art. No. 113493

Aperture dimensions WxH (mm): 534(+1/-1) x 244(+1/-1)
External dimensions WxHxD (mm): 532 x 242 x 60
Frame openings: 8
Packing space (mm): 120 x 60
Weight (kg): 5.1

Quote this article number

S 4x1 ALU

Art. No. S004000000131

Aperture dimensions WxH (mm): 143(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 140.5 x 179.5 x 60
Frame openings: 1
Packing space (mm): 120 x 120
Weight (kg): 0.96

Quote this article number

S 4x2 ALU

Art. No. S004000000231

Aperture dimensions WxH (mm): 273(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 271 x 179.5 x 60
Frame openings: 2
Packing space (mm): 120 x 120
Weight (kg): 1.6

Quote this article number

S 4x3 ALU

Art. No. S004000000331

Aperture dimensions WxH (mm): 404(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 401.5 x 179.5 x 60
Frame openings: 3
Packing space (mm): 120 x 120
Weight (kg): 2.3

Quote this article number

S 4x4 ALU

Art. No. S004000000431

Aperture dimensions WxH (mm): 534(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 532 x 179.5 x 60
Frame openings: 4
Packing space (mm): 120 x 120
Weight (kg): 2.9

Quote this article number

S 4x5 ALU

Art. No. S004000000531

Aperture dimensions WxH (mm): 665(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 662.5 x 179.5 x 60
Frame openings: 5
Packing space (mm): 120 x 120
Weight (kg): 3.6

Quote this article number

S 4x6 ALU

Art. No. S004000000631

Aperture dimensions WxH (mm): 795(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 793 x 179.5 x 60
Frame openings: 6
Packing space (mm): 120 x 120
Weight (kg): 4.2

Quote this article number

S 4+4x1 ALU

Art. No. S004400000131

Aperture dimensions WxH (mm): 143(+1/-1) x 351(+1/-1)
External dimensions WxHxD (mm): 140.5 x 349 x 60
Frame openings: 2
Packing space (mm): 120 x 120
Weight (kg): 1.7

Quote this article number

S 4+4x2 ALU

Art. No. S004400000231

Aperture dimensions WxH (mm): 273(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 271 x 359 x 60
Frame openings: 4
Packing space (mm): 120 x 120
Weight (kg): 3.2

Quote this article number

S 4+4x3 ALU

Art. No. S004400000331

Aperture dimensions WxH (mm): 404(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 401.5 x 359 x 60
Frame openings: 6
Packing space (mm): 120 x 120
Weight (kg): 4.5

Quote this article number

S 4+4x4 ALU

Art. No. S004400000431

Aperture dimensions WxH (mm): 534(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 532 x 359 x 60
Frame openings: 8
Packing space (mm): 120 x 120
Weight (kg): 5.8

Quote this article number

S 4+4x5 ALU

Art. No. 113528

Aperture dimensions WxH (mm): 665(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 662.5 x 359 x 60
Frame openings: 10
Packing space (mm): 120 x 120
Weight (kg): 7.4

Quote this article number

S 4+4x6 ALU

Art. No. 113529

Aperture dimensions WxH (mm): 795(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 793 x 359 x 60
Frame openings: 12
Packing space (mm): 120 x 120
Weight (kg): 8.8

Quote this article number

S 6x4 ALU

Art. No. S006000000431

Aperture dimensions WxH (mm): 534(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 532 x 238 x 60
Frame openings: 4
Packing space (mm): 120 x 180
Weight (kg): 3.4

Quote this article number

S 6x5 ALU

Art. No. S006000000531

Aperture dimensions WxH (mm): 665(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 662.5 x 238 x 60
Frame openings: 5
Packing space (mm): 120 x 180
Weight (kg): 4.1

Quote this article number

S 6x6 ALU

Art. No. S006000000631

Aperture dimensions WxH (mm): 795(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 793 x 238 x 60
Frame openings: 6
Packing space (mm): 120 x 180
Weight (kg): 4.9

Quote this article number

S 6+6x1 ALU

Art. No. S006600000131

Aperture dimensions WxH (mm): 143(+1/-1) x 468(+1/-1)
External dimensions WxHxD (mm): 140.5 x 466 x 60
Frame openings: 2
Packing space (mm): 120 x 180
Weight (kg): 2.1

Quote this article number

S 6+6x2 ALU

Art. No. S006600000231

Aperture dimensions WxH (mm): 273(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 271 x 476 x 60
Frame openings: 4
Packing space (mm): 120 x 180
Weight (kg): 3.8

Quote this article number

S 6+6x3 ALU

Art. No. S006600000331

Aperture dimensions WxH (mm): 404(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 401.5 x 476 x 60
Frame openings: 6
Packing space (mm): 120 x 180
Weight (kg): 5.3

Quote this article number

S 6+6x4 ALU

Art. No. S006600000431

Aperture dimensions WxH (mm): 534(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 532 x 476 x 60
Frame openings: 8
Packing space (mm): 120 x 180
Weight (kg): 6.8

Quote this article number

S 6+6x5 ALU

Art. No. S006600000531

Aperture dimensions WxH (mm): 665(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 662.5 x 476 x 60
Frame openings: 10
Packing space (mm): 120 x 180
Weight (kg): 8.2

Quote this article number

S 6+6x6 ALU

Art. No. S006600000631

Aperture dimensions WxH (mm): 795(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 793 x 476 x 60
Frame openings: 12
Packing space (mm): 120 x 180
Weight (kg): 9.7

Quote this article number

S 8x1 ALU

Art. No. S008000000131

Aperture dimensions WxH (mm): 143(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 140.5 x 298 x 60
Frame openings: 1
Packing space (mm): 120 x 240
Weight (kg): 1.3

Quote this article number

S 8x2 ALU

Art. No. S008000000231

Aperture dimensions WxH (mm): 273(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 271 x 298 x 60
Frame openings: 2
Packing space (mm): 120 x 240
Weight (kg): 2.2

Quote this article number

S 8x3 ALU

Art. No. S008000000331

Aperture dimensions WxH (mm): 404(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 401.5 x 298 x 60
Frame openings: 3
Packing space (mm): 120 x 240
Weight (kg): 3

Quote this article number

S 8x4 ALU

Art. No. S008000000431

Aperture dimensions WxH (mm): 534(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 532 x 298 x 60
Frame openings: 4
Packing space (mm): 120 x 240
Weight (kg): 3.9

Quote this article number

S 8x5 ALU

Art. No. S008000000531

Aperture dimensions WxH (mm): 665(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 662.5 x 298 x 60
Frame openings: 5
Packing space (mm): 120 x 240
Weight (kg): 4.7

Quote this article number

S 8x6 ALU

Art. No. S008000000631

Aperture dimensions WxH (mm): 795(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 793 x 298 x 60
Frame openings: 6
Packing space (mm): 120 x 240
Weight (kg): 5.6

Quote this article number

S 8+8x1 ALU

Art. No. S008800000131

Aperture dimensions WxH (mm): 143(+1/-1) x 588(+1/-1)
External dimensions WxHxD (mm): 140.5 x 586 x 60
Frame openings: 2
Packing space (mm): 120 x 240
Weight (kg): 2.5

Quote this article number

S 8+8x2 ALU

Art. No. 5S00000007144

Aperture dimensions WxH (mm): 273(+1/-1) x 598(+1/-1)
External dimensions WxHxD (mm): 271 x 596 x 60
Frame openings: 4
Packing space (mm): 120 x 240
Weight (kg): 4.45

Quote this article number

S 8+8x3 ALU

Art. No. 5S00000008024

Aperture dimensions WxH (mm): 404(+1/-1) x 598(+1/-1)
External dimensions WxHxD (mm): 401.5 x 596 x 60
Frame openings: 6
Packing space (mm): 120 x 240
Weight (kg): 6.15

Quote this article number

S 8+8x4 ALU

Art. No. 113596

Aperture dimensions WxH (mm): 534(+1/-1) x 598(+1/-1)
External dimensions WxHxD (mm): 532 x 596 x 60
Frame openings: 8
Packing space (mm): 120 x 240
Weight (kg): 8

Quote this article number

Reference documents

These links open current files hosted by Roxtec. Check the source document revision before use.

APERTURE DIMENSIONS S SERIES (en) pdf (manufacturer document)
RECTANGULAR RM SYSTEMS (en) pdf (manufacturer document)
S1005518 S FRAME SINGLE AND COMBINATION FRAME PDF (manufacturer document)
S1005523 S FRAME +SINGLE AND +COMBINATION FRAME PDF (manufacturer document)
S1578659 S80 FRAME SINGLE FRAME PDF (manufacturer document)
S1581649 S80 FRAME COMBINATION FRAME PDF (manufacturer document)
S1581651 S80 FRAME +SINGLE FRAME PDF (manufacturer document)

Source-listed certificates

Certificate rows reproduce factual source fields. They do not confirm applicability to a specific assembly. Open the source record and ask AMFSS to check the application.

Authority	Rating	Division / structure	Cable	Pipe	Type approval	Status
BV	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Steel	Armored Marine	—	04558/H1 BV	No renewal status stated
CSA	IP tightness UL/NEMA tightness	—	Other	Copper Steel	1333944	No renewal status stated
BV	Gas tightness (catastrophic) H class fire Water tightness (catastrophic)	Steel	Marine	—	15027/E0 BV	No renewal status stated
USCG	H class fire	Steel	Armored Marine	—	164.140/10/0	Source states: under renewal
IRS	A class fire	Steel	Marine	Bundle Copper Fiberglass Steel	2022TAC104	No renewal status stated
ABS	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Steel	—	Bundle Copper Copper-Nickel Steel Titanium	24-0023682-PDA	No renewal status stated
ABS	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Steel	—	Bundle Copper Copper-Nickel Steel Titanium	24-0023682-PDA-DUP	No renewal status stated
ABS	Gas tightness (catastrophic) H class fire Water tightness (catastrophic)	Steel	Armored Marine	Bundle Steel Titanium	24-0131674-1-PDA	No renewal status stated
ABS	Gas tightness (catastrophic) H class fire Water tightness (catastrophic)	Steel	Armored Marine	Bundle Steel Titanium	24-0131674-1-PDA-DUP	No renewal status stated
ABS	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Steel	Armored Fiber Marine Shielded	—	24-2397982-1-PDA	No renewal status stated
ABS	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Aluminium	Marine	Bundle Copper Steel Titanium	25-0155736-PDA	No renewal status stated
ABS	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Aluminium	Marine	Bundle Copper Steel Titanium	25-0155736-PDA-DUP	No renewal status stated
BV	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Aluminium	Marine	—	41353/C0 BV	Source states: under renewal
BV	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Steel	—	ABS Bundle Copper Copper-Nickel HDPE Other PB PE Plastic PP PVC PVDF Steel Titanium	63792/B0 BV	No renewal status stated
BV	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Other	Marine	ABS Copper Copper-Nickel Fiberglass PB PE Plastic PP PVC PVDF Steel	73351/A1 BV	No renewal status stated
QinetiQ	A class fire Blastload Gas tightness (catastrophic) Water tightness (catastrophic)	Steel	Marine	—	AS&P/BCC/30/13/002	Source states: under renewal
Underwriters Laboratories Inc.	F fire T fire	Concrete Lightweight concrete	Construction Telecom	Conduit Steel	C-AJ-8309	No renewal status stated
KRS	A class fire	Steel	Marine	—	CPH04189-FP004	Source states: under renewal
KRS	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Steel	—	Bundle Copper Copper-Nickel Steel	CPH04189-FP007	No renewal status stated
CCS	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Aluminium Steel	Marine	—	GB23PTB00036_01	No renewal status stated
CCS	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Aluminium Steel	—	Bundle Copper Copper-Nickel Steel	GB23PTB00036_02	No renewal status stated
RINA	A class fire	Steel	Armored Marine Shielded Unshielded	—	LAB378423CS/001	No renewal status stated
RINA	A class fire B class fire	Steel	Armored Marine Shielded Unshielded	—	LAB378423CS/002	No renewal status stated
RINA	A class fire	Aluminium	—	Copper Steel	LAB498522CS/004	No renewal status stated
LR	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Other	Marine	Copper Fiberglass PB PE PE/ALU/PE Plastic PP PVC Steel	LR2386976SF	No renewal status stated
LR	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Other	Marine	Copper Fiberglass PB PE PE/ALU/PE Plastic PP PVC Steel	LR2387043MB	No renewal status stated
LR	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Aluminium Steel	—	Bundle Copper Copper-Nickel Steel Titanium	LR25103712SF-1	No renewal status stated
LR	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	GRP/FRP	Marine	—	LR2543793UKMB	No renewal status stated
LR	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	GRP/FRP	—	Copper Fiberglass PE/ALU/PE Plastic Steel Titanium	LR2543794UKMB	No renewal status stated
LR	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	GRP/FRP	Marine	—	LR2543795UKMB	No renewal status stated
LR	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	GRP/FRP	—	Copper Fiberglass PE/ALU/PE Plastic Steel Titanium	LR2543796UKMB	No renewal status stated
DNV	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Aluminium	Marine	—	MEDB0000130	No renewal status stated
DNV	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Steel	Armored Marine	—	MEDB00001Y7	No renewal status stated
DNV	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Aluminium	—	Bundle Copper Steel Titanium	MEDB00005J9	No renewal status stated
DNV	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Steel	—	ABS Bundle Copper Copper-Nickel PB PE Plastic PP Steel Titanium	MEDB00006JA	No renewal status stated
DNV	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Aluminium	Marine	—	MERB0000130	No renewal status stated
DNV	A class fire	Steel	Fiber Marine	—	MERB00001Y7	No renewal status stated
DNV	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Aluminium	—	Bundle Copper Copper-Nickel Steel Titanium	MERB00005J9	No renewal status stated
DNV	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Steel	—	Bundle Copper Copper-Nickel Steel	MERB00006JA	No renewal status stated
LR	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Aluminium Steel	Fiber Marine Other	—	SAS F150098-M3-10	No renewal status stated
ClassNK	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Steel	Marine	—	TA251516E	No renewal status stated
ClassNK	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Aluminium Steel	—	Bundle Copper Copper-Nickel Fiberglass Other Plastic Steel Titanium	TA251517E	No renewal status stated
DNV	Gas tightness (catastrophic) Water tightness (catastrophic)	Aluminium Steel	All	Aluminium Copper Copper-Nickel Plastic Steel	TAE000000U	No renewal status stated
DNV	Gas tightness (catastrophic) H class fire Water tightness (catastrophic)	Steel	Armored Marine	Steel	TAF00000DW	No renewal status stated
DNV	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Other	Marine	—	TAF00001SH	No renewal status stated
DNV	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Other	—	ABS Copper Fiberglass HDPE Other PB PE PE/ALU/PE Plastic PP PVC PVDF Steel	TAF00001SJ	No renewal status stated

Source checked 2026-08-08: official Roxtec product page.

About Roxtec rectangular frames

Roxtec rectangular frames form the frame portion of modular cable and pipe transit systems. Frame type and components must be matched to the opening and application.

Typical applications:

Walls and floors
Bulkheads and decks
Cabinets and enclosures

Not sure this is the right product? Compare the Roxtec rectangular frames family or describe your application.
