Roxtec S Ex frame

Roxtec rectangular frames · Roxtec

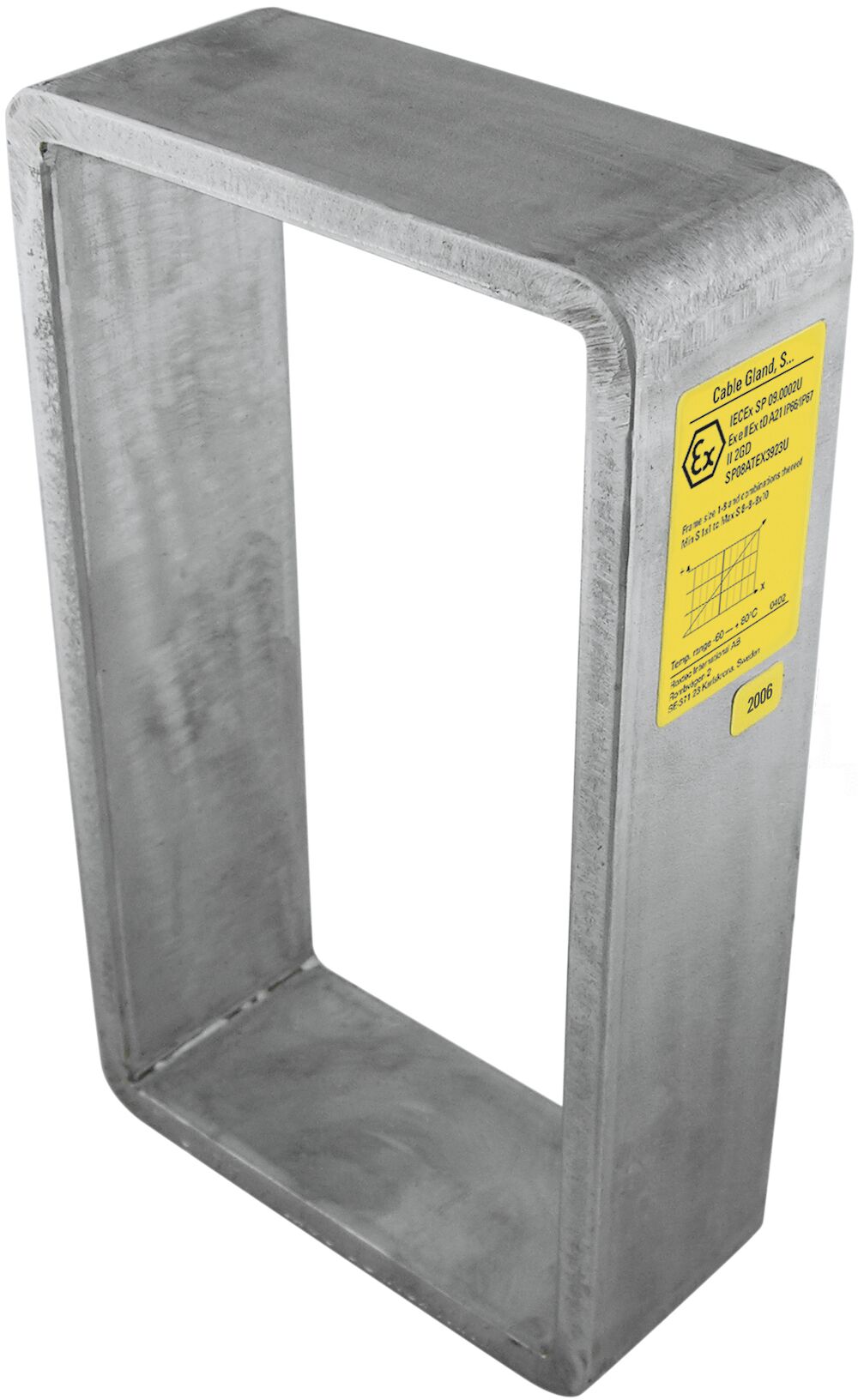

The Roxtec S Ex frame is a metal frame for welding into precise apertures. It is available in different materials and with a single opening or in combinations with several openings in width and/or height. The Roxtec S Ex frame is approved for use in potentially explosive atmospheres and hazardous locations.

To be used with corresponding Roxtec components to form a complete sealing solution
Attachment by welding

Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.

Article numbers and specifications

Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.

S 6x1 Ex PRIMED

Art. No. EXS006000000112

Aperture dimensions WxH (mm): 143(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 141 x 238 x 60
Frame openings: 1
Packing space (mm): 120 x 180
Weight (kg): 3.34

Quote this article number

S 6x2 Ex PRIMED

Art. No. EXS006000000212

Aperture dimensions WxH (mm): 273(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 271 x 238 x 60
Frame openings: 2
Packing space (mm): 120 x 180
Weight (kg): 5.5

Quote this article number

S 6x3 Ex PRIMED

Art. No. EXS006000000312

Aperture dimensions WxH (mm): 404(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 402 x 238 x 60
Frame openings: 3
Packing space (mm): 120 x 180
Weight (kg): 7.7

Quote this article number

S 6x1 Ex AISI316

Art. No. EXS006000000121

Aperture dimensions WxH (mm): 143(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 141 x 238 x 60
Frame openings: 1
Packing space (mm): 120 x 180
Weight (kg): 3.34

Quote this article number

S 6x2 Ex AISI316

Art. No. EXS006000000221

Aperture dimensions WxH (mm): 273(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 271 x 238 x 60
Frame openings: 2
Packing space (mm): 120 x 180
Weight (kg): 5.5

Quote this article number

S 6x3 Ex AISI316

Art. No. EXS006000000321

Aperture dimensions WxH (mm): 404(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 402 x 238 x 60
Frame openings: 3
Packing space (mm): 120 x 180
Weight (kg): 7.7

Quote this article number

S 2x1 Ex PRIMED

Art. No. EXS002000000112

Aperture dimensions WxH (mm): 143(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 141 x 121 x 60
Frame openings: 1
Packing space (mm): 120 x 60
Weight (kg): 2.23

Quote this article number

S 2x2 Ex PRIMED

Art. No. EXS002000000212

Aperture dimensions WxH (mm): 273(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 271 x 121 x 60
Frame openings: 2
Packing space (mm): 120 x 60
Weight (kg): 3.9

Quote this article number

S 2x3 Ex PRIMED

Art. No. EXS002000000312

Aperture dimensions WxH (mm): 404(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 402 x 121 x 60
Frame openings: 3
Packing space (mm): 120 x 60
Weight (kg): 5.5

Quote this article number

S 2x4 Ex PRIMED

Art. No. EXS002000000412

Aperture dimensions WxH (mm): 534(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 532 x 121 x 60
Frame openings: 4
Packing space (mm): 120 x 60
Weight (kg): 7.1

Quote this article number

S 2x5 Ex PRIMED

Art. No. EXS002000000512

Aperture dimensions WxH (mm): 665(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 663 x 121 x 60
Frame openings: 5
Packing space (mm): 120 x 60
Weight (kg): 8.7

Quote this article number

S 2+2x1 Ex PRIMED

Art. No. EXS002200000112

Aperture dimensions WxH (mm): 143(+1/-1) x 234(+1/-1)
External dimensions WxHxD (mm): 141 x 232 x 60
Frame openings: 2
Packing space (mm): 120 x 60
Weight (kg): 3.7

Quote this article number

S 2+2x2 Ex PRIMED

Art. No. 115268

Aperture dimensions WxH (mm): 273(+1/-1) x 244(+1/-1)
External dimensions WxHxD (mm): 271 x 242 x 60
Frame openings: 4
Packing space (mm): 120 x 60
Weight (kg): 1

Quote this article number

S 2+2x3 Ex PRIMED

Art. No. 115269

Aperture dimensions WxH (mm): 404(+1/-1) x 244(+1/-1)
External dimensions WxHxD (mm): 402 x 242 x 60
Frame openings: 6
Packing space (mm): 120 x 60
Weight (kg): 11.3

Quote this article number

S 2+2x4 Ex PRIMED

Art. No. 115270

Aperture dimensions WxH (mm): 534(+1/-1) x 244(+1/-1)
External dimensions WxHxD (mm): 532 x 242 x 60
Frame openings: 8
Packing space (mm): 120 x 60
Weight (kg): 14.7

Quote this article number

S 4x1 Ex PRIMED

Art. No. EXS004000000112

Aperture dimensions WxH (mm): 143(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 141 x 180 x 60
Frame openings: 1
Packing space (mm): 120 x 120
Weight (kg): 2.79

Quote this article number

S 4x2 Ex PRIMED

Art. No. EXS004000000212

Aperture dimensions WxH (mm): 273(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 271 x 180 x 60
Frame openings: 2
Packing space (mm): 120 x 120
Weight (kg): 4.7

Quote this article number

S 4x3 Ex PRIMED

Art. No. EXS004000000312

Aperture dimensions WxH (mm): 404(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 402 x 180 x 60
Frame openings: 3
Packing space (mm): 120 x 120
Weight (kg): 6.6

Quote this article number

S 4x4 Ex PRIMED

Art. No. EXS004000000412

Aperture dimensions WxH (mm): 534(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 532 x 180 x 60
Frame openings: 4
Packing space (mm): 120 x 120
Weight (kg): 8.5

Quote this article number

S 4x5 Ex PRIMED

Art. No. EXS004000000512

Aperture dimensions WxH (mm): 665(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 663 x 180 x 60
Frame openings: 5
Packing space (mm): 120 x 120
Weight (kg): 10.3

Quote this article number

S 4+4x1 Ex PRIMED

Art. No. EXS004400000112

Aperture dimensions WxH (mm): 143(+1/-1) x 351(+1/-1)
External dimensions WxHxD (mm): 141 x 349 x 60
Frame openings: 2
Packing space (mm): 120 x 120
Weight (kg): 5

Quote this article number

S 4+4x2 Ex PRIMED

Art. No. EXS00440000212

Aperture dimensions WxH (mm): 273(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 271 x 359 x 60
Frame openings: 4
Packing space (mm): 120 x 120
Weight (kg): 9.59

Quote this article number

S 4+4x3 Ex PRIMED

Art. No. EXS004400000312

Aperture dimensions WxH (mm): 404(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 402 x 359 x 60
Frame openings: 6
Packing space (mm): 120 x 120
Weight (kg): 13.58

Quote this article number

S 4+4x4 Ex PRIMED

Art. No. 105801

Aperture dimensions WxH (mm): 534(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 532 x 359 x 60
Frame openings: 8
Packing space (mm): 120 x 120
Weight (kg): 17.4

Quote this article number

S 4+4x5 Ex PRIMED

Art. No. 105802

Aperture dimensions WxH (mm): 665(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 663 x 359 x 60
Frame openings: 10
Packing space (mm): 120 x 120
Weight (kg): 21

Quote this article number

S 6x4 Ex PRIMED

Art. No. EXS006000000412

Aperture dimensions WxH (mm): 534(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 532 x 238 x 60
Frame openings: 4
Packing space (mm): 120 x 180
Weight (kg): 10.03

Quote this article number

S 6x5 Ex PRIMED

Art. No. EXS006000000512

Aperture dimensions WxH (mm): 665(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 663 x 238 x 60
Frame openings: 5
Packing space (mm): 120 x 180
Weight (kg): 12.25

Quote this article number

S 6+6x1 Ex PRIMED

Art. No. EXS006600000112

Aperture dimensions WxH (mm): 143(+1/-1) x 468(+1/-1)
External dimensions WxHxD (mm): 141 x 466 x 60
Frame openings: 2
Packing space (mm): 120 x 180
Weight (kg): 6.1

Quote this article number

S 6+6x2 Ex PRIMED

Art. No. EXS006600000212

Aperture dimensions WxH (mm): 273(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 271 x 476 x 60
Frame openings: 4
Packing space (mm): 120 x 180
Weight (kg): 11.44

Quote this article number

S 6+6x3 Ex PRIMED

Art. No. EXS006600000312

Aperture dimensions WxH (mm): 404(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 402 x 476 x 60
Frame openings: 6
Packing space (mm): 120 x 180
Weight (kg): 15.75

Quote this article number

S 6+6x4 Ex PRIMED

Art. No. EXS006600000412

Aperture dimensions WxH (mm): 534(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 532 x 476 x 60
Frame openings: 8
Packing space (mm): 120 x 180
Weight (kg): 20.2

Quote this article number

S 6+6x5 Ex PRIMED

Art. No. EXS006600000512

Aperture dimensions WxH (mm): 665(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 663 x 476 x 60
Frame openings: 10
Packing space (mm): 120 x 180
Weight (kg): 24.63

Quote this article number

S 8x1 Ex PRIMED

Art. No. EXS008000000112

Aperture dimensions WxH (mm): 143(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 141 x 298 x 60
Frame openings: 1
Packing space (mm): 120 x 240
Weight (kg): 3.9

Quote this article number

S 8x2 Ex PRIMED

Art. No. EXS008000000212

Aperture dimensions WxH (mm): 273(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 271 x 298 x 60
Frame openings: 2
Packing space (mm): 120 x 240
Weight (kg): 6.1

Quote this article number

S 8x3 Ex PRIMED

Art. No. EXS008000000312

Aperture dimensions WxH (mm): 404(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 402 x 298 x 60
Frame openings: 3
Packing space (mm): 120 x 240
Weight (kg): 8.2

Quote this article number

S 8x4 Ex PRIMED

Art. No. EXS008000000412

Aperture dimensions WxH (mm): 534(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 532 x 298 x 60
Frame openings: 4
Packing space (mm): 120 x 240
Weight (kg): 11.5

Quote this article number

S 8x5 Ex PRIMED

Art. No. EXS008000000512

Aperture dimensions WxH (mm): 665(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 663 x 298 x 60
Frame openings: 5
Packing space (mm): 120 x 240
Weight (kg): 13

Quote this article number

S 8+8x1 Ex PRIMED

Art. No. EXS008800000112

Aperture dimensions WxH (mm): 143(+1/-1) x 588(+1/-1)
External dimensions WxHxD (mm): 141 x 586 x 60
Frame openings: 2
Packing space (mm): 120 x 240
Weight (kg): 7

Quote this article number

S 8+8x2 Ex PRIMED

Art. No. 105804

Aperture dimensions WxH (mm): 273(+1/-1) x 598(+1/-1)
External dimensions WxHxD (mm): 271 x 596 x 60
Frame openings: 4
Packing space (mm): 120 x 240
Weight (kg): 12.5

Quote this article number

S 8+8x3 Ex PRIMED

Art. No. EXS008800000312

Aperture dimensions WxH (mm): 404(+1/-1) x 598(+1/-1)
External dimensions WxHxD (mm): 402 x 596 x 60
Frame openings: 6
Packing space (mm): 120 x 240
Weight (kg): 17.5

Quote this article number

S 8+8x4 Ex PRIMED

Art. No. EXS008800000412

Aperture dimensions WxH (mm): 534(+1/-1) x 598(+1/-1)
External dimensions WxHxD (mm): 532 x 596 x 60
Frame openings: 8
Packing space (mm): 120 x 240
Weight (kg): 21

Quote this article number

S 2x1 Ex AISI316

Art. No. EXS002000000121

Aperture dimensions WxH (mm): 143(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 141 x 121 x 60
Frame openings: 1
Packing space (mm): 120 x 60
Weight (kg): 2.23

Quote this article number

S 2x2 Ex AISI316

Art. No. EXS002000000221

Aperture dimensions WxH (mm): 273(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 271 x 121 x 60
Frame openings: 2
Packing space (mm): 120 x 60
Weight (kg): 3.9

Quote this article number

S 2x3 Ex AISI316

Art. No. EXS002000000321

Aperture dimensions WxH (mm): 404(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 402 x 121 x 60
Frame openings: 3
Packing space (mm): 120 x 60
Weight (kg): 5.52

Quote this article number

S 2x4 Ex AISI316

Art. No. 115165

Aperture dimensions WxH (mm): 534(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 532 x 121 x 60
Frame openings: 4
Packing space (mm): 120 x 60
Weight (kg): 7.44

Quote this article number

S 2x5 Ex AISI316

Art. No. 115166

Aperture dimensions WxH (mm): 665(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 663 x 121 x 60
Frame openings: 5
Packing space (mm): 120 x 60
Weight (kg): 9.3

Quote this article number

S 2+2x1 Ex AISI316

Art. No. 115172

Aperture dimensions WxH (mm): 143(+1/-1) x 234(+1/-1)
External dimensions WxHxD (mm): 141 x 232 x 60
Frame openings: 2
Packing space (mm): 120 x 60
Weight (kg): 3.85

Quote this article number

S 2+2x2 Ex AISI316

Art. No. 115173

Aperture dimensions WxH (mm): 273(+1/-1) x 244(+1/-1)
External dimensions WxHxD (mm): 271 x 242 x 60
Frame openings: 4
Packing space (mm): 120 x 60
Weight (kg): 7.74

Quote this article number

S 2+2x3 Ex AISI316

Art. No. 115174

Aperture dimensions WxH (mm): 404(+1/-1) x 244(+1/-1)
External dimensions WxHxD (mm): 402 x 242 x 60
Frame openings: 6
Packing space (mm): 120 x 60
Weight (kg): 11.6

Quote this article number

S 2+2x4 Ex AISI316

Art. No. 115175

Aperture dimensions WxH (mm): 534(+1/-1) x 244(+1/-1)
External dimensions WxHxD (mm): 532 x 242 x 60
Frame openings: 8
Packing space (mm): 120 x 60
Weight (kg): 15.1

Quote this article number

S 4x1 Ex AISI316

Art. No. EXS004000000121

Aperture dimensions WxH (mm): 143(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 141 x 180 x 60
Frame openings: 1
Packing space (mm): 120 x 120
Weight (kg): 2.79

Quote this article number

S 4x2 Ex AISI316

Art. No. EXS004000000221

Aperture dimensions WxH (mm): 273(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 271 x 180 x 60
Frame openings: 2
Packing space (mm): 120 x 120
Weight (kg): 4.65

Quote this article number

S 4x3 Ex AISI316

Art. No. EXS004000000321

Aperture dimensions WxH (mm): 404(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 402 x 180 x 60
Frame openings: 3
Packing space (mm): 120 x 120
Weight (kg): 6.56

Quote this article number

S 4x4 Ex AISI316

Art. No. EXS004000000421

Aperture dimensions WxH (mm): 534(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 532 x 180 x 60
Frame openings: 4
Packing space (mm): 120 x 120
Weight (kg): 8.5

Quote this article number

S 4x5 Ex AISI316

Art. No. EXS004000000521

Aperture dimensions WxH (mm): 665(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 663 x 180 x 60
Frame openings: 5
Packing space (mm): 120 x 120
Weight (kg): 10.7

Quote this article number

S 4+4x1 Ex AISI316

Art. No. EXS004400000121

Aperture dimensions WxH (mm): 143(+1/-1) x 351(+1/-1)
External dimensions WxHxD (mm): 141 x 349 x 60
Frame openings: 2
Packing space (mm): 120 x 120
Weight (kg): 4.9

Quote this article number

S 4+4x2 Ex AISI316

Art. No. EXS004400000221

Aperture dimensions WxH (mm): 273(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 271 x 359 x 60
Frame openings: 4
Packing space (mm): 120 x 120
Weight (kg): 9.5

Quote this article number

S 4+4x3 Ex AISI316

Art. No. 104184

Aperture dimensions WxH (mm): 404(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 402 x 359 x 60
Frame openings: 6
Packing space (mm): 120 x 120
Weight (kg): 13

Quote this article number

S 4+4x4 Ex AISI316

Art. No. 115200

Aperture dimensions WxH (mm): 534(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 532 x 359 x 60
Frame openings: 8
Packing space (mm): 120 x 120
Weight (kg): 17.36

Quote this article number

S 4+4x5 Ex AISI316

Art. No. 115201

Aperture dimensions WxH (mm): 665(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 663 x 359 x 60
Frame openings: 10
Packing space (mm): 120 x 120
Weight (kg): 22

Quote this article number

S 6x4 Ex AISI316

Art. No. EXS006000000421

Aperture dimensions WxH (mm): 534(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 532 x 238 x 60
Frame openings: 4
Packing space (mm): 120 x 180
Weight (kg): 9.9

Quote this article number

S 6x5 Ex AISI316

Art. No. EXS006000000521

Aperture dimensions WxH (mm): 665(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 663 x 238 x 60
Frame openings: 5
Packing space (mm): 120 x 180
Weight (kg): 12.45

Quote this article number

S 6+6x1 Ex AISI316

Art. No. EXS006600000121

Aperture dimensions WxH (mm): 143(+1/-1) x 468(+1/-1)
External dimensions WxHxD (mm): 141 x 466 x 60
Frame openings: 2
Packing space (mm): 120 x 180
Weight (kg): 6.05

Quote this article number

S 6+6x2 Ex AISI316

Art. No. EXS006600000221

Aperture dimensions WxH (mm): 273(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 271 x 476 x 60
Frame openings: 4
Packing space (mm): 120 x 180
Weight (kg): 11.2

Quote this article number

S 6+6x3 Ex AISI316

Art. No. EXS006600000321

Aperture dimensions WxH (mm): 404(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 402 x 476 x 60
Frame openings: 6
Packing space (mm): 120 x 180
Weight (kg): 15.6

Quote this article number

S 6+6x4 Ex AISI316

Art. No. EXS006600000421

Aperture dimensions WxH (mm): 534(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 532 x 476 x 60
Frame openings: 8
Packing space (mm): 120 x 180
Weight (kg): 19.9

Quote this article number

S 6+6x5 Ex AISI316

Art. No. EXS006600000521

Aperture dimensions WxH (mm): 665(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 663 x 476 x 60
Frame openings: 10
Packing space (mm): 120 x 180
Weight (kg): 24.2

Quote this article number

S 8x1 Ex AISI316

Art. No. EXS008000000121

Aperture dimensions WxH (mm): 143(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 141 x 298 x 60
Frame openings: 1
Packing space (mm): 120 x 240
Weight (kg): 3.9

Quote this article number

S 8x2 Ex AISI316

Art. No. EXS008000000221

Aperture dimensions WxH (mm): 273(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 271 x 298 x 60
Frame openings: 2
Packing space (mm): 120 x 240
Weight (kg): 6.35

Quote this article number

S 8x3 Ex AISI316

Art. No. EXS008000000321

Aperture dimensions WxH (mm): 404(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 402 x 298 x 60
Frame openings: 3
Packing space (mm): 120 x 240
Weight (kg): 8.79

Quote this article number

S 8x4 Ex AISI316

Art. No. EXS008000000421

Aperture dimensions WxH (mm): 534(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 532 x 298 x 60
Frame openings: 4
Packing space (mm): 120 x 240
Weight (kg): 11.24

Quote this article number

S 8x5 Ex AISI316

Art. No. EXS008000000521

Aperture dimensions WxH (mm): 665(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 663 x 298 x 60
Frame openings: 5
Packing space (mm): 120 x 240
Weight (kg): 12.6

Quote this article number

S 8+8x1 Ex AISI316

Art. No. EXS008800000121

Aperture dimensions WxH (mm): 143(+1/-1) x 588(+1/-1)
External dimensions WxHxD (mm): 141 x 586 x 60
Frame openings: 2
Packing space (mm): 120 x 240
Weight (kg): 7

Quote this article number

S 8+8x2 Ex AISI316

Art. No. 115243

Aperture dimensions WxH (mm): 273(+1/-1) x 598(+1/-1)
External dimensions WxHxD (mm): 271 x 596 x 60
Frame openings: 4
Packing space (mm): 120 x 240
Weight (kg): 12.9

Quote this article number

S 8+8x3 Ex AISI316

Art. No. 115244

Aperture dimensions WxH (mm): 404(+1/-1) x 598(+1/-1)
External dimensions WxHxD (mm): 402 x 596 x 60
Frame openings: 6
Packing space (mm): 120 x 240
Weight (kg): 17.8

Quote this article number

S 8+8x4 Ex AISI316

Art. No. EXS008800000421

Aperture dimensions WxH (mm): 534(+1/-1) x 598(+1/-1)
External dimensions WxHxD (mm): 532 x 596 x 60
Frame openings: 8
Packing space (mm): 120 x 240
Weight (kg): 22.6

Quote this article number

Reference documents

These links open current files hosted by Roxtec. Check the source document revision before use.

FRAMES Ex (en) pdf (manufacturer document)
S1016620 S Ex FRAME SINGLE AND COMBINATION FRAME PDF (manufacturer document)
S1016622 S Ex FRAME +SINGLE AND +COMBINATION FRAME PDF (manufacturer document)

Source-listed certificates

Certificate rows reproduce factual source fields. They do not confirm applicability to a specific assembly. Open the source record and ask AMFSS to check the application.

Authority	Rating	Division / structure	Cable	Pipe	Type approval	Status
CSA	IP tightness UL/NEMA tightness	—	Other	Copper Steel	1333944	No renewal status stated
CSA	Ex	—	Armored Other	Conduit	2254189	No renewal status stated
SGS	Ex	—	Armored Other	Conduit	25-08-162750/E25-08-169397/NB0002	No renewal status stated
CSA	Ex	—	Armored Other	Conduit	CSAE 23UKEX1065U	No renewal status stated
Roxtec International AB	Ex	—	—	—	DoC RM and HD Ex	No renewal status stated
Nemko	Ex	—	—	—	IECEx NEM 12.0015U	No renewal status stated
NCC	Ex	—	Other	Conduit	NCC 11.0267 U	No renewal status stated
Nemko	Ex	—	Other	—	Nemko 12ATEX1279U	No renewal status stated
RISE	Ex	—	—	—	RISE25ATEX0001	No renewal status stated

Source checked 2026-08-08: official Roxtec product page.

About Roxtec rectangular frames

Roxtec rectangular frames form the frame portion of modular cable and pipe transit systems. Frame type and components must be matched to the opening and application.

Typical applications:

Walls and floors
Bulkheads and decks
Cabinets and enclosures

Not sure this is the right product? Compare the Roxtec rectangular frames family or describe your application.
