HD 16 FRAME ASSEMBLY AISI 316
Art. No. 193084
- Aperture dimensions WxH (mm)
- 64(+1/-0.5) x 216(+1/-0.5)
- External dimensions WxHxD (mm)
- 83.8 x 236 x 60
- Frame openings
- 1
- Packing space (mm)
- 40 x 160
- Weight (kg)
- 1.57
Roxtec rectangular frames
Roxtec HD frame
Roxtec rectangular frames · Roxtec

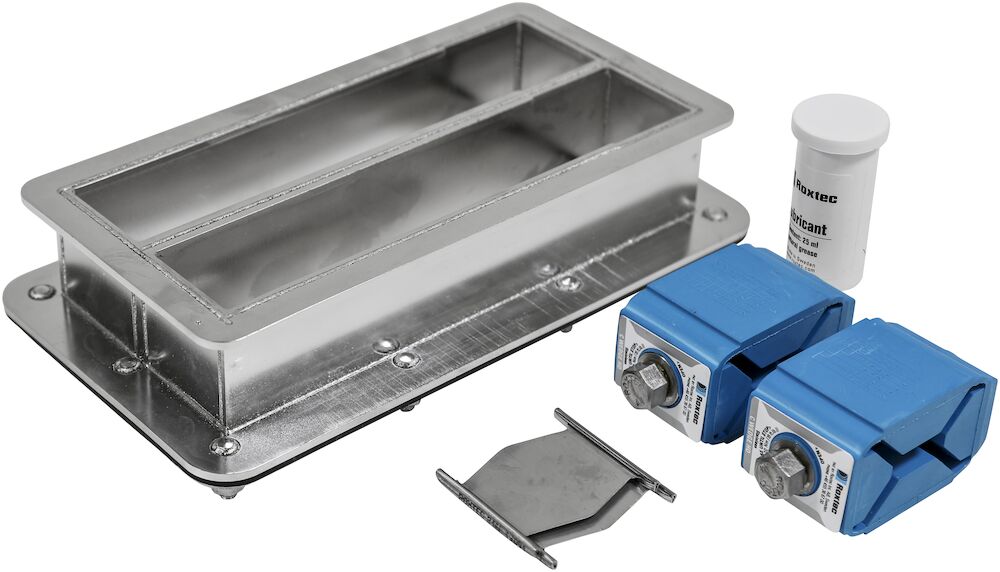

The Roxtec HD cable transit device frame is made for high cable density applications in harsh and hazardous environments. It is made of acid proof stainless steel.
- To be used with Roxtec HD modules to form a complete sealing solution
Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.
Article numbers and specifications
Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.
HD 32 FRAME ASSEMBLY AISI316
Art. No. 109238
- Aperture dimensions WxH (mm)
- 110(+1/-0.5) x 216(+1/-0.5)
- External dimensions WxHxD (mm)
- 130 x 236 x 60
- Frame openings
- 2
- Packing space (mm)
- 40 x 160
- Weight (kg)
- 2.29
HD 72 FRAME ASSEMBLY AISI316
Art. No. 231782
- Aperture dimensions WxH (mm)
- 208(+1/-0.5) x 264(+1/-0.5)
- External dimensions WxHxD (mm)
- 225 x 281 x 77
- Frame openings
- 2
- Packing space (mm)
- 80 x 180
- Weight (kg)
- 5.39
Reference documents
These links open current files hosted by Roxtec. Check the source document revision before use.
- HDLC (en) pdf (manufacturer document)
- HD 16 AND HD 32 (en) pdf (manufacturer document)
- Roxtec HD 72 HD (en) pdf (manufacturer document)
- S1039085 HD 32 APERTURE DIMENSIONS pdf (manufacturer document)
- S1541524 HD FRAME HD 16 PDF (manufacturer document)
- S1548059 HD 16 APERTURE DIMENSIONS PDF (manufacturer document)
- S1614335 HD 72 APERTURE DIMENSION PDF (manufacturer document)
Source-listed certificates
Certificate rows reproduce factual source fields. They do not confirm applicability to a specific assembly. Open the source record and ask AMFSS to check the application.
| Authority | Rating | Division / structure | Cable | Pipe | Type approval | Status |
|---|---|---|---|---|---|---|
| CSA | IP tightness UL/NEMA tightness | — | Other | Copper Steel | 1333944 | No renewal status stated |
| Roxtec International AB | — | — | — | — | Declaration of conformity Compact | No renewal status stated |
| Underwriters Laboratories Inc. | IP tightness UL/NEMA tightness | — | — | — | E496911 | No renewal status stated |
| Underwriters Laboratories Inc. | UL/NEMA tightness | — | — | — | NITW2.E209828 | No renewal status stated |
| Underwriters Laboratories Inc. | UL/NEMA tightness | — | — | — | NITW8.E209828 | No renewal status stated |
Source checked 2026-08-08: official Roxtec product page.
About Roxtec rectangular frames
Roxtec rectangular frames form the frame portion of modular cable and pipe transit systems. Frame type and components must be matched to the opening and application.
