HD 16 Ex FRAME ASSEMBLY
Art. No. 193085
- Aperture dimensions WxH (mm)
- 64(+1/-0.5) x 216(+1/-0.5)
- External dimensions WxHxD (mm)
- 83.8 x 236 x 60
- Frame openings
- 1
- Packing space (mm)
- 40 x 160
- Weight (kg)
- 1.6
Roxtec rectangular frames

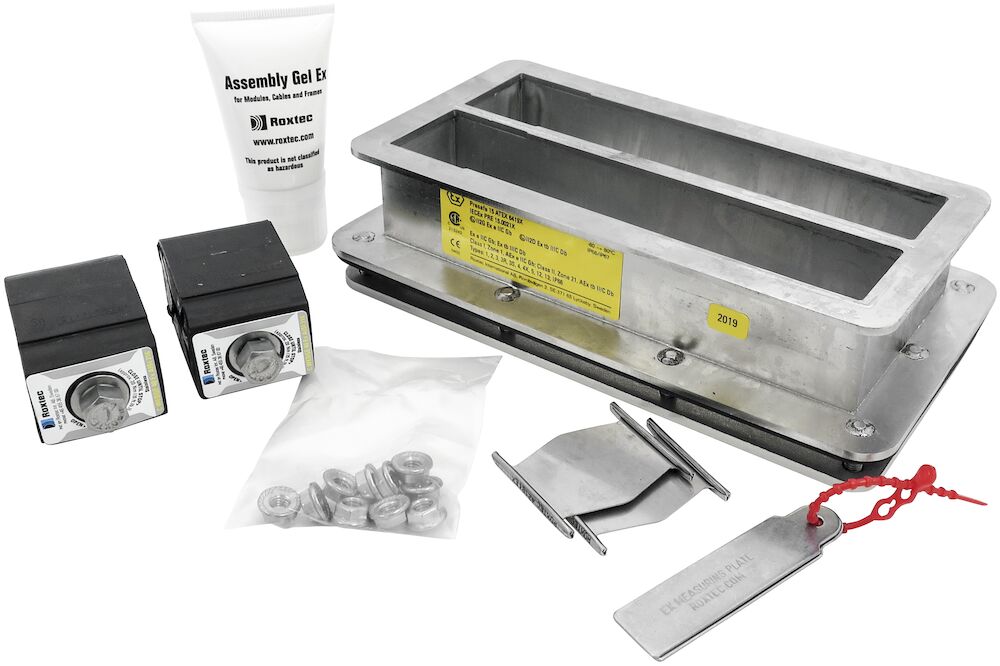

Roxtec HD Ex frame
Roxtec rectangular frames · Roxtec
The Roxtec HD Ex cable transit device frame is for harsh and hazardous environments and rated for use in Ex e and Ex tb areas in temperatures from -60 to +80 °C. The transit device frame is area efficient and allows up to 32 cables per opening.
- To be used with Roxtec CX modules to form a complete sealing solution
Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.
Article numbers and specifications
Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.
HD 32 Ex FRAME ASSEMBLY
Art. No. 152499
- Aperture dimensions WxH (mm)
- 110(+1/-0.5) x 216(+1/-0.5)
- External dimensions WxHxD (mm)
- 130 x 236 x 60
- Frame openings
- 2
- Packing space (mm)
- 40 x 160
- Weight (kg)
- 2.3
Reference documents
These links open current files hosted by Roxtec. Check the source document revision before use.
- HD 32 Ex (en) pdf (manufacturer document)
- HD 32 BG Ex (en) pdf (manufacturer document)
- HDLC Ex (en) pdf (manufacturer document)
- HDLC BG Ex (en) pdf (manufacturer document)
- HD 16 Ex (en) pdf (manufacturer document)
- HD 16 BG Ex (en) pdf (manufacturer document)
- S1541526 HD Ex FRAME HD 16 Ex PDF (manufacturer document)
- S1548059 HD 16 APERTURE DIMENSIONS PDF (manufacturer document)
Source-listed certificates
Certificate rows reproduce factual source fields. They do not confirm applicability to a specific assembly. Open the source record and ask AMFSS to check the application.
| Authority | Rating | Division / structure | Cable | Pipe | Type approval | Status |
|---|---|---|---|---|---|---|
| CSA | IP tightness UL/NEMA tightness | — | Other | Copper Steel | 1333944 | No renewal status stated |
| KTL Korea Testing Laboratory | Ex | — | Other | Conduit | 20-KA4BO-0170X-173X | No renewal status stated |
| SGS | Ex | — | Armored Other | Conduit | 25-08-162753/E25-08-169436/NB0002 | No renewal status stated |
| CSA | Ex | — | Armored Other | Conduit | 70100154 | No renewal status stated |
| PESO | Ex | — | Armored Other | — | A/P/HQ/HN/104/5709 (P522388) | No renewal status stated |
| CSA | Ex | — | Armored Other | Conduit | CSAE 22UKEX1158X | No renewal status stated |
| Roxtec International AB | Ex | — | — | — | DoC RM and HD Ex | No renewal status stated |
| Underwriters Laboratories Inc. | UL/NEMA tightness | — | — | — | E209828 | No renewal status stated |
| Underwriters Laboratories Inc. | IP tightness UL/NEMA tightness | — | — | — | E496911 | No renewal status stated |
| DNV GL Presafe | Ex | — | Other | — | IECEx PRE 15.0021X | No renewal status stated |
| DNV GL Presafe | Ex | — | Armored Other | — | Presafe 15ATEX6419X | No renewal status stated |
| RISE | Ex | — | — | — | RISE25ATEX0001 | No renewal status stated |
Source checked 2026-08-08: official Roxtec product page.
About Roxtec rectangular frames
Roxtec rectangular frames form the frame portion of modular cable and pipe transit systems. Frame type and components must be matched to the opening and application.
Typical applications:
- Walls and floors
- Bulkheads and decks
- Cabinets and enclosures
