Roxtec rectangular frames

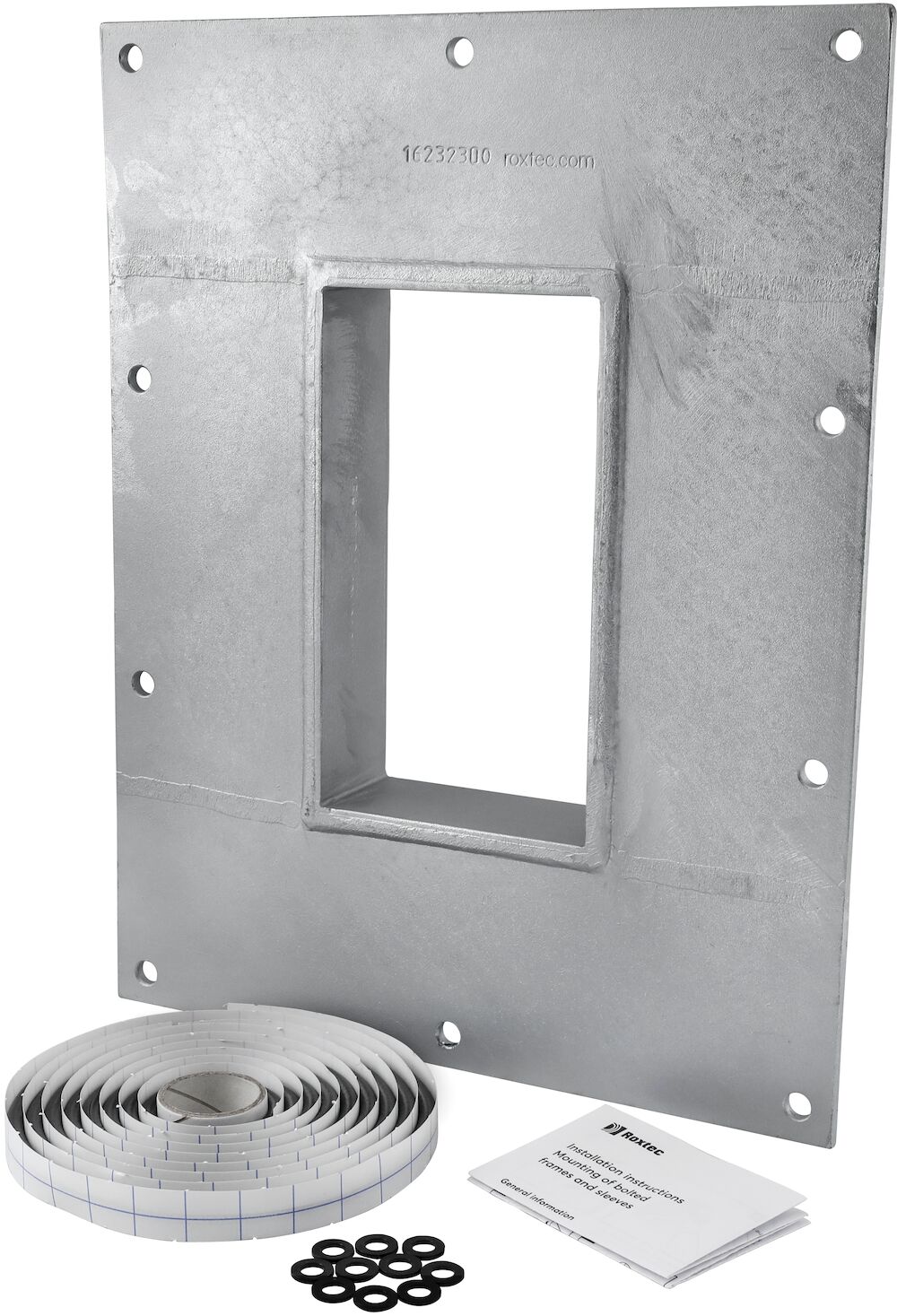

Roxtec GH FL100 frame kit

Roxtec rectangular frames · Roxtec

The Roxtec GH FL100 frame has a 100mm wide flange to comply with minimum edge distance between bolt and opening. The GH FL100 kit includes sealing strip and washers, acting as compression stops, for a tight fit when bolted to concrete. The GH FL100 frame can be used with a GE extension frame to cover up the depth of a thick wall or floor.

Ideal for bolting to concrete structures
To be used with corresponding Roxtec components to form a complete sealing solution

Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.

Article numbers and specifications

Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.

GH 2x1 FL100 GALV KIT

Art. No. 235118

Aperture dimensions WxH (mm): 148(+5/-5) x 128(+5/-5)
External dimensions WxHxD (mm): 332.5 x 313 x 60
Frame openings: 1
Packing space (mm): 120 x 60
Weight (kg): 5.9

Authority	Rating	Division / structure	Cable	Pipe	Type approval	Status
Underwriters Laboratories Inc.	F fire T fire	Concrete Lightweight concrete	Construction Telecom	Conduit Steel	C-AJ-8309	No renewal status stated
Underwriters Laboratories Inc.	IP tightness UL/NEMA tightness	—	—	—	E496911	No renewal status stated
Underwriters Laboratories Inc.	UL/NEMA tightness	—	—	—	NITW2.E209828	No renewal status stated
Underwriters Laboratories Inc.	UL/NEMA tightness	—	—	—	NITW8.E209828	No renewal status stated
Underwriters Laboratories Inc.	F fire T fire	Concrete	Armored Construction Fiber Other Shielded Telecom Unshielded	—	XHEZ.C-AJ-3388	No renewal status stated

Roxtec GH FL100 frame kit

Article numbers and specifications

GH 2x1 FL100 GALV KIT

GH 2x2 FL100 GALV KIT

GH 2x3 FL100 GALV KIT

GH 2x4 FL100 GALV KIT

GH 2x5 FL100 GALV KIT

GH 2x6 FL100 GALV KIT

GH 4x1 FL100 GALV KIT

GH 4x2 FL100 GALV KIT

GH 4x3 FL100 GALV KIT

GH 4x4 FL100 GALV KIT

GH 4x5 FL100 GALV KIT

GH 4x6 FL100 GALV KIT

GH 6x1 FL100 GALV KIT

GH 6x2 FL100 GALV KIT

GH 6x3 FL100 GALV KIT

GH 6x4 FL100 GALV KIT

GH 6x5 FL100 GALV KIT

GH 6x6 FL100 GALV KIT

GH 8x1 FL100 GALV KIT

GH 8x2 FL100 GALV KIT

GH 8x3 FL100 GALV KIT

GH 8x4 FL100 GALV KIT

GH 8x5 FL100 GALV KIT

GH 8x6 FL100 GALV KIT

GH 2+2x1 FL100 GALV KIT

GH 2+2x2 FL100 GALV KIT

GH 2+2x3 FL100 GALV KIT

GH 2+2x4 FL100 GALV KIT

GH 2+2x5 FL100 GALV KIT

GH 2+2x6 FL100 GALV KIT

GH 4+4x1 FL100 GALV KIT

GH 4+4x2 FL100 GALV KIT

GH 4+4x3 FL100 GALV KIT

GH 4+4x4 FL100 GALV KIT

GH 4+4x5 FL100 GALV KIT

GH 4+4x6 FL100 GALV KIT

GH 6+6x1 FL100 GALV KIT

GH 6+6x2 FL100 GALV KIT

GH 6+6x3 FL100 GALV KIT

GH 6+6x4 FL100 GALV KIT

GH 6+6x5 FL100 GALV KIT

GH 6+6x6 FL100 GALV KIT

GH 8+8x1 FL100 GALV KIT

GH 8+8x2 FL100 GALV KIT

GH 8+8x3 FL100 GALV KIT

GH 8+8x4 FL100 GALV KIT

GH 8+8x5 FL100 GALV KIT

GH 8+8x6 FL100 GALV KIT

GH 2x1 FL100 AISI316 KIT

GH 2x2 FL100 AISI316 KIT

GH 2x3 FL100 AISI316 KIT

GH 2x4 FL100 AISI316 KIT

GH 2x5 FL100 AISI316 KIT

GH 2x6 FL100 AISI316 KIT

GH 4x1 FL100 AISI316 KIT

GH 4x2 FL100 AISI316 KIT

GH 4x3 FL100 AISI316 KIT

GH 4x4 FL100 AISI316 KIT

GH 4x5 FL100 AISI316 KIT

GH 4x6 FL100 AISI316 KIT

GH 6x1 FL100 AISI316 KIT

GH 6x2 FL100 AISI316 KIT

GH 6x3 FL100 AISI316 KIT

GH 6x4 FL100 AISI316 KIT

GH 6x5 FL100 AISI316 KIT

GH 6x6 FL100 AISI316 KIT

GH 8x1 FL100 AISI316 KIT

GH 8x2 FL100 AISI316 KIT

GH 8x3 FL100 AISI316 KIT

GH 8x4 FL100 AISI316 KIT

GH 8x5 FL100 AISI316 KIT

GH 8x6 FL100 AISI316 KIT

GH 2+2x1 FL100 AISI316 KIT

GH 2+2x2 FL100 AISI316 KIT

GH 2+2x3 FL100 AISI316 KIT

GH 2+2x4 FL100 AISI316 KIT

GH 2+2x5 FL100 AISI316 KIT

GH 2+2x6 FL100 AISI316 KIT
