GH BG 6x1 GALV
Art. No. 109604
- Aperture dimensions WxH (mm)
- 148(+5/-5) x 245(+5/-5)
- External dimensions WxHxD (mm)
- 252.5 x 350 x 93.6
- Frame openings
- 1
- Packing space (mm)
- 120 x 180
- Weight (kg)
- 4.45
Roxtec rectangular frames

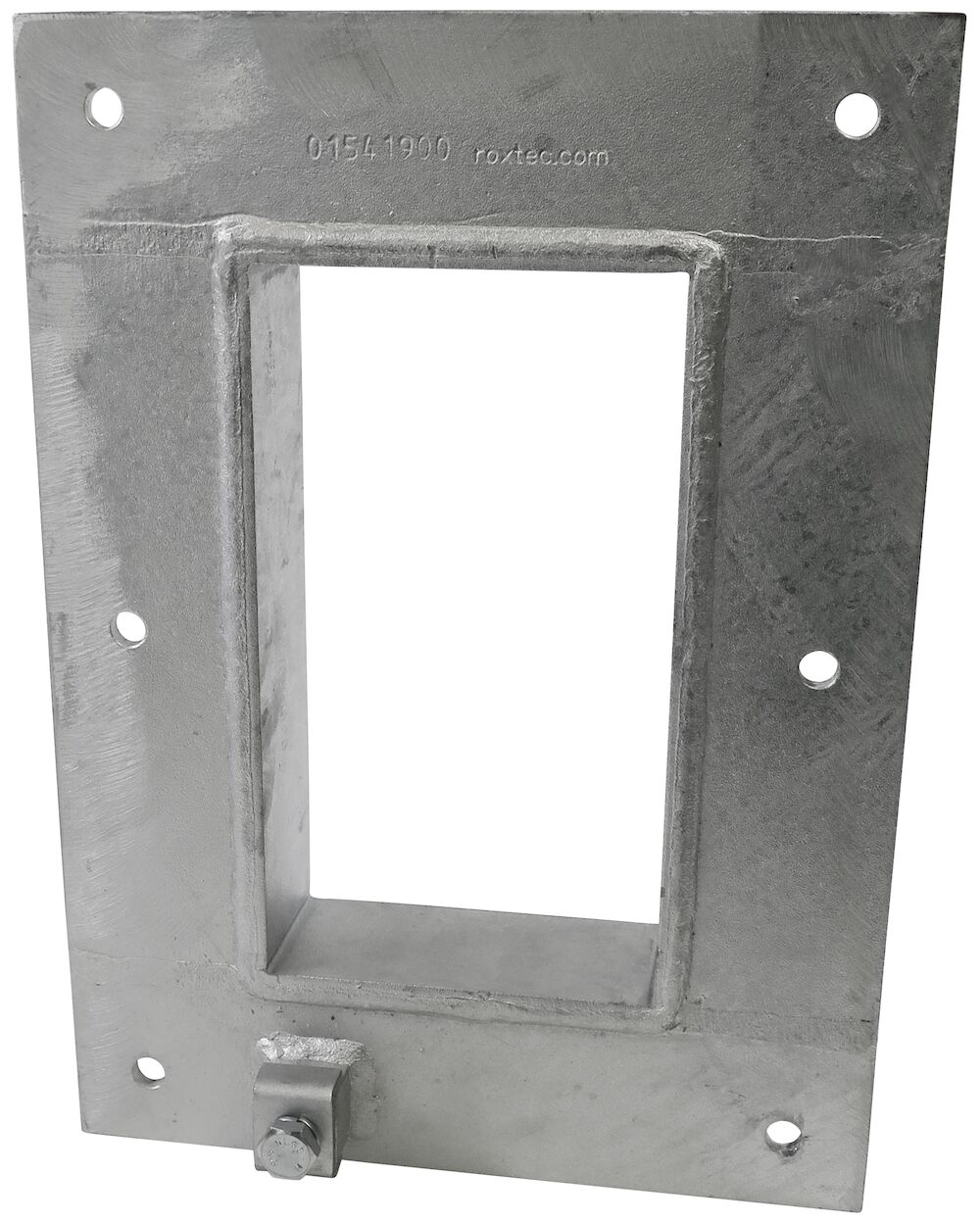

Roxtec GH BG™ frame
Roxtec rectangular frames · Roxtec
The Roxtec GH BG™ frame has integrated ground lugs to simplify connection to earthed structure. It has pre-drilled holes and standard sized flange for easy bolting to even structures. It makes it possible to maximize the amount of cables/pipes while minimizing the penetration footprint. The rectangular steel frame can be used with a GE extension frame in galvanized steel to cover the depth of a thick wall/floor.
- To be used with corresponding Roxtec components to form a complete sealing solution
- Attachment by bolting to steel or sandwich panels
Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.
Article numbers and specifications
Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.
GH BG 6x2 GALV
Art. No. 110003
- Aperture dimensions WxH (mm)
- 278(+5/-5) x 245(+5/-5)
- External dimensions WxHxD (mm)
- 383 x 350 x 93.6
- Frame openings
- 2
- Packing space (mm)
- 120 x 180
- Weight (kg)
- 7.48
GH BG 6x3 GALV
Art. No. 110015
- Aperture dimensions WxH (mm)
- 409(+5/-5) x 245(+5/-5)
- External dimensions WxHxD (mm)
- 513.5 x 350 x 93.6
- Frame openings
- 3
- Packing space (mm)
- 120 x 180
- Weight (kg)
- 10.43
GH BG 6x1 AISI316
Art. No. 122511
- Aperture dimensions WxH (mm)
- 148(+5/-5) x 245(+5/-5)
- External dimensions WxHxD (mm)
- 252.5 x 350 x 93.6
- Frame openings
- 1
- Packing space (mm)
- 120 x 180
- Weight (kg)
- 4.94
GH BG 6x2 AISI316
Art. No. 122512
- Aperture dimensions WxH (mm)
- 278(+5/-5) x 245(+5/-5)
- External dimensions WxHxD (mm)
- 383 x 350 x 93.6
- Frame openings
- 2
- Packing space (mm)
- 120 x 180
- Weight (kg)
- 6.67
GH BG 6x3 AISI316
Art. No. 110477
- Aperture dimensions WxH (mm)
- 409(+5/-5) x 245(+5/-5)
- External dimensions WxHxD (mm)
- 513.5 x 350 x 93.6
- Frame openings
- 3
- Packing space (mm)
- 120 x 180
- Weight (kg)
- 9.91
GH BG 2x1 GALV
Art. No. 122568
- Aperture dimensions WxH (mm)
- 148(+5/-5) x 128(+5/-5)
- External dimensions WxHxD (mm)
- 252.5 x 233 x 93.6
- Frame openings
- 1
- Packing space (mm)
- 120 x 60
- Weight (kg)
- 3.51
GH BG 2x2 GALV
Art. No. 122569
- Aperture dimensions WxH (mm)
- 278(+5/-5) x 128(+5/-5)
- External dimensions WxHxD (mm)
- 383 x 233 x 93.6
- Frame openings
- 2
- Packing space (mm)
- 120 x 60
- Weight (kg)
- 6.18
GH BG 2x3 GALV
Art. No. 122570
- Aperture dimensions WxH (mm)
- 409(+5/-5) x 128(+5/-5)
- External dimensions WxHxD (mm)
- 513.5 x 233 x 93.6
- Frame openings
- 3
- Packing space (mm)
- 120 x 60
- Weight (kg)
- 8.32
GH BG 2x4 GALV
Art. No. 122571
- Aperture dimensions WxH (mm)
- 539(+5/-5) x 128(+5/-5)
- External dimensions WxHxD (mm)
- 644 x 233 x 93.6
- Frame openings
- 4
- Packing space (mm)
- 120 x 60
- Weight (kg)
- 10.2
GH BG 2x5 GALV
Art. No. 122572
- Aperture dimensions WxH (mm)
- 670(+5/-5) x 128(+5/-5)
- External dimensions WxHxD (mm)
- 774.5 x 233 x 93.6
- Frame openings
- 5
- Packing space (mm)
- 120 x 60
- Weight (kg)
- 12.5
GH BG 2x6 GALV
Art. No. 122573
- Aperture dimensions WxH (mm)
- 800(+5/-5) x 128(+5/-5)
- External dimensions WxHxD (mm)
- 905 x 233 x 93.6
- Frame openings
- 6
- Packing space (mm)
- 120 x 60
- Weight (kg)
- 14.33
GH BG 2+2x1 GALV
Art. No. 122578
- Aperture dimensions WxH (mm)
- 148(+5/-5) x 241(+5/-5)
- External dimensions WxHxD (mm)
- 252.5 x 344 x 93.6
- Frame openings
- 2
- Packing space (mm)
- 120 x 60
- Weight (kg)
- 6
GH BG 2+2x2 GALV
Art. No. 122579
- Aperture dimensions WxH (mm)
- 278(+5/-5) x 241(+5/-5)
- External dimensions WxHxD (mm)
- 383 x 346 x 93.6
- Frame openings
- 4
- Packing space (mm)
- 120 x 60
- Weight (kg)
- 9.25
GH BG 2+2x3 GALV
Art. No. 122580
- Aperture dimensions WxH (mm)
- 409(+5/-5) x 241(+5/-5)
- External dimensions WxHxD (mm)
- 513.5 x 346 x 93.6
- Frame openings
- 6
- Packing space (mm)
- 120 x 60
- Weight (kg)
- 12.5
GH BG 2+2x4 GALV
Art. No. 122581
- Aperture dimensions WxH (mm)
- 539(+5/-5) x 241(+5/-5)
- External dimensions WxHxD (mm)
- 644 x 346 x 93.6
- Frame openings
- 8
- Packing space (mm)
- 120 x 60
- Weight (kg)
- 14.8
GH BG 2+2x5 GALV
Art. No. 122582
- Aperture dimensions WxH (mm)
- 670(+5/-5) x 241(+5/-5)
- External dimensions WxHxD (mm)
- 774.5 x 346 x 93.6
- Frame openings
- 10
- Packing space (mm)
- 120 x 60
- Weight (kg)
- 17.9
GH BG 2+2x6 GALV
Art. No. 122583
- Aperture dimensions WxH (mm)
- 800(+5/-5) x 241(+5/-5)
- External dimensions WxHxD (mm)
- 905 x 346 x 93.6
- Frame openings
- 12
- Packing space (mm)
- 120 x 60
- Weight (kg)
- 22.88
GH BG 4x1 GALV
Art. No. 111317
- Aperture dimensions WxH (mm)
- 148(+5/-5) x 187(+5/-5)
- External dimensions WxHxD (mm)
- 252.5 x 291.5 x 93.6
- Frame openings
- 1
- Packing space (mm)
- 120 x 120
- Weight (kg)
- 4.4
GH BG 4x2 GALV
Art. No. 110668
- Aperture dimensions WxH (mm)
- 278(+5/-5) x 187(+5/-5)
- External dimensions WxHxD (mm)
- 383 x 291.5 x 93.6
- Frame openings
- 2
- Packing space (mm)
- 120 x 120
- Weight (kg)
- 5.92
GH BG 4x3 GALV
Art. No. 122599
- Aperture dimensions WxH (mm)
- 409(+5/-5) x 187(+5/-5)
- External dimensions WxHxD (mm)
- 513.5 x 291.5 x 93.6
- Frame openings
- 3
- Packing space (mm)
- 120 x 120
- Weight (kg)
- 9.2
GH BG 4x4 GALV
Art. No. 112170
- Aperture dimensions WxH (mm)
- 539(+5/-5) x 187(+5/-5)
- External dimensions WxHxD (mm)
- 644 x 291.5 x 93.6
- Frame openings
- 4
- Packing space (mm)
- 120 x 120
- Weight (kg)
- 12
GH BG 4x5 GALV
Art. No. 122600
- Aperture dimensions WxH (mm)
- 670(+5/-5) x 187(+5/-5)
- External dimensions WxHxD (mm)
- 774.5 x 291.5 x 93.6
- Frame openings
- 5
- Packing space (mm)
- 120 x 120
- Weight (kg)
- 13.86
GH BG 4x6 GALV
Art. No. 109831
- Aperture dimensions WxH (mm)
- 800(+5/-5) x 187(+5/-5)
- External dimensions WxHxD (mm)
- 905 x 291.5 x 93.6
- Frame openings
- 6
- Packing space (mm)
- 120 x 120
- Weight (kg)
- 16.7
GH BG 4+4x1 GALV
Art. No. 122605
- Aperture dimensions WxH (mm)
- 148(+5/-5) x 358(+5/-5)
- External dimensions WxHxD (mm)
- 252.5 x 461 x 93.6
- Frame openings
- 2
- Packing space (mm)
- 120 x 120
- Weight (kg)
- 7.23
GH BG 4+4x2 GALV
Art. No. 122606
- Aperture dimensions WxH (mm)
- 278(+5/-5) x 358(+5/-5)
- External dimensions WxHxD (mm)
- 383 x 463 x 93.6
- Frame openings
- 4
- Packing space (mm)
- 120 x 120
- Weight (kg)
- 11.6
GH BG 4+4x3 GALV
Art. No. 122607
- Aperture dimensions WxH (mm)
- 409(+5/-5) x 358(+5/-5)
- External dimensions WxHxD (mm)
- 513.5 x 463 x 93.6
- Frame openings
- 6
- Packing space (mm)
- 120 x 120
- Weight (kg)
- 15.5
GH BG 4+4x4 GALV
Art. No. 122608
- Aperture dimensions WxH (mm)
- 539(+5/-5) x 358(+5/-5)
- External dimensions WxHxD (mm)
- 644 x 463 x 93.6
- Frame openings
- 8
- Packing space (mm)
- 120 x 120
- Weight (kg)
- 19.25
GH BG 4+4x5 GALV
Art. No. 122609
- Aperture dimensions WxH (mm)
- 670(+5/-5) x 358(+5/-5)
- External dimensions WxHxD (mm)
- 774.5 x 463 x 93.6
- Frame openings
- 10
- Packing space (mm)
- 120 x 120
- Weight (kg)
- 22.5
GH BG 4+4x6 GALV
Art. No. 122610
- Aperture dimensions WxH (mm)
- 800(+5/-5) x 358(+5/-5)
- External dimensions WxHxD (mm)
- 905 x 463 x 93.6
- Frame openings
- 12
- Packing space (mm)
- 120 x 120
- Weight (kg)
- 28
GH BG 6x4 GALV
Art. No. 122626
- Aperture dimensions WxH (mm)
- 539(+5/-5) x 245(+5/-5)
- External dimensions WxHxD (mm)
- 644 x 350 x 93.6
- Frame openings
- 4
- Packing space (mm)
- 120 x 180
- Weight (kg)
- 14.73
GH BG 6x5 GALV
Art. No. 122627
- Aperture dimensions WxH (mm)
- 670(+5/-5) x 245(+5/-5)
- External dimensions WxHxD (mm)
- 774.5 x 350 x 93.6
- Frame openings
- 5
- Packing space (mm)
- 120 x 180
- Weight (kg)
- 15.27
GH BG 6x6 GALV
Art. No. 122628
- Aperture dimensions WxH (mm)
- 800(+5/-5) x 245(+5/-5)
- External dimensions WxHxD (mm)
- 905 x 350 x 93.6
- Frame openings
- 6
- Packing space (mm)
- 120 x 180
- Weight (kg)
- 18.6
GH BG 6+6x1 GALV
Art. No. 122632
- Aperture dimensions WxH (mm)
- 148(+5/-5) x 475(+5/-5)
- External dimensions WxHxD (mm)
- 252.5 x 578 x 93.6
- Frame openings
- 2
- Packing space (mm)
- 120 x 180
- Weight (kg)
- 7.91
GH BG 6+6x2 GALV
Art. No. 110031
- Aperture dimensions WxH (mm)
- 278(+5/-5) x 475(+5/-5)
- External dimensions WxHxD (mm)
- 383 x 580 x 93.6
- Frame openings
- 4
- Packing space (mm)
- 120 x 180
- Weight (kg)
- 13
GH BG 6+6x3 GALV
Art. No. 109603
- Aperture dimensions WxH (mm)
- 409(+5/-5) x 475(+5/-5)
- External dimensions WxHxD (mm)
- 513.5 x 580 x 93.6
- Frame openings
- 6
- Packing space (mm)
- 120 x 180
- Weight (kg)
- 18.5
GH BG 6+6x4 GALV
Art. No. 118492
- Aperture dimensions WxH (mm)
- 539(+5/-5) x 475(+5/-5)
- External dimensions WxHxD (mm)
- 644 x 580 x 93.6
- Frame openings
- 8
- Packing space (mm)
- 120 x 180
- Weight (kg)
- 22
GH BG 6+6x5 GALV
Art. No. 111345
- Aperture dimensions WxH (mm)
- 670(+5/-5) x 475(+5/-5)
- External dimensions WxHxD (mm)
- 774.5 x 580 x 93.6
- Frame openings
- 10
- Packing space (mm)
- 120 x 180
- Weight (kg)
- 26.6
GH BG 6+6x6 GALV
Art. No. 122633
- Aperture dimensions WxH (mm)
- 800(+5/-5) x 475(+5/-5)
- External dimensions WxHxD (mm)
- 905 x 580 x 93.6
- Frame openings
- 12
- Packing space (mm)
- 120 x 180
- Weight (kg)
- 31
GH BG 8x1 GALV
Art. No. 121224
- Aperture dimensions WxH (mm)
- 148(+5/-5) x 305(+5/-5)
- External dimensions WxHxD (mm)
- 252.5 x 410 x 93.6
- Frame openings
- 1
- Packing space (mm)
- 120 x 240
- Weight (kg)
- 5.22
GH BG 8x2 GALV
Art. No. 116088
- Aperture dimensions WxH (mm)
- 278(+5/-5) x 305(+5/-5)
- External dimensions WxHxD (mm)
- 383 x 410 x 93.6
- Frame openings
- 2
- Packing space (mm)
- 120 x 240
- Weight (kg)
- 8.76
GH BG 8x3 GALV
Art. No. 110838
- Aperture dimensions WxH (mm)
- 409(+5/-5) x 305(+5/-5)
- External dimensions WxHxD (mm)
- 513.5 x 410 x 93.6
- Frame openings
- 3
- Packing space (mm)
- 120 x 240
- Weight (kg)
- 12
GH BG 8x4 GALV
Art. No. 111344
- Aperture dimensions WxH (mm)
- 539(+5/-5) x 305(+5/-5)
- External dimensions WxHxD (mm)
- 644 x 410 x 93.6
- Frame openings
- 4
- Packing space (mm)
- 120 x 240
- Weight (kg)
- 14.6
GH BG 8x5 GALV
Art. No. 152221
- Aperture dimensions WxH (mm)
- 670(+5/-5) x 305(+5/-5)
- External dimensions WxHxD (mm)
- 774.5 x 410 x 93.6
- Frame openings
- 5
- Packing space (mm)
- 120 x 240
- Weight (kg)
- 16.68
GH BG 8x6 GALV
Art. No. 122650
- Aperture dimensions WxH (mm)
- 800(+5/-5) x 305(+5/-5)
- External dimensions WxHxD (mm)
- 905 x 410 x 93.6
- Frame openings
- 6
- Packing space (mm)
- 120 x 240
- Weight (kg)
- 22.89
GH BG 8+8x1 GALV
Art. No. 122655
- Aperture dimensions WxH (mm)
- 148(+5/-5) x 595(+5/-5)
- External dimensions WxHxD (mm)
- 252.5 x 698 x 93.6
- Frame openings
- 2
- Packing space (mm)
- 120 x 240
- Weight (kg)
- 9.45
GH BG 8+8x2 GALV
Art. No. 121225
- Aperture dimensions WxH (mm)
- 278(+5/-5) x 595(+5/-5)
- External dimensions WxHxD (mm)
- 383 x 700 x 93.6
- Frame openings
- 4
- Packing space (mm)
- 120 x 240
- Weight (kg)
- 18.04
GH BG 8+8x3 GALV
Art. No. 122656
- Aperture dimensions WxH (mm)
- 409(+5/-5) x 595(+5/-5)
- External dimensions WxHxD (mm)
- 513.5 x 700 x 93.6
- Frame openings
- 6
- Packing space (mm)
- 120 x 240
- Weight (kg)
- 22.83
GH BG 8+8x4 GALV
Art. No. 122657
- Aperture dimensions WxH (mm)
- 539(+5/-5) x 595(+5/-5)
- External dimensions WxHxD (mm)
- 644 x 700 x 93.6
- Frame openings
- 8
- Packing space (mm)
- 120 x 240
- Weight (kg)
- 29.45
GH BG 8+8x5 GALV
Art. No. 122658
- Aperture dimensions WxH (mm)
- 670(+5/-5) x 595(+5/-5)
- External dimensions WxHxD (mm)
- 774.5 x 700 x 93.6
- Frame openings
- 10
- Packing space (mm)
- 120 x 240
- Weight (kg)
- 31
GH BG 8+8x6 GALV
Art. No. 122659
- Aperture dimensions WxH (mm)
- 800(+5/-5) x 595(+5/-5)
- External dimensions WxHxD (mm)
- 905 x 700 x 93.6
- Frame openings
- 12
- Packing space (mm)
- 120 x 240
- Weight (kg)
- 35
GH BG 2x1 AISI316
Art. No. 122450
- Aperture dimensions WxH (mm)
- 148(+5/-5) x 128(+5/-5)
- External dimensions WxHxD (mm)
- 252.5 x 233 x 93.6
- Frame openings
- 1
- Packing space (mm)
- 120 x 60
- Weight (kg)
- 3.62
GH BG 2x2 AISI316
Art. No. 122451
- Aperture dimensions WxH (mm)
- 278(+5/-5) x 128(+5/-5)
- External dimensions WxHxD (mm)
- 383 x 233 x 93.6
- Frame openings
- 2
- Packing space (mm)
- 120 x 60
- Weight (kg)
- 5.69
GH BG 2x3 AISI316
Art. No. 122452
- Aperture dimensions WxH (mm)
- 409(+5/-5) x 128(+5/-5)
- External dimensions WxHxD (mm)
- 513.5 x 233 x 93.6
- Frame openings
- 3
- Packing space (mm)
- 120 x 60
- Weight (kg)
- 7.77
GH BG 2x4 AISI316
Art. No. 122453
- Aperture dimensions WxH (mm)
- 539(+5/-5) x 128(+5/-5)
- External dimensions WxHxD (mm)
- 644 x 233 x 93.6
- Frame openings
- 4
- Packing space (mm)
- 120 x 60
- Weight (kg)
- 10
GH BG 2x5 AISI316
Art. No. 122454
- Aperture dimensions WxH (mm)
- 670(+5/-5) x 128(+5/-5)
- External dimensions WxHxD (mm)
- 774.5 x 233 x 93.6
- Frame openings
- 5
- Packing space (mm)
- 120 x 60
- Weight (kg)
- 11.5
GH BG 2x6 AISI316
Art. No. 122455
- Aperture dimensions WxH (mm)
- 800(+5/-5) x 128(+5/-5)
- External dimensions WxHxD (mm)
- 905 x 233 x 93.6
- Frame openings
- 6
- Packing space (mm)
- 120 x 60
- Weight (kg)
- 14
GH BG 2+2x1 AISI316
Art. No. 122460
- Aperture dimensions WxH (mm)
- 148(+5/-5) x 241(+5/-5)
- External dimensions WxHxD (mm)
- 252.5 x 344 x 93.6
- Frame openings
- 2
- Packing space (mm)
- 120 x 60
- Weight (kg)
- 5.63
GH BG 2+2x2 AISI316
Art. No. 122461
- Aperture dimensions WxH (mm)
- 278(+5/-5) x 241(+5/-5)
- External dimensions WxHxD (mm)
- 383 x 346 x 93.6
- Frame openings
- 4
- Packing space (mm)
- 120 x 60
- Weight (kg)
- 9.02
GH BG 2+2x3 AISI316
Art. No. 122462
- Aperture dimensions WxH (mm)
- 409(+5/-5) x 241(+5/-5)
- External dimensions WxHxD (mm)
- 513.5 x 346 x 93.6
- Frame openings
- 6
- Packing space (mm)
- 120 x 60
- Weight (kg)
- 11.9
GH BG 2+2x4 AISI316
Art. No. 122463
- Aperture dimensions WxH (mm)
- 539(+5/-5) x 241(+5/-5)
- External dimensions WxHxD (mm)
- 644 x 346 x 93.6
- Frame openings
- 8
- Packing space (mm)
- 120 x 60
- Weight (kg)
- 15.2
GH BG 2+2x5 AISI316
Art. No. 122464
- Aperture dimensions WxH (mm)
- 670(+5/-5) x 241(+5/-5)
- External dimensions WxHxD (mm)
- 774.5 x 346 x 93.6
- Frame openings
- 10
- Packing space (mm)
- 120 x 60
- Weight (kg)
- 18.4
GH BG 2+2x6 AISI316
Art. No. 122465
- Aperture dimensions WxH (mm)
- 800(+5/-5) x 241(+5/-5)
- External dimensions WxHxD (mm)
- 905 x 346 x 93.6
- Frame openings
- 12
- Packing space (mm)
- 120 x 60
- Weight (kg)
- 21.6
GH BG 4x1 AISI316
Art. No. 122481
- Aperture dimensions WxH (mm)
- 148(+5/-5) x 187(+5/-5)
- External dimensions WxHxD (mm)
- 252.5 x 291.5 x 93.6
- Frame openings
- 1
- Packing space (mm)
- 120 x 120
- Weight (kg)
- 4.26
GH BG 4x2 AISI316
Art. No. 110476
- Aperture dimensions WxH (mm)
- 278(+5/-5) x 187(+5/-5)
- External dimensions WxHxD (mm)
- 383 x 291.5 x 93.6
- Frame openings
- 2
- Packing space (mm)
- 120 x 120
- Weight (kg)
- 5.28
GH BG 4x3 AISI316
Art. No. 122482
- Aperture dimensions WxH (mm)
- 409(+5/-5) x 187(+5/-5)
- External dimensions WxHxD (mm)
- 513.5 x 291.5 x 93.6
- Frame openings
- 3
- Packing space (mm)
- 120 x 120
- Weight (kg)
- 7.79
GH BG 4x4 AISI316
Art. No. 122483
- Aperture dimensions WxH (mm)
- 539(+5/-5) x 187(+5/-5)
- External dimensions WxHxD (mm)
- 644 x 291.5 x 93.6
- Frame openings
- 4
- Packing space (mm)
- 120 x 120
- Weight (kg)
- 11
GH BG 4x5 AISI316
Art. No. 122484
- Aperture dimensions WxH (mm)
- 670(+5/-5) x 187(+5/-5)
- External dimensions WxHxD (mm)
- 774.5 x 291.5 x 93.6
- Frame openings
- 5
- Packing space (mm)
- 120 x 120
- Weight (kg)
- 13
GH BG 4x6 AISI316
Art. No. 122485
- Aperture dimensions WxH (mm)
- 800(+5/-5) x 187(+5/-5)
- External dimensions WxHxD (mm)
- 905 x 291.5 x 93.6
- Frame openings
- 6
- Packing space (mm)
- 120 x 120
- Weight (kg)
- 16
GH BG 4+4x1 AISI316
Art. No. 122490
- Aperture dimensions WxH (mm)
- 148(+5/-5) x 358(+5/-5)
- External dimensions WxHxD (mm)
- 252.5 x 461 x 93.6
- Frame openings
- 2
- Packing space (mm)
- 120 x 120
- Weight (kg)
- 7
GH BG 4+4x2 AISI316
Art. No. 122491
- Aperture dimensions WxH (mm)
- 278(+5/-5) x 358(+5/-5)
- External dimensions WxHxD (mm)
- 383 x 463 x 93.6
- Frame openings
- 4
- Packing space (mm)
- 120 x 120
- Weight (kg)
- 11
GH BG 4+4x3 AISI316
Art. No. 122492
- Aperture dimensions WxH (mm)
- 409(+5/-5) x 358(+5/-5)
- External dimensions WxHxD (mm)
- 513.5 x 463 x 93.6
- Frame openings
- 6
- Packing space (mm)
- 120 x 120
- Weight (kg)
- 14.32
GH BG 4+4x4 AISI316
Art. No. 122493
- Aperture dimensions WxH (mm)
- 539(+5/-5) x 358(+5/-5)
- External dimensions WxHxD (mm)
- 644 x 463 x 93.6
- Frame openings
- 8
- Packing space (mm)
- 120 x 120
- Weight (kg)
- 18
GH BG 4+4x5 AISI316
Art. No. 122494
- Aperture dimensions WxH (mm)
- 670(+5/-5) x 358(+5/-5)
- External dimensions WxHxD (mm)
- 774.5 x 463 x 93.6
- Frame openings
- 10
- Packing space (mm)
- 120 x 120
- Weight (kg)
- 15
GH BG 4+4x6 AISI316
Art. No. 122495
- Aperture dimensions WxH (mm)
- 800(+5/-5) x 358(+5/-5)
- External dimensions WxHxD (mm)
- 905 x 463 x 93.6
- Frame openings
- 12
- Packing space (mm)
- 120 x 120
- Weight (kg)
- 25.8
GH BG 6x4 AISI316
Art. No. 122513
- Aperture dimensions WxH (mm)
- 539(+5/-5) x 245(+5/-5)
- External dimensions WxHxD (mm)
- 644 x 350 x 93.6
- Frame openings
- 4
- Packing space (mm)
- 120 x 180
- Weight (kg)
- 12.5
GH BG 6x5 AISI316
Art. No. 122514
- Aperture dimensions WxH (mm)
- 670(+5/-5) x 245(+5/-5)
- External dimensions WxHxD (mm)
- 774.5 x 350 x 93.6
- Frame openings
- 5
- Packing space (mm)
- 120 x 180
- Weight (kg)
- 15
GH BG 6x6 AISI316
Art. No. 110478
- Aperture dimensions WxH (mm)
- 800(+5/-5) x 245(+5/-5)
- External dimensions WxHxD (mm)
- 905 x 350 x 93.6
- Frame openings
- 6
- Packing space (mm)
- 120 x 180
- Weight (kg)
- 17.5
GH BG 6+6x1 AISI316
Art. No. 122519
- Aperture dimensions WxH (mm)
- 148(+5/-5) x 475(+5/-5)
- External dimensions WxHxD (mm)
- 252.5 x 578 x 93.6
- Frame openings
- 2
- Packing space (mm)
- 120 x 180
- Weight (kg)
- 8.5
GH BG 6+6x2 AISI316
Art. No. 122520
- Aperture dimensions WxH (mm)
- 278(+5/-5) x 475(+5/-5)
- External dimensions WxHxD (mm)
- 383 x 580 x 93.6
- Frame openings
- 4
- Packing space (mm)
- 120 x 180
- Weight (kg)
- 15
GH BG 6+6x3 AISI316
Art. No. 117416
- Aperture dimensions WxH (mm)
- 409(+5/-5) x 475(+5/-5)
- External dimensions WxHxD (mm)
- 513.5 x 580 x 93.6
- Frame openings
- 6
- Packing space (mm)
- 120 x 180
- Weight (kg)
- 19
GH BG 6+6x4 AISI316
Art. No. 122521
- Aperture dimensions WxH (mm)
- 539(+5/-5) x 475(+5/-5)
- External dimensions WxHxD (mm)
- 644 x 580 x 93.6
- Frame openings
- 8
- Packing space (mm)
- 120 x 180
- Weight (kg)
- 21
GH BG 6+6x5 AISI316
Art. No. 117415
- Aperture dimensions WxH (mm)
- 670(+5/-5) x 475(+5/-5)
- External dimensions WxHxD (mm)
- 774.5 x 580 x 93.6
- Frame openings
- 10
- Packing space (mm)
- 120 x 180
- Weight (kg)
- 25.4
GH BG 6+6x6 AISI316
Art. No. 122522
- Aperture dimensions WxH (mm)
- 800(+5/-5) x 475(+5/-5)
- External dimensions WxHxD (mm)
- 905 x 580 x 93.6
- Frame openings
- 12
- Packing space (mm)
- 120 x 180
- Weight (kg)
- 30
GH BG 8x1 AISI316
Art. No. 122538
- Aperture dimensions WxH (mm)
- 148(+5/-5) x 305(+5/-5)
- External dimensions WxHxD (mm)
- 252.5 x 410 x 93.6
- Frame openings
- 1
- Packing space (mm)
- 120 x 240
- Weight (kg)
- 5.66
GH BG 8x2 AISI316
Art. No. 122539
- Aperture dimensions WxH (mm)
- 278(+5/-5) x 305(+5/-5)
- External dimensions WxHxD (mm)
- 383 x 410 x 93.6
- Frame openings
- 2
- Packing space (mm)
- 120 x 240
- Weight (kg)
- 8.6
GH BG 8x3 AISI316
Art. No. 122540
- Aperture dimensions WxH (mm)
- 409(+5/-5) x 305(+5/-5)
- External dimensions WxHxD (mm)
- 513.5 x 410 x 93.6
- Frame openings
- 3
- Packing space (mm)
- 120 x 240
- Weight (kg)
- 12
GH BG 8x4 AISI316
Art. No. 122541
- Aperture dimensions WxH (mm)
- 539(+5/-5) x 305(+5/-5)
- External dimensions WxHxD (mm)
- 644 x 410 x 93.6
- Frame openings
- 4
- Packing space (mm)
- 120 x 240
- Weight (kg)
- 16.01
GH BG 8x5 AISI316
Art. No. 117414
- Aperture dimensions WxH (mm)
- 670(+5/-5) x 305(+5/-5)
- External dimensions WxHxD (mm)
- 774.5 x 410 x 93.6
- Frame openings
- 5
- Packing space (mm)
- 120 x 240
- Weight (kg)
- 17
GH BG 8x6 AISI316
Art. No. 122542
- Aperture dimensions WxH (mm)
- 800(+5/-5) x 305(+5/-5)
- External dimensions WxHxD (mm)
- 905 x 410 x 93.6
- Frame openings
- 6
- Packing space (mm)
- 120 x 240
- Weight (kg)
- 19.4
GH BG 8+8x1 AISI316
Art. No. 122547
- Aperture dimensions WxH (mm)
- 148(+5/-5) x 595(+5/-5)
- External dimensions WxHxD (mm)
- 252.5 x 698 x 93.6
- Frame openings
- 2
- Packing space (mm)
- 120 x 240
- Weight (kg)
- 9.8
GH BG 8+8x2 AISI316
Art. No. 122548
- Aperture dimensions WxH (mm)
- 278(+5/-5) x 595(+5/-5)
- External dimensions WxHxD (mm)
- 383 x 700 x 93.6
- Frame openings
- 4
- Packing space (mm)
- 120 x 240
- Weight (kg)
- 14.4
GH BG 8+8x3 AISI316
Art. No. 122549
- Aperture dimensions WxH (mm)
- 409(+5/-5) x 595(+5/-5)
- External dimensions WxHxD (mm)
- 513.5 x 700 x 93.6
- Frame openings
- 6
- Packing space (mm)
- 120 x 240
- Weight (kg)
- 20
GH BG 8+8x4 AISI316
Art. No. 122550
- Aperture dimensions WxH (mm)
- 539(+5/-5) x 595(+5/-5)
- External dimensions WxHxD (mm)
- 644 x 700 x 93.6
- Frame openings
- 8
- Packing space (mm)
- 120 x 240
- Weight (kg)
- 24
GH BG 8+8x5 AISI316
Art. No. 122551
- Aperture dimensions WxH (mm)
- 670(+5/-5) x 595(+5/-5)
- External dimensions WxHxD (mm)
- 774.5 x 700 x 93.6
- Frame openings
- 10
- Packing space (mm)
- 120 x 240
- Weight (kg)
- 29
GH BG 8+8x6 AISI316
Art. No. 122552
- Aperture dimensions WxH (mm)
- 800(+5/-5) x 595(+5/-5)
- External dimensions WxHxD (mm)
- 905 x 700 x 93.6
- Frame openings
- 12
- Packing space (mm)
- 120 x 240
- Weight (kg)
- 35
Reference documents
These links open current files hosted by Roxtec. Check the source document revision before use.
- MOUNTING OF BOLTED FRAMES AND SLEEVES (en) pdf (manufacturer document)
- APERTURE DIMENSIONS G SERIES (en) pdf (manufacturer document)
- RECTANGULAR RM SYSTEMS (en) pdf (manufacturer document)
- S1029977 GH BG FRAME +COMBINATION PDF (manufacturer document)
- S1029979 GH BG FRAME SINGLE AND COMBINATION PDF (manufacturer document)
- S1039144 GH BG FRAME +SINGLE FRAME PDF (manufacturer document)
Source-listed certificates
Certificate rows reproduce factual source fields. They do not confirm applicability to a specific assembly. Open the source record and ask AMFSS to check the application.
| Authority | Rating | Division / structure | Cable | Pipe | Type approval | Status |
|---|---|---|---|---|---|---|
| CSA | IP tightness UL/NEMA tightness | — | Other | Copper Steel | 1333944 | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Concrete Lightweight concrete | Construction Telecom | Conduit Steel | C-AJ-8309 | No renewal status stated |
| Underwriters Laboratories Inc. | IP tightness UL/NEMA tightness | — | — | — | E496911 | No renewal status stated |
| Factory Mutual Approval | F fire T fire | Gypsum | Other | — | FM Fire Stop Design 635 | No renewal status stated |
| Factory Mutual Approval | F fire T fire | Gypsum | Other | — | FM Fire Stop Design 638 | No renewal status stated |
| Factory Mutual Approval | F fire T fire | — | Other | — | FM Fire Stop Design 640 | No renewal status stated |
| Factory Mutual Approval | F fire T fire | Gypsum | Other | — | FM Fire Stop Design 642 | No renewal status stated |
| Underwriters Laboratories Inc. | UL/NEMA tightness | — | — | — | NITW2.E209828 | No renewal status stated |
| Underwriters Laboratories Inc. | UL/NEMA tightness | — | — | — | NITW8.E209828 | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Concrete Lightweight concrete | — | Conduit Steel | W-J-1301 | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Concrete Lightweight concrete | Fiber Telecom | — | W-J-3245 | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Concrete Lightweight concrete | Fiber Telecom | — | W-J-3246 | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Concrete Lightweight concrete | Armored Construction | — | W-J-3247 | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Concrete Lightweight concrete | Armored Construction | — | W-J-3250 | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Concrete Lightweight concrete | Armored Construction | — | W-J-3252 | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Concrete Lightweight concrete | Armored Construction | — | W-J-3254 | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Concrete Lightweight concrete | Construction Telecom | — | W-J-8076 | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Concrete Lightweight concrete | Armored Construction Telecom | Conduit Steel | W-J-8088 | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Gypsum | Armored Construction Other | — | W-L-3359 | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Gypsum | Armored Construction Other | — | W-L-3362 | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Gypsum | Armored Construction Other | — | W-L-3364 | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Gypsum | Armored Construction Other | — | W-L-3366 | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Sandwich | Construction Fiber Telecom | Conduit Steel | W-N-8002 | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Concrete | Other Telecom | — | XHEZ.C-AJ-3160 | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Concrete | Armored Construction Fiber Other Shielded Telecom Unshielded | — | XHEZ.C-AJ-3388 | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Concrete | Other Telecom | — | XHEZ.W-J-3052 | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Gypsum | Fiber Other Telecom | — | XHEZ.W-L-3114 | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Gypsum | Fiber Other Telecom | — | XHEZ.W-L-3115 | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Gypsum | Armored Construction Other | — | XHEZ.W-L-3485 | No renewal status stated |
Source checked 2026-08-08: official Roxtec product page.
About Roxtec rectangular frames
Roxtec rectangular frames form the frame portion of modular cable and pipe transit systems. Frame type and components must be matched to the opening and application.
Typical applications:
- Walls and floors
- Bulkheads and decks
- Cabinets and enclosures
Not sure this is the right product? Compare the Roxtec rectangular frames family or describe your application.
