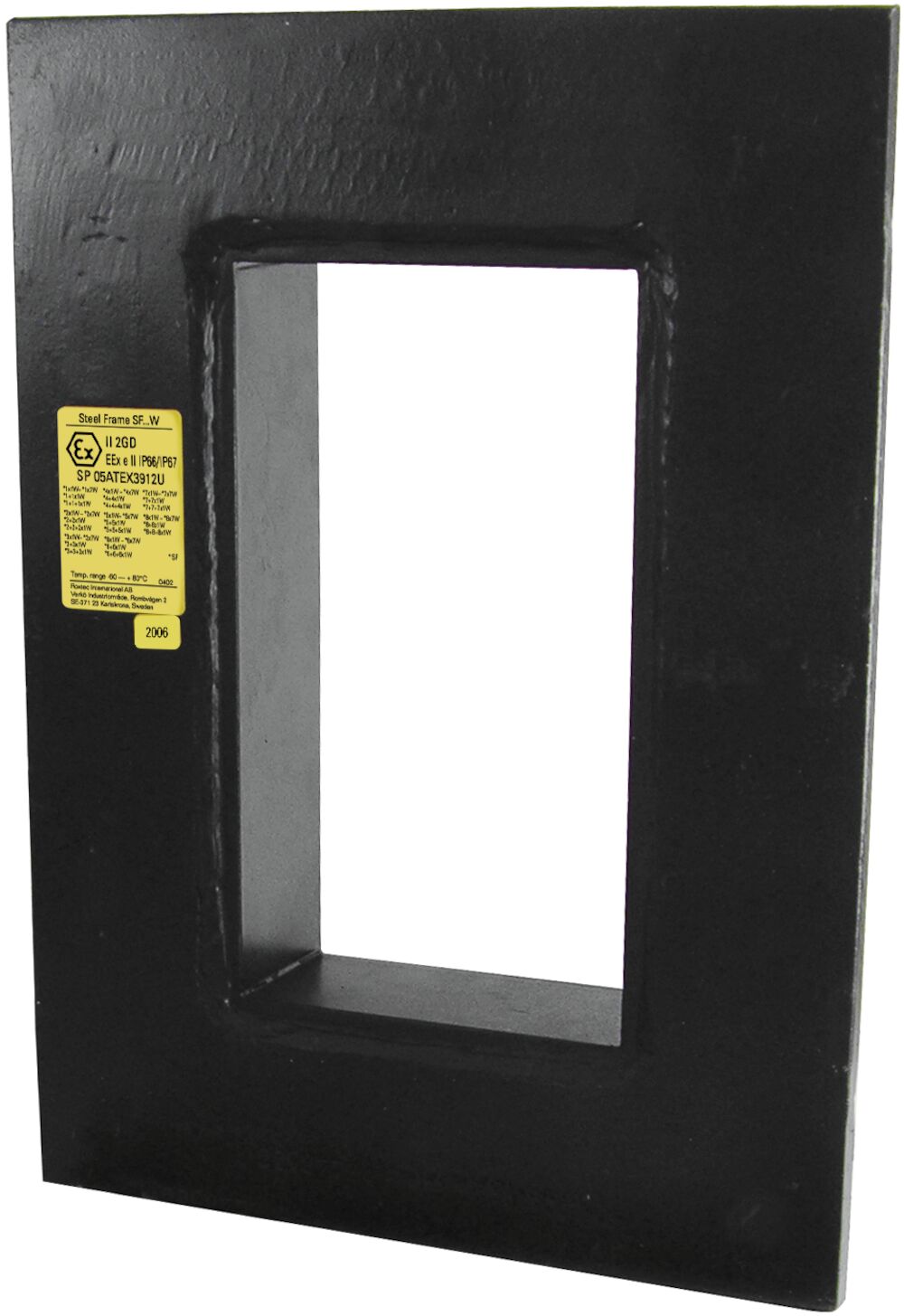

Roxtec G welded Ex frame

Roxtec rectangular frames · Roxtec

The Roxtec G…W Ex metal frame with flange is available with a single opening or in combinations with several openings in width and/or height. The G…W Ex frame is approved for use in potentially explosive atmospheres and hazardous locations.

To be used with corresponding Roxtec components to form a complete sealing solution
Attachment by welding

Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.

Article numbers and specifications

Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.

G 6x1 W Ex PRIMED

Art. No. 159116

Aperture dimensions WxH (mm): 188(+15/-15) x 290(+15/-15)
External dimensions WxHxD (mm): 252.5 x 350 x 60
Frame openings: 1
Packing space (mm): 120 x 180
Weight (kg): 4.8

Quote this article number

G 6x2 W Ex PRIMED

Art. No. 163091

Aperture dimensions WxH (mm): 318(+15/-15) x 290(+15/-15)
External dimensions WxHxD (mm): 383 x 350 x 60
Frame openings: 2
Packing space (mm): 120 x 180
Weight (kg): 7.5

Quote this article number

G 6x3 W Ex PRIMED

Art. No. 163092

Aperture dimensions WxH (mm): 449(+15/-15) x 290(+15/-15)
External dimensions WxHxD (mm): 513.5 x 350 x 60
Frame openings: 3
Packing space (mm): 120 x 180
Weight (kg): 10.15

Quote this article number

G 6x1 W Ex AISI316

Art. No. 125163

Aperture dimensions WxH (mm): 188(+15/-15) x 290(+15/-15)
External dimensions WxHxD (mm): 252.5 x 350 x 60
Frame openings: 1
Packing space (mm): 120 x 180
Weight (kg): 4.8

Quote this article number

G 6x2 W Ex AISI316

Art. No. 105258

Aperture dimensions WxH (mm): 318(+15/-15) x 290(+15/-15)
External dimensions WxHxD (mm): 383 x 350 x 60
Frame openings: 2
Packing space (mm): 120 x 180
Weight (kg): 7.29

Quote this article number

G 6x3 W Ex AISI316

Art. No. 109887

Aperture dimensions WxH (mm): 449(+15/-15) x 290(+15/-15)
External dimensions WxHxD (mm): 513.5 x 350 x 60
Frame openings: 3
Packing space (mm): 120 x 180
Weight (kg): 9.9

Quote this article number

G 2x1 W Ex PRIMED

Art. No. 111124

Aperture dimensions WxH (mm): 188(+15/-15) x 173(+15/-15)
External dimensions WxHxD (mm): 252.5 x 233 x 60
Frame openings: 1
Packing space (mm): 120 x 60
Weight (kg): 3.54

Quote this article number

G 2x2 W Ex PRIMED

Art. No. 163016

Aperture dimensions WxH (mm): 318(+15/-15) x 173(+15/-15)
External dimensions WxHxD (mm): 383 x 233 x 60
Frame openings: 2
Packing space (mm): 120 x 60
Weight (kg): 5.4

Quote this article number

G 2x3 W Ex PRIMED

Art. No. 163017

Aperture dimensions WxH (mm): 449(+15/-15) x 173(+15/-15)
External dimensions WxHxD (mm): 513.5 x 233 x 60
Frame openings: 3
Packing space (mm): 120 x 60
Weight (kg): 8

Quote this article number

G 2x4 W Ex PRIMED

Art. No. 163018

Aperture dimensions WxH (mm): 579(+15/-15) x 173(+15/-15)
External dimensions WxHxD (mm): 644 x 233 x 60
Frame openings: 4
Packing space (mm): 120 x 60
Weight (kg): 9.2

Quote this article number

G 2x5 W Ex PRIMED

Art. No. 163019

Aperture dimensions WxH (mm): 710(+15/-15) x 173(+15/-15)
External dimensions WxHxD (mm): 774.5 x 233 x 60
Frame openings: 5
Packing space (mm): 120 x 60
Weight (kg): 11.2

Quote this article number

G 2+2x1 W Ex PRIMED

Art. No. 163025

Aperture dimensions WxH (mm): 188(+15/-15) x 284(+15/-15)
External dimensions WxHxD (mm): 252.5 x 344 x 60
Frame openings: 2
Packing space (mm): 120 x 60
Weight (kg): 5.2

Quote this article number

G 2+2x2 W Ex PRIMED

Art. No. 163026

Aperture dimensions WxH (mm): 318(+15/-15) x 284(+15/-15)
External dimensions WxHxD (mm): 383 x 346 x 60
Frame openings: 4
Packing space (mm): 120 x 60
Weight (kg): 8.5

Quote this article number

G 2+2x3 W Ex PRIMED

Art. No. 163027

Aperture dimensions WxH (mm): 449(+15/-15) x 284(+15/-15)
External dimensions WxHxD (mm): 513.5 x 346 x 60
Frame openings: 6
Packing space (mm): 120 x 60
Weight (kg): 11.6

Quote this article number

G 2+2x4 W Ex PRIMED

Art. No. 163028

Aperture dimensions WxH (mm): 579(+15/-15) x 284(+15/-15)
External dimensions WxHxD (mm): 644 x 346 x 60
Frame openings: 8
Packing space (mm): 120 x 60
Weight (kg): 14.8

Quote this article number

G 4x1 W Ex PRIMED

Art. No. 111123

Aperture dimensions WxH (mm): 188(+15/-15) x 232(+15/-15)
External dimensions WxHxD (mm): 252.5 x 291.5 x 60
Frame openings: 1
Packing space (mm): 120 x 120
Weight (kg): 4.1

Quote this article number

G 4x2 W Ex PRIMED

Art. No. 125128

Aperture dimensions WxH (mm): 318(+15/-15) x 232(+15/-15)
External dimensions WxHxD (mm): 383 x 291.5 x 60
Frame openings: 2
Packing space (mm): 120 x 120
Weight (kg): 6.4

Quote this article number

G 4x3 W Ex PRIMED

Art. No. 163054

Aperture dimensions WxH (mm): 449(+15/-15) x 232(+15/-15)
External dimensions WxHxD (mm): 513.5 x 291.5 x 60
Frame openings: 3
Packing space (mm): 120 x 120
Weight (kg): 8.7

Quote this article number

G 4x4 W Ex PRIMED

Art. No. 163055

Aperture dimensions WxH (mm): 579(+15/-15) x 232(+15/-15)
External dimensions WxHxD (mm): 644 x 291.5 x 60
Frame openings: 4
Packing space (mm): 120 x 120
Weight (kg): 10.7

Quote this article number

G 4x5 W Ex PRIMED

Art. No. 163056

Aperture dimensions WxH (mm): 710(+15/-15) x 232(+15/-15)
External dimensions WxHxD (mm): 774.5 x 291.5 x 60
Frame openings: 5
Packing space (mm): 120 x 120
Weight (kg): 12.9

Quote this article number

G 4+4x1 W Ex PRIMED

Art. No. 163062

Aperture dimensions WxH (mm): 188(+15/-15) x 401(+15/-15)
External dimensions WxHxD (mm): 252.5 x 461 x 60
Frame openings: 2
Packing space (mm): 120 x 120
Weight (kg): 6.5

Quote this article number

G 4+4x2 W Ex PRIMED

Art. No. 163063

Aperture dimensions WxH (mm): 318(+15/-15) x 401(+15/-15)
External dimensions WxHxD (mm): 383 x 463 x 60
Frame openings: 4
Packing space (mm): 120 x 120
Weight (kg): 1

Quote this article number

G 4+4x3 W Ex PRIMED

Art. No. 163064

Aperture dimensions WxH (mm): 449(+15/-15) x 401(+15/-15)
External dimensions WxHxD (mm): 513.5 x 463 x 60
Frame openings: 6
Packing space (mm): 120 x 120
Weight (kg): 14.4

Quote this article number

G 4+4x4 W Ex PRIMED

Art. No. 163065

Aperture dimensions WxH (mm): 579(+15/-15) x 401(+15/-15)
External dimensions WxHxD (mm): 644 x 463 x 60
Frame openings: 8
Packing space (mm): 120 x 120
Weight (kg): 17.7

Quote this article number

G 4+4x5 W Ex PRIMED

Art. No. 163066

Aperture dimensions WxH (mm): 710(+15/-15) x 401(+15/-15)
External dimensions WxHxD (mm): 774.5 x 463 x 60
Frame openings: 10
Packing space (mm): 120 x 120
Weight (kg): 21.4

Quote this article number

G 6x4 W Ex PRIMED

Art. No. 163094

Aperture dimensions WxH (mm): 579(+15/-15) x 290(+15/-15)
External dimensions WxHxD (mm): 644 x 350 x 60
Frame openings: 4
Packing space (mm): 120 x 180
Weight (kg): 12.42

Quote this article number

G 6x5 W Ex PRIMED

Art. No. 163093

Aperture dimensions WxH (mm): 710(+15/-15) x 290(+15/-15)
External dimensions WxHxD (mm): 774.5 x 350 x 60
Frame openings: 5
Packing space (mm): 120 x 180
Weight (kg): 15.2

Quote this article number

G 6+6x1 W Ex PRIMED

Art. No. 163100

Aperture dimensions WxH (mm): 188(+15/-15) x 518(+15/-15)
External dimensions WxHxD (mm): 252.5 x 578 x 60
Frame openings: 2
Packing space (mm): 120 x 180
Weight (kg): 8.31

Quote this article number

G 6+6x2 W Ex PRIMED

Art. No. 163101

Aperture dimensions WxH (mm): 318(+15/-15) x 518(+15/-15)
External dimensions WxHxD (mm): 383 x 580 x 60
Frame openings: 4
Packing space (mm): 120 x 180
Weight (kg): 12.36

Quote this article number

G 6+6x3 W Ex PRIMED

Art. No. 163102

Aperture dimensions WxH (mm): 449(+15/-15) x 518(+15/-15)
External dimensions WxHxD (mm): 513.5 x 580 x 60
Frame openings: 6
Packing space (mm): 120 x 180
Weight (kg): 16.6

Quote this article number

G 6+6x4 W Ex PRIMED

Art. No. 163103

Aperture dimensions WxH (mm): 579(+15/-15) x 518(+15/-15)
External dimensions WxHxD (mm): 644 x 580 x 60
Frame openings: 8
Packing space (mm): 120 x 180
Weight (kg): 20.9

Quote this article number

G 6+6x5 W Ex PRIMED

Art. No. 163104

Aperture dimensions WxH (mm): 710(+15/-15) x 518(+15/-15)
External dimensions WxHxD (mm): 774.5 x 580 x 60
Frame openings: 10
Packing space (mm): 120 x 180
Weight (kg): 25.4

Quote this article number

G 8x1 W Ex PRIMED

Art. No. 111122

Aperture dimensions WxH (mm): 188(+15/-15) x 350(+15/-15)
External dimensions WxHxD (mm): 252.5 x 410 x 60
Frame openings: 1
Packing space (mm): 120 x 240
Weight (kg): 5.58

Quote this article number

G 8x2 W Ex PRIMED

Art. No. 163129

Aperture dimensions WxH (mm): 318(+15/-15) x 350(+15/-15)
External dimensions WxHxD (mm): 383 x 410 x 60
Frame openings: 2
Packing space (mm): 120 x 240
Weight (kg): 8.28

Quote this article number

G 8x3 W Ex PRIMED

Art. No. 163130

Aperture dimensions WxH (mm): 449(+15/-15) x 350(+15/-15)
External dimensions WxHxD (mm): 513.5 x 410 x 60
Frame openings: 3
Packing space (mm): 120 x 240
Weight (kg): 2

Quote this article number

G 8x4 W Ex PRIMED

Art. No. 163131

Aperture dimensions WxH (mm): 579(+15/-15) x 350(+15/-15)
External dimensions WxHxD (mm): 644 x 410 x 60
Frame openings: 4
Packing space (mm): 120 x 240
Weight (kg): 14.1

Quote this article number

G 8x5 W Ex PRIMED

Art. No. 126893

Aperture dimensions WxH (mm): 710(+15/-15) x 350(+15/-15)
External dimensions WxHxD (mm): 774.5 x 410 x 60
Frame openings: 5
Packing space (mm): 120 x 240
Weight (kg): 16.5

Quote this article number

G 8+8x1 W Ex PRIMED

Art. No. 163135

Aperture dimensions WxH (mm): 188(+15/-15) x 638(+15/-15)
External dimensions WxHxD (mm): 252.5 x 698 x 60
Frame openings: 2
Packing space (mm): 120 x 240
Weight (kg): 9.2

Quote this article number

G 8+8x2 W Ex PRIMED

Art. No. 163136

Aperture dimensions WxH (mm): 318(+15/-15) x 638(+15/-15)
External dimensions WxHxD (mm): 383 x 700 x 60
Frame openings: 4
Packing space (mm): 120 x 240
Weight (kg): 14.1

Quote this article number

G 8+8x3 W Ex PRIMED

Art. No. 163137

Aperture dimensions WxH (mm): 449(+15/-15) x 638(+15/-15)
External dimensions WxHxD (mm): 513.5 x 700 x 60
Frame openings: 6
Packing space (mm): 120 x 240
Weight (kg): 18.9

Quote this article number

G 8+8x4 W Ex PRIMED

Art. No. 163138

Aperture dimensions WxH (mm): 579(+15/-15) x 638(+15/-15)
External dimensions WxHxD (mm): 644 x 700 x 60
Frame openings: 8
Packing space (mm): 120 x 240
Weight (kg): 23.7

Quote this article number

G 2x1 W Ex AISI316

Art. No. 125161

Aperture dimensions WxH (mm): 188(+15/-15) x 173(+15/-15)
External dimensions WxHxD (mm): 252.5 x 233 x 60
Frame openings: 1
Packing space (mm): 120 x 60
Weight (kg): 3.5

Quote this article number

G 2x2 W Ex AISI316

Art. No. 163162

Aperture dimensions WxH (mm): 318(+15/-15) x 173(+15/-15)
External dimensions WxHxD (mm): 383 x 233 x 60
Frame openings: 2
Packing space (mm): 120 x 60
Weight (kg): 5.49

Quote this article number

G 2x3 W Ex AISI316

Art. No. 163163

Aperture dimensions WxH (mm): 449(+15/-15) x 173(+15/-15)
External dimensions WxHxD (mm): 513.5 x 233 x 60
Frame openings: 3
Packing space (mm): 120 x 60
Weight (kg): 4

Quote this article number

G 2x4 W Ex AISI316

Art. No. 163164

Aperture dimensions WxH (mm): 579(+15/-15) x 173(+15/-15)
External dimensions WxHxD (mm): 644 x 233 x 60
Frame openings: 4
Packing space (mm): 120 x 60
Weight (kg): 9.5

Quote this article number

G 2x5 W Ex AISI316

Art. No. 163165

Aperture dimensions WxH (mm): 710(+15/-15) x 173(+15/-15)
External dimensions WxHxD (mm): 774.5 x 233 x 60
Frame openings: 5
Packing space (mm): 120 x 60
Weight (kg): 4

Quote this article number

G 2+2x1 W Ex AISI316

Art. No. 163171

Aperture dimensions WxH (mm): 188(+15/-15) x 284(+15/-15)
External dimensions WxHxD (mm): 252.5 x 344 x 60
Frame openings: 2
Packing space (mm): 120 x 60
Weight (kg): 5.1

Quote this article number

G 2+2x2 W Ex AISI316

Art. No. 163172

Aperture dimensions WxH (mm): 318(+15/-15) x 284(+15/-15)
External dimensions WxHxD (mm): 383 x 346 x 60
Frame openings: 4
Packing space (mm): 120 x 60
Weight (kg): 8.7

Quote this article number

G 2+2x3 W Ex AISI316

Art. No. 163173

Aperture dimensions WxH (mm): 449(+15/-15) x 284(+15/-15)
External dimensions WxHxD (mm): 513.5 x 346 x 60
Frame openings: 6
Packing space (mm): 120 x 60
Weight (kg): 11.9

Quote this article number

G 2+2x4 W Ex AISI316

Art. No. 163174

Aperture dimensions WxH (mm): 579(+15/-15) x 284(+15/-15)
External dimensions WxHxD (mm): 644 x 346 x 60
Frame openings: 8
Packing space (mm): 120 x 60
Weight (kg): 15.2

Quote this article number

G 4x1 W Ex AISI316

Art. No. 105257

Aperture dimensions WxH (mm): 188(+15/-15) x 232(+15/-15)
External dimensions WxHxD (mm): 252.5 x 291.5 x 60
Frame openings: 1
Packing space (mm): 120 x 120
Weight (kg): 4.15

Quote this article number

G 4x2 W Ex AISI316

Art. No. 125162

Aperture dimensions WxH (mm): 318(+15/-15) x 232(+15/-15)
External dimensions WxHxD (mm): 383 x 291.5 x 60
Frame openings: 2
Packing space (mm): 120 x 120
Weight (kg): 6.44

Quote this article number

G 4x3 W Ex AISI316

Art. No. 163200

Aperture dimensions WxH (mm): 449(+15/-15) x 232(+15/-15)
External dimensions WxHxD (mm): 513.5 x 291.5 x 60
Frame openings: 3
Packing space (mm): 120 x 120
Weight (kg): 8.66

Quote this article number

G 4x4 W Ex AISI316

Art. No. 163201

Aperture dimensions WxH (mm): 579(+15/-15) x 232(+15/-15)
External dimensions WxHxD (mm): 644 x 291.5 x 60
Frame openings: 4
Packing space (mm): 120 x 120
Weight (kg): 11.4

Quote this article number

G 4x5 W Ex AISI316

Art. No. 163202

Aperture dimensions WxH (mm): 710(+15/-15) x 232(+15/-15)
External dimensions WxHxD (mm): 774.5 x 291.5 x 60
Frame openings: 5
Packing space (mm): 120 x 120
Weight (kg): 12.9

Quote this article number

G 4+4x1 W Ex AISI316

Art. No. 163208

Aperture dimensions WxH (mm): 188(+15/-15) x 401(+15/-15)
External dimensions WxHxD (mm): 252.5 x 461 x 60
Frame openings: 2
Packing space (mm): 120 x 120
Weight (kg): 3

Quote this article number

G 4+4x2 W Ex AISI316

Art. No. 163209

Aperture dimensions WxH (mm): 318(+15/-15) x 401(+15/-15)
External dimensions WxHxD (mm): 383 x 463 x 60
Frame openings: 4
Packing space (mm): 120 x 120
Weight (kg): 10.6

Quote this article number

G 4+4x3 W Ex AISI316

Art. No. 163210

Aperture dimensions WxH (mm): 449(+15/-15) x 401(+15/-15)
External dimensions WxHxD (mm): 513.5 x 463 x 60
Frame openings: 6
Packing space (mm): 120 x 120
Weight (kg): 14.4

Quote this article number

G 4+4x4 W Ex AISI316

Art. No. 163211

Aperture dimensions WxH (mm): 579(+15/-15) x 401(+15/-15)
External dimensions WxHxD (mm): 644 x 463 x 60
Frame openings: 8
Packing space (mm): 120 x 120
Weight (kg): 18

Quote this article number

G 4+4x5 W Ex AISI316

Art. No. 163212

Aperture dimensions WxH (mm): 710(+15/-15) x 401(+15/-15)
External dimensions WxHxD (mm): 774.5 x 463 x 60
Frame openings: 10
Packing space (mm): 120 x 120
Weight (kg): 22

Quote this article number

G 6x4 W Ex AISI316

Art. No. 163238

Aperture dimensions WxH (mm): 579(+15/-15) x 290(+15/-15)
External dimensions WxHxD (mm): 644 x 350 x 60
Frame openings: 4
Packing space (mm): 120 x 180
Weight (kg): 12.4

Quote this article number

G 6x5 W Ex AISI316

Art. No. 163237

Aperture dimensions WxH (mm): 710(+15/-15) x 290(+15/-15)
External dimensions WxHxD (mm): 774.5 x 350 x 60
Frame openings: 5
Packing space (mm): 120 x 180
Weight (kg): 14.7

Quote this article number

G 6+6x1 W Ex AISI316

Art. No. 163244

Aperture dimensions WxH (mm): 188(+15/-15) x 518(+15/-15)
External dimensions WxHxD (mm): 252.5 x 578 x 60
Frame openings: 2
Packing space (mm): 120 x 180
Weight (kg): 7.84

Quote this article number

G 6+6x2 W Ex AISI316

Art. No. 105259

Aperture dimensions WxH (mm): 318(+15/-15) x 518(+15/-15)
External dimensions WxHxD (mm): 383 x 580 x 60
Frame openings: 4
Packing space (mm): 120 x 180
Weight (kg): 12.72

Quote this article number

G 6+6x3 W Ex AISI316

Art. No. 159926

Aperture dimensions WxH (mm): 449(+15/-15) x 518(+15/-15)
External dimensions WxHxD (mm): 513.5 x 580 x 60
Frame openings: 6
Packing space (mm): 120 x 180
Weight (kg): 16.8

Quote this article number

G 6+6x4 W Ex AISI316

Art. No. 163245

Aperture dimensions WxH (mm): 579(+15/-15) x 518(+15/-15)
External dimensions WxHxD (mm): 644 x 580 x 60
Frame openings: 8
Packing space (mm): 120 x 180
Weight (kg): 21

Quote this article number

G 6+6x5 W Ex AISI316

Art. No. 163246

Aperture dimensions WxH (mm): 710(+15/-15) x 518(+15/-15)
External dimensions WxHxD (mm): 774.5 x 580 x 60
Frame openings: 10
Packing space (mm): 120 x 180
Weight (kg): 25.6

Quote this article number

G 8x1 W Ex AISI316

Art. No. 110498

Aperture dimensions WxH (mm): 188(+15/-15) x 350(+15/-15)
External dimensions WxHxD (mm): 252.5 x 410 x 60
Frame openings: 1
Packing space (mm): 120 x 240
Weight (kg): 5.6

Quote this article number

G 8x2 W Ex AISI316

Art. No. 155358

Aperture dimensions WxH (mm): 318(+15/-15) x 350(+15/-15)
External dimensions WxHxD (mm): 383 x 410 x 60
Frame openings: 2
Packing space (mm): 120 x 240
Weight (kg): 8.3

Quote this article number

G 8x3 W Ex AISI316

Art. No. 163270

Aperture dimensions WxH (mm): 449(+15/-15) x 350(+15/-15)
External dimensions WxHxD (mm): 513.5 x 410 x 60
Frame openings: 3
Packing space (mm): 120 x 240
Weight (kg): 11.26

Quote this article number

G 8x4 W Ex AISI316

Art. No. 163271

Aperture dimensions WxH (mm): 579(+15/-15) x 350(+15/-15)
External dimensions WxHxD (mm): 644 x 410 x 60
Frame openings: 4
Packing space (mm): 120 x 240
Weight (kg): 13.9

Quote this article number

G 8x5 W Ex AISI316

Art. No. 126896

Aperture dimensions WxH (mm): 710(+15/-15) x 350(+15/-15)
External dimensions WxHxD (mm): 774.5 x 410 x 60
Frame openings: 5
Packing space (mm): 120 x 240
Weight (kg): 16.7

Quote this article number

G 8+8x1 W Ex AISI316

Art. No. 152894

Aperture dimensions WxH (mm): 188(+15/-15) x 638(+15/-15)
External dimensions WxHxD (mm): 252.5 x 698 x 60
Frame openings: 2
Packing space (mm): 120 x 240
Weight (kg): 9.4

Quote this article number

G 8+8x2 W Ex AISI316

Art. No. 163275

Aperture dimensions WxH (mm): 318(+15/-15) x 638(+15/-15)
External dimensions WxHxD (mm): 383 x 700 x 60
Frame openings: 4
Packing space (mm): 120 x 240
Weight (kg): 14.53

Quote this article number

G 8+8x3 W Ex AISI316

Art. No. 163276

Aperture dimensions WxH (mm): 449(+15/-15) x 638(+15/-15)
External dimensions WxHxD (mm): 513.5 x 700 x 60
Frame openings: 6
Packing space (mm): 120 x 240
Weight (kg): 19.3

Quote this article number

G 8+8x4 W Ex AISI316

Art. No. 107483

Aperture dimensions WxH (mm): 579(+15/-15) x 638(+15/-15)
External dimensions WxHxD (mm): 644 x 700 x 60
Frame openings: 8
Packing space (mm): 120 x 240
Weight (kg): 24.3

Quote this article number

Reference documents

These links open current files hosted by Roxtec. Check the source document revision before use.

FRAMES Ex (en) pdf (manufacturer document)
S1016551 G Ex FRAME SINGLE AND COMBINATION FRAME PDF (manufacturer document)
S1511958 G...W Ex FRAME SINGLE AND COMBINATION FRAME PDF (manufacturer document)
S1511959 G...W Ex FRAME +SINGLE AND +COMBINATION FRAME PDF (manufacturer document)

Source-listed certificates

Certificate rows reproduce factual source fields. They do not confirm applicability to a specific assembly. Open the source record and ask AMFSS to check the application.

Authority	Rating	Division / structure	Cable	Pipe	Type approval	Status
CSA	IP tightness UL/NEMA tightness	—	Other	Copper Steel	1333944	No renewal status stated
KTL Korea Testing Laboratory	Ex	—	Other	Conduit	15-KB4BO-0089X	No renewal status stated
CSA	Ex	—	Armored Other	Conduit	2254189	No renewal status stated
SGS	Ex	—	Armored Other	Conduit	25-08-162750/E25-08-169397/NB0002	No renewal status stated
CSA	Ex	—	Armored Other	Conduit	CSAE 23UKEX1065U	No renewal status stated
Roxtec International AB	Ex	—	—	—	DoC RM and HD Ex	No renewal status stated
Nemko	Ex	—	—	—	IECEx NEM 12.0015U	No renewal status stated
DNV	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Steel	Marine	—	MEDB00003M3	No renewal status stated
DNV	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Steel	Marine	—	MERB00003M3	No renewal status stated
NCC	Ex	—	Other	Conduit	NCC 11.0267 U	No renewal status stated
Nemko	Ex	—	Other	—	Nemko 12ATEX1279U	No renewal status stated
RISE	Ex	—	—	—	RISE25ATEX0001	No renewal status stated

Source checked 2026-08-08: official Roxtec product page.

About Roxtec rectangular frames

Roxtec rectangular frames form the frame portion of modular cable and pipe transit systems. Frame type and components must be matched to the opening and application.

Typical applications:

Walls and floors
Bulkheads and decks
Cabinets and enclosures

Not sure this is the right product? Compare the Roxtec rectangular frames family or describe your application.
