Roxtec rectangular frames

Roxtec G bolted Ex frame

Roxtec rectangular frames · Roxtec

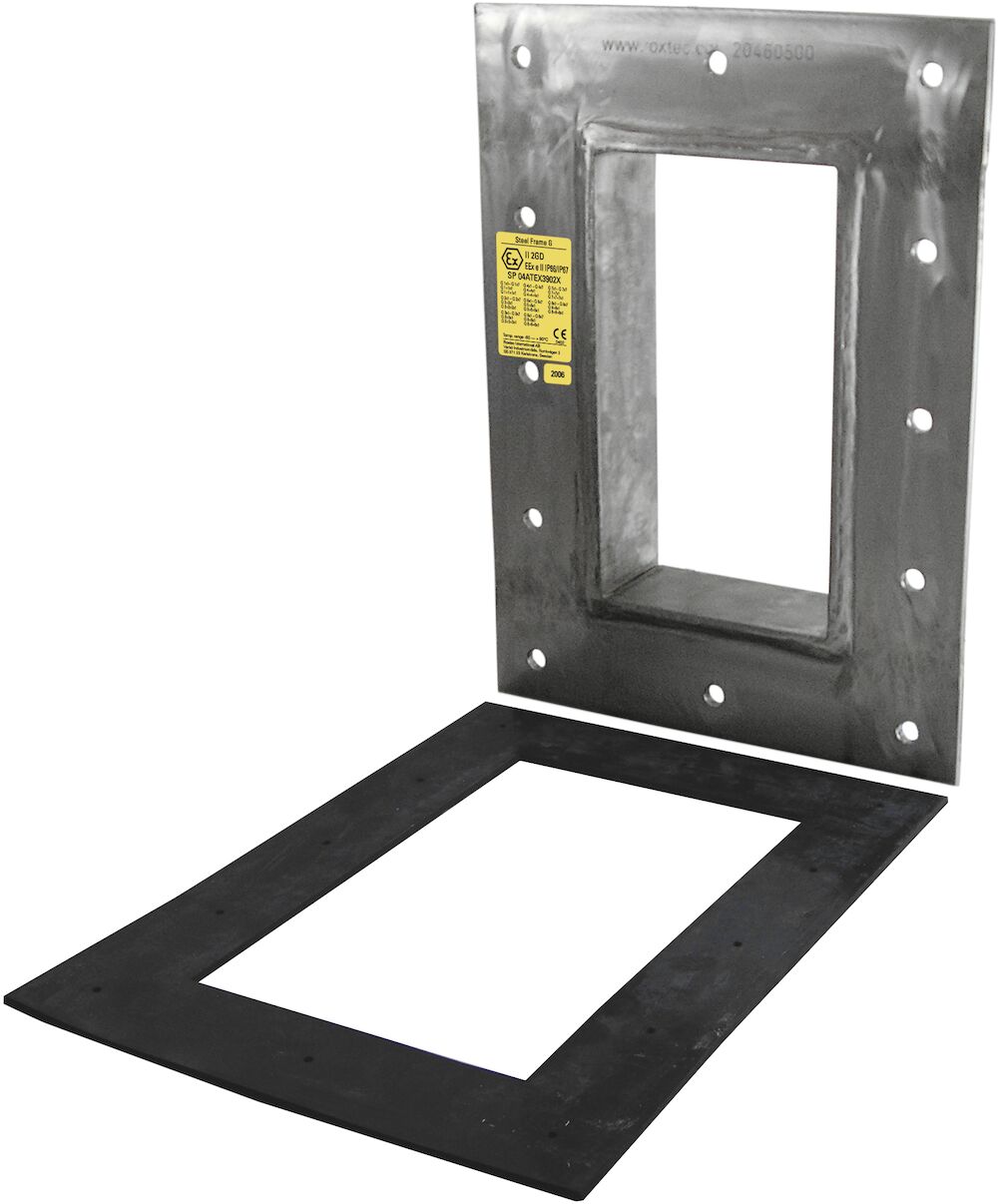

The Roxtec G Ex metal frame with flange is attached with its gasket to the structure by means of screws through pre-drilled holes in both the frame and the gasket. The G Ex frame is approved for use in potentially explosive atmospheres and hazardous locations.

To be used with corresponding Roxtec components to form a complete sealing solution
Attachment by bolting

Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.

Article numbers and specifications

Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.

G 6x1 Ex GALV

Art. No. EXG006000000115

Aperture dimensions WxH (mm): 148(+5/-5) x 245(+5/-5)
External dimensions WxHxD (mm): 252.5 x 350 x 60
Frame openings: 1
Packing space (mm): 120 x 180
Weight (kg): 4

Quote this article number

G 6x2 Ex GALV

Art. No. EXG006000000215

Aperture dimensions WxH (mm): 278(+5/-5) x 245(+5/-5)
External dimensions WxHxD (mm): 383 x 350 x 60
Frame openings: 2
Packing space (mm): 120 x 180
Weight (kg): 7.29

Quote this article number

G 6x3 Ex GALV

Art. No. EXG006000000315

Aperture dimensions WxH (mm): 409(+5/-5) x 245(+5/-5)
External dimensions WxHxD (mm): 513.5 x 350 x 60
Frame openings: 3
Packing space (mm): 120 x 180
Weight (kg): 9.81

Quote this article number

G 6x1 Ex AISI316

Art. No. EXG006000000121

Aperture dimensions WxH (mm): 148(+5/-5) x 245(+5/-5)
External dimensions WxHxD (mm): 252.5 x 350 x 60
Frame openings: 1
Packing space (mm): 120 x 180
Weight (kg): 4.77

Quote this article number

G 6x2 Ex AISI316

Art. No. EXG006000000221

Aperture dimensions WxH (mm): 278(+5/-5) x 245(+5/-5)
External dimensions WxHxD (mm): 383 x 350 x 60
Frame openings: 2
Packing space (mm): 120 x 180
Weight (kg): 7.29

Quote this article number

G 6x3 Ex AISI316

Art. No. EXG006000000321

Aperture dimensions WxH (mm): 409(+5/-5) x 245(+5/-5)
External dimensions WxHxD (mm): 513.5 x 350 x 60
Frame openings: 3
Packing space (mm): 120 x 180
Weight (kg): 9.8

Quote this article number

G 2x1 Ex GALV

Art. No. EXG002000000115

Aperture dimensions WxH (mm): 148(+5/-5) x 128(+5/-5)
External dimensions WxHxD (mm): 252.5 x 233 x 60
Frame openings: 1
Packing space (mm): 120 x 60
Weight (kg): 2.7

Quote this article number

G 2x2 Ex GALV

Art. No. EXG002000000215

Aperture dimensions WxH (mm): 278(+5/-5) x 128(+5/-5)
External dimensions WxHxD (mm): 383 x 233 x 60
Frame openings: 2
Packing space (mm): 120 x 60
Weight (kg): 5.4

Quote this article number

G 2x3 Ex GALV

Art. No. EXG002000000315

Aperture dimensions WxH (mm): 409(+5/-5) x 128(+5/-5)
External dimensions WxHxD (mm): 513.5 x 233 x 60
Frame openings: 3
Packing space (mm): 120 x 60
Weight (kg): 7.37

Quote this article number

G 2x4 Ex GALV

Art. No. EXG002000000415

Aperture dimensions WxH (mm): 539(+5/-5) x 128(+5/-5)
External dimensions WxHxD (mm): 644 x 233 x 60
Frame openings: 4
Packing space (mm): 120 x 60
Weight (kg): 10

Quote this article number

G 2x5 Ex GALV

Art. No. EXG002000000515

Aperture dimensions WxH (mm): 670(+5/-5) x 128(+5/-5)
External dimensions WxHxD (mm): 774.5 x 233 x 60
Frame openings: 5
Packing space (mm): 120 x 60
Weight (kg): 11.2

Quote this article number

G 2+2x1 Ex GALV

Art. No. EXG002200000115

Aperture dimensions WxH (mm): 148(+5/-5) x 241(+5/-5)
External dimensions WxHxD (mm): 252.5 x 344 x 60
Frame openings: 2
Packing space (mm): 120 x 60
Weight (kg): 5.8

Quote this article number

G 2+2x2 Ex GALV

Art. No. EXG002200000215

Aperture dimensions WxH (mm): 278(+5/-5) x 241(+5/-5)
External dimensions WxHxD (mm): 383 x 346 x 60
Frame openings: 4
Packing space (mm): 120 x 60
Weight (kg): 9.33

Quote this article number

G 2+2x3 Ex GALV

Art. No. 115633

Aperture dimensions WxH (mm): 409(+5/-5) x 241(+5/-5)
External dimensions WxHxD (mm): 513.5 x 346 x 60
Frame openings: 6
Packing space (mm): 120 x 60
Weight (kg): 12.7

Quote this article number

G 2+2x4 Ex GALV

Art. No. 115634

Aperture dimensions WxH (mm): 539(+5/-5) x 241(+5/-5)
External dimensions WxHxD (mm): 644 x 346 x 60
Frame openings: 8
Packing space (mm): 120 x 60
Weight (kg): 16.5

Quote this article number

G 4x1 Ex GALV

Art. No. EXG004000000115

Aperture dimensions WxH (mm): 148(+5/-5) x 187(+5/-5)
External dimensions WxHxD (mm): 252.5 x 291.5 x 60
Frame openings: 1
Packing space (mm): 120 x 120
Weight (kg): 3.5

Quote this article number

G 4x2 Ex GALV

Art. No. EXG004000000215

Aperture dimensions WxH (mm): 278(+5/-5) x 187(+5/-5)
External dimensions WxHxD (mm): 383 x 291.5 x 60
Frame openings: 2
Packing space (mm): 120 x 120
Weight (kg): 6.34

Quote this article number

G 4x3 Ex GALV

Art. No. EXG004000000315

Aperture dimensions WxH (mm): 409(+5/-5) x 187(+5/-5)
External dimensions WxHxD (mm): 513.5 x 291.5 x 60
Frame openings: 3
Packing space (mm): 120 x 120
Weight (kg): 8.59

Quote this article number

G 4x4 Ex GALV

Art. No. EXG004000000415

Aperture dimensions WxH (mm): 539(+5/-5) x 187(+5/-5)
External dimensions WxHxD (mm): 644 x 291.5 x 60
Frame openings: 4
Packing space (mm): 120 x 120
Weight (kg): 10.84

Quote this article number

G 4x5 Ex GALV

Art. No. EXG004000000515

Aperture dimensions WxH (mm): 670(+5/-5) x 187(+5/-5)
External dimensions WxHxD (mm): 774.5 x 291.5 x 60
Frame openings: 5
Packing space (mm): 120 x 120
Weight (kg): 13.2

Quote this article number

G 4+4x1 Ex GALV

Art. No. EXG004400000115

Aperture dimensions WxH (mm): 148(+5/-5) x 358(+5/-5)
External dimensions WxHxD (mm): 252.5 x 461 x 60
Frame openings: 2
Packing space (mm): 120 x 120
Weight (kg): 7.32

Quote this article number

G 4+4x2 Ex GALV

Art. No. EXG004400000215

Aperture dimensions WxH (mm): 278(+5/-5) x 358(+5/-5)
External dimensions WxHxD (mm): 383 x 463 x 60
Frame openings: 4
Packing space (mm): 120 x 120
Weight (kg): 11

Quote this article number

G 4+4x3 Ex GALV

Art. No. 115673

Aperture dimensions WxH (mm): 409(+5/-5) x 358(+5/-5)
External dimensions WxHxD (mm): 513.5 x 463 x 60
Frame openings: 6
Packing space (mm): 120 x 120
Weight (kg): 15.23

Quote this article number

G 4+4x4 Ex GALV

Art. No. EXG004400000415

Aperture dimensions WxH (mm): 539(+5/-5) x 358(+5/-5)
External dimensions WxHxD (mm): 644 x 463 x 60
Frame openings: 8
Packing space (mm): 120 x 120
Weight (kg): 19

Quote this article number

G 4+4x5 Ex GALV

Art. No. EXG004400000515

Aperture dimensions WxH (mm): 670(+5/-5) x 358(+5/-5)
External dimensions WxHxD (mm): 774.5 x 463 x 60
Frame openings: 10
Packing space (mm): 120 x 120
Weight (kg): 23

Quote this article number

G 6x4 Ex GALV

Art. No. EXG006000000415

Aperture dimensions WxH (mm): 539(+5/-5) x 245(+5/-5)
External dimensions WxHxD (mm): 644 x 350 x 60
Frame openings: 4
Packing space (mm): 120 x 180
Weight (kg): 12.34

Quote this article number

G 6x5 Ex GALV

Art. No. EXG006000000515

Aperture dimensions WxH (mm): 670(+5/-5) x 245(+5/-5)
External dimensions WxHxD (mm): 774.5 x 350 x 60
Frame openings: 5
Packing space (mm): 120 x 180
Weight (kg): 14.9

Quote this article number

G 6+6x1 Ex GALV

Art. No. EXG006600000115

Aperture dimensions WxH (mm): 148(+5/-5) x 475(+5/-5)
External dimensions WxHxD (mm): 252.5 x 578 x 60
Frame openings: 2
Packing space (mm): 120 x 180
Weight (kg): 4.62

Quote this article number

G 6+6x2 Ex GALV

Art. No. EXG006600000215

Aperture dimensions WxH (mm): 278(+5/-5) x 475(+5/-5)
External dimensions WxHxD (mm): 383 x 580 x 60
Frame openings: 4
Packing space (mm): 120 x 180
Weight (kg): 13.42

Quote this article number

G 6+6x3 Ex GALV

Art. No. EXG006600000315

Aperture dimensions WxH (mm): 409(+5/-5) x 475(+5/-5)
External dimensions WxHxD (mm): 513.5 x 580 x 60
Frame openings: 6
Packing space (mm): 120 x 180
Weight (kg): 16.6

Quote this article number

G 6+6x4 Ex GALV

Art. No. EXG006600000415

Aperture dimensions WxH (mm): 539(+5/-5) x 475(+5/-5)
External dimensions WxHxD (mm): 644 x 580 x 60
Frame openings: 8
Packing space (mm): 120 x 180
Weight (kg): 22.19

Quote this article number

G 6+6x5 Ex GALV

Art. No. EXG006600000515

Aperture dimensions WxH (mm): 670(+5/-5) x 475(+5/-5)
External dimensions WxHxD (mm): 774.5 x 580 x 60
Frame openings: 10
Packing space (mm): 120 x 180
Weight (kg): 26

Quote this article number

G 8x1 Ex GALV

Art. No. EXG008000000115

Aperture dimensions WxH (mm): 148(+5/-5) x 305(+5/-5)
External dimensions WxHxD (mm): 252.5 x 410 x 60
Frame openings: 1
Packing space (mm): 120 x 240
Weight (kg): 4.8

Quote this article number

G 8x2 Ex GALV

Art. No. EXG008000000215

Aperture dimensions WxH (mm): 278(+5/-5) x 305(+5/-5)
External dimensions WxHxD (mm): 383 x 410 x 60
Frame openings: 2
Packing space (mm): 120 x 240
Weight (kg): 8.26

Quote this article number

G 8x3 Ex GALV

Art. No. EXG008000000315

Aperture dimensions WxH (mm): 409(+5/-5) x 305(+5/-5)
External dimensions WxHxD (mm): 513.5 x 410 x 60
Frame openings: 3
Packing space (mm): 120 x 240
Weight (kg): 11.07

Quote this article number

G 8x4 Ex GALV

Art. No. EXG008000000415

Aperture dimensions WxH (mm): 539(+5/-5) x 305(+5/-5)
External dimensions WxHxD (mm): 644 x 410 x 60
Frame openings: 4
Packing space (mm): 120 x 240
Weight (kg): 13.87

Quote this article number

G 8x5 Ex GALV

Art. No. EXG008000000515

Aperture dimensions WxH (mm): 670(+5/-5) x 305(+5/-5)
External dimensions WxHxD (mm): 774.5 x 410 x 60
Frame openings: 5
Packing space (mm): 120 x 240
Weight (kg): 16.68

Quote this article number

G 8+8x1 Ex GALV

Art. No. EXG008800000115

Aperture dimensions WxH (mm): 148(+5/-5) x 595(+5/-5)
External dimensions WxHxD (mm): 252.5 x 698 x 60
Frame openings: 2
Packing space (mm): 120 x 240
Weight (kg): 9

Quote this article number

G 8+8x2 Ex GALV

Art. No. 109883

Aperture dimensions WxH (mm): 278(+5/-5) x 595(+5/-5)
External dimensions WxHxD (mm): 383 x 700 x 60
Frame openings: 4
Packing space (mm): 120 x 240
Weight (kg): 15

Quote this article number

G 8+8x3 Ex GALV

Art. No. 107624

Aperture dimensions WxH (mm): 409(+5/-5) x 595(+5/-5)
External dimensions WxHxD (mm): 513.5 x 700 x 60
Frame openings: 6
Packing space (mm): 120 x 240
Weight (kg): 20.3

Quote this article number

G 8+8x4 Ex GALV

Art. No. EXG008800000415

Aperture dimensions WxH (mm): 539(+5/-5) x 595(+5/-5)
External dimensions WxHxD (mm): 644 x 700 x 60
Frame openings: 8
Packing space (mm): 120 x 240
Weight (kg): 23

Quote this article number

G 2x1 Ex AISI316

Art. No. EXG002000000121

Aperture dimensions WxH (mm): 148(+5/-5) x 128(+5/-5)
External dimensions WxHxD (mm): 252.5 x 233 x 60
Frame openings: 1
Packing space (mm): 120 x 60
Weight (kg): 3.57

Quote this article number

G 2x2 Ex AISI316

Art. No. EXG002000000221

Aperture dimensions WxH (mm): 278(+5/-5) x 128(+5/-5)
External dimensions WxHxD (mm): 383 x 233 x 60
Frame openings: 2
Packing space (mm): 120 x 60
Weight (kg): 5.7

Quote this article number

G 2x3 Ex AISI316

Art. No. EXG002000000321

Aperture dimensions WxH (mm): 409(+5/-5) x 128(+5/-5)
External dimensions WxHxD (mm): 513.5 x 233 x 60
Frame openings: 3
Packing space (mm): 120 x 60
Weight (kg): 7.53

Quote this article number

G 2x4 Ex AISI316

Art. No. EXG002000000421

Aperture dimensions WxH (mm): 539(+5/-5) x 128(+5/-5)
External dimensions WxHxD (mm): 644 x 233 x 60
Frame openings: 4
Packing space (mm): 120 x 60
Weight (kg): 9.71

Quote this article number

G 2+2x1 Ex AISI316

Art. No. 115484

Aperture dimensions WxH (mm): 148(+5/-5) x 241(+5/-5)
External dimensions WxHxD (mm): 252.5 x 344 x 60
Frame openings: 2
Packing space (mm): 120 x 60
Weight (kg): 5.6

Quote this article number

G 2+2x2 Ex AISI316

Art. No. 115485

Aperture dimensions WxH (mm): 278(+5/-5) x 241(+5/-5)
External dimensions WxHxD (mm): 383 x 346 x 60
Frame openings: 4
Packing space (mm): 120 x 60
Weight (kg): 8.82

Quote this article number

G 2+2x3 Ex AISI316

Art. No. 115486

Aperture dimensions WxH (mm): 409(+5/-5) x 241(+5/-5)
External dimensions WxHxD (mm): 513.5 x 346 x 60
Frame openings: 6
Packing space (mm): 120 x 60
Weight (kg): 12

Quote this article number

G 2+2x4 Ex AISI316

Art. No. 115487

Aperture dimensions WxH (mm): 539(+5/-5) x 241(+5/-5)
External dimensions WxHxD (mm): 644 x 346 x 60
Frame openings: 8
Packing space (mm): 120 x 60
Weight (kg): 15.2

Quote this article number

G 2x5 Ex AISI316

Art. No. EXG002000000521

Aperture dimensions WxH (mm): 670(+5/-5) x 128(+5/-5)
External dimensions WxHxD (mm): 774.5 x 233 x 60
Frame openings: 5
Packing space (mm): 120 x 60
Weight (kg): 12

Quote this article number

G 4x1 Ex AISI316

Art. No. EXG004000000121

Aperture dimensions WxH (mm): 148(+5/-5) x 187(+5/-5)
External dimensions WxHxD (mm): 252.5 x 291.5 x 60
Frame openings: 1
Packing space (mm): 120 x 120
Weight (kg): 4.1

Quote this article number

G 4x2 Ex AISI316

Art. No. EXG004000000221

Aperture dimensions WxH (mm): 278(+5/-5) x 187(+5/-5)
External dimensions WxHxD (mm): 383 x 291.5 x 60
Frame openings: 2
Packing space (mm): 120 x 120
Weight (kg): 6.85

Quote this article number

G 4x3 Ex AISI316

Art. No. EXG004000000321

Aperture dimensions WxH (mm): 409(+5/-5) x 187(+5/-5)
External dimensions WxHxD (mm): 513.5 x 291.5 x 60
Frame openings: 3
Packing space (mm): 120 x 120
Weight (kg): 8.6

Quote this article number

G 4x4 Ex AISI316

Art. No. EXG004000000421

Aperture dimensions WxH (mm): 539(+5/-5) x 187(+5/-5)
External dimensions WxHxD (mm): 644 x 291.5 x 60
Frame openings: 4
Packing space (mm): 120 x 120
Weight (kg): 10.84

Quote this article number

G 4x5 Ex AISI316

Art. No. EXG004000000521

Aperture dimensions WxH (mm): 670(+5/-5) x 187(+5/-5)
External dimensions WxHxD (mm): 774.5 x 291.5 x 60
Frame openings: 5
Packing space (mm): 120 x 120
Weight (kg): 13.2

Quote this article number

G 4+4x1 Ex AISI316

Art. No. EXG004400000121

Aperture dimensions WxH (mm): 148(+5/-5) x 358(+5/-5)
External dimensions WxHxD (mm): 252.5 x 461 x 60
Frame openings: 2
Packing space (mm): 120 x 120
Weight (kg): 2

Quote this article number

G 4+4x2 Ex AISI316

Art. No. 106720

Aperture dimensions WxH (mm): 278(+5/-5) x 358(+5/-5)
External dimensions WxHxD (mm): 383 x 463 x 60
Frame openings: 4
Packing space (mm): 120 x 120
Weight (kg): 11.04

Quote this article number

G 4+4x3 Ex AISI316

Art. No. EXG004400000321

Aperture dimensions WxH (mm): 409(+5/-5) x 358(+5/-5)
External dimensions WxHxD (mm): 513.5 x 463 x 60
Frame openings: 6
Packing space (mm): 120 x 120
Weight (kg): 14.2

Quote this article number

G 4+4x4 Ex AISI316

Art. No. 115528

Aperture dimensions WxH (mm): 539(+5/-5) x 358(+5/-5)
External dimensions WxHxD (mm): 644 x 463 x 60
Frame openings: 8
Packing space (mm): 120 x 120
Weight (kg): 17.9

Quote this article number

G 4+4x5 Ex AISI316

Art. No. 115529

Aperture dimensions WxH (mm): 670(+5/-5) x 358(+5/-5)
External dimensions WxHxD (mm): 774.5 x 463 x 60
Frame openings: 10
Packing space (mm): 120 x 120
Weight (kg): 22

Quote this article number

G 6x4 Ex AISI316

Art. No. EXG006000000421

Aperture dimensions WxH (mm): 539(+5/-5) x 245(+5/-5)
External dimensions WxHxD (mm): 644 x 350 x 60
Frame openings: 4
Packing space (mm): 120 x 180
Weight (kg): 12.3

Quote this article number

G 6x5 Ex AISI316

Art. No. EXG006000000521

Aperture dimensions WxH (mm): 670(+5/-5) x 245(+5/-5)
External dimensions WxHxD (mm): 774.5 x 350 x 60
Frame openings: 5
Packing space (mm): 120 x 180
Weight (kg): 15

Quote this article number

G 8+8x1 Ex AISI316

Art. No. EXG008800000121

Aperture dimensions WxH (mm): 148(+5/-5) x 595(+5/-5)
External dimensions WxHxD (mm): 252.5 x 698 x 60
Frame openings: 2
Packing space (mm): 120 x 240
Weight (kg): 9.15

Quote this article number

G 6+6x1 Ex AISI316

Art. No. EXG006600000121

Aperture dimensions WxH (mm): 148(+5/-5) x 475(+5/-5)
External dimensions WxHxD (mm): 252.5 x 578 x 60
Frame openings: 2
Packing space (mm): 120 x 180
Weight (kg): 8.1

Quote this article number

G 6+6x2 Ex AISI316

Art. No. EXG006600000221

Aperture dimensions WxH (mm): 278(+5/-5) x 475(+5/-5)
External dimensions WxHxD (mm): 383 x 580 x 60
Frame openings: 4
Packing space (mm): 120 x 180
Weight (kg): 14

Quote this article number

G 6+6x3 Ex AISI316

Art. No. EXG006600000321

Aperture dimensions WxH (mm): 409(+5/-5) x 475(+5/-5)
External dimensions WxHxD (mm): 513.5 x 580 x 60
Frame openings: 6
Packing space (mm): 120 x 180
Weight (kg): 16.6

Quote this article number

G 6+6x4 Ex AISI316

Art. No. EXG006600000421

Aperture dimensions WxH (mm): 539(+5/-5) x 475(+5/-5)
External dimensions WxHxD (mm): 644 x 580 x 60
Frame openings: 8
Packing space (mm): 120 x 180
Weight (kg): 21.5

Quote this article number

G 8+8x3 Ex AISI316

Art. No. 115592

Aperture dimensions WxH (mm): 409(+5/-5) x 595(+5/-5)
External dimensions WxHxD (mm): 513.5 x 700 x 60
Frame openings: 6
Packing space (mm): 120 x 240
Weight (kg): 19.5

Quote this article number

G 6+6x5 Ex AISI316

Art. No. EXG006600000521

Aperture dimensions WxH (mm): 670(+5/-5) x 475(+5/-5)
External dimensions WxHxD (mm): 774.5 x 580 x 60
Frame openings: 10
Packing space (mm): 120 x 180
Weight (kg): 25.4

Quote this article number

G 8x1 Ex AISI316

Art. No. EXG008000000121

Aperture dimensions WxH (mm): 148(+5/-5) x 305(+5/-5)
External dimensions WxHxD (mm): 252.5 x 410 x 60
Frame openings: 1
Packing space (mm): 120 x 240
Weight (kg): 5.66

Quote this article number

G 8x2 Ex AISI316

Art. No. EXG008000000221

Aperture dimensions WxH (mm): 278(+5/-5) x 305(+5/-5)
External dimensions WxHxD (mm): 383 x 410 x 60
Frame openings: 2
Packing space (mm): 120 x 240
Weight (kg): 8.26

Quote this article number

G 8x3 Ex AISI316

Art. No. EXG008000000321

Aperture dimensions WxH (mm): 409(+5/-5) x 305(+5/-5)
External dimensions WxHxD (mm): 513.5 x 410 x 60
Frame openings: 3
Packing space (mm): 120 x 240
Weight (kg): 11.07

Quote this article number

G 8x4 Ex AISI316

Art. No. EXG008000000421

Aperture dimensions WxH (mm): 539(+5/-5) x 305(+5/-5)
External dimensions WxHxD (mm): 644 x 410 x 60
Frame openings: 4
Packing space (mm): 120 x 240
Weight (kg): 14

Quote this article number

G 8x5 Ex AISI316

Art. No. EXG008000000521

Aperture dimensions WxH (mm): 670(+5/-5) x 305(+5/-5)
External dimensions WxHxD (mm): 774.5 x 410 x 60
Frame openings: 5
Packing space (mm): 120 x 240
Weight (kg): 16.68

Quote this article number

G 8+8x2 Ex AISI316

Art. No. EXG008800000221

Aperture dimensions WxH (mm): 278(+5/-5) x 595(+5/-5)
External dimensions WxHxD (mm): 383 x 700 x 60
Frame openings: 4
Packing space (mm): 120 x 240
Weight (kg): 14.5

Quote this article number

G 8+8x4 Ex AISI316

Art. No. EXG008800000421

Aperture dimensions WxH (mm): 539(+5/-5) x 595(+5/-5)
External dimensions WxHxD (mm): 644 x 700 x 60
Frame openings: 8
Packing space (mm): 120 x 240
Weight (kg): 25

Quote this article number

Reference documents

These links open current files hosted by Roxtec. Check the source document revision before use.

FRAMES Ex (en) pdf (manufacturer document)
S1016551 G Ex FRAME SINGLE AND COMBINATION FRAME PDF (manufacturer document)
S1016552 G Ex FRAME +COMBINATION FRAME PDF (manufacturer document)
S1608043 G Ex FRAME +SINGLE FRAME PDF (manufacturer document)

Source-listed certificates

Certificate rows reproduce factual source fields. They do not confirm applicability to a specific assembly. Open the source record and ask AMFSS to check the application.

Authority	Rating	Division / structure	Cable	Pipe	Type approval	Status
CSA	IP tightness UL/NEMA tightness	—	Other	Copper Steel	1333944	No renewal status stated
KTL Korea Testing Laboratory	Ex	—	Other	Conduit	15-KB4BO-0089X	No renewal status stated
CSA	Ex	—	Armored Other	Conduit	2254189	No renewal status stated
SGS	Ex	—	Armored Other	Conduit	25-08-162752/E25-08-169410/NB0002	No renewal status stated
LLC SERTIS-CENTER	Ex	—	Other	Conduit	CII 23.0812 X	No renewal status stated
CSA	Ex	—	Armored Other	Conduit	CSAE 23UKEX1066X	No renewal status stated
Roxtec International AB	Ex	—	—	—	DoC RM and HD Ex	No renewal status stated
Nemko	Ex	—	Other	—	IECEx NEM 120014X	No renewal status stated
DNV	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Steel	Marine	—	MEDB00003M3	No renewal status stated
DNV	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Steel	Marine	—	MERB00003M3	No renewal status stated
NCC	Ex	—	Other	Conduit	NCC 11.0174 X	No renewal status stated
Nemko	Ex	—	—	—	Nemko 12ATEX1278X	No renewal status stated
RISE	Ex	—	—	—	RISE25ATEX0001	No renewal status stated

Source checked 2026-08-08: official Roxtec product page.

About Roxtec rectangular frames

Roxtec rectangular frames form the frame portion of modular cable and pipe transit systems. Frame type and components must be matched to the opening and application.

Typical applications:

Walls and floors
Bulkheads and decks
Cabinets and enclosures

Not sure this is the right product? Compare the Roxtec rectangular frames family or describe your application.
