EZENTRY 4 FRAME ASSEMBLY
Art. No. EZ00040000000
- Aperture dimensions WxH (mm)
- 37(+1/-0) x 42(+2/-0)
- External dimensions WxHxD (mm)
- 70 x 97 x 31
- Frame openings
- 1
- Packing space (mm)
- 40 x 40
- Weight (kg)
- 0.21
Roxtec rectangular frames

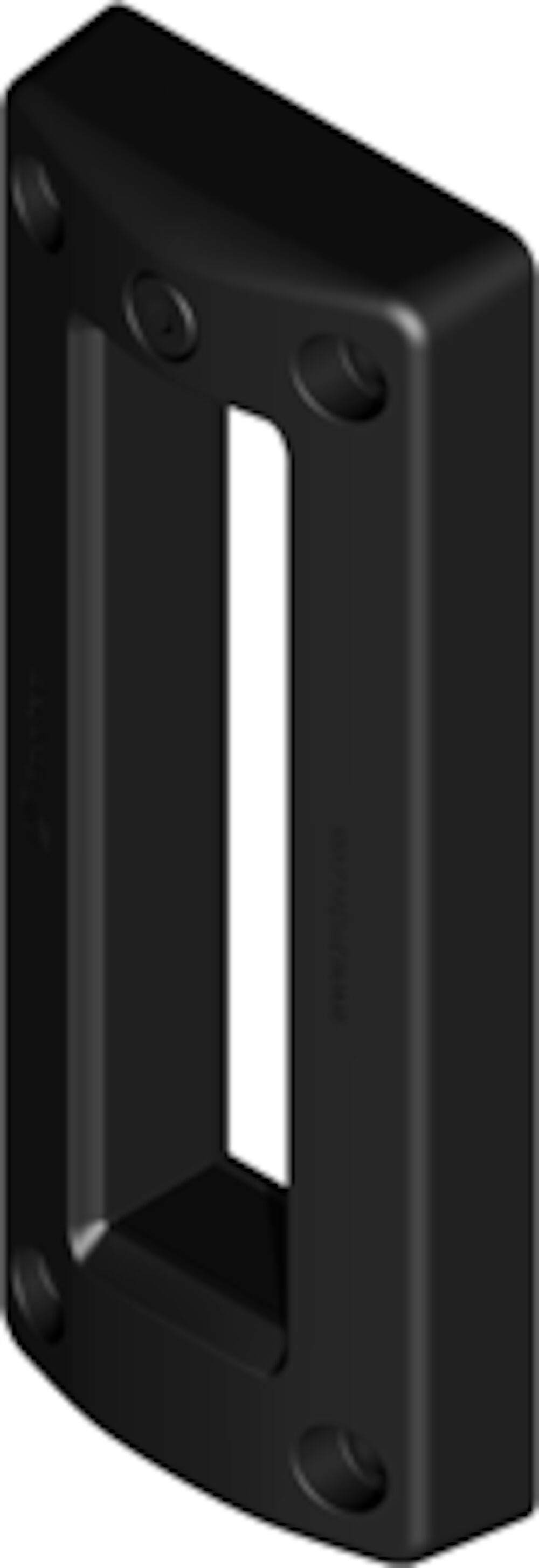

Roxtec EzEntry™ frame
Roxtec rectangular frames · Roxtec
The Roxtec EzEntry™ frame simplifies cable sealing in cabinets and enclosures. The composite frame is made for single-sided installation.
- To be used with corresponding Roxtec components to form a complete sealing solution Available in sizes for 4 to 32 cables
- Integrated compression unit
- Allows pre-terminated cables
- Versions available for the FL 21 knock-out and multi-pin 24 connector knock-out
- Available with stainless steel fasteners upon request to meet requirements in aggressive corrosive environments
- Available in complete kits
Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.
Article numbers and specifications
Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.
EZENTRY 10 FRAME ASSEMBLY
Art. No. EZ00010000000
- Aperture dimensions WxH (mm)
- 37(+1/-0) x 108(+2/-0)
- External dimensions WxHxD (mm)
- 70 x 168 x 31
- Frame openings
- 1
- Packing space (mm)
- 40 x 100
- Weight (kg)
- 0.27
EZENTRY 16 FRAME ASSEMBLY
Art. No. EZ00016000000
- Aperture dimensions WxH (mm)
- 37(+1/-0) x 158(+2/-0)
- External dimensions WxHxD (mm)
- 90 x 228 x 34
- Frame openings
- 1
- Packing space (mm)
- 40 x 160
- Weight (kg)
- 0.44
EZENTRY 16 COUNTER FRAME
Art. No. 2CV0000000016
- Aperture dimensions WxH (mm)
- 0(+0/-0) x 0(+0/-0)
- External dimensions WxHxD (mm)
- 215 x 17.5 x 12
- Frame openings
- 0
- Packing space (mm)
- 0 x 0
- Weight (kg)
- 0.24
EZENTRY 24 FRAME ASSEMBLY
Art. No. EZ00024000000
- Aperture dimensions WxH (mm)
- 37(+1/-0) x 255(+2/-0)
- External dimensions WxHxD (mm)
- 90 x 325 x 41
- Frame openings
- 2
- Packing space (mm)
- 40 x 120
- Weight (kg)
- 0.73
EZENTRY 32 FRAME ASSEMBLY
Art. No. EZ00032000000
- Aperture dimensions WxH (mm)
- 37(+1/-0) x 335(+2/-0)
- External dimensions WxHxD (mm)
- 90 x 405 x 41
- Frame openings
- 2
- Packing space (mm)
- 40 x 160
- Weight (kg)
- 0.9
Reference documents
These links open current files hosted by Roxtec. Check the source document revision before use.
- EZENTRY (en) pdf (manufacturer document)
- S1013989 APERTURE DIMENSIONS EZENTRY 10,16,24,32 PDF (manufacturer document)
- S1016513 EZENTRY 4 FRAME ASSEMBLY PDF (manufacturer document)
- S1016514 EZENTRY 10 FRAME ASSEMBLY PDF (manufacturer document)
- S1016515 EZENTRY 16 FRAME ASSEMBLY PDF (manufacturer document)
- S1016516 EZENTRY 24 FRAME ASSEMBLY PDF (manufacturer document)
- S1016517 EZENTRY 32 FRAME ASSEMBLY PDF (manufacturer document)
- S1034803 APERTURE DIMENSIONS EZENTRY 4 AND 4 MINI PDF (manufacturer document)
Source-listed certificates
Certificate rows reproduce factual source fields. They do not confirm applicability to a specific assembly. Open the source record and ask AMFSS to check the application.
| Authority | Rating | Division / structure | Cable | Pipe | Type approval | Status |
|---|---|---|---|---|---|---|
| CSA | IP tightness UL/NEMA tightness | — | Other | Copper Steel | 1333944 | No renewal status stated |
| Roxtec International AB | — | — | — | — | Declaration of conformity Compact | No renewal status stated |
| Underwriters Laboratories Inc. | UL/NEMA tightness | — | — | — | E209828 | No renewal status stated |
| Underwriters Laboratories Inc. | IP tightness UL/NEMA tightness | — | — | — | E496911 | No renewal status stated |
| Underwriters Laboratories Inc. | UL/NEMA tightness | — | — | — | NITW2.E209828 | No renewal status stated |
| Underwriters Laboratories Inc. | UL/NEMA tightness | — | — | — | NITW8.E209828 | No renewal status stated |
Source checked 2026-08-08: official Roxtec product page.
About Roxtec rectangular frames
Roxtec rectangular frames form the frame portion of modular cable and pipe transit systems. Frame type and components must be matched to the opening and application.
Typical applications:
- Walls and floors
- Bulkheads and decks
- Cabinets and enclosures
