COMSEAL 10 FRAME ASSEMBLY
Art. No. 105300
- Aperture dimensions WxH (mm)
- 56(+1/-1) x 149(+1/-1)
- External dimensions WxHxD (mm)
- 80.5 x 173 x 55
- Frame openings
- 1
- Packing space (mm)
- 40 x 100
- Weight (kg)
- 0.34
Roxtec rectangular frames

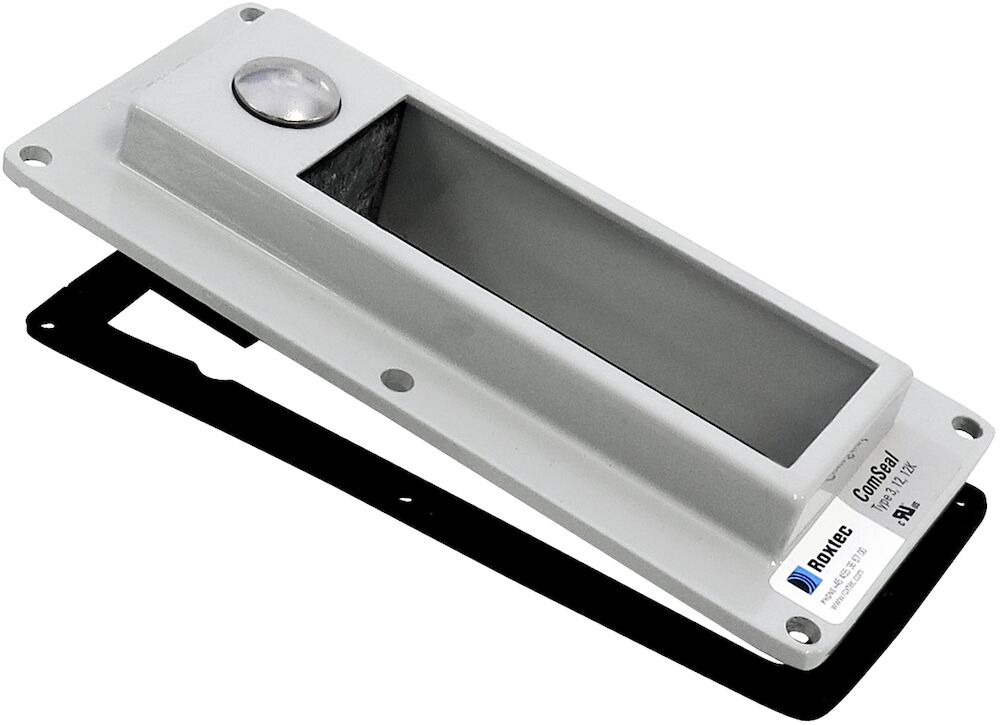

Roxtec ComSeal™ frame
Roxtec rectangular frames · Roxtec
The Roxtec ComSeal™ frame is a light-weight and area efficient entry seal frame for cabinets. It is used with sealing modules that adapt to cables and pipes of different sizes.
- To be used with corresponding Roxtec components to form a complete sealing solution
- Available in cast aluminum
- Attached on inside or outside of cabinet
- Available as complete kits
Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.
Article numbers and specifications
Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.
COMSEAL 12 FRAME ASSEMBLY
Art. No. 105304
- Aperture dimensions WxH (mm)
- 56(+1/-1) x 169(+1/-1)
- External dimensions WxHxD (mm)
- 88 x 216 x 55
- Frame openings
- 1
- Packing space (mm)
- 40 x 120
- Weight (kg)
- 0.55
COMSEAL 15 FRAME ASSEMBLY
Art. No. 105309
- Aperture dimensions WxH (mm)
- 61(+1/-1) x 195(+1/-1)
- External dimensions WxHxD (mm)
- 90.5 x 223 x 55
- Frame openings
- 1
- Packing space (mm)
- 50 x 150
- Weight (kg)
- 0.49
COMSEAL 30 FRAME ASSEMBLY
Art. No. 105318
- Aperture dimensions WxH (mm)
- 120(+1/-1) x 195(+1/-1)
- External dimensions WxHxD (mm)
- 155 x 231 x 55
- Frame openings
- 2
- Packing space (mm)
- 50 x 150
- Weight (kg)
- 0.88
COMSEAL 16 FRAME ASSEMBLY
Art. No. 105311
- Aperture dimensions WxH (mm)
- 56(+1/-1) x 209(+1/-1)
- External dimensions WxHxD (mm)
- 80.5 x 233 x 55
- Frame openings
- 1
- Packing space (mm)
- 40 x 160
- Weight (kg)
- 0.41
COMSEAL 32 FRAME ASSEMBLY
Art. No. 105319
- Aperture dimensions WxH (mm)
- 103(+1/-1) x 209(+1/-1)
- External dimensions WxHxD (mm)
- 135 x 241 x 55
- Frame openings
- 2
- Packing space (mm)
- 40 x 160
- Weight (kg)
- 0.72
Reference documents
These links open current files hosted by Roxtec. Check the source document revision before use.
- COMSEAL (en) pdf (manufacturer document)
- S1008266 COMSEAL 16 APERTURE DIMENSION pdf (manufacturer document)
- S1008267 COMSEAL 32 APERTURE DIMENSION pdf (manufacturer document)
- S1013122 COMSEAL 10 APERTURE DIMENSION PDF (manufacturer document)
- S1014129 COMSEAL 12 APERTURE DIMENSION pdf (manufacturer document)
- S1018204 COMSEAL 15 APERTURE DIMENSION pdf (manufacturer document)
- S1019307 COMSEAL 30 APERTURE DIMENSION pdf (manufacturer document)
- S1021987 COMSEAL FRAME COMSEAL 12 PDF (manufacturer document)
Source-listed certificates
Certificate rows reproduce factual source fields. They do not confirm applicability to a specific assembly. Open the source record and ask AMFSS to check the application.
| Authority | Rating | Division / structure | Cable | Pipe | Type approval | Status |
|---|---|---|---|---|---|---|
| CSA | IP tightness UL/NEMA tightness | — | Other | Copper Steel | 1333944 | No renewal status stated |
| Roxtec International AB | — | — | — | — | Declaration of conformity Compact | No renewal status stated |
| Underwriters Laboratories Inc. | UL/NEMA tightness | — | — | — | E209828 | No renewal status stated |
| Underwriters Laboratories Inc. | IP tightness UL/NEMA tightness | — | — | — | E496911 | No renewal status stated |
| Underwriters Laboratories Inc. | UL/NEMA tightness | — | — | — | NITW2.E209828 | No renewal status stated |
| Underwriters Laboratories Inc. | UL/NEMA tightness | — | — | — | NITW8.E209828 | No renewal status stated |
Source checked 2026-08-08: official Roxtec product page.
About Roxtec rectangular frames
Roxtec rectangular frames form the frame portion of modular cable and pipe transit systems. Frame type and components must be matched to the opening and application.
Typical applications:
- Walls and floors
- Bulkheads and decks
- Cabinets and enclosures
