COMSEAL 32 BG FRAME ASSEMBLY
Art. No. 159708
- Aperture dimensions WxH (mm)
- 103(+1/-1) x 209(+1/-1)
- External dimensions WxHxD (mm)
- 135 x 241 x 56
- Frame openings
- 2
- Packing space (mm)
- 40 x 160
- Weight (kg)
- 0.97
Roxtec rectangular frames

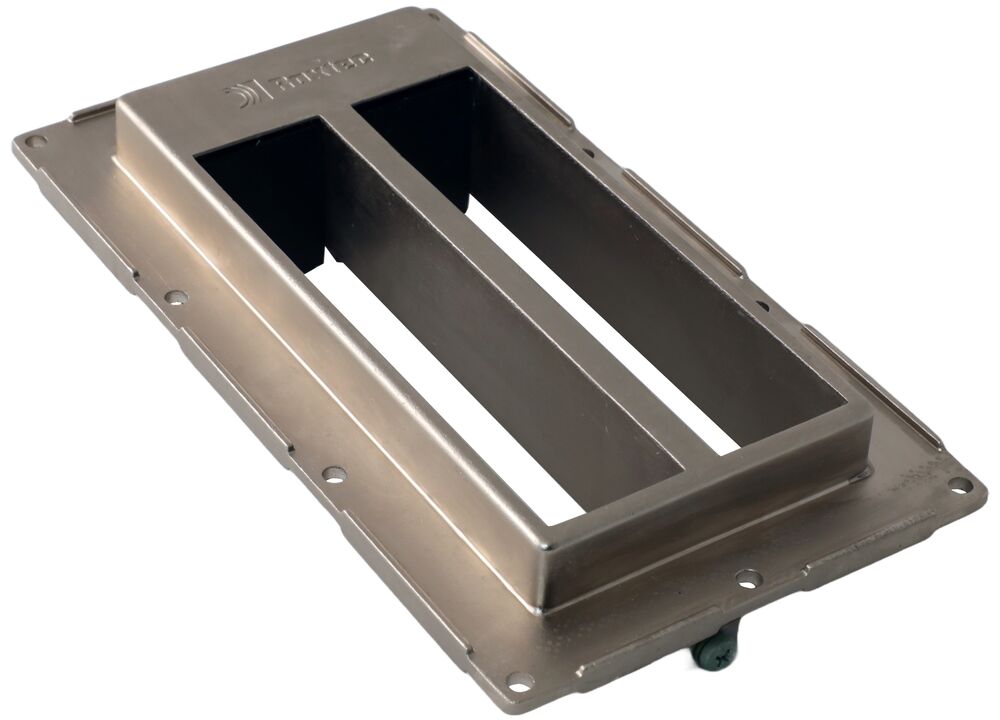

Roxtec ComSeal™ BG frame
Roxtec rectangular frames · Roxtec
The Roxtec ComSeal™ BG frame is a cable entry seal frame for use in BG applications. It is designed for industrial and telecom applications such as converters, generators and cabinets. The frame is in nickel-plated aluminum. It is used with adaptable sealing modules to ensure electrical conductivity.
- To be used with corresponding Roxtec components to form a complete sealing solution
- Available as complete kit
- Allows use of pre-terminated cables
Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.
Article numbers and specifications
Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.
Reference documents
These links open current files hosted by Roxtec. Check the source document revision before use.
- Roxtec ComSeal 32 BG (en) pdf (manufacturer document)
- S1008267 COMSEAL 32 APERTURE DIMENSION pdf (manufacturer document)
- S1508056 COMSEAL 32 BG PDF (manufacturer document)
Source checked 2026-08-08: official Roxtec product page.
About Roxtec rectangular frames
Roxtec rectangular frames form the frame portion of modular cable and pipe transit systems. Frame type and components must be matched to the opening and application.
Typical applications:
- Walls and floors
- Bulkheads and decks
- Cabinets and enclosures
Not sure this is the right product? Compare the Roxtec rectangular frames family or describe your application.
