CF 16
Art. No. CSF0000160010
- Aperture dimensions WxH (mm)
- 71(+1/-1) x 187(+2/-0.5)
- External dimensions WxHxD (mm)
- 93 x 234 x 42
- Frame openings
- 1
- Packing space (mm)
- 40 x 160
- Weight (kg)
- 1.37
Roxtec rectangular frames

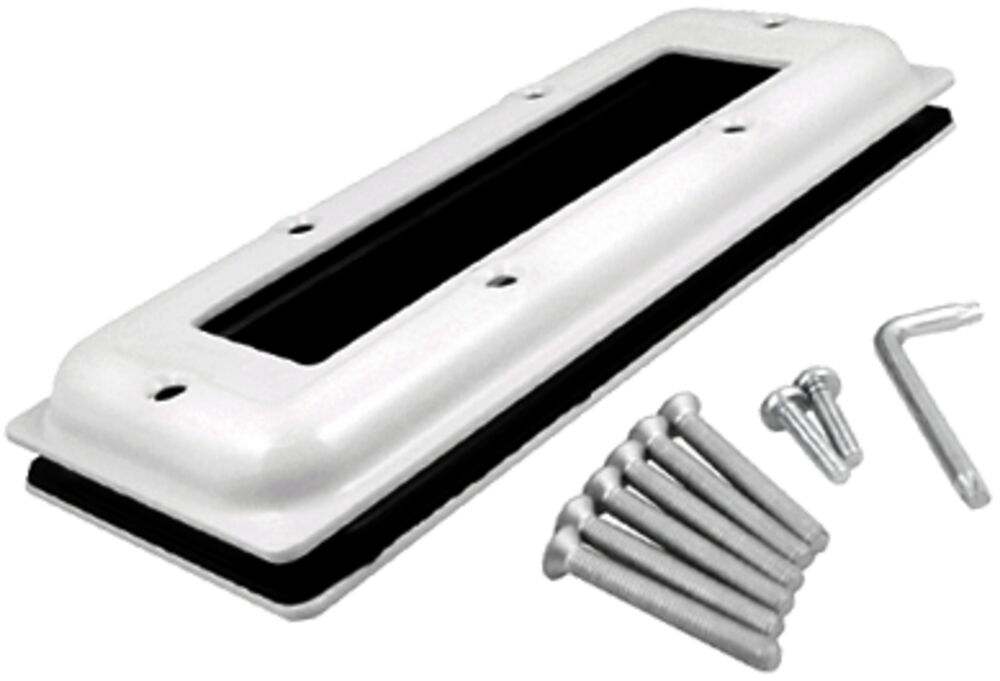

Roxtec CF 16 frame
Roxtec rectangular frames · Roxtec
The Roxtec CF 16 is a low-profile metal frame. The compression unit is integrated in the frame.
- To be used with corresponding Roxtec components to form a complete sealing solution
- Attachment by bolting
- Available in kits
- Available in powder-coated mild steel or stainless steel AISI 304
- Adapter plates available
Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.
Article numbers and specifications
Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.
CF 16 OPEN
Art. No. CSF1000160010
- Aperture dimensions WxH (mm)
- 71(+1/-1) x 187(+2/-0.5)
- External dimensions WxHxD (mm)
- 93 x 234 x 42
- Frame openings
- 1
- Packing space (mm)
- 40 x 160
- Weight (kg)
- 1.39
CF 16 AISI304
Art. No. ECF0001600021
- Aperture dimensions WxH (mm)
- 71(+1/-1) x 187(+1/-1)
- External dimensions WxHxD (mm)
- 93 x 234 x 50
- Frame openings
- 1
- Packing space (mm)
- 40 x 160
- Weight (kg)
- 1.39
CF 16 AISI304 OPEN
Art. No. 5CF0000004946
- Aperture dimensions WxH (mm)
- 71(+1/-1) x 187(+2/-0.5)
- External dimensions WxHxD (mm)
- 93 x 234 x 42
- Frame openings
- 1
- Packing space (mm)
- 40 x 160
- Weight (kg)
- 1.2
Reference documents
These links open current files hosted by Roxtec. Check the source document revision before use.
- CF 16 OPEN (en) pdf (manufacturer document)
- CF 16 (en) pdf (manufacturer document)
- S1004810 CF 16 AISI304 ASSEMBLY PDF (manufacturer document)
- S1005735 CF 16 ASSEMBLY PDF (manufacturer document)
- S1005736 CF 16 OPEN ASSEMBLY PDF (manufacturer document)
- S1005972 CF 16 APERTURE DIMENSION pdf (manufacturer document)
- S1619254 CF 16 AISI304 OPEN ASSEMBLY PDF (manufacturer document)
Source-listed certificates
Certificate rows reproduce factual source fields. They do not confirm applicability to a specific assembly. Open the source record and ask AMFSS to check the application.
| Authority | Rating | Division / structure | Cable | Pipe | Type approval | Status |
|---|---|---|---|---|---|---|
| CSA | IP tightness UL/NEMA tightness | — | Other | Copper Steel | 1333944 | No renewal status stated |
| Roxtec International AB | — | — | — | — | Declaration of conformity Compact | No renewal status stated |
| Underwriters Laboratories Inc. | UL/NEMA tightness | — | — | — | E209828 | No renewal status stated |
| Underwriters Laboratories Inc. | IP tightness UL/NEMA tightness | — | — | — | E496911 | No renewal status stated |
| Underwriters Laboratories Inc. | UL/NEMA tightness | — | — | — | NITW2.E209828 | No renewal status stated |
| Underwriters Laboratories Inc. | UL/NEMA tightness | — | — | — | NITW8.E209828 | No renewal status stated |
Source checked 2026-08-08: official Roxtec product page.
About Roxtec rectangular frames
Roxtec rectangular frames form the frame portion of modular cable and pipe transit systems. Frame type and components must be matched to the opening and application.
Typical applications:
- Walls and floors
- Bulkheads and decks
- Cabinets and enclosures
Not sure this is the right product? Compare the Roxtec rectangular frames family or describe your application.
