Roxtec rectangular frames

GH BG™ FL100 frame kit

Roxtec rectangular frames · Roxtec

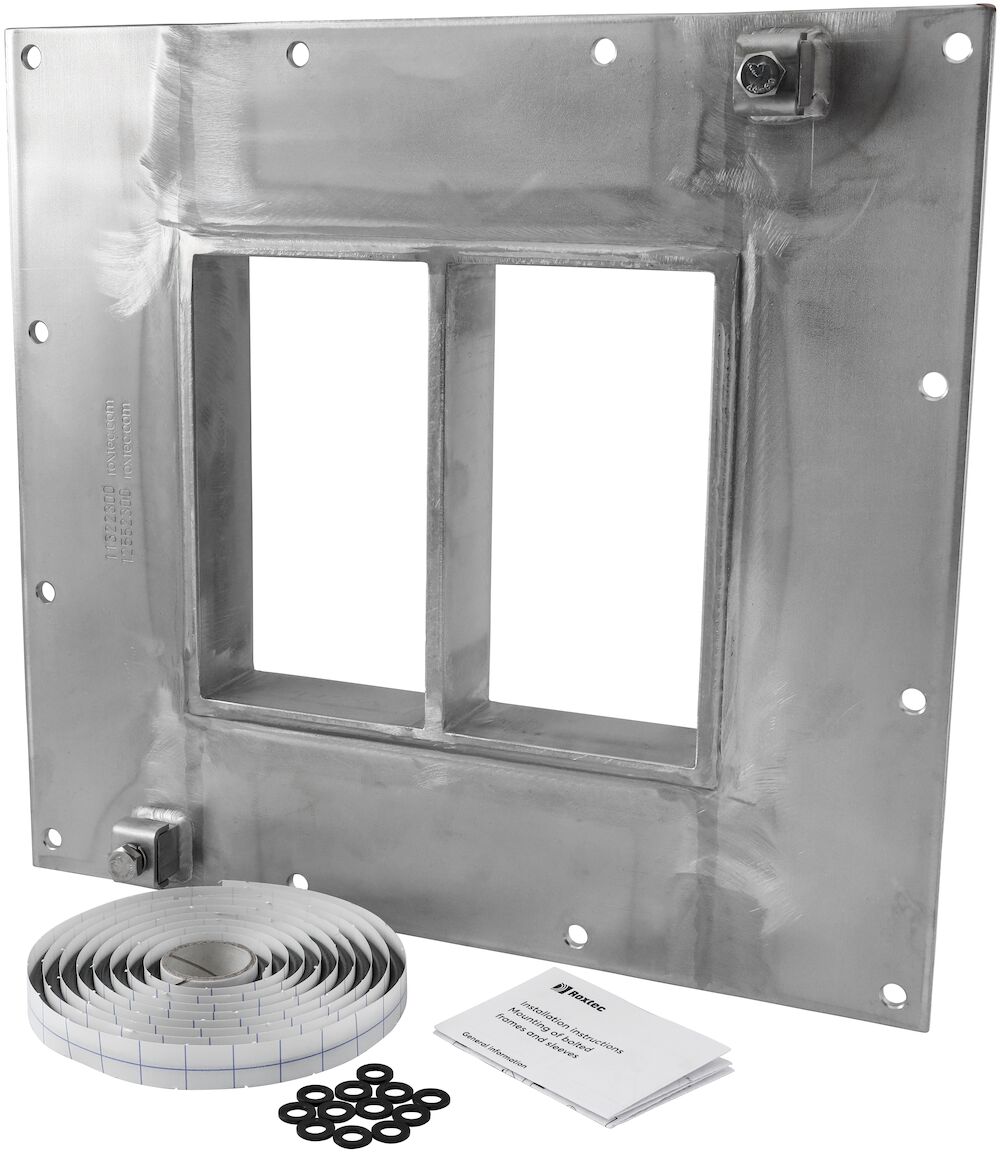

The Roxtec GH BG™ FL100 frame has integrated ground lugs to simplify connection to earthed structure and a 100mm wide flange to comply with minimum edge distance between bolt and opening. The GH FL100 kit includes sealing strip and washers, acting as compression stops, for a tight fit when bolted to concrete structures. The GH BG™ FL100 frame can be used with a GE extension frame to cover up the depth of a thick wall or floor.

For bonding and grounding
Ideal for bolting to concrete structures
To be used with corresponding Roxtec components to form a complete sealing solution

Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.

Article numbers and specifications

Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.

GH BG 2x1 FL100 GALV KIT

Art. No. 236180

Aperture dimensions WxH (mm): 148(+5/-5) x 128(+5/-5)
External dimensions WxHxD (mm): 332.5 x 313 x 93.6
Frame openings: 1
Packing space (mm): 120 x 60
Weight (kg): 5.9

Authority	Rating	Division / structure	Cable	Pipe	Type approval	Status
Underwriters Laboratories Inc.	F fire T fire	Concrete Lightweight concrete	Construction Telecom	Conduit Steel	C-AJ-8309	No renewal status stated
Underwriters Laboratories Inc.	IP tightness UL/NEMA tightness	—	—	—	E496911	No renewal status stated
Underwriters Laboratories Inc.	UL/NEMA tightness	—	—	—	NITW2.E209828	No renewal status stated
Underwriters Laboratories Inc.	UL/NEMA tightness	—	—	—	NITW8.E209828	No renewal status stated
Underwriters Laboratories Inc.	F fire T fire	Concrete	Armored Construction Fiber Other Shielded Telecom Unshielded	—	XHEZ.C-AJ-3388	No renewal status stated
