SR cable and pipe seals
MCT Brattberg seals, glands and joints · MCT Brattberg

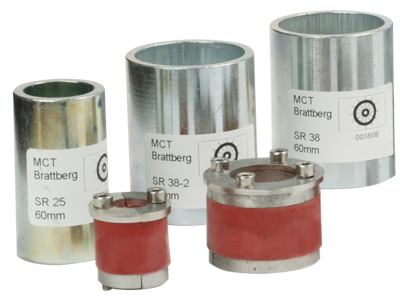

The SR glands are designed to seal cables between 4 and 100 mm (0.16 and 3.94”) diameter and metal pipes between 4-30 mm. The seal can be supplied cut to allow pre terminated cable to be installed. It is supplied with a center core providing a seal prior to cable installation. Make sure the SR is suitable for your application, review type approval certificates, local or any fire requirements.
- Sealing cables or pipes between 4 and 100 mm
- Lloyds certified
- MED approved
- Pressure tested to 5 bar
- Gland is manufactured from stainless steel 316L and silicone rubber
- Sleeves are supplied in primed mild steel
Performance and specifications
- Maritime resistance to fire
- A0, A60
- Water-tightness
- Glands 5 Bar - SR,MSR,GLANDS - Catastrophic pressure load
Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.
Reference documents
These links open current files hosted by MCT Brattberg. Check the source document revision before use.
- SR Data Sheet (manufacturer document)
- SR 38 Type2 (manufacturer document)
- SR 25 (manufacturer document)
- SR 38 Type1 (manufacturer document)
- LR26270387SFTC (pdf) (manufacturer document)
- SR 150 (manufacturer document)
- SR 102 (manufacturer document)
- SR 125 (manufacturer document)
- SR 150 Trefoil (manufacturer document)
- SR,MSR,DB EU DECLARATION OF CONFORMITY LR22490809MB (pdf) (manufacturer document)
- SR Instruction (pdf) (manufacturer document)
- LR26270388MB (pdf) (manufacturer document)
- SR 77 (manufacturer document)
- SR 200 (manufacturer document)
- SR 38 Type3 (manufacturer document)
- SR 62 (manufacturer document)
- SR 49 (manufacturer document)
Source checked 2026-08-08: official MCT Brattberg product page.
About MCT Brattberg seals, glands and joints
MCT Brattberg seals, glands, and joints cover specialized cable and pipe entry arrangements. Quote review confirms the opening, cable or pipe dimensions, pressure, and installation method.
Typical applications:
- Cable and pipe seals
- Bulkhead and deck glands
- Pressure-tight joints
- Custom train and industrial penetrations
Not sure this is the right product? Compare the MCT Brattberg seals, glands and joints family or describe your application.
