RGP - SFRBO
MCT Brattberg systems · MCT Brattberg

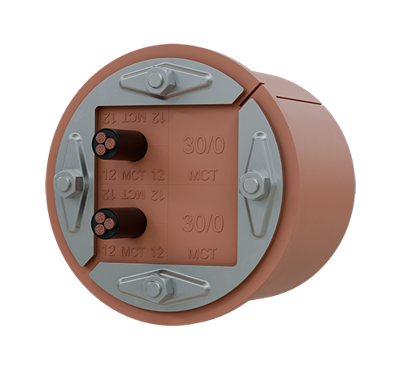

The RGP assembled in an open version sleeve for installation in holes where cables have already been pulled. The sleeve has predrilled holes which enables bolting where welding is prohibited or stress levels making it unsafe. It is supplied as a kit, complete with drilled holes, bolts, nuts, washers and a gasket or sealing compound.
- For bolting when cables are already in place
Performance and specifications
- Gas-tightness
- 3 Bar - RGP - 50-200 & 2"-8" Catastrophic pressure load, 2 Bar - RGP-300 Catastrophic pressure load
- Ingress protection
- IP65, IP66, IP67, IP68, Nema 250 - type 3R, 4X, 12.
- Maritime resistance to fire
- A0, A60, H0, H60, H120
- Resistance to fire
- EI30, EI60, EI90, EI120, EI240 - EN-1366-3
- Water-tightness
- 3 Bar - RGP-300 Catastrophic pressure load, 5 Bar - RGP - 50-200 & 2"-8" Catastrophic pressure load
- Working temperature
- -65 to +70 °C
Configuration options
Use these source-listed options to describe the required configuration. Final selection is confirmed with the quote.
Frame or opening sizes
- Available values
- 50 - (30x30 mm), 70 - (40x40 mm), 100 - (60x60 mm), 125 - (80x80 mm), 150 - (90x90 mm), 200 - (120x120 mm), 300 - (180x180 mm)
Materials
- Available values
- Stainless Steel, Galvanized
Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.
Reference documents
These links open current files hosted by MCT Brattberg. Check the source document revision before use.
- SFRBO 100 103331 F (technical drawing)
- SFRBO 300 1200157 A (technical drawing)
- RGP 70 1230238 A (technical drawing)
- RGP 50 1230235 A (technical drawing)
- LR26270996MB (pdf) (manufacturer document)
- LR23317396SF (pdf) (manufacturer document)
- RGP EU DECLARATION OF CONFORMITY LR23232931MB (pdf) (manufacturer document)
- S 300 130446 I (technical drawing)
- Welding Guidelines (pdf) (installation instruction)
- RGP 200 1230242 A (technical drawing)
- TAE000012K (pdf) (manufacturer document)
- LR23390430SF (pdf) (manufacturer document)
- SFRBO 150 102096 E (technical drawing)
- SFRBO 50 1111296 C (technical drawing)
- 23 2372493 PDA (pdf) (technical drawing)
- LR2351211UKMB (pdf) (manufacturer document)
- SFRBO 125 1050301 C (technical drawing)
- RGP DoP (pdf) (manufacturer document)
- RGP 300 1230243 A (technical drawing)
- SFRBO 200 102097 E (technical drawing)
- 71812 A0 BV (pdf) (manufacturer document)
- SFRBO 70 103330 E (technical drawing)
- TAF00001H2 (pdf) (manufacturer document)
- RGP 150 1230241 A (technical drawing)
- TAF00001H0 (pdf) (manufacturer document)
- LR2425142MD (pdf) (manufacturer document)
- ETA CE Drawings (pdf) (technical drawing)
- RGG/B DoP (pdf) (manufacturer document)
- NEDC_RGP_Product Approval_2024_03-MCT-Mechanical seals (pdf) (manufacturer document)
- Installation Guide Round Frames (pdf) (installation instruction)
- RGP 125 1230240 A (technical drawing)
- LR26270998UKMB (pdf) (manufacturer document)
- TAF00000KF (pdf) (manufacturer document)
- Letter cables pipes (pdf) (manufacturer document)
- LR26270995SFTC (pdf) (manufacturer document)
- RGP 100 1230239 A (technical drawing)
