E-RGP - SFRBO
MCT Brattberg systems · MCT Brattberg

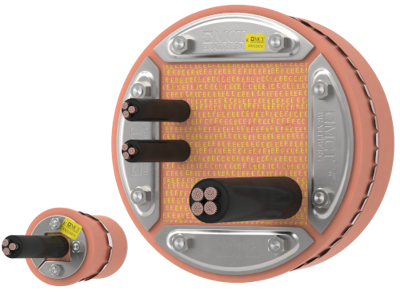

The RGP assembled in an open version sleeve for installation in holes where cables have already been pulled. The sleeve is able to be bolted where welding is prohibited or not possible due to stress levels. It is supplied as a kit, complete with drilled holes, bolts, nuts, washers and a gasket or sealing compound.
- For bolting when cables are already in place
Performance and specifications
- Gas-tightness
- 4 Bar - Catastrophic pressure load, 3 Bar - RGP - 50-200 & 2"-8" Catastrophic pressure load, 2 Bar - RGP-300 Catastrophic pressure load
- Ingress protection
- IP65, IP66, IP67, IP68, Nema 250 - type 3R, 4X, 12.
- Maritime resistance to fire
- A0, A60, H0, H60, H120
- Resistance to fire
- EI30, EI60, EI90, EI120, EI240 - EN-1366-3
- Water-tightness
- 6 Bar - Catastrophic pressure load, 3 Bar - RGP-300 Catastrophic pressure load, 5 Bar - RGP - 50-200 & 2"-8" Catastrophic pressure load
- Working temperature
- -65 to +70 °C
Configuration options
Use these source-listed options to describe the required configuration. Final selection is confirmed with the quote.
Frame or opening sizes
- Available values
- 50 - (30x30 mm), 70 - (40x40 mm), 100 - (60x60 mm), 125 - (80x80 mm), 150 - (90x90 mm), 200 - (120x120 mm), 300 - (180x180 mm)
Materials
- Available values
- Stainless Steel, Galvanized
Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.
Reference documents
These links open current files hosted by MCT Brattberg. Check the source document revision before use.
- LR26270996MB (pdf) (manufacturer document)
- G&B Datasheet (manufacturer document)
- LR23317396SF (pdf) (manufacturer document)
- RGP EU DECLARATION OF CONFORMITY LR23232931MB (pdf) (manufacturer document)
- Welding Guidelines (pdf) (installation instruction)
- TAE000012K (pdf) (manufacturer document)
- LR23390430SF (pdf) (manufacturer document)
- 23 2372493 PDA (pdf) (technical drawing)
- LR2351211UKMB (pdf) (manufacturer document)
- RGP DoP (pdf) (manufacturer document)
- 71812 A0 BV (pdf) (manufacturer document)
- TAF00001H2 (pdf) (manufacturer document)
- TAF00001H0 (pdf) (manufacturer document)
- LR2425142MD (pdf) (manufacturer document)
- ETA CE Drawings (pdf) (technical drawing)
- NEDC_RGP_Product Approval_2024_03-MCT-Mechanical seals (pdf) (manufacturer document)
- Installation Guide Round Frames (pdf) (installation instruction)
- LR26270998UKMB (pdf) (manufacturer document)
- TAF00000KF (pdf) (manufacturer document)
- LR26270995SFTC (pdf) (manufacturer document)
Source checked 2026-08-08: official MCT Brattberg product page.
About MCT Brattberg systems
MCT Brattberg transit systems include rectangular, round, EMC, and Ex configurations for cable and pipe penetrations. Frame type, size, material, and packing components are confirmed during quote review.
Typical applications:
- Rectangular cable and pipe transits
- Round penetrations
- EMC and grounding applications
- Hazardous-area penetrations
Not sure this is the right product? Compare the MCT Brattberg systems family or describe your application.
