EASY TRANSIT
Art. No. 100947
- Contents
- 80 mm
FireSeal marine systems
Easy Transit
FireSeal marine systems · FireSeal

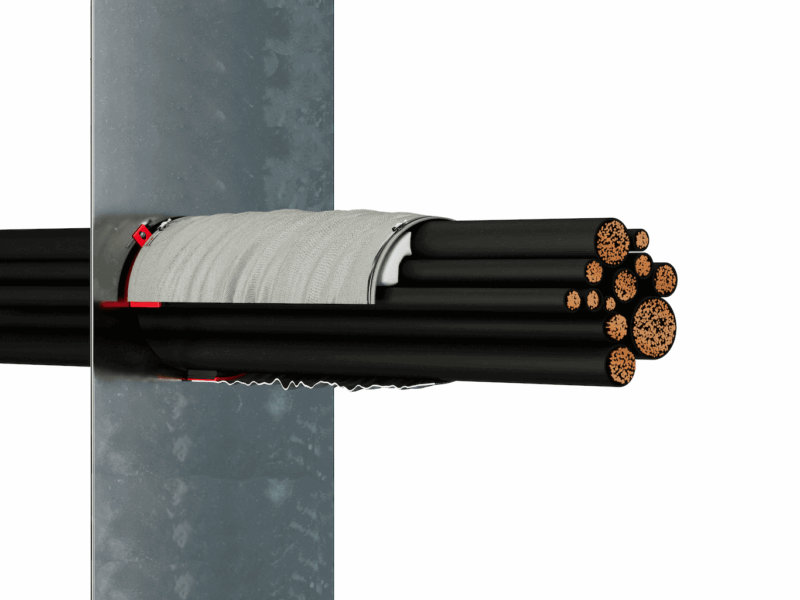

A marine penetration system for routing cables through a deck or bulkhead opening. The package selection depends on the opening size and project requirements.
- For marine cable penetrations
- Includes transit and welding-washer package rows
- Package article numbers identify the requested configuration
Performance and specifications
- Cable Tie Material
- Stainless Steel
- Cable Tie Max. Tightening Torque
- 5Nm
- Cable Tie Size for ET160
- 750x9mm
- Cable Tie Size for ET80
- 450x9mm
- Cable Tie Socket Size
- Hex 7mm/Ph2
- Graphite Collar Activation Temperature
- 120-150°C
- Graphite Collar Color
- Red
- Graphite Collar Material Collar
- Galvanized Steel
- Graphite Collar Material Graphite
- Intumescent graphite
- Graphite Collar Max Hole Size ET160
- Ø 185mm
- Graphite Collar Max Hole Size ET80
- Ø 90mm
- Marine Blanket Classification Temperature
- 1050°C
- Marine Blanket Color
- Off-white
- Marine Blanket Density
- 96kg/m³
- Marine Blanket Material
- Calcium silicate
- Screw Dimension
- 5,5x35mm
- Screw Material
- Hardened Carbon Steel SAE 1018
- Screw Max. Drilling Capacity
- 12mm
- Screw Max. Screw Speed
- 1500r/min
- Screw Max. Tightening Torque
- 12Nm
- Screw Number of Screws Installed
- 4pcs
- Screw Socket Size
- Hex 8mm
- Screw Surface Treatment
- C3 According to EN ISO 9223
- Wrap Installation Length over Cable
- Min.100 mm
- Wrap Working Temperature
- Up to 1000°C for 1h
Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.
Article numbers and specifications
Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.
EASY TRANSIT
Art. No. 100948
- Contents
- 160 mm
WELDING WASHER - ET80/160
Art. No. 100949
Quote this article numberReference documents
These links open current files hosted by FireSeal. Check the source document revision before use.
- Easy Transit Installation Guide & Retrofit (installation instruction)
- MED DoC MEDB00008WB Rev.2 (manufacturer document)
- MED DoC MEDB0000B5D Rev.1 (manufacturer document)
- Marine Blanket SDS ES (manufacturer document)
- Easy Transit SDS DK (manufacturer document)
- Easy Transit SDS EN (manufacturer document)
- Easy Transit SDS NO (manufacturer document)
- Easy Transit SDS SE (manufacturer document)
- Easy Transit Wrap SDS DK (manufacturer document)
- Easy Transit Wrap SDS EN (manufacturer document)
- Easy Transit Wrap SDS NO (manufacturer document)
- Easy Transit Wrap SDS SE (manufacturer document)
- Marine Blanket SDS DE (manufacturer document)
- Marine Blanket SDS DK (manufacturer document)
- Marine Blanket SDS EN (manufacturer document)
- Marine Blanket SDS NO (manufacturer document)
- Easy Transit TDS (manufacturer document)
- Marine Blanket TDS (manufacturer document)
Source-listed certificates
Certificate rows reproduce factual source fields. They do not confirm applicability to a specific assembly. Open the source record and ask AMFSS to check the application.
| Authority | Rating | Division / structure | Cable | Pipe | Type approval | Status |
|---|---|---|---|---|---|---|
| 24-00T2521240-PDA A0/A60 | — | — | — | — | — | No renewal status stated |
| LR2521598SF A60 | — | — | — | — | — | No renewal status stated |
| MEDB0000B5D A0/A60 | — | — | — | — | — | No renewal status stated |
| MEDB00008WB A0/A60 | — | — | — | — | — | No renewal status stated |
| MED-D MEDD00001JN | — | — | — | — | — | No renewal status stated |
Source checked 2026-08-08: official FireSeal product page.
About FireSeal marine systems
FireSeal marine systems cover cable, metal-pipe, plastic-pipe, and joint sealing applications for vessels and offshore structures. The exact system, package article, and approval scope are confirmed during quote review.
Typical applications:
- Marine cable penetrations
- Metal and plastic pipe penetrations
- Deck and bulkhead openings
- New installations and retrofit work
